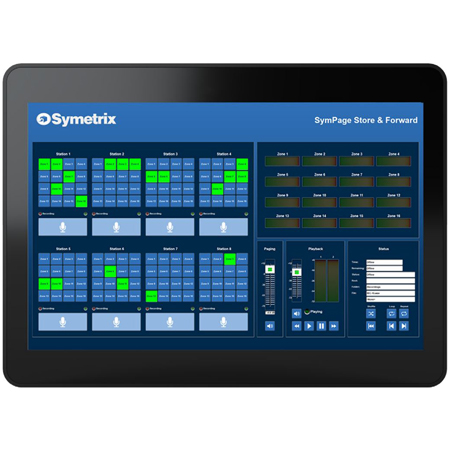

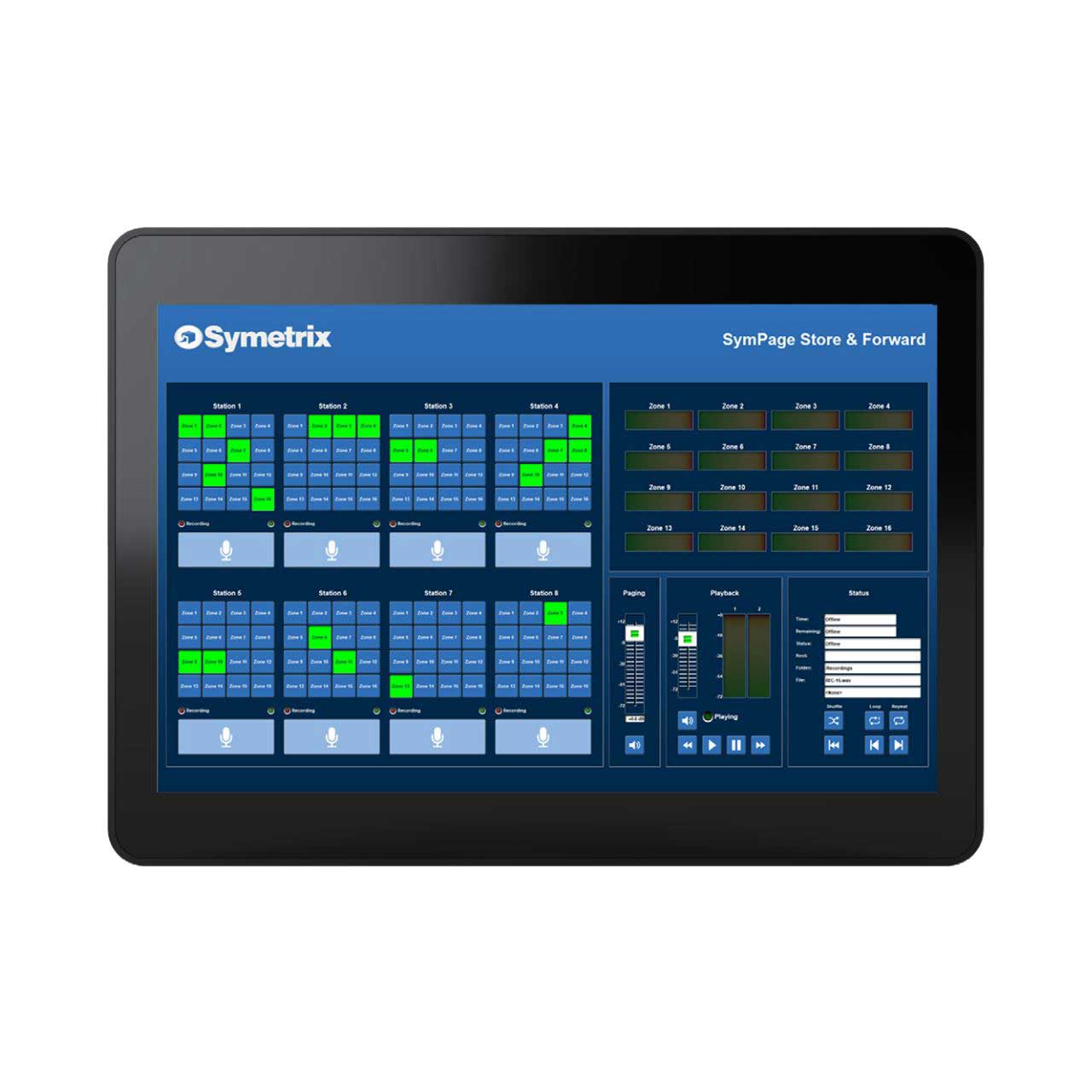

Symetrix T-10 GLASS 10in Glass System Control Touchscreen for Houses of Worship/Conference Rooms/Auditoriums/Hospitality

80-0190 - Overview

• Features:

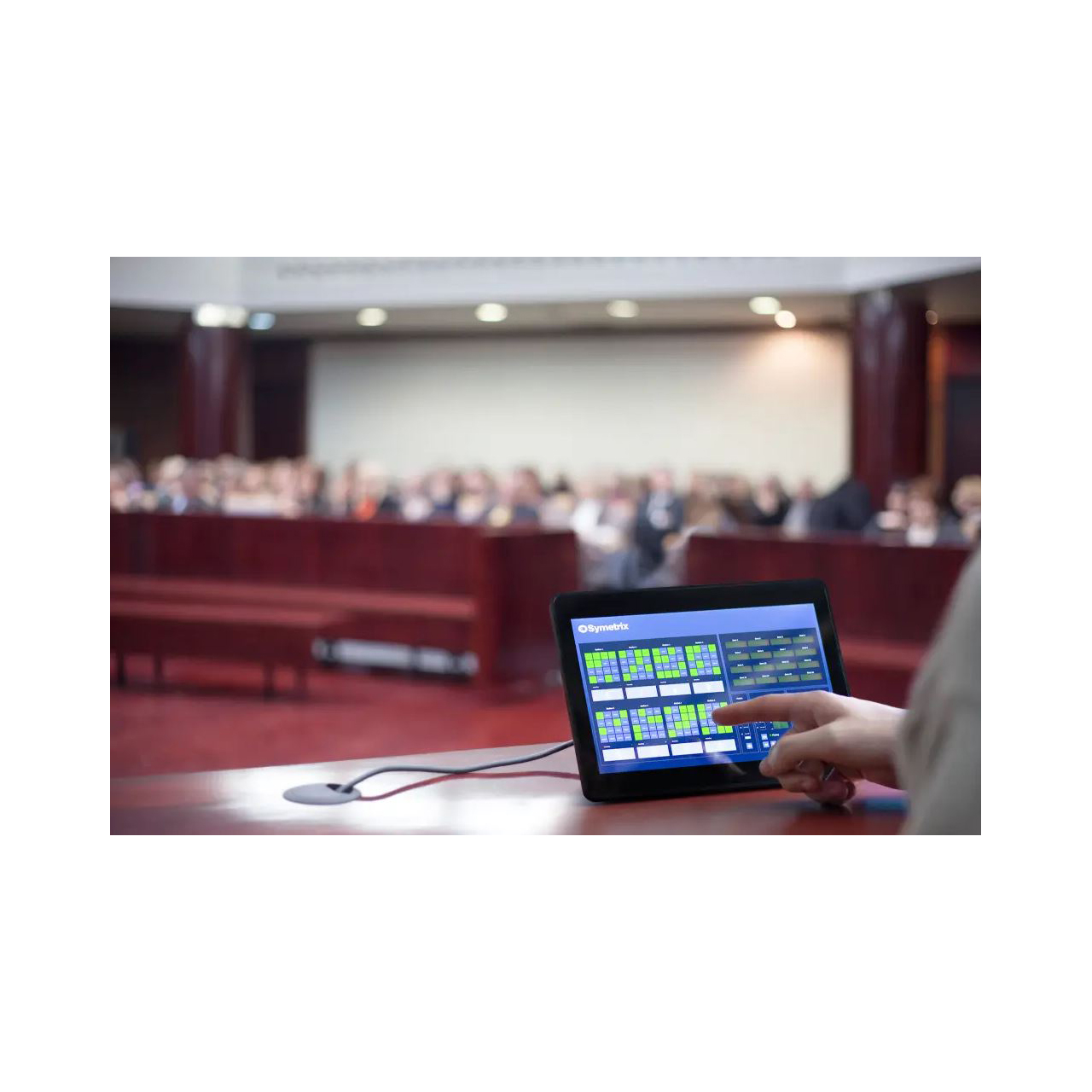

  • User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality - anywhere users need to control audio sources and levels.
  • SymVue interface. Symetrix touchscreens leverage the power of Symetrix's award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.
  • Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.
  • Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers' choice of four different configurations for each export.
  • Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.
  • Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
    Note: T-10 Glass requires Composer 8.3 or later for full functionality.


• Specifications:

  • Form Factor: Double-gang US or Euro wall mount

    Display
  • Type: Capacitive touch full color TFT LCD
  • Viewable Area: 8.54 in x 5.33 in, 10.1 in diagonal
  • Resolution: 1920 x 1200 pixels
  • Aspect Ratio: 16:10
  • Brightness: 850 nits
  • Contrast Ratio: 900:1
  • Color: 16.7M
  • Orientation: Landscape (horizontal) or portrait (vertical)
  • Viewing Angle: ±85° horizontal, ±85° vertical
  • Multitouch: 10 fingers
  • Compatibility: Symetrix Composer®-managed products
  • Ethernet Cable: Standard CAT5e or CAT6. Maximum device to device length: 100 meters
  • Maximum Devices Per System: 128 units per Site File
  • Compliance: Safety: EMC International & EMC US/CANADA. Emissions: CE, UKCA, EAC, FCC Part 15. RoHS (Health/Environmental)

    Mechanical Data
  • Dimensions: WHD: 9.70 in x 7.07 in x 2.33 in
  • T-10 Glass Shipping Weight: 4 lbs
  • T-10 Glass Weight: 2.3 lbs
  • T-10 Mounted with Bracket Weight: 2.5 lbs

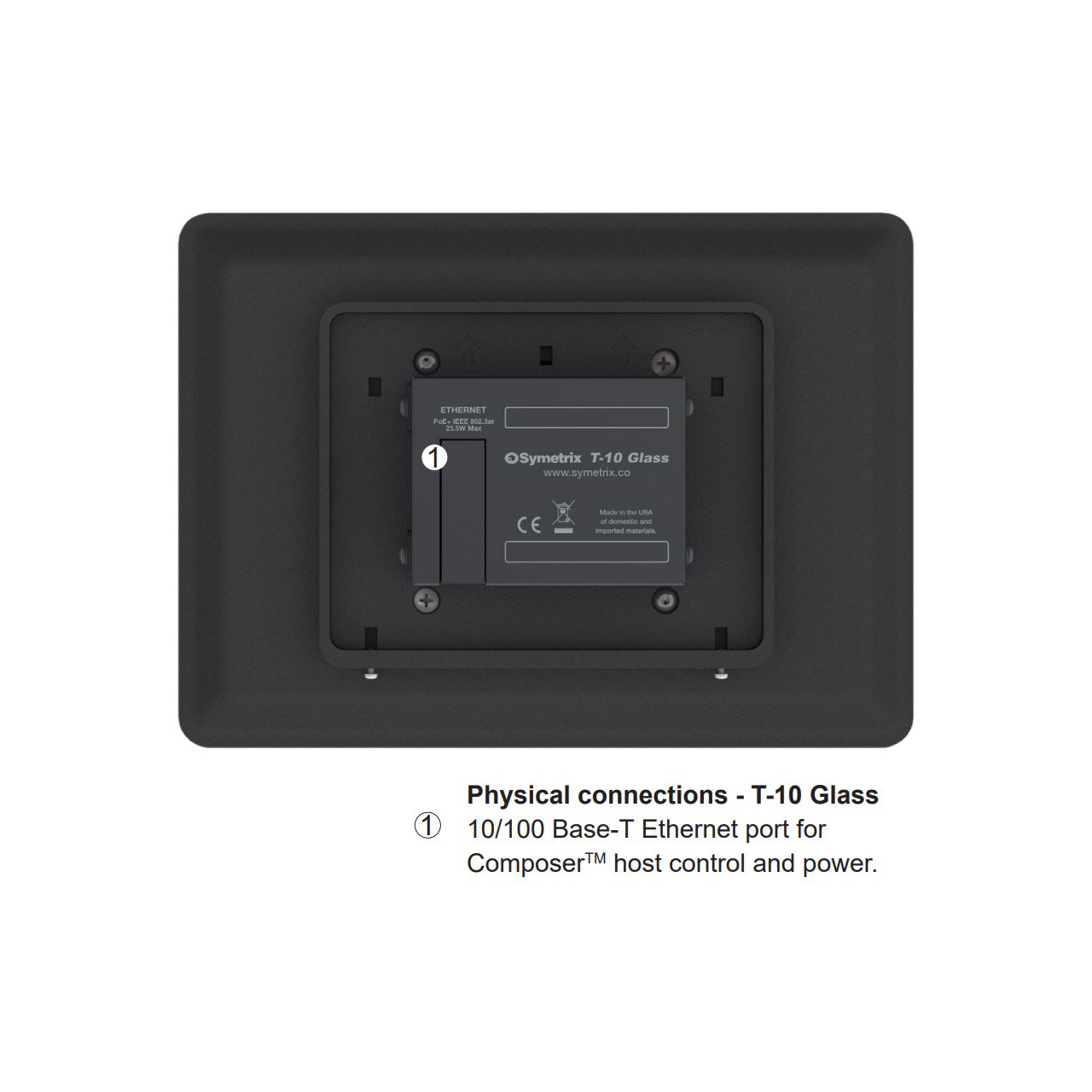

  • Space Required: Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
  • Power: Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max
  • Environmental: Ambient Operating Temperature: 0° 40° C (32° 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light.
  • Box Contents: T-10 Glass touchscreen. Universal flush mount bracket. Two zinc-plated steel M3.5x0.6x25mm Phillips head machine screws. Four zinc-plated steel 1.25" 6-32 Phillips head machine screws. Quick Start Guide
  • Optional Accessories: Tabletop Stand


• Item Includes:

  • 1x T-10 Glass touchscreen
  • 1x Universal flush mount bracket
  • 2x zinc-plated steel M3.5x0.6x25mm
  • 1x Phillips head machine screws
  • 4x zinc-plated steel 1.25" 6-32 Phillips head machine screws
  • 2x painted black steel 5/16" 2-56 Torx T8 machine screws
  • 1x Torx T8 screwdriver
  • 1x Quick Start Guide


• Warranty:

  • 5 years
