Turtle AV TAV-CHAZYWPUS-TX CHAZY 4K HDMI 2.0b Dante AV-A and JPEG 2000 Wall Plate Transmitter - TAA Compliant

ITEM #: TAV-CHAZYWPUSTX MFG #: TAVCHAZYWPUSTX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVCHAZYWPUSTX - Overview

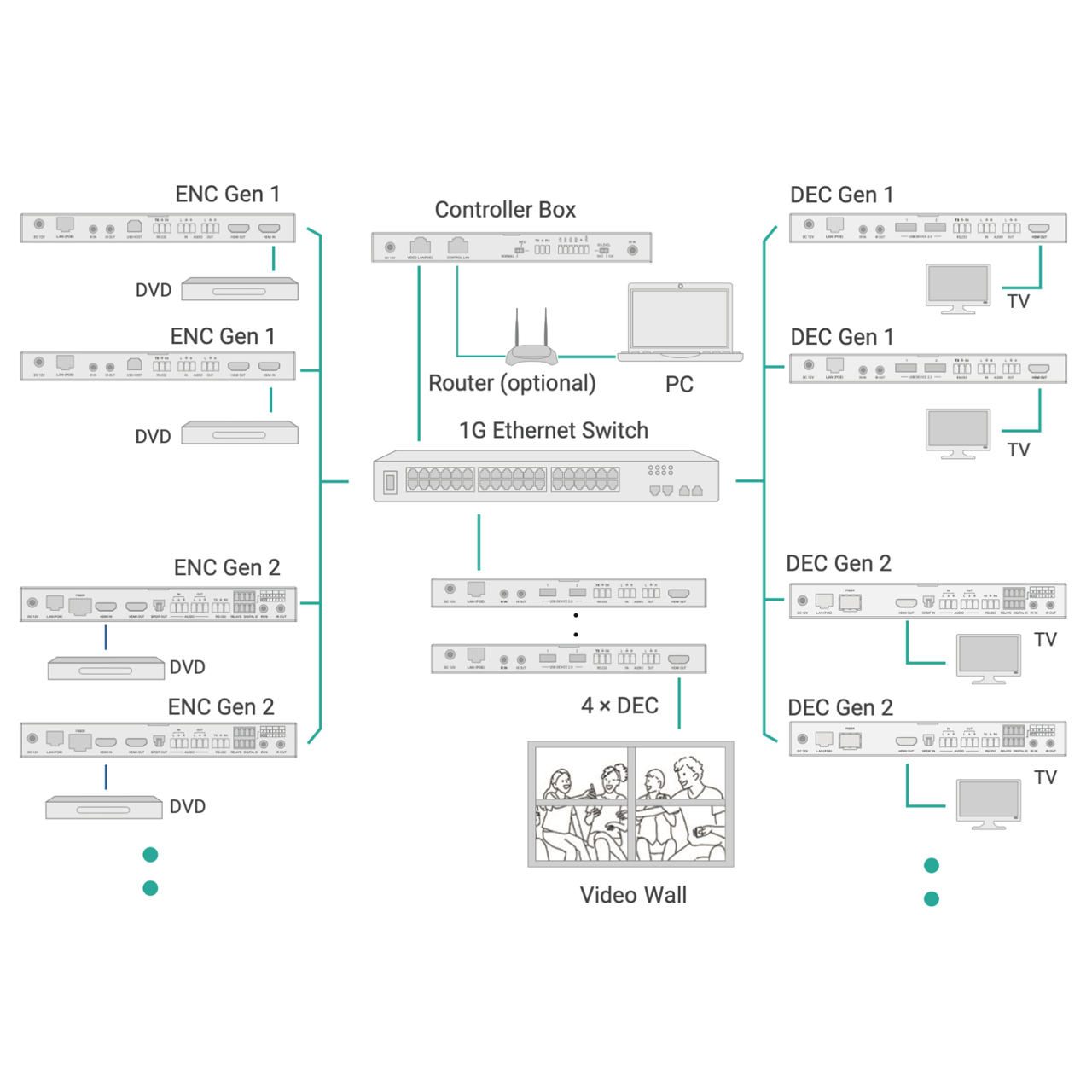

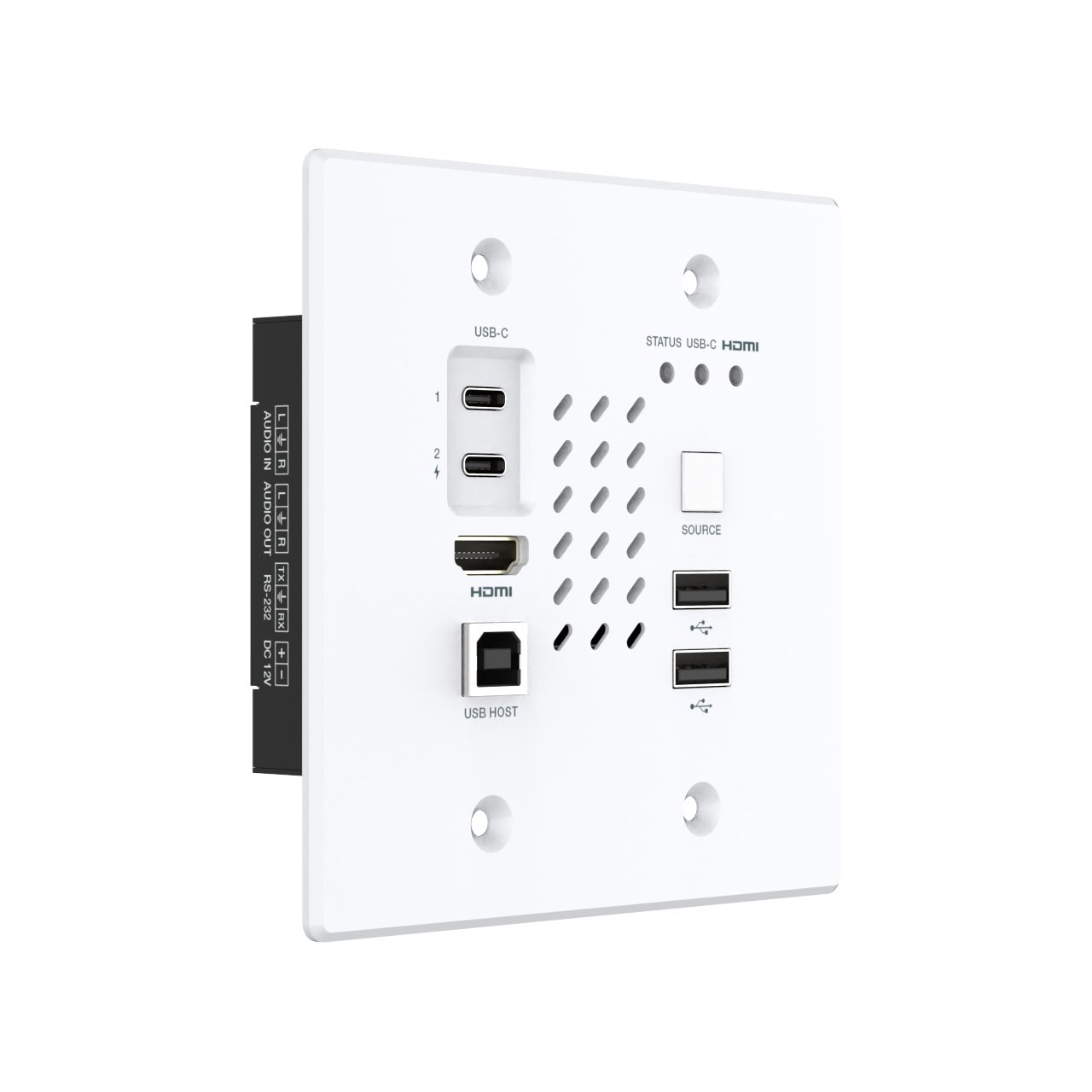

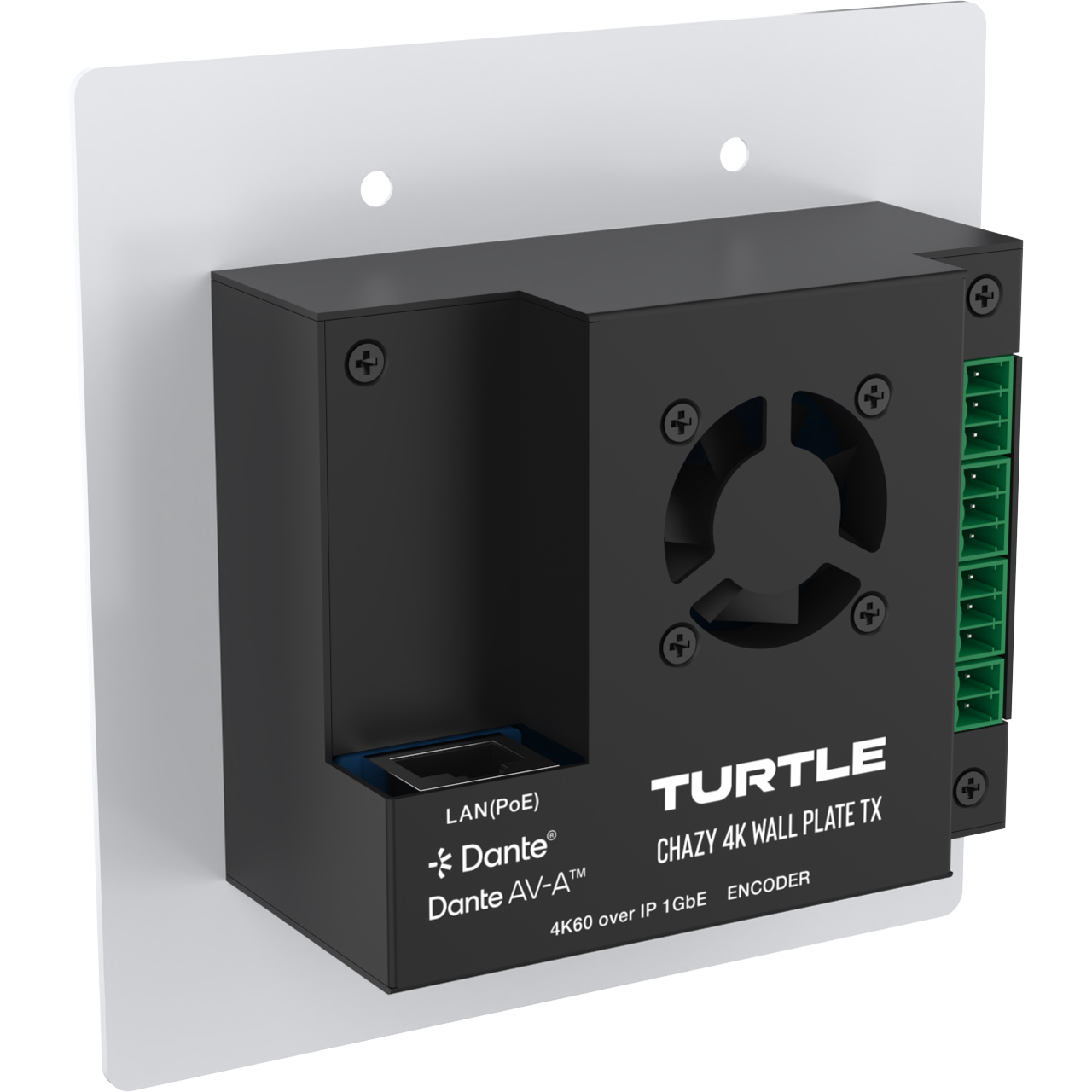

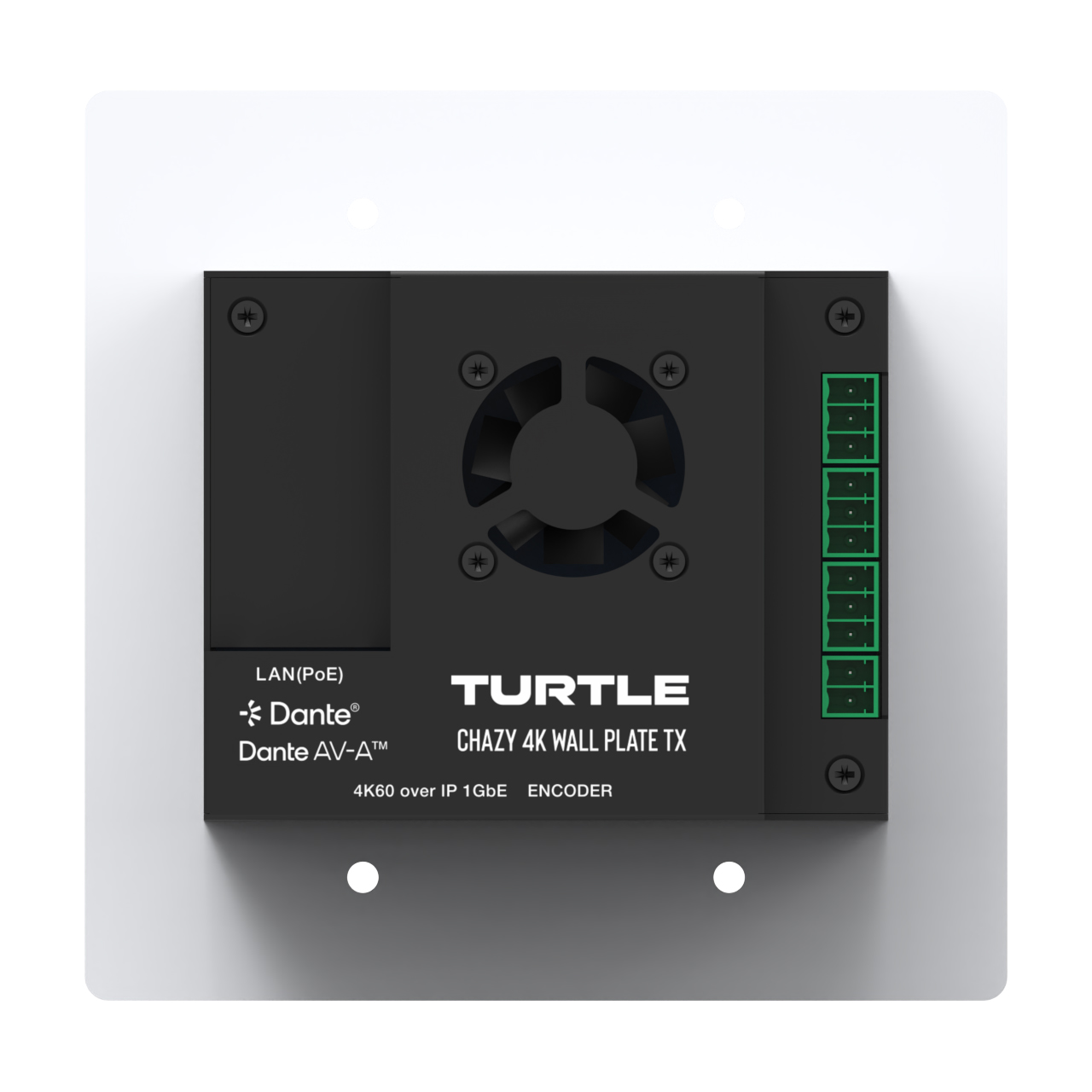

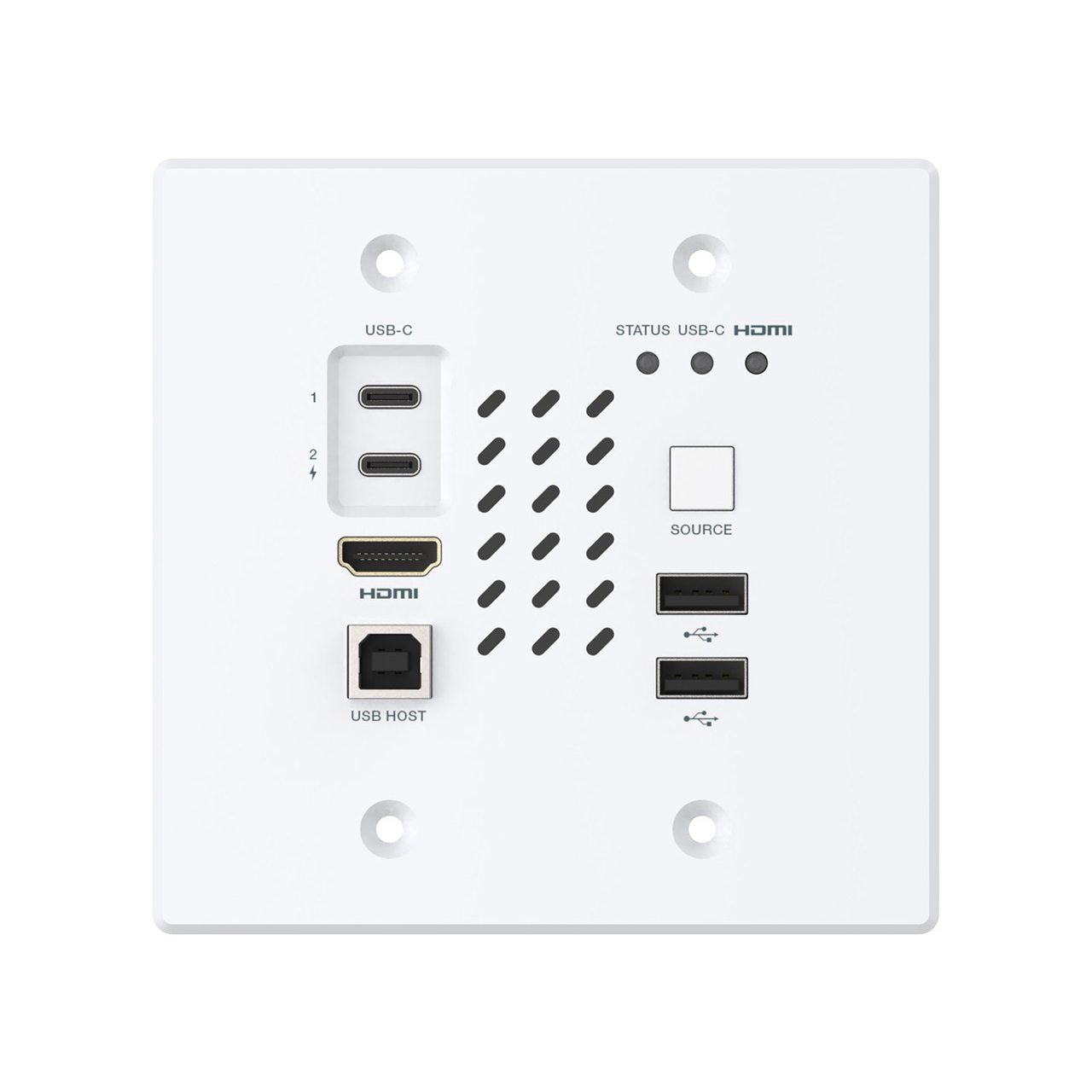

The Turtle AV Chazy 4K Wallplate Tx is a Dante AV-A and JPEG 2000 encoder, allowing seamless transmission of 2160 60Hz 4:4:4 HDR video from laptops or tablets via USB-C, and from video sources via the HDMI 2.0b input. Fitting into a 2-gang Decora-style wallplate, it’s perfect for modern boardrooms, lecterns, and meeting spaces. The Dante AV-A license is included and ready to go, which also has 2x2 Dante audio license. Chazy 4K Wallplate Tx is PoE powered and supports a wide range of audio formats including 7.1 Dolby Atomos, and features advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, and true multicast support. TAA compliant, Chazy 4K USB-C Tx also comes with a 5-year warranty.

  • Features:

    • 2-Gang Decora-style wallplate
    • Dante AV-A license included
    • PoE powered
    • USB Power Passthrough
    • TAA Compliant

  • Specifications:

      Technical
    • HDMI: 2.0b compliant
    • HDCP: 2.2 compliant
    • Video Bandwidth: 18Gbps
    • Compression Codec: JPEG 2000 or Dante AV-A
    • Network Bandwidth: 1Gbps
    • USB Bandwidth: 480Mbps
    • Color Depth: Input: 8/10/12-bit; Output: 8-bit
    • Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
    • HDMI Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master
    • IR Level: Default 12V, Optional 5V
    • IR Frequence: Wideband 20K - 60KHz
    • ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

      Connections
    • Input:
      - 1x HDMI IN [HDMI Type A, 19-pin female]
      - 2x USB-C IN [USB Type C, 24-pin female]
      - 1x AUDIO IN [3pin-3.5mm Phoenix connector]
    • Output: 1x AUDIO OUT [3pin-3.5mm Phoenix connector
    • Control:
      - 1x LAN (PoE IEEE 802.3af) RJ45 jack
      - 1x RS-232 (3-pin 3.81mm Phoenix connector)
      - 1x USB 2.0 HOST (Type B, 4-pin female)

      Mechanical
    • Housing: Metal Enclosure
    • Color: White
    • Dimensions: 2-Gang, Decora-Style wallplate
    • Weight: 0.77lbs
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 12V/2.5A
      - PoE IEEE 802.3af
    • Power Consumption: 7.08w
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle AV TAV-CHAZYWPUS-TX CHAZY 4K Wall Plate Tx

  • Warranty:

    • 5 Year Limited Warranty
