Turtle TAV-DARWIN-CTL DARWIN CONTROL Central Management Control Box - TAA Compliant

ITEM #: TAV-DARWINCTL MFG #: TAVDARWINCTL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVDARWINCTL - Overview

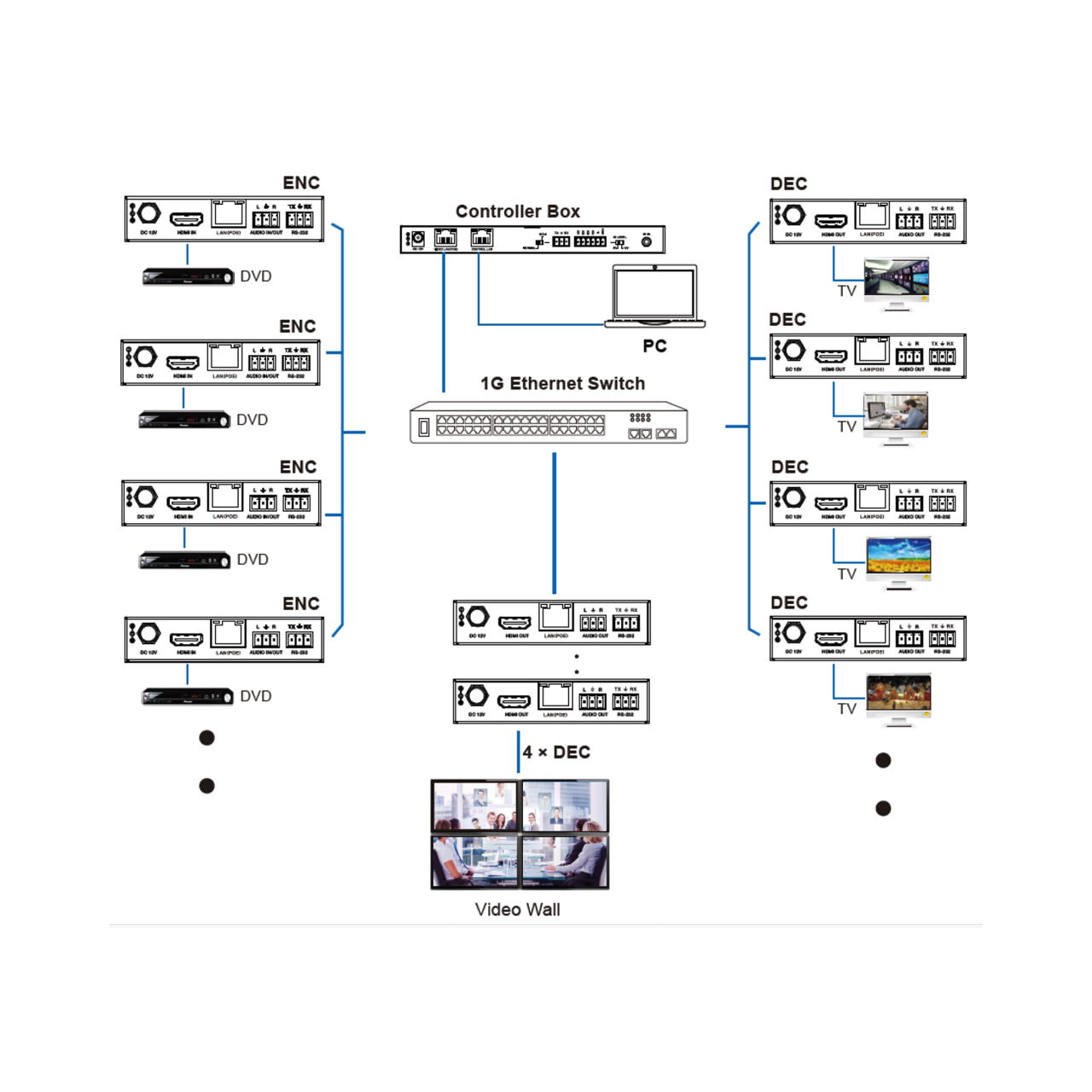

The Turtle AV Darwin Control box simplifies management of the Darwin HD series with a powerful built-in WebGUI and centralized control over LAN. It features drag-and-drop routing, real-time video previews, advanced video wall management up to 9x9, all accessible through an intuitive browser interface.

With HTTPS, SSH security, AES256 video encryption, and access management, it ensures your network is protected. Equipped with dual 1G network ports (PoE), dual RS-232 ports, and IR signal support, it integrates seamlessly into professional AV setups. API compatibility with Q-Sys, Crestron, and more adds powerful automation and control options. Darwin Control is Darwin HD Rx is fully TAA compliant and comes with a 5-year warranty.

  • Features:

    • Enables centralized WebGUI management
    • API support
    • Robust security with AES256 encryption
    • Built tough with all metal chassis
    • TAA Compliant

  • Specifications:

      Technical
    • Network Bandwidth: 100Mbps

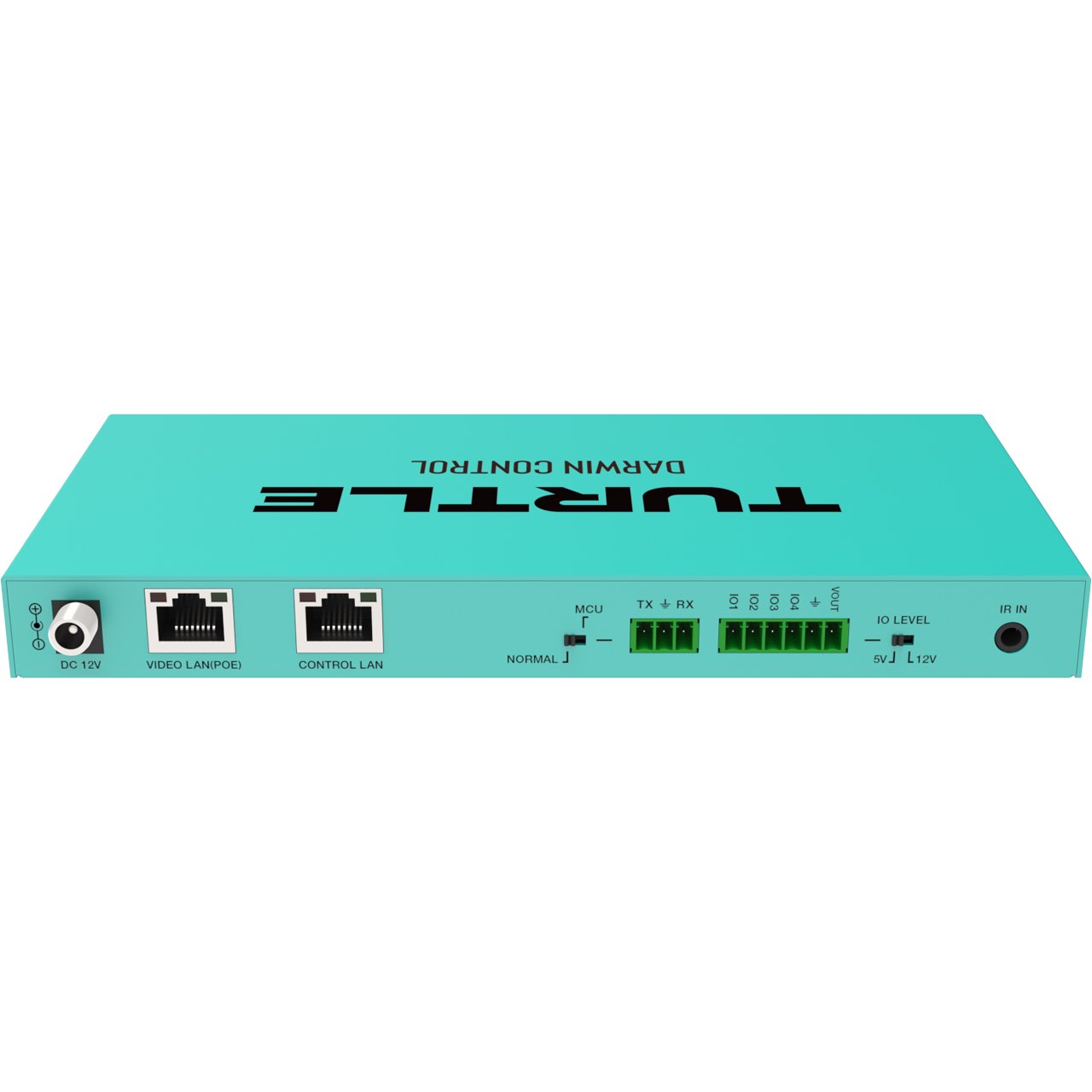

    • Control Ports:
      - 2x 1G LAN [RJ45 connector] [VIDEO LAN support POE]
      - 1x IR IN [3.5mm audio jack, 12V level]
      - 1x IR OUT [3.5mm audio jack]
      - 1x DIGITAL I/O [6-pin 3.81mm phoenix connector]
      - 2x RS-232 [3-pin 3.81mm phoenix connector]
      - 1x UPDATE [Micro USB, 5-pin female]
    • ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

      Mechanical
    • Housing: Metal enclosure
    • Color: Turtle Aqua
    • Dimensions: 8.03" x 3.87" x 0.84" (204mm x 98.5mm x 21.5mm)
    • Weight: 1.11lbs (508g)
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 12V/2.5A
      - PoE IEEE 802.3af
    • Power Consumption: 2W
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle TAV-DARWIN-CTL DARWIN CONTROL
    • 1x Power Supply

  • Warranty:

    • 5 Year Limited Warranty
