Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

ITEM #: TCM-DR-05XP MFG #: DR-05XP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$149.00

Our Price:

$119.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DR-05XP - Overview

Pro-Quality Portable Recording, Simplified

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you'll never need to worry about setting input levels.

Built-In Condenser Microphones
The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

Simplicity In Your Palm

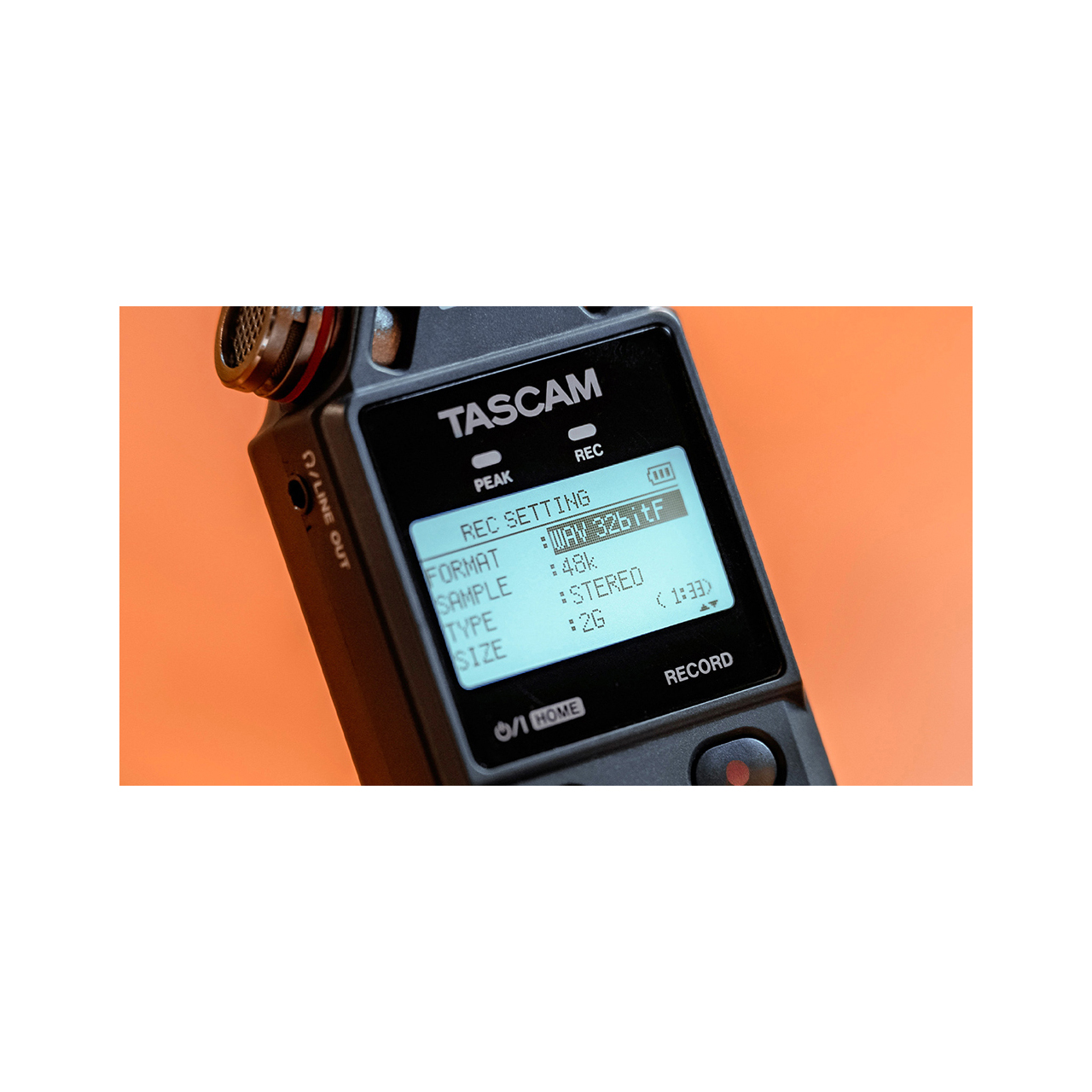

With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio

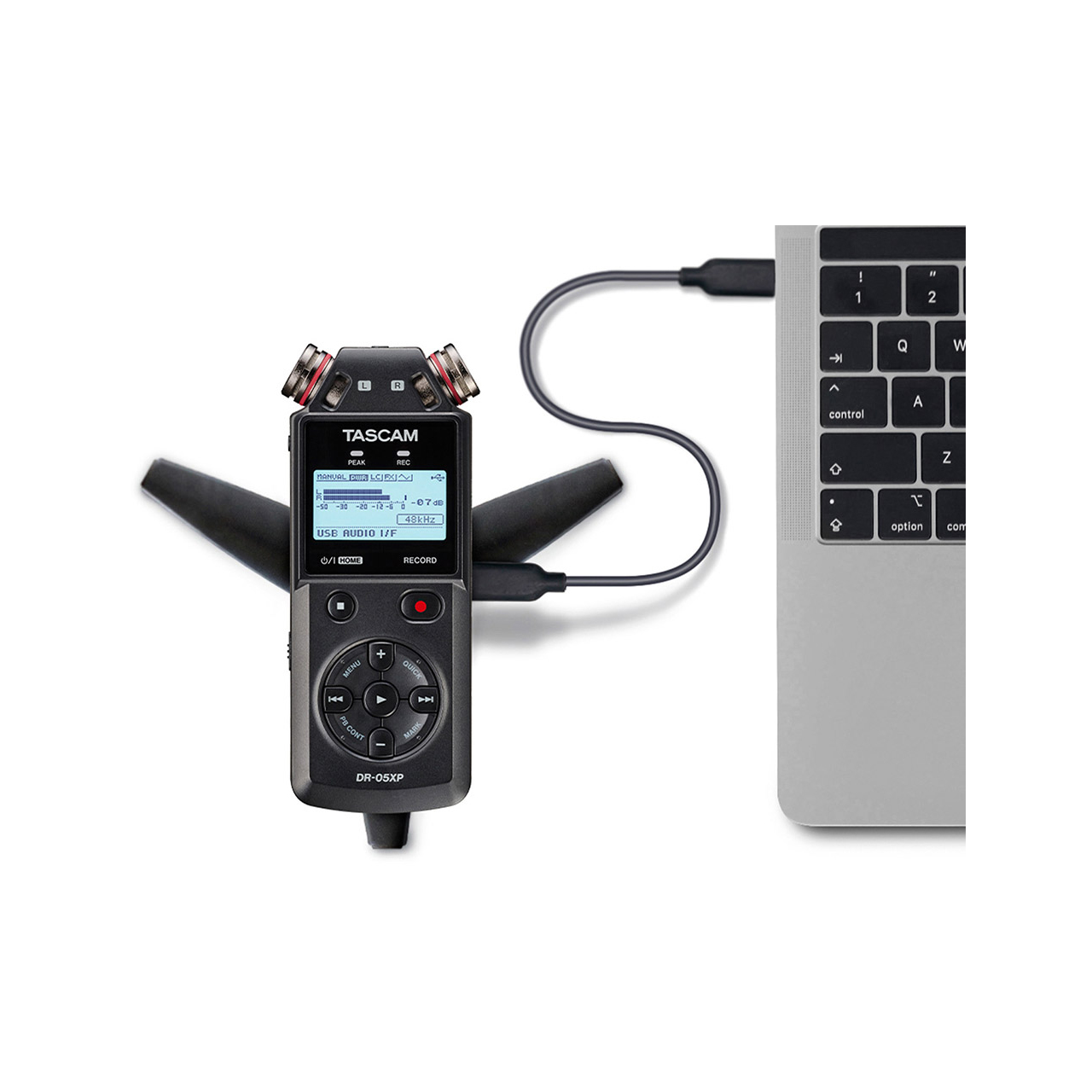

The DR-05XP isn't only a powerful portable recorder — it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians
The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location

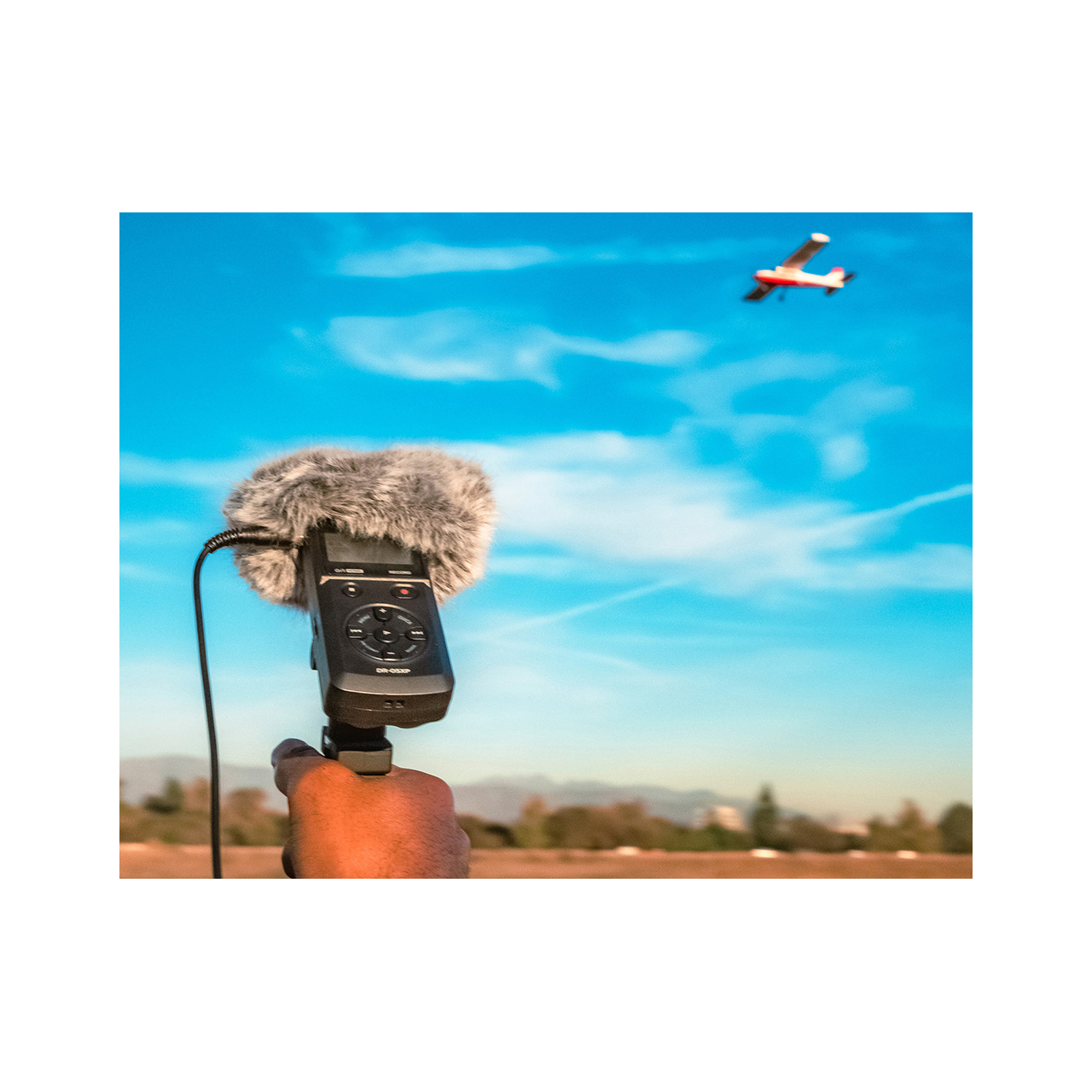

With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Please Note! The following items are necessary to record and play files with this unit (sold separately):

  • A microSD card.
  • 2 AA batteries (Alkaline or Ni-MH)

Also note that this unit can be powered via an optional AC adapter (sold separately) - model number PS-P520U.

  • Features:

    • Long Battery Life: With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.
    • Large Recording Capacity: Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.
    • Sound-Sensitive Auto Recording: Automatically start recording when sound is detected with Auto Recording mode.
    • Ready for DSLR: Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.
    • Built-In Reference Speaker: A built-in monaural speaker allows you to check your recordings without putting on headphones.
    • External Inputs: Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.
    • Built-In Chromatic Tuner: The ideal portable recorder and song sketchpad for musicians.
    • Multiple Language Menu: Allows users to access ten of the most widely used languages (English, French, German, Italian, Spanish, Russian, Portuguese, Japanese, Chinese, and Korean) to easily navigate the onscreen menus.

  • Specifications:

      Recorder
    • Recording Media/File Systems: microSD cards, microSDHC cards, microSDXC cards (up to 512GB)
    • Recording/Playback Formats:
      - WAV/BWF Sampling Frequency: 44.1kHz/48kHz/96kHz
      - WAV/BWF Quantization Bit Depth: 16-bit/24-bit/32-bit float
      - MP3 Sampling Frequency: 44.1/48kHz
      - MP3 Quantization Bit Depth: 32/64/96/128/192/256/320kbps
    • Maximum Number of Input Channels: 2
    • Maximum Number of Recordable Tracks: 2

      Analog Audio Input/Output Ratings
    • MIC/EXT IN Jack:
      - Connector: 3.5mm stereo mini jack
      - Input Impedance: 18kΩ or more (when plug-in power is turned off); 2kΩ or More (when plug-in power is turned on)
      - Nominal Input Level: - 20dBV
      - Maximum Input Level: -4dBV
    • PHONES/LINE OUT Jack:
      - Connector: 3.5mm stereo mini jack
      - Output Impedance: 12Ω
      - Nominal Output Level: - 14dBV (10kΩ loaded)
      - Maximum Output Level: +2dBV (10kΩ loaded)
      - Maximum Output: 20mW + 20mW (32Ω load)
      - Working Impedance: 16Ω - 250Ω
    • Built-In Speaker:
      - Output: 0.3W (monoaural)

      USB
    • Connector: USB Type-C
    • Format:
      - USB 2.0 High Speed Mass Storage Class
      - USB 1.1 Full Speed Audio Class

      USB Audio
    • Sampling Rate: 44.1/48kHz
    • Quantization Bit Depth: 24-bit
    • Number of Inputs: 2 channels (output from this unit)
    • Number of Outputs: 2 channels (input to this unit)

      General
    • Power:
      - 2x AA batteries (alkaline or NiMH)
      - USB bus power (5V/0.5A) from a computer, etc.
      - TASCAM PS-P520U AC adapter (sold separately)
    • Power Consumption: 1.7W (maximum)
    • Weight:
      - 0.278lbs (126g) without batteries
      - 0.384lbs (174g) with batteries
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Dimensions: 2.39" x 5.61" x 1.07" (60.5mm x 142.3mm x 27mm)

  • Item Includes:

    • 1x DR-05XP
    • 1x Safety guide (including warranty)
    • 1x TASCAM ID registration guide

  • Warranty:

    • 1 Year Warranty

  • GTIN:

    4907034135394
