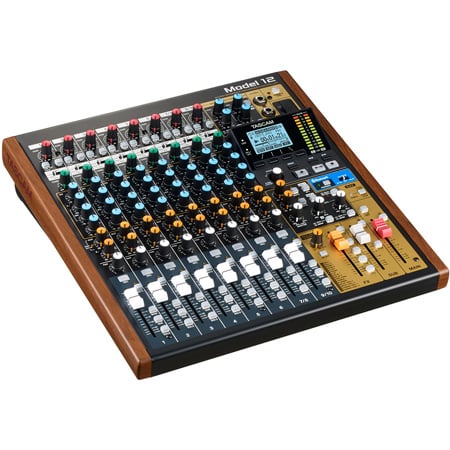

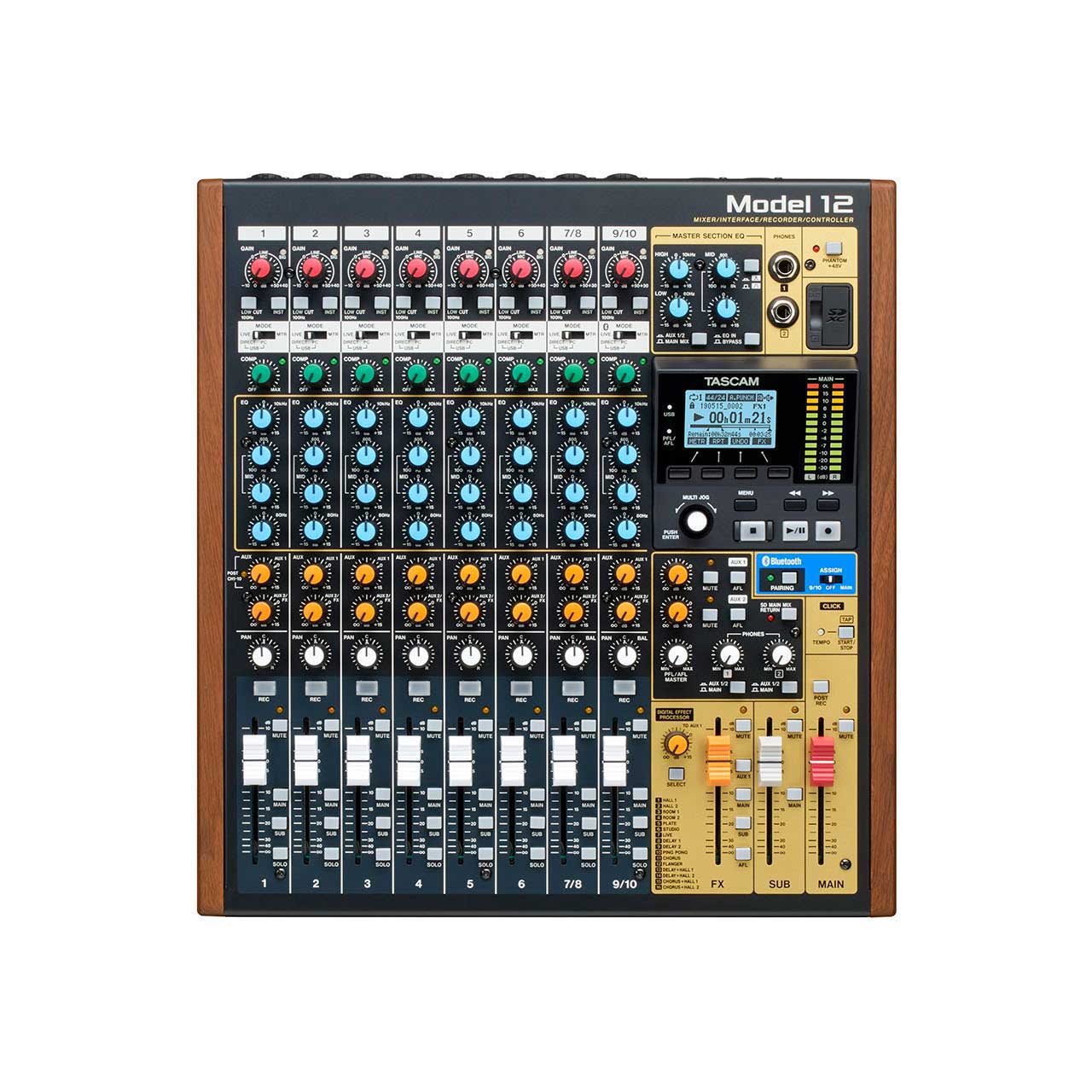

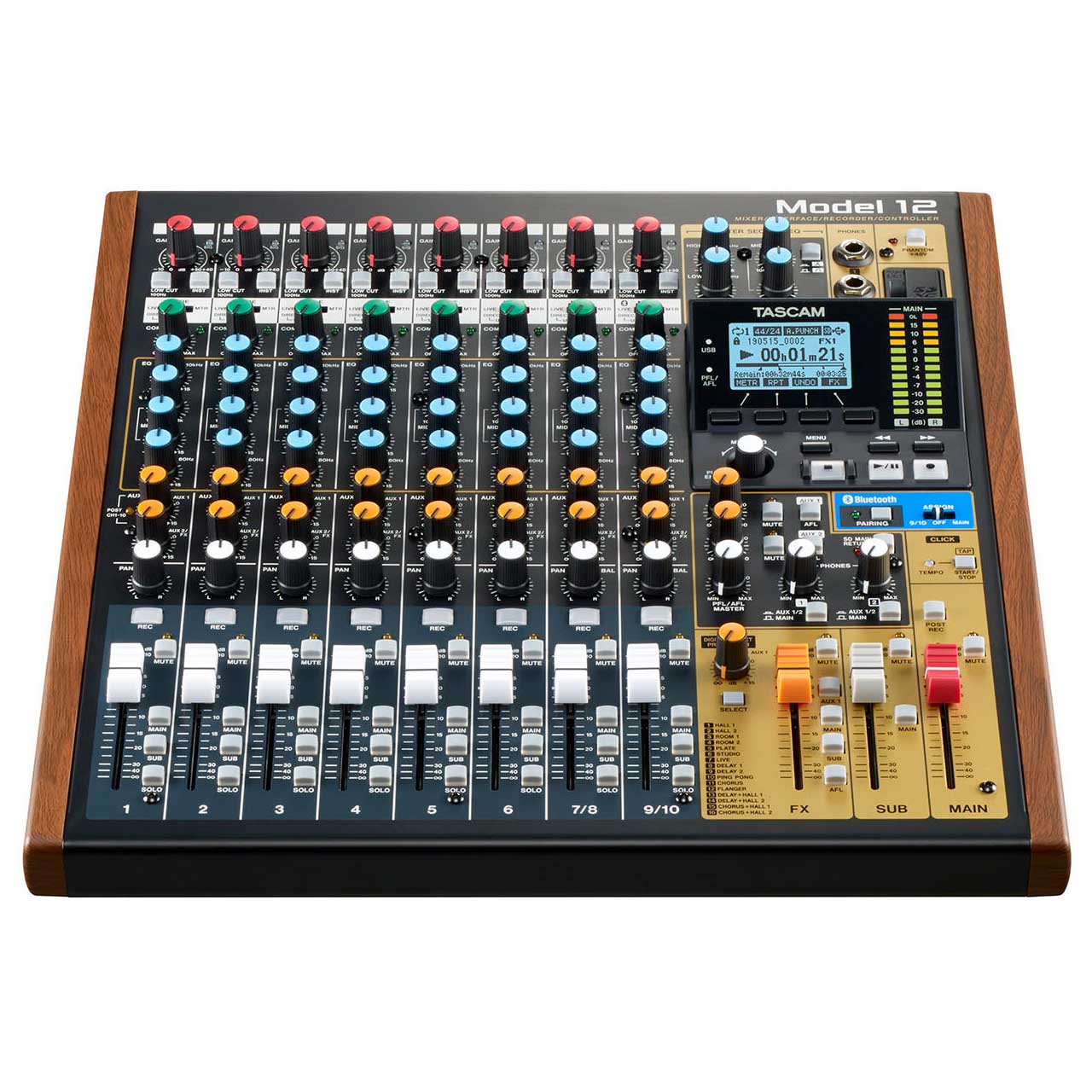

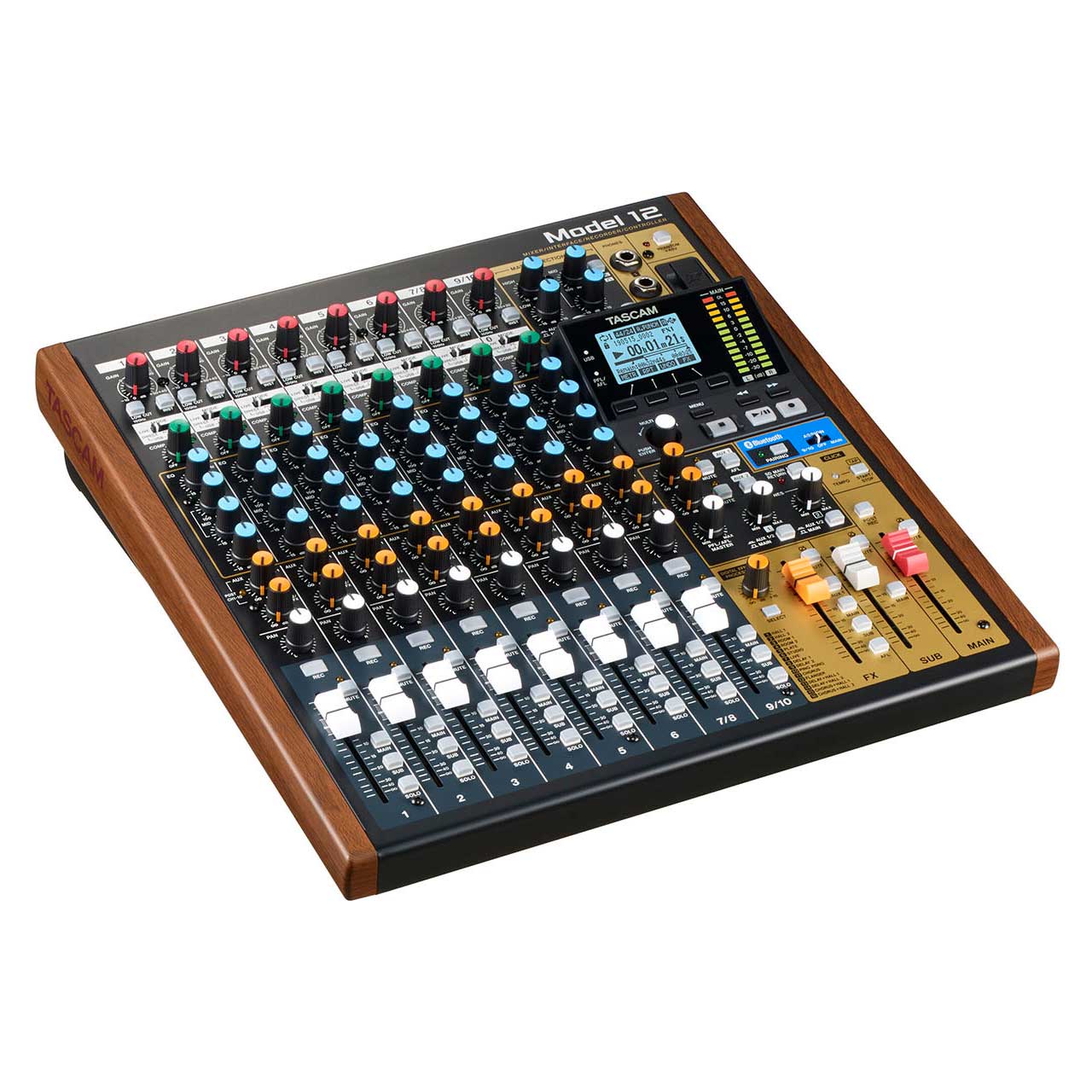

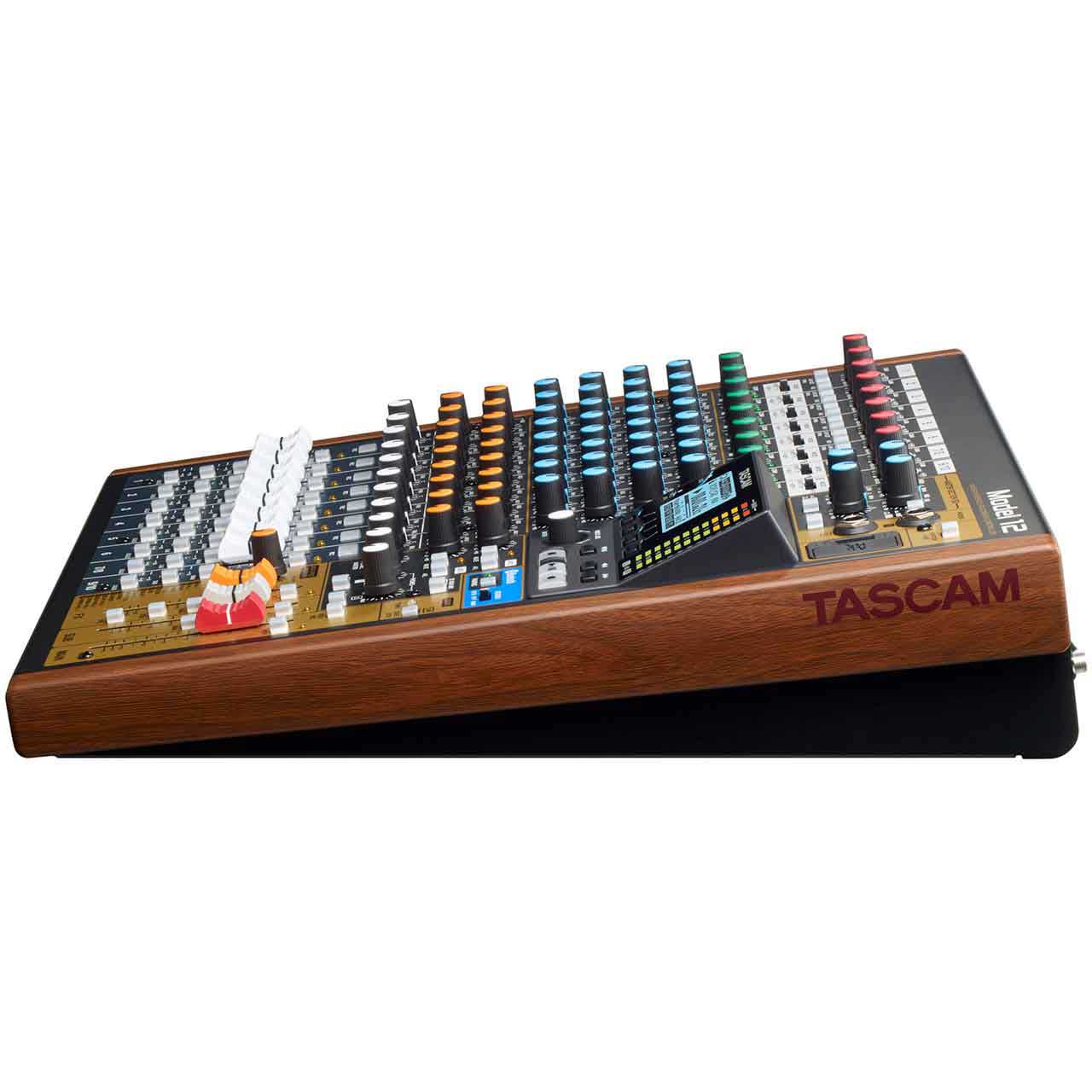

Tascam Model 12 Integrated Production Suite Mixer/Recorder/USB Interface

MODEL 12 - Overview

• Features:

  • 12-Track Multi-Track Recording with 10 Track Playback
  • 12 in / 10 Out USB Audio Interface for DAW Connectivity
  • DAW Control Integration
  • Click Output with TAP TEMPO
  • Onboard MIDI Functionality
  • Podcast Your Latest Music and Live Performances to Your Fan Base
  • All in One Production From Recording to Mastering
  • Pristine Audio Quality
  • Compact Size with Plenty of Inputs
  • Versatile Routing for Perfecting Your Mix
  • Dual Headphone Monitor


• Specifications:

  • Recording section
  • Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB) Class 10 or higher required.
  • File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
  • Recording File Format: WAV(BWF)
  • Playback Format: WAV, BWF
  • Sampling Frequency: 44.1k / 48k Hz
  • Bit Depth: 16 / 24 bit
  • Maximum Recordable Channel Number: 12ch (10ch + 2 stereo mix)

    Audio Inputs
  • MIC IN: CH1 to 6, 7, 9
  • Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
  • Input Level
    Maximum: +10dBu
    Nominal: -8dBu
    Minimum: -58dBu
  • Gain Adjustable Range: 0 to 50dB
  • Input Impedance: 1.8k ohm
  • Phantom Power supply: +48V
  • LINE IN: CH1 to 6, 7/8, 9/10
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
  • Maximum Input Level: +22dBu
  • Nominal Input Level: +4dBu
  • Gain Adjustable Range: -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
  • Input Impedance: 22k ohm
  • INST IN: CH1 to 6, 7, 9
  • Connector: 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
  • Maximum Input Level: +13.8dBV
  • Nominal Input Level: -4.2dBV
  • Gain Adjustable Range: -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7 and 9)
  • Input Impedance: 1M ohm
  • INSERT: CH 1 and 2
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
  • Return (Ring)
    Maximum Input Level: +18dBu
    Nominal Input Level: 0dBu
    Input Impedance: 5k ohm
  • Send (Tip)
    Maximum Output Level: +18dBu
    Nominal Output Level: 0dBu
    Output Impedance: 100 ohm
  • MUSIC/TALK: CH 9/10
  • Connector: 1/8" (3.5mm) TRRS jack (for Smartphone, Unbalanced)
  • Maximum Input Level: +8dBV
  • Nominal Input Level: -10dBV
  • Input Impedance: 10k ohm

    Main Output
  • Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
  • Maximum Output Level: +22dBu
  • Nominal Output Level: +4dBu
  • Output Impedance: 200 ohm

    SUB OUT, AUX OUT
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
  • Maximum Output Level: +16dBu
  • Nominal Output Level: -2dBu
  • Output Impedance: 200 ohm
  • PHONES OUT: PHONES 1 and 2
  • Connector: 1/4" (6.3mm) Stereo Phone jack
  • Maximum Output Level: 45mW + 45mW (32 ohm loaded)
  • FOOTSWITCH: Compatible with TASCAM RC-1F Foot Switch
  • Connector: 1/4" (6.3mm) TRS Phone jack
  • CLICK: Metronome click
  • Connector: 1/4" (6.3mm) TRS Phone jack
  • USB Audio: for connection with PC
  • Connector: USB Type-C
  • Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
  • Sampling Rate: 44.1k / 48k Hz
  • Bit Depth: 16 / 24 bit
  • Maximum INPUT: 12ch
  • Maximum OUTPUT: 10ch
  • Bluetooth®: to MAIN or CH 9/10
  • Version: 5.0
  • Output Class: Class 2 (Transmission range: approx. 33 ft. / 10 m) * Transmission range may vary, depending on surroundings.
  • Supported Profile: A2DP
  • Supported A2DP Codecs: SBC, AAC
  • A2DP Content Protection: SCMS-T

    Channel EQ
  • Low-Cut: 100Hz, -18dB / Octave
  • Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
  • Mid-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, MID Band Q Fix, 0.5
  • Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

    Master section EQ
  • Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
  • MID-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
  • Low-Shelving: +15dB / -15dB, Cut off frequency = 60Hz
  • Internal Effects: Type: HALL 1, HALL 2, ROOM 1, ROOM 2, PLATE, STUDIO, LIVE, DELAY 1, DELAY 2, PING PONG, CHORUS, FLANGER, DELAY + HALL 1, DELAY + HALL 2, CHORUS + HALL 1, CHORUS + HALL 2 *Fx type and settings can be stored in the library slot
  • Power: AC 100 to 240V, 50/60Hz
  • Power Consumption: 16W
  • Dimensions (WxHxD): 13.5 x 14.2 x 3.9" (343 x 360 x 98.8mm) (including knob height and protrusion)
  • Weight: 9.5Lbs (4.3kg)
  • Operating Temperature: 41° to 95°F (5° to 35°C)


• GTIN:

  0043774034499
