Teradek 15-0025 RT MK3-1 Brushless Lens Motor

ITEM #: TER-15-0025 MFG #: 15-0025

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TER-15-0025

15-0025 - Overview

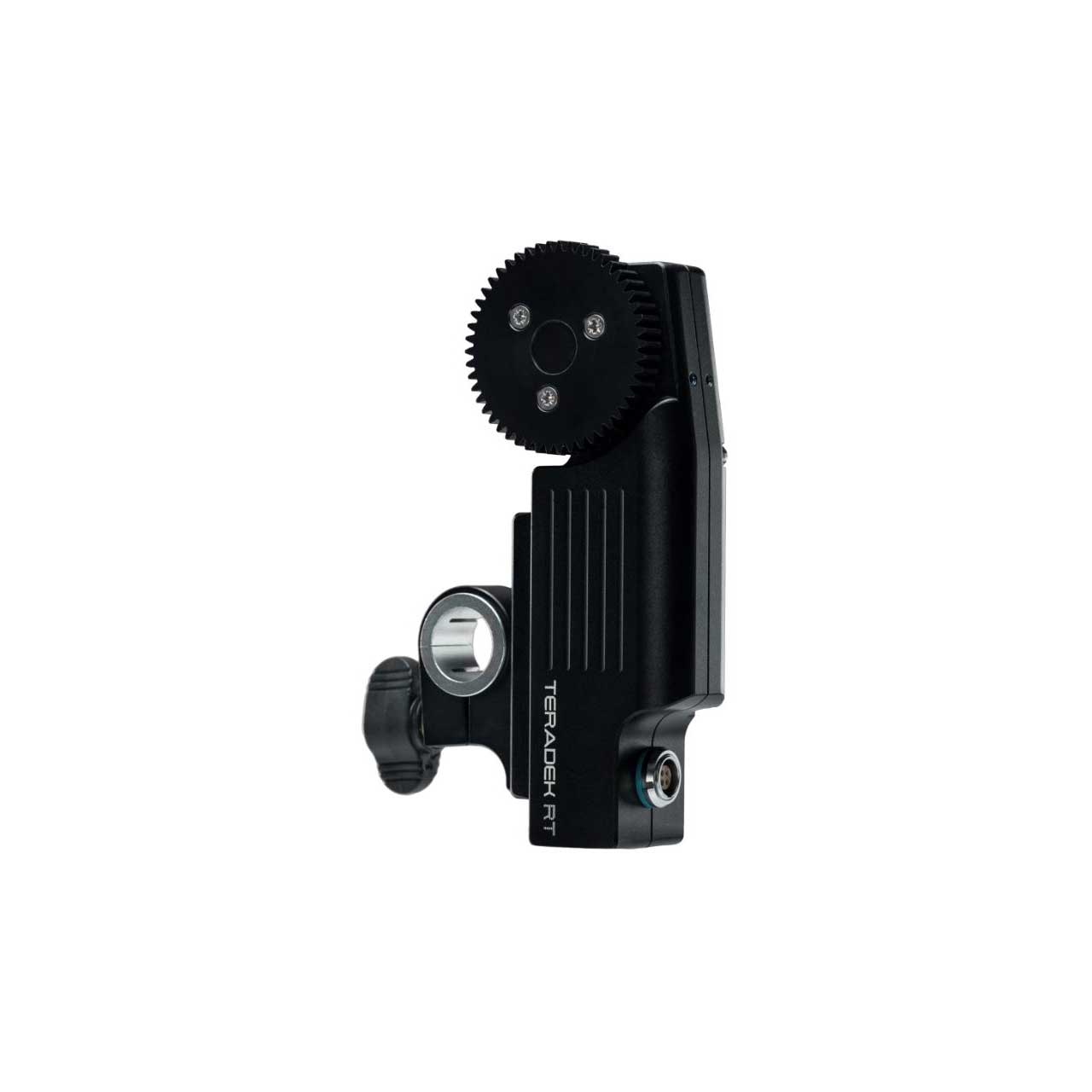

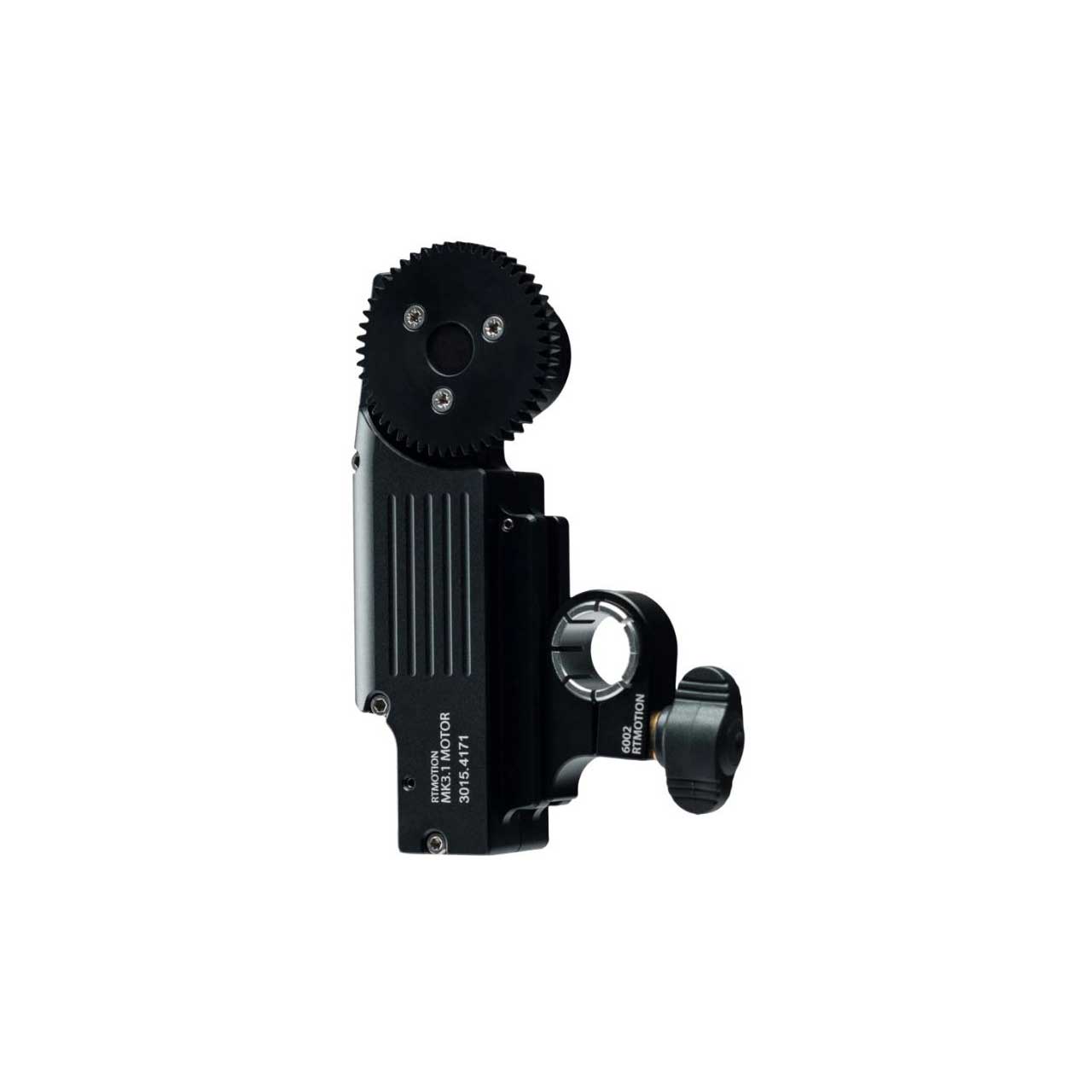

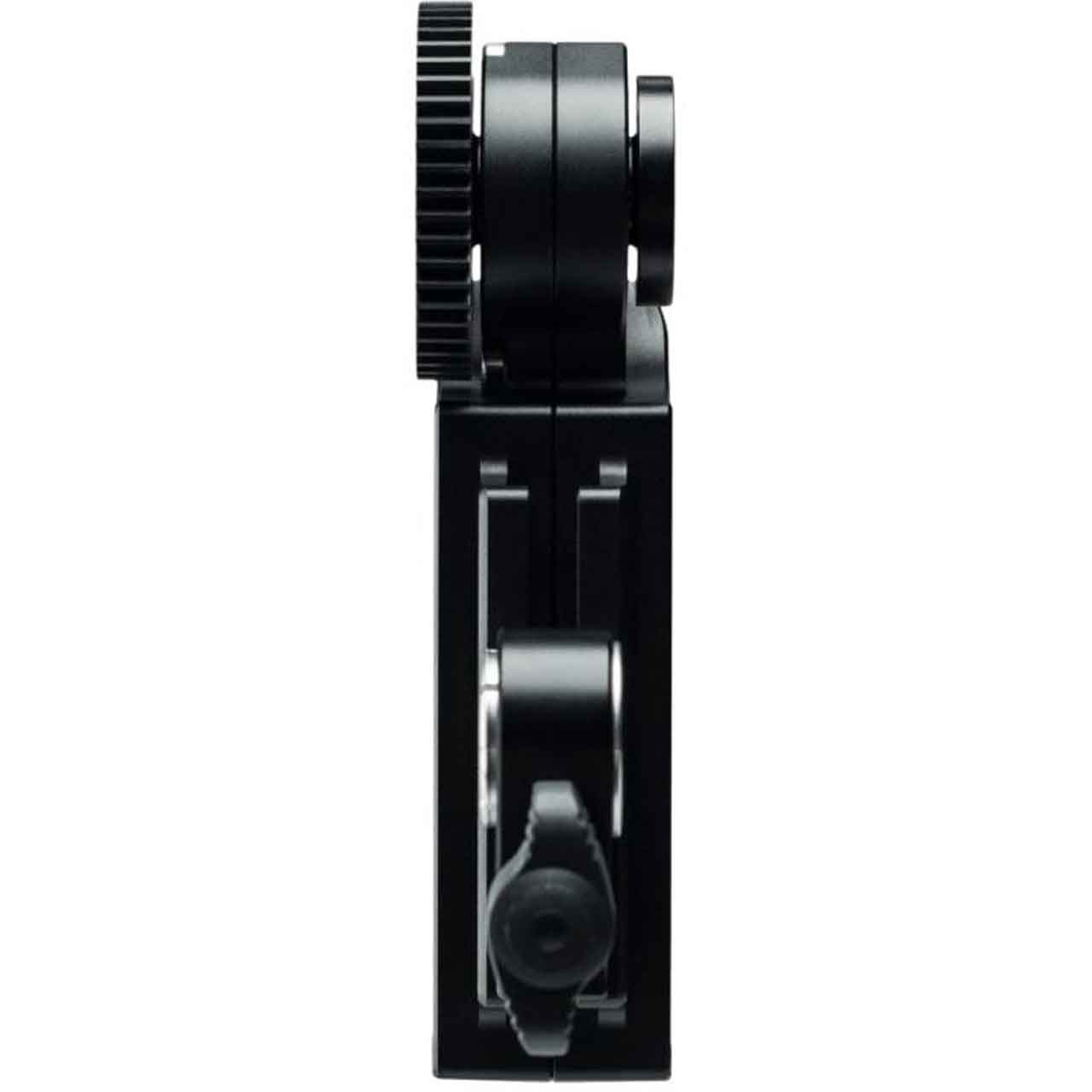

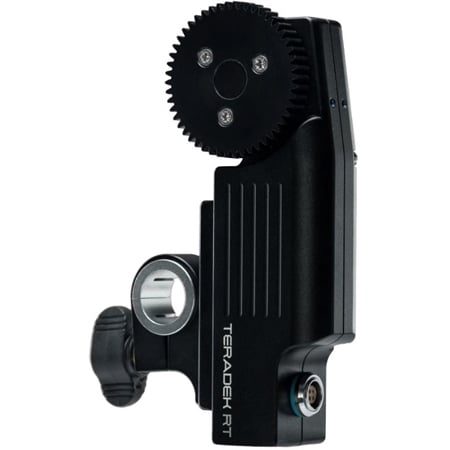

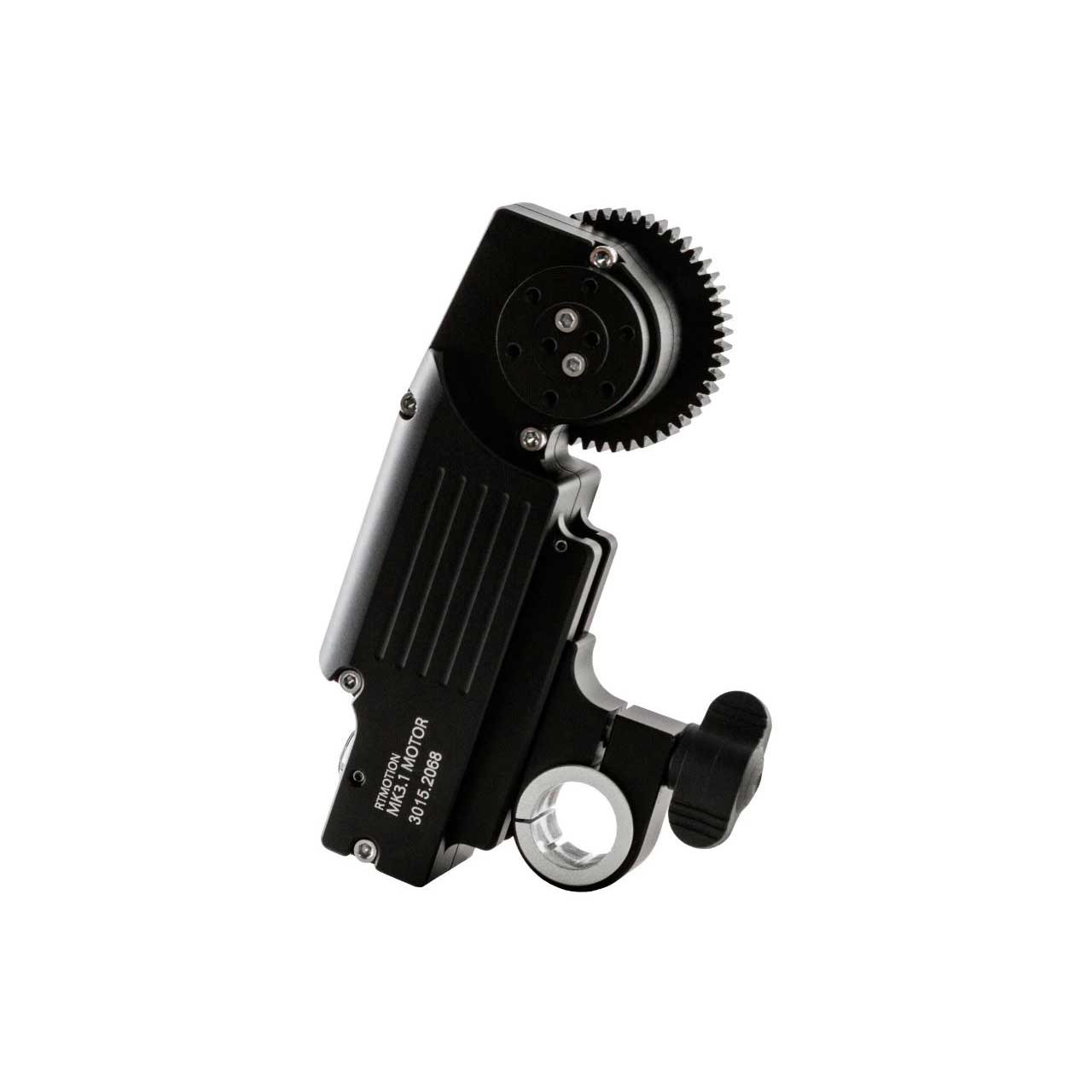

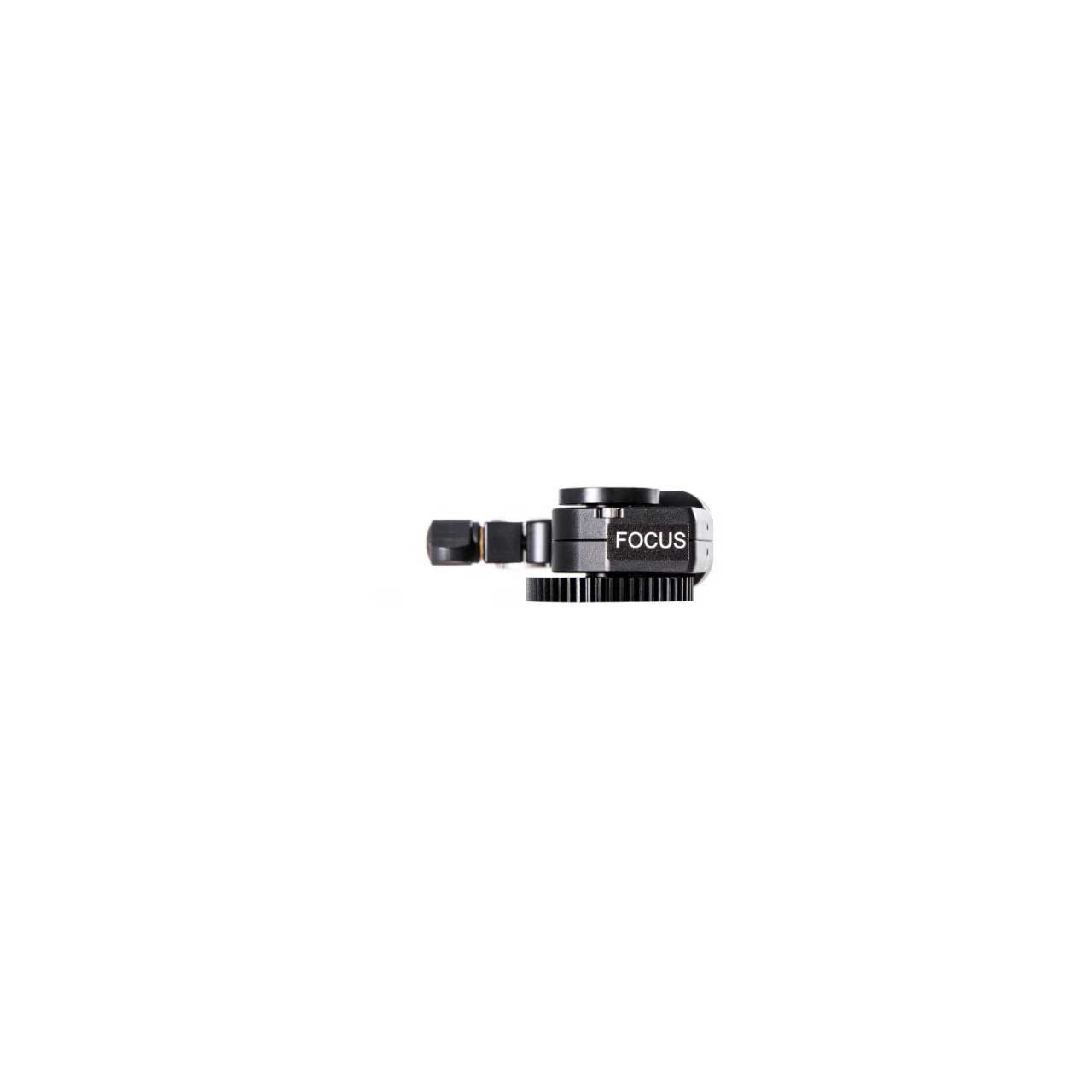

The Teradek RT MK3.1 Brushless Lens Motor is a revolution in wireless lens control and an integral part of the Teradek RT family. MK3.1 offers a superior response and smooth and silent operation, never cogging, sparking, or skipping. MK3.1 brushless motors provide 6 times the service life of brushed motors and feature built-in motor drivers. This motor includes thin flexible cables and reversible gears, with gears available in 0.8, 0.6, 0.5, and 0.4 wide. This lens motor can be bundled with our RT FIZ Wireless Lens Control Kit or RT Single Channel Wireless Lens Control Kit to give you complete lens control for focus, iris, and/or zoom.

Please note: This product does not include a motor cable.

  • Specifications:

    • Connectors: 1x 0B.4
    • Operating Temperature: -20°C to 50°C
    • Operating Voltage: 7-17V
    • Power Input: <1W idle. 40W peak
    • Gear Pitch: 0.8 Mod standard (others available)
    • Max Torque: 2.2 mm
    • Max Speed: 3.0 revs /second
    • Construction: All aluminium
    • Mountability: Compatible with 19, 15 mm Rods
    • Dimensions: 4.5 x 1.6 x 1"
    • Weight: 7.5 oz

  • Item Includes:

    • 1x MK3.1 Brushless Lens Motor
    • 1x 0.8mod Motor Gear - Cine, ARRI, Zeiss, 32pitch, Sony etc [11-1423]
