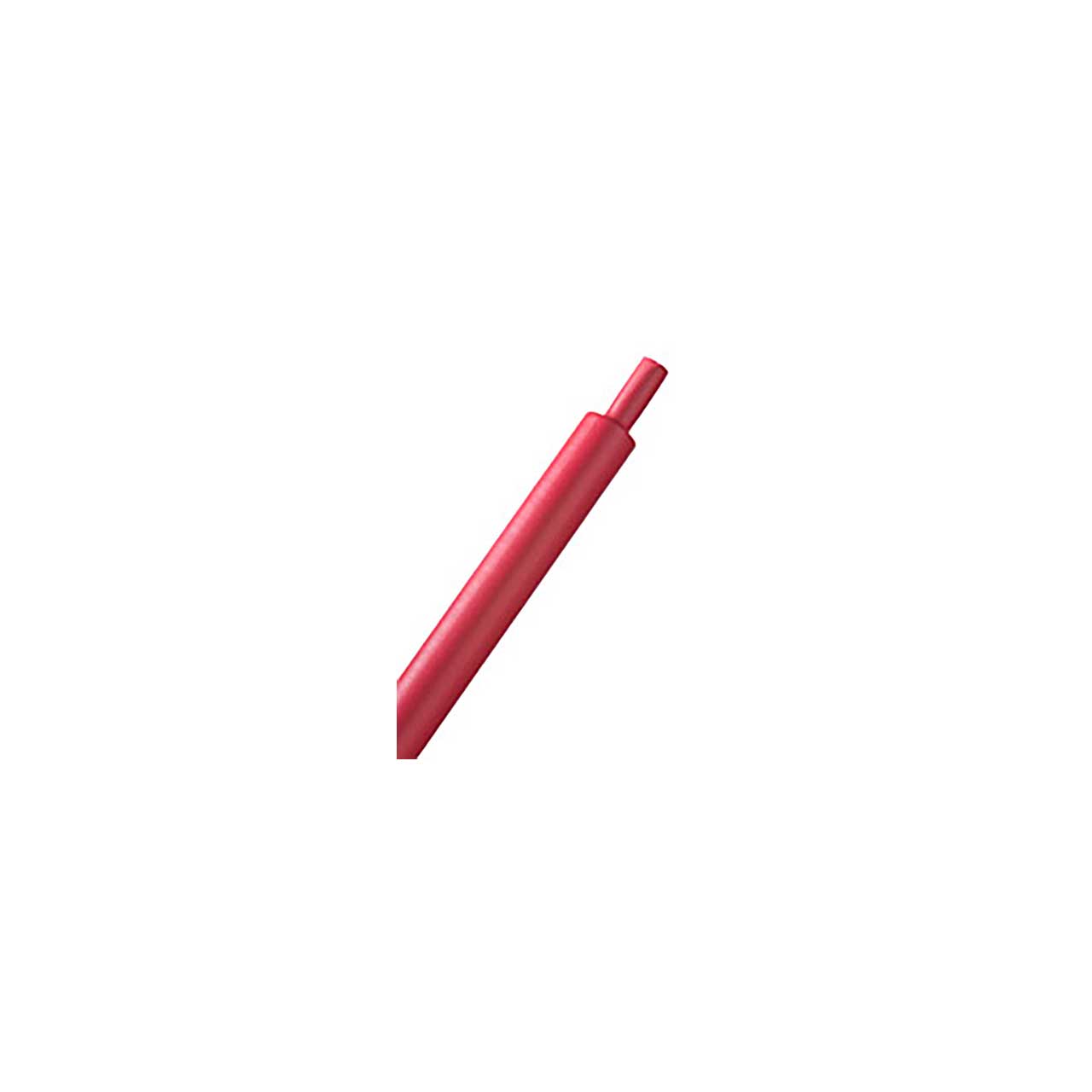

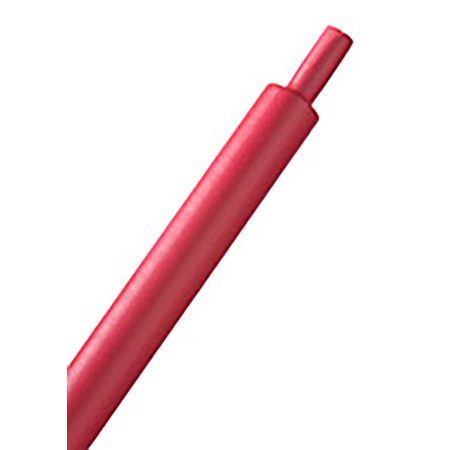

TechFlex H3N0.19 3/16-Inch Shrinkflex 3:1 Polyolefin Heatshrink Tubing - Red - 25-Foot

Name: TechFlex H3N0.19 3/16-Inch Shrinkflex 3:1 Polyolefin Heatshrink Tubing - Red - 25-Foot
Brand: Techflex Inc
SKU: TFX-H3N019-25-RD
Price: 19.00 USD
Availability: PreSale

ITEM #: TFX-H3N019-25-RD MFG #: H3N0.19RD 25FT

Techflex Inc

List Price:

$21.00

Our Price:

$19.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

H3N0.19RD 25FT - Overview

Shrinkflex heatshrink tubing is the ideal way to create a tight, professional finish on any wire, hose, or cable management project.

The high shrink ratio of 3:1 Shrinkflex heatshrink tubing ensures that the tubing will slip over large connectors or plugs and still provide a tight, professional seal.

Features:
- Shrink Temp. 194°F
- Flame Retardant
- Versatile & Economical Termination Solution
- Wide Selection of Sizes and Colors
- Resists Common Automotive Chemicals
- Mil-I-23053/5
Specifications:
- Physical Properties
- Flammability Rating: UL-224, VW-1
- Recommended Cutting: Scissor
- Color: Red
- Tensile Strength PSI (ASTM D-638) lbs.: 1,500
- Elongation % (ASTM D-638): 200
- Specific Gravity (ASTM D-792): 1.35
- Low Temp. Flex (MIL-DTL-23053): No Cracking
- Heat Shock (MIL-DTL-23053): No Cracking
- Secant Modulus PSI (MIL-DTL-23053: 25,000
- Longitudinal Change %(MIL-DTL-23053): +5, -15
- Moisture Absorption % (ASTM D-570): .5
- Unshrunk Diameter: 4.5 mm
- Shrunk Diameter: 1.5 mm
- Nominal Size: 3/16"

  Electric
- Dielectric Strength (ASTM D-149; V/Mil): 500
- Volume Resistivity (ASTM D-257; ohm-cm): 1.0x10 14

  Operating Temperatures
- Minimum Continuous: -67°F
- Maximum Continuous (MIL-I-23053): 275°F
- Melt (ASTM D-2117): 392°F

  Electric
- Dielectric Strength (ASTM D-149; V/Mil) 500
- Volume Resistivity (ASTM D-257; ohm-cm) 1.0x10 14

  Other Information
- RoHS: Yes
- UL/CSA: Yes
