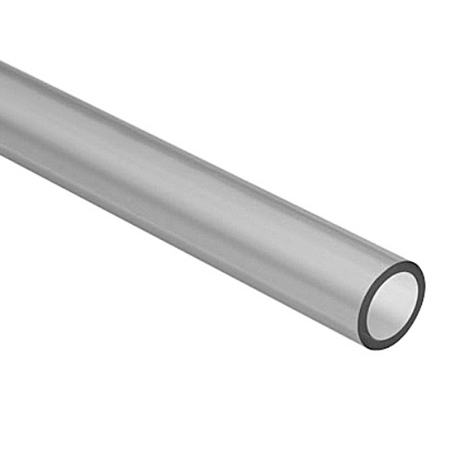

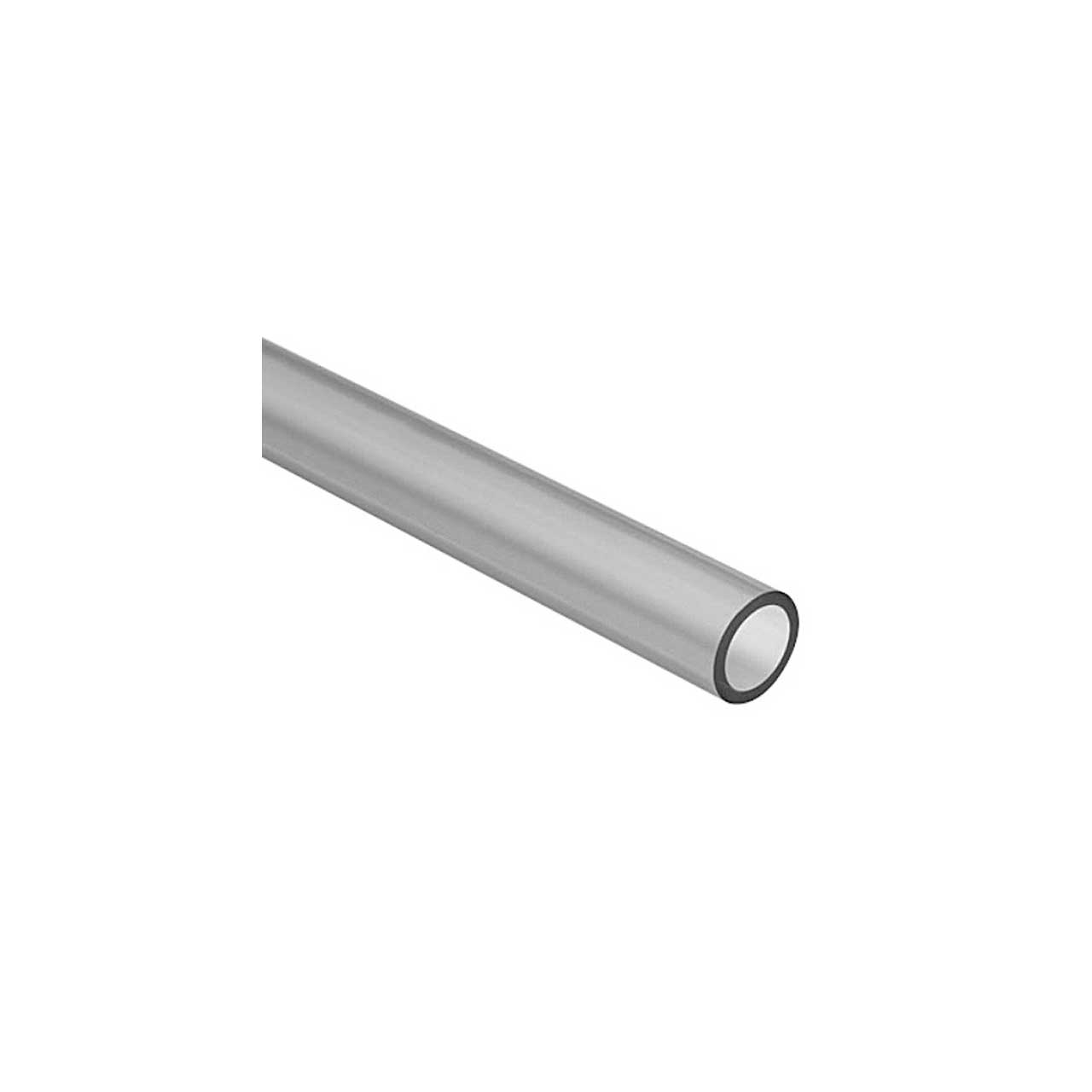

TechFlex H3N0.38 3/8-Inch Shrinkflex 3:1 Polyolefin Heatshrink Tubing - Clear - 200-Foot

ITEM #: TFX-H3N038-200CL MFG #: H3N0.38CL 200FT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$159.00

Our Price:

$129.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


H3N0.38CL 200FT - Overview

Heatshrink tubing is a flexible, pre-stretched tube, engineered from a wide range of polymers, that will shrink to a fixed diameter when sufficient heat is applied. Its diameter and thickness can vary, and it is rated by its expansion ratio, a comparative of the differences in expansion and recovery rate. Heatshrink tubing is the ideal way to create a tight, professional finish on any wire, hose or cable management project. Once shrunk, the tubing will hold its reduced state, even in elevated temperatures. Typical applications for the heatshrink tubing include: electrical insulation, termination, splicing, cable bundling, color coding, strain relief, wire marking, identification, mechanical protection, corrosion protection, abrasion protection and moisture and weather sealing.

  • Specifications:

    • Physical Properties
    • Flammability Rating: UL-224, VW-1
    • Recommended Cutting: Scissor
    • Colors: 11
    • Tensile Strength PSI (ASTM D-638) lbs.: 1,500
    • Elongation % (ASTM D-638): 200
    • Specific Gravity (ASTM D-792): 1.35
    • Low Temp. Flex (MIL-DTL-23053): No Cracking
    • Heat Shock (MIL-DTL-23053): No Cracking
    • Secant Modulus PSI (MIL-DTL-23053: 25,000
    • Longitudinal Change %(MIL-DTL-23053): +5, -15
    • Moisture Absorption % (ASTM D-570): .5
    • Normal Size: 1"
    • Product Part #: H3N1.00
    • Unshrunk Diamerter: 24.0mm
    • Shrunk Diameter: 8.0mm
    • Standard Spool Put-Up Bulk: 100'
    • Standard Spool Put-Up Shop: 25'
    • Colors: 12
    • lbs/100': 2.86
      Electric
    • Dielectric Strength (ASTM D-149; V/Mil): 500
    • Volume Resistivity (ASTM D-257; ohm-cm): 1.0x10 14
      Other Information
    • RoHS: Yes
    • UL/CSA: Yes
      Operating Temperatures
    • Minimum Continuous: -67°F/-55°C
    • Maximum Continuous (MIL-I-23053): 275°F/135°C
    • Melt (ASTM D-2117): 392°F/200°C
