TechFlex Shrinkflex 1-Inch 3:1 Heat Shrink Tubing - 25 Foot Spool - Clear

ITEM #: TFX-H3N100-25-CL MFG #: H3N1.00-25-CL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$49.00

Our Price:

$42.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


H3N1.00-25-CL - Overview

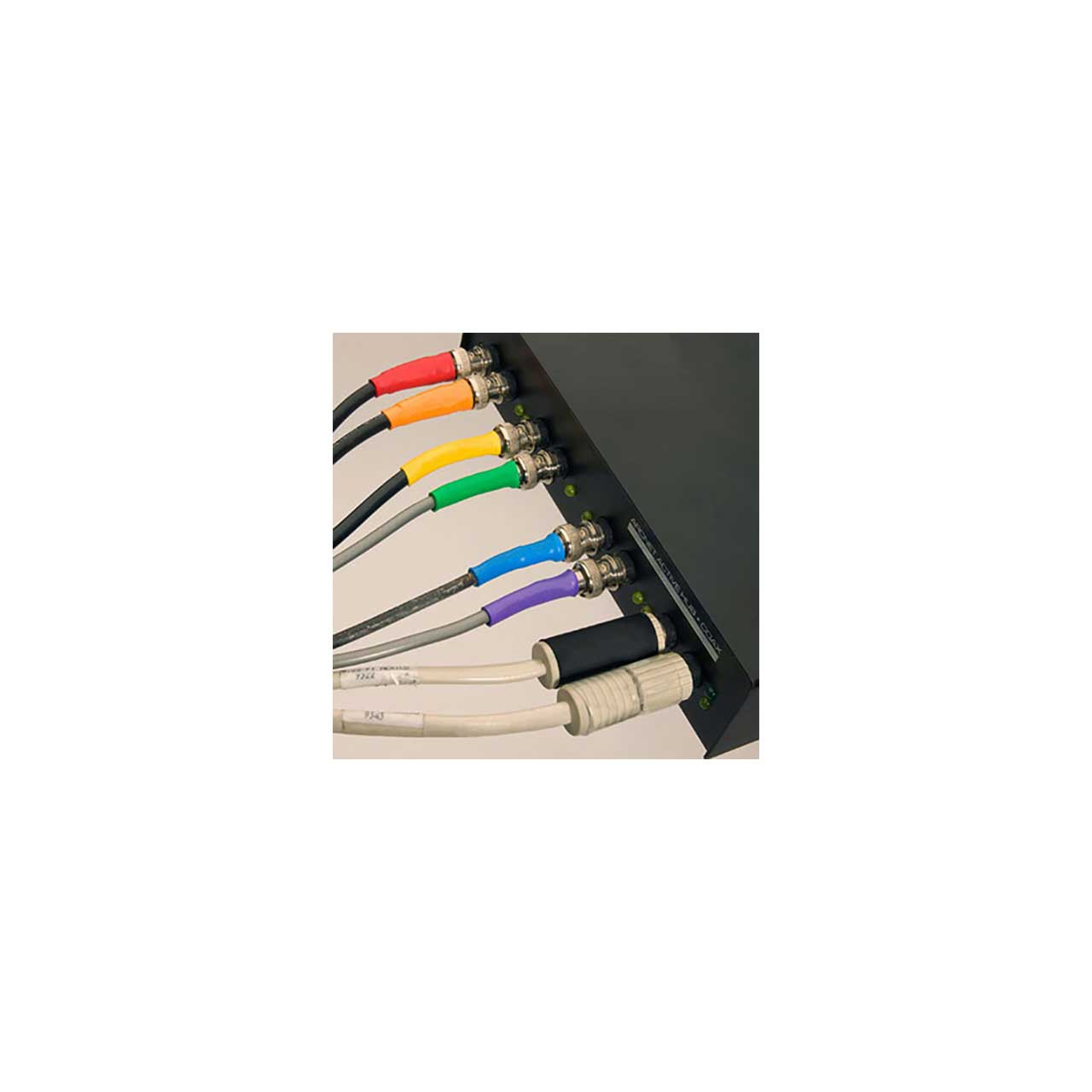

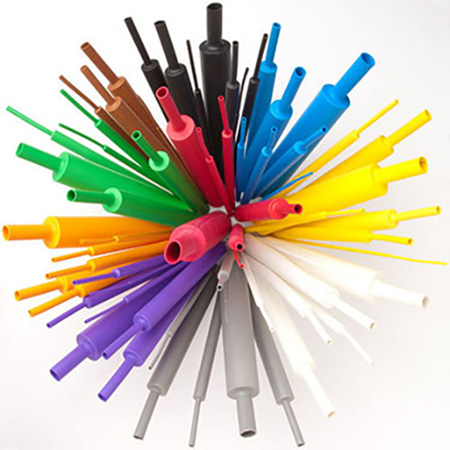

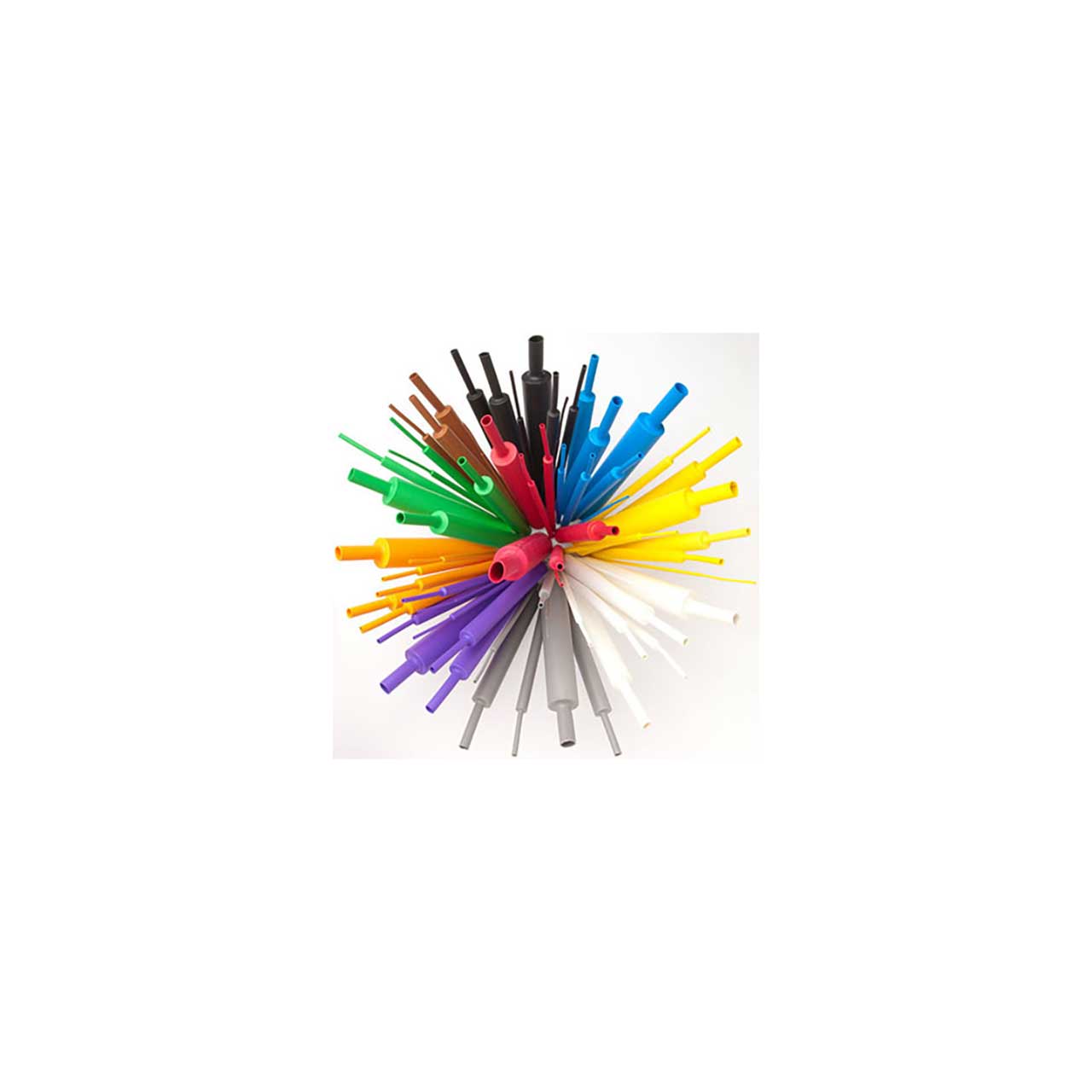

The Techflex H3N1.00 is a high shrink ratio of Shrinkflex 3:1 heatshrink tubing ensures that the tubing will slip over large connectors or plugs and still provide a tight, professional seal when shrunk. Heatshrink tubing is the ideal way to create a tight, professional finish on any wire, hose or cable management project. Once shrunk, the tubing will hold its reduced state even in elevated temperatures. The wide range of available colors and diameters makes Techflex Heatshrink Tubing a perfect solution for any termination application.

  • Features:

    • Shrink Temp. 194°F
    • Flame Retardant
    • Versatile & Economical Termination Solution
    • Wide Selection of Sizes
    • Resists Common Automotive Chemicals
    • Easily Installs Over Connectors & Splices
    • Mil-I-23053/5
    • Cuts Clean with Scissors
    • Polyolefin Grade H3N

  • Specifications:

    • Physical Properties
    • Flammability Rating: UL-224, VW-1
    • Recommended Cutting: Scissor
    • Colors: 11
    • Tensile Strength PSI (ASTM D-638) lbs.: 1,500
    • Elongation % (ASTM D-638): 200
    • Specific Gravity (ASTM D-792): 1.35
    • Low Temp. Flex (MIL-DTL-23053): No Cracking
    • Heat Shock (MIL-DTL-23053): No Cracking
    • Secant Modulus PSI (MIL-DTL-23053): 25,000
    • Longitudinal Change %(MIL-DTL-23053): +5, -15
    • Moisture Absorption % (ASTM D-570): .5

      Operating Temperatures
    • Minimum Continuous: -67°F/-55°C
    • Maximum Continuous (MIL-I-23053): 275°F/135°C
    • Melt (ASTM D-2117): 392°F/200°C

      Electric
    • Dielectric Strength (ASTM D-149; V/Mil): 500
    • Volume Resistivity (ASTM D-257; ohm-cm): 1.0x10^14
