Techflex H4N1.50 1.5-Inch Shrinkflex 4:1 Polyolefin Heatshrink Tubing - Black - 25-Foot

ITEM #: TFX-H4N150BK-25 MFG #: H4N1.50BK 25FT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$249.00

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


H4N1.50BK 25FT - Overview

Shrinkflex 4:1 heatshrink tubing is the most versatile of the heatshrink products. The very high shrink ratio allows the material to fit over very large plugs or connectors and shrink down tightly.

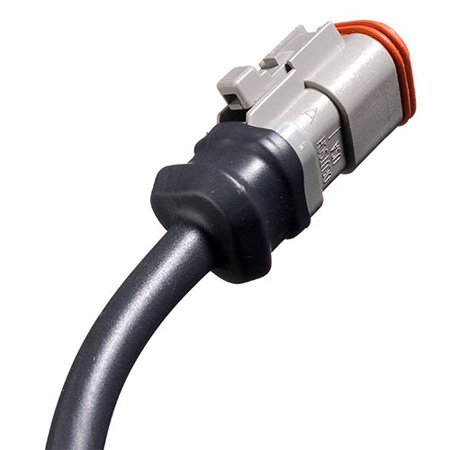

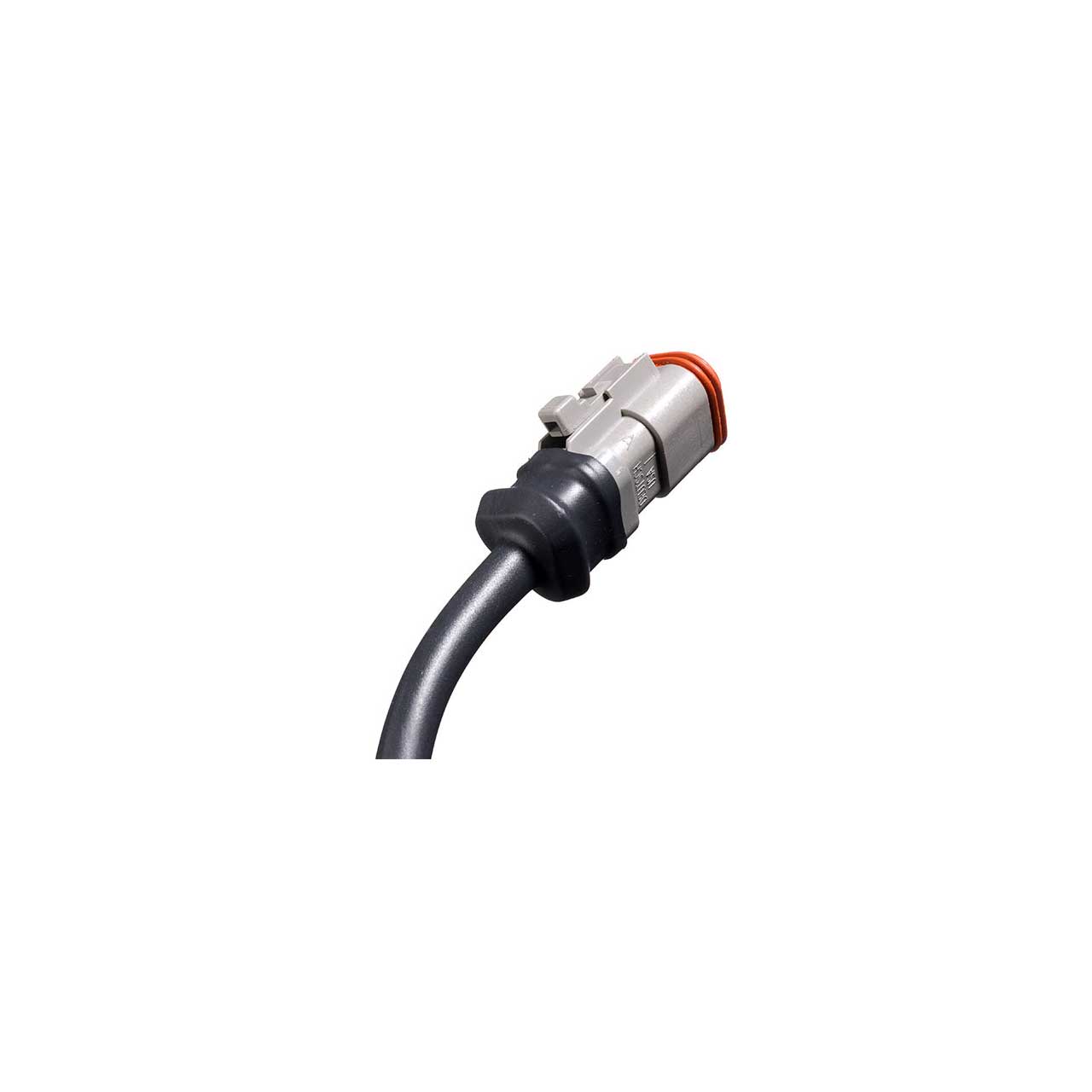

4:1 Shrinkflex is ideal as a strain relief on assemblies that are subject to frequent connection cycles. Shrinkflex 4:1 heatshrink tubing is available in black.

  • Specifications:

    • Physical Properties
    • Flammability Rating: UL-224, VW-1
    • Recommended Cutting: Scissor
    • Color: Black
    • Tensile Strength PSI (ASTM D-638) lbs.: 1,500
    • Elongation % (ASTM D-638): 200
    • Specific Gravity (ASTM D-792): 1.35
    • Low Temp. Flex (MIL-DTL-23053): No Cracking
    • Heat Shock (MIL-DTL-23053): No Cracking
    • Secant Modulus PSI (MIL-DTL-23053: 25,000
    • Longitudinal Change %(MIL-DTL-23053): +/- 5
    • Moisture Absorption % (ASTM D-570): .5
      Electric
    • Dielectric Strength (ASTM D-149; V/Mil): 500
    • Volume Resistivity (ASTM D-257; ohm-cm): 1.0x10 14
      Other Information
    • RoHS: Yes
    • UL/CSA: Yes
      Operating Temperatures
    • Minimum Continuous: -67°F
    • Maximum Continuous (MIL-I-23053): 275°F
    • Melt (ASTM D-2117): 392°F
