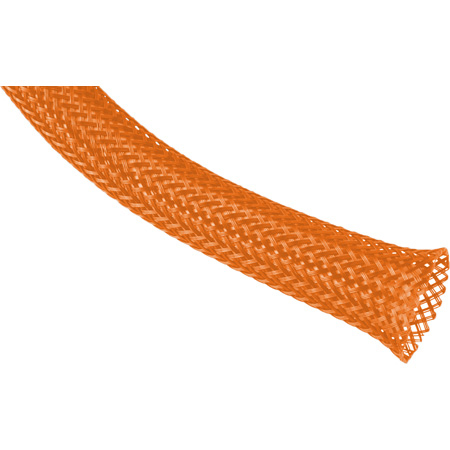

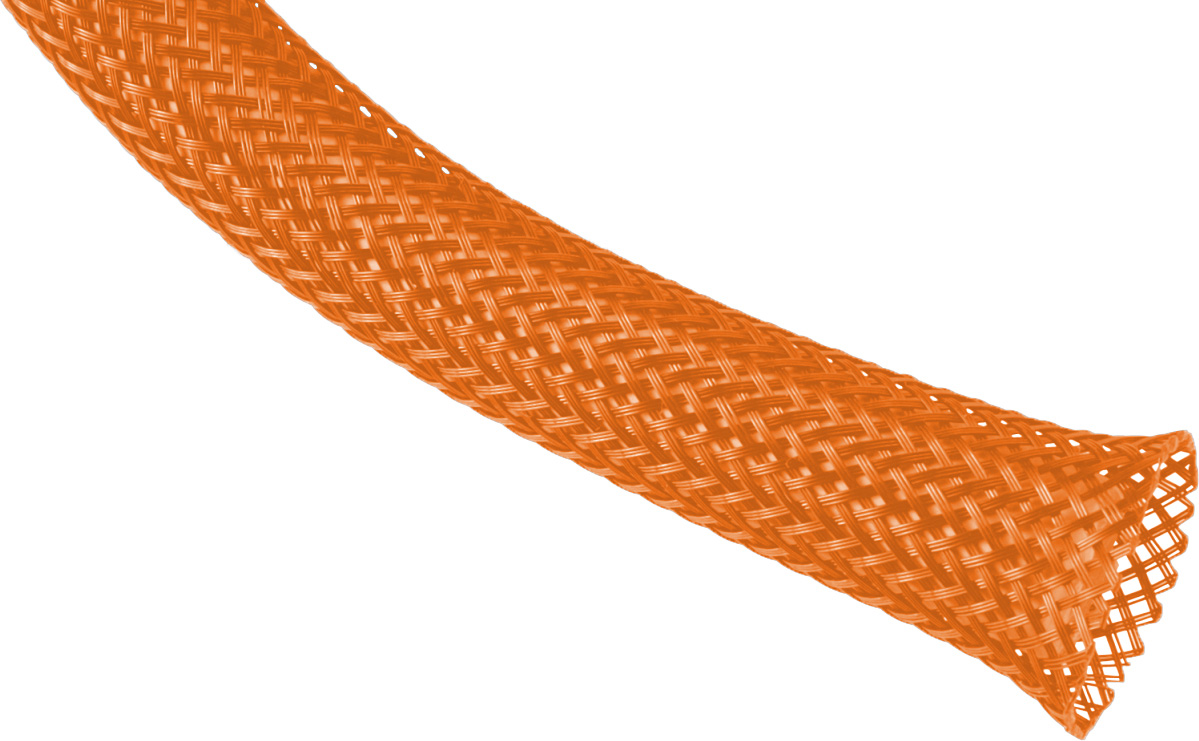

Techflex PTN-3.00NO Flexopet 3 Inch Expandable Tubing- 100 Foot Spool - Neon Orange

ITEM #: TFX-PTN-300NO MFG #: PTN-3.00NO

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TFX-PTN-300NO

PTN-3.00NO - Overview

The PTN-3.00NO FLEXO PET (PT) grade is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical. The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.

The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PT can be found in applications ranging from small office/home office to high tech wire and cable harnesses.

PT is braided from 10 mil polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

  • Specifications:

    • Physical Properties
    • Monofilament Thickness (ASTM D-204): .010
    • Flammability Rating: UL-94
    • Recommended Cutting: Hot Knife
    • Color: Neon Orange
    • Wall Thickness: .025
    • Tensile Strength - Yarn (ASTM D-2265) lbs.: 7.5
    • Abrasion Resistance: Medium
    • Specific Gravity: 1.38
    • Moisture Absorption % (ASTM D-570): .1 - .2

      Hard Vacuum Data (ASTM E-595 at 10-5 torr)
    • TML: .19
    • CVCM: .00
    • WVR: .16
    • Smoke D-Max (ASTM E-662): 56
    • Outgassing: Medium
    • Oxygen Index (ASTM D-2863): 21

      Operating Temperatures
    • Minimum Continuous: -94°F/-70°C
    • Maximum Continuous (MIL-I-23053): 257°F/125°C
    • Melt (ASTM D-2117): 482°F/250°C

      Other Information
    • Halogen Free: Yes
    • RoHS: Yes
    • SVHC: None
    • UL/CSA: Yes
