WILLIAMS AV TGS PRO 737 Personal PA Tour Guide System - 10 Select PPA R37N Receivers

Name: WILLIAMS AV TGS PRO 737 Personal PA Tour Guide System - 10 Select PPA R37N Receivers
Brand: WILLIAMS AV
SKU: TGS-PRO-737
Price: 2367.00 USD
Availability: PreSale

ITEM #: TGS-PRO-737 MFG #: TGS PRO 737

WILLIAMS AV

List Price:

$2,625.00

Our Price:

$2,367.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TGS PRO 737 - Overview

The Personal PA Tour Guide System is a lightweight, single-channel system that helps tour participants with hearing difficulties listen directly to the tour guide and control their own volume. Allows full freedom of movement for tour group. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use controls. Single-channel, field tunable receiver. 150' range. Belt clips included for hands-free operation. Designed to meet Americans with Disabilities Act (ADA) accessibility requirements. Covered by an industry-leading, 5-year warranty.Disclaimer: FCC rules limit use of this equipment to auditory assistance.

Specifications:
- MIC 100
- Color: Black
- Weight: 42 g (1.5 oz)
- Plug: 3.5mm mono
- Cord: 39"
- Phantom Powered: No
- Pick-Up Pattern: Uni-direct
- Replacement Windscreen: WND 009
- Warranty: 90 days
- PPA R37
- Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
- Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
- Color: Black
- Battery Type: (2) AA Alkaline or 2 x AA NiMH
- Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs; (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
- Current Consumption: 52mA nominal
- Temperature Range: - 0 to 50C
- Channels 17, accessed via seek button in battery compartment
- Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
- Intermediate Freq.: 75 kHz
- FM Deviation: 75 kHz
- De-Emphasis: 75 æS
- LED Indicator: Power: Green; Low Battery: Flashes Green
- AFC Range: ± 120 kHz
- Sensitivity: 2 æV at 12 dB Sinad with squelch defeated
- Input Overload: 100 mV
- Frequency Response: 200 - 15 kHz
- Modulation: FM, +/- 75 kHz peak deviation
- Signal-to-Noise Ratio: 65 dB min @ 100 uV
- Receive Antenna: Integral with earphone/headphone cord
- Audio Output: 35 mW max, peak into 16 ohms
- Output Connector: 3.5 mm stereo/mono phone jack
- Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 O
- Auto Shut-off Enters sleep mode after approx 6 mins of no RF signal
- Approvals: FCC, Industry Canada, RoHS, WEEE
- PPA T46
- Dimensions: 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm)
- Weight: 2.6 oz (74 g), no batteries
- Color: Black/Silver
- Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
- Battery Type options: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life, or Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14-16 hours, uses CHG 3502 or CHG 3512 Charger
- Operating Frequencies: Selectable, 17 channels, 72.1 - 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
- Stability: ± .005%, frequency synthesized, crystal reference, PLL
- Modulation: Wide-band FM, 75 kHz peak, 75 æS pre-emphasis
- RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
- Frequency Response: 180 Hz to 13 kHz, ± 3 dB at 1% max. THD
- Signal-to-Noise Ratio: 65 dB (typical) transmitted
- Transmit Antenna: Integral with microphone cord
- Microphone: Electret type, 3.5 mm mono plug
- External Display: OLED for status and menu information.
- Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
- Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
- External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) ocated behind the battery compartment door.
- External Indicators: Power LED - Green, flashes when battery is low
- Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
- Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
- Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu

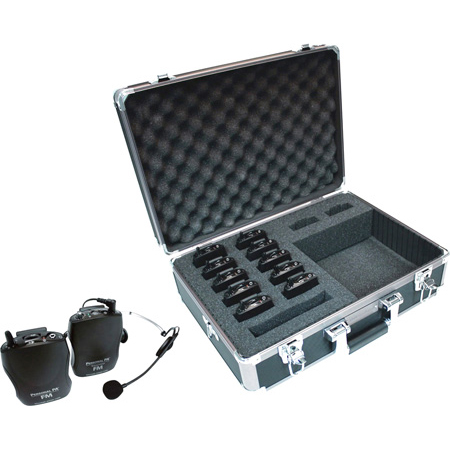

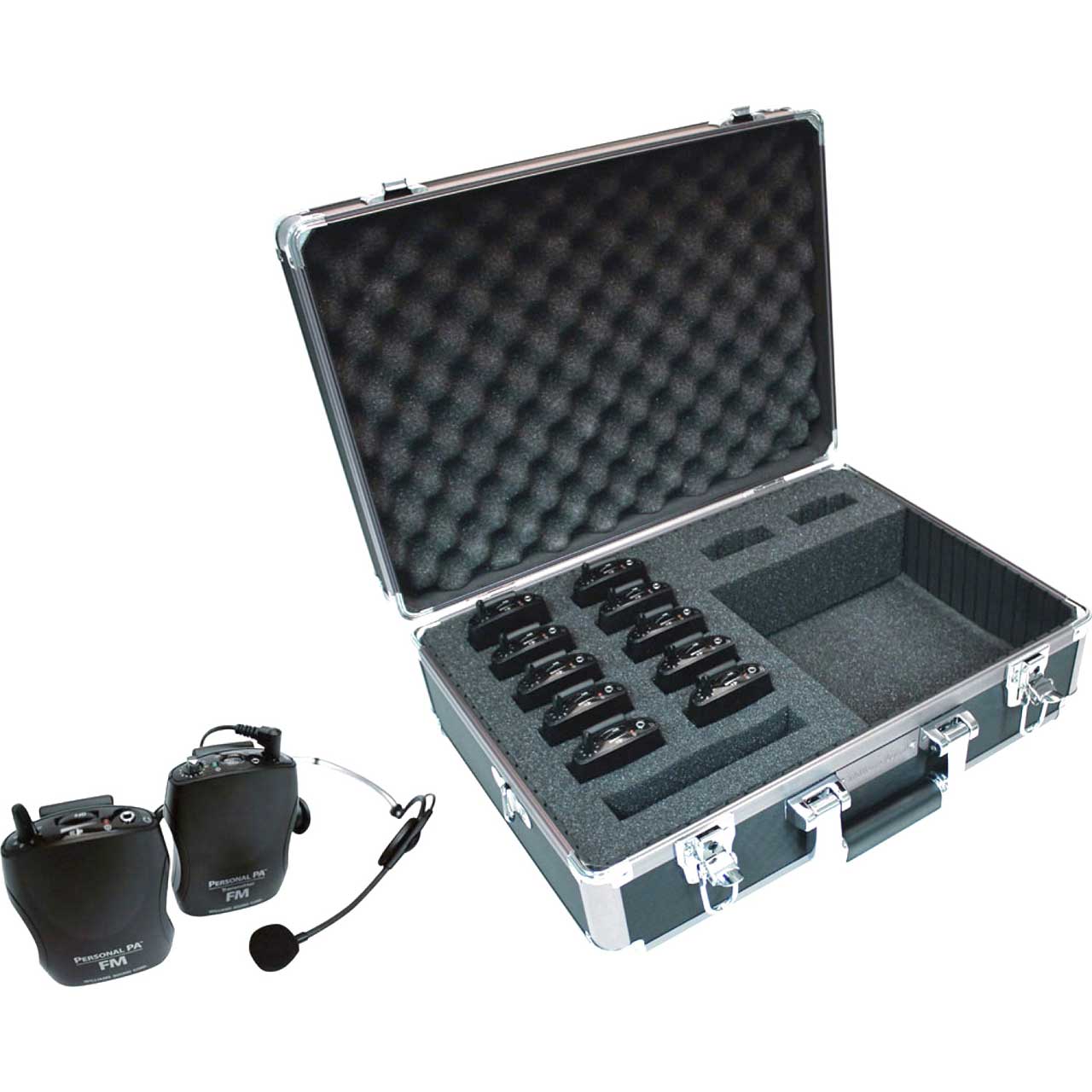

Item Includes:
- (1) PPA T46 Transmitter
- (10) Select (PPA R37) receivers
- (1) MIC 100 Rear-wear Headset Microphone
- (11) BAT 001-2 (two AA Batteries)
- (1) CCS 030 S Carry Case
- Headphones and earphones sold separately.
Applications::
- Group Sight-Seeing Tours
- Factory and Plant Tours
- College Campus Tours
- Museum Tours
- Cruise Ships
- Special Events
- Employee Training
