WILLIAMS AV TGS PRO 738 Personal PA Tour Guide System - 10 Select PPA R38N Receivers

TGS PRO 738 - Overview

• Features:

  • Now featuring the sleek, NEW PPA T46 FM body-pack transmitter
  • Allows full freedom of movement for tour group
  • Easy set-up, simple operation
  • Single-channel, field-tunable receiver
  • Auxiliary input-broadcast any audio source
  • Belt clips included for hands-free operation
  • Lifetime PLUS Limited Warranty (90 days on accessories)


• Specifications:

  • MIC 100
  • Color: Black
  • Weight: 42 g (1.5 oz)
  • Plug: 3.5mm mono
  • Cord: 39"
  • Phantom Powered: No
  • Pick-Up Pattern: Uni-direct
  • Replacement Windscreen: WND 009
  • Warranty: 90 days
  • PPA R38N
  • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
  • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
  • Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate.
  • Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
  • Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
  • Current Consumption: 52mA nominal
  • Operating Temp. Range: 32° - 122°F (0° to 50°C)
  • Channels: 17 Wideband, accessed via menu
  • Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
  • FM Deviation: 75 kHz
  • De-Emphasis: 75 æS
  • Display Screen: 1" OLED
  • Power Indication: Power button, backlit green. Good battery strength - glows solid. Low battery - flashes.
  • Sensitivity: 2 æV at 12 dB Sinad with squelch defeated
  • Input Overload: 100 mV
  • Frequency Response: 200 Hz - 15 kHz, ±3dB
  • Modulation: FM, +/- 75 kHz peak deviation
  • Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V
  • Receive Antenna: Integral with earphone/headphone cord
  • Audio Output: 35 mW max at 16 O
  • Headphone Connector: 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
  • Supplied Earphone: Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 O
  • Power Save Mode: Enters sleep mode after approximately 3 minutes of no RF signal
  • Approvals: FCC, Industry Canada, RoHS, WEEE

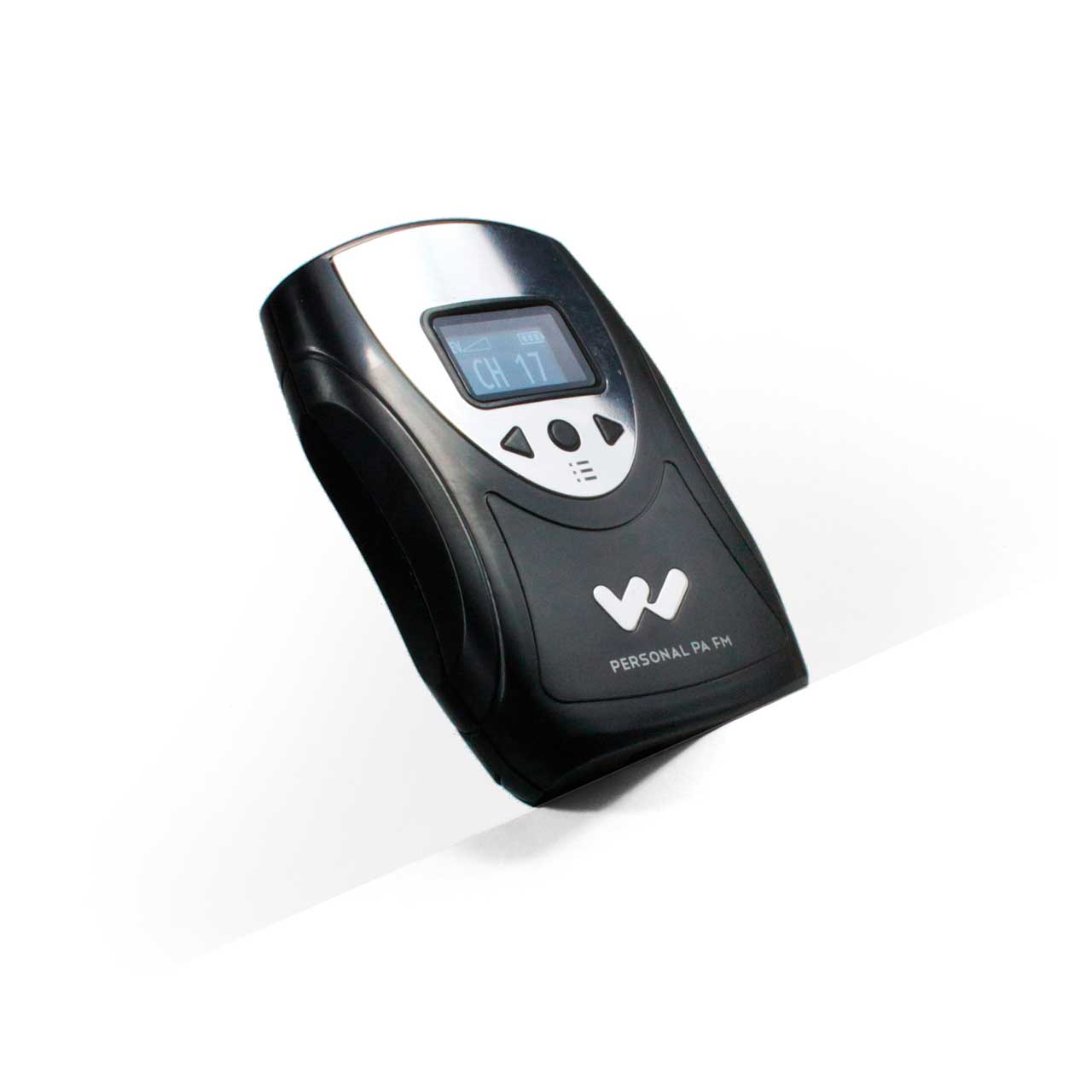

  • PPA T46
  • Dimensions: 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm)
  • Weight: 2.6 oz (74 g), no batteries
  • Color: Black/Silver
  • Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
  • Battery Type options: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life, or Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14-16 hours, uses CHG 3502 or CHG 3512 Charger
  • Operating Frequencies: Selectable, 17 channels, 72.1 - 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
  • Stability: ± .005%, frequency synthesized, crystal reference, PLL
  • Modulation: Wide-band FM, 75 kHz peak, 75 æS pre-emphasis
  • RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
  • Frequency Response: 180 Hz to 13 kHz, ± 3 dB at 1% max. THD
  • Signal-to-Noise Ratio: 65 dB (typical) transmitted
  • Transmit Antenna: Integral with microphone cord
  • Microphone: Electret type, 3.5 mm mono plug
  • External Display: OLED for status and menu information.
  • Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
  • Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
  • External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) ocated behind the battery compartment door.
  • External Indicators: Power LED - Green, flashes when battery is low
  • Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
  • Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
  • Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu

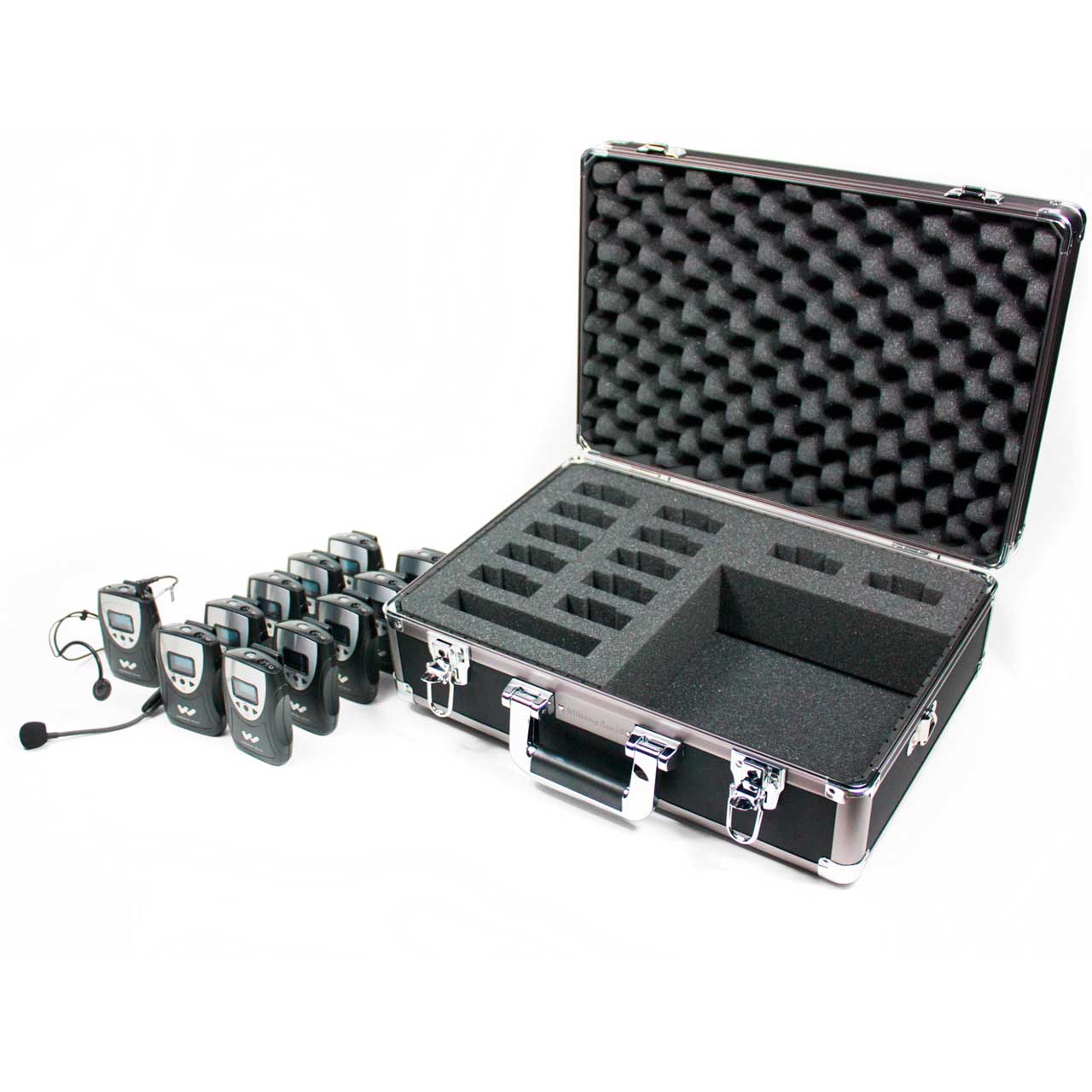

• Item Includes:

  • (1) PPA T46 Transmitter
  • (10) PPA R38N Receivers

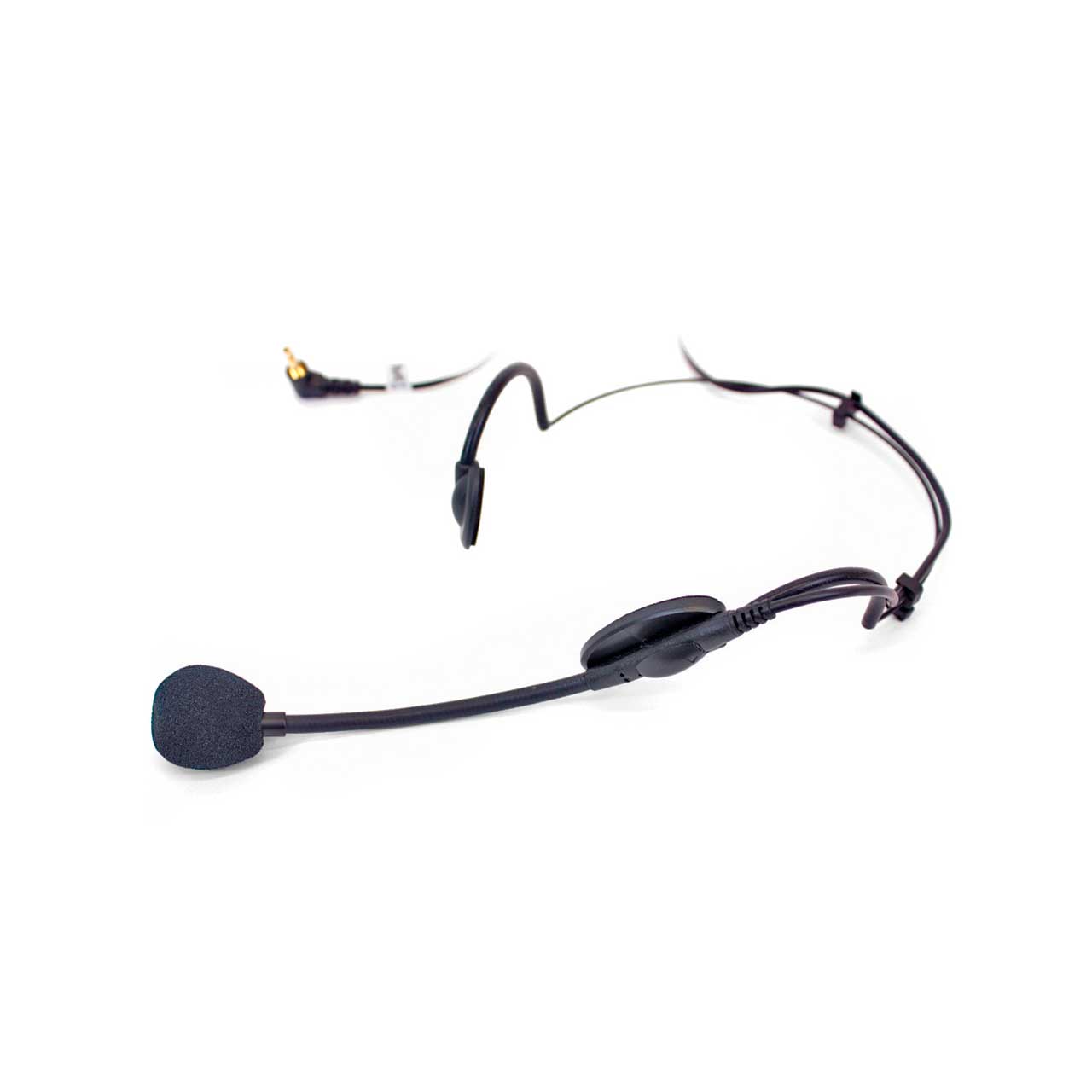

  • (1) MIC 100 Rear-Wear Headset Microphone

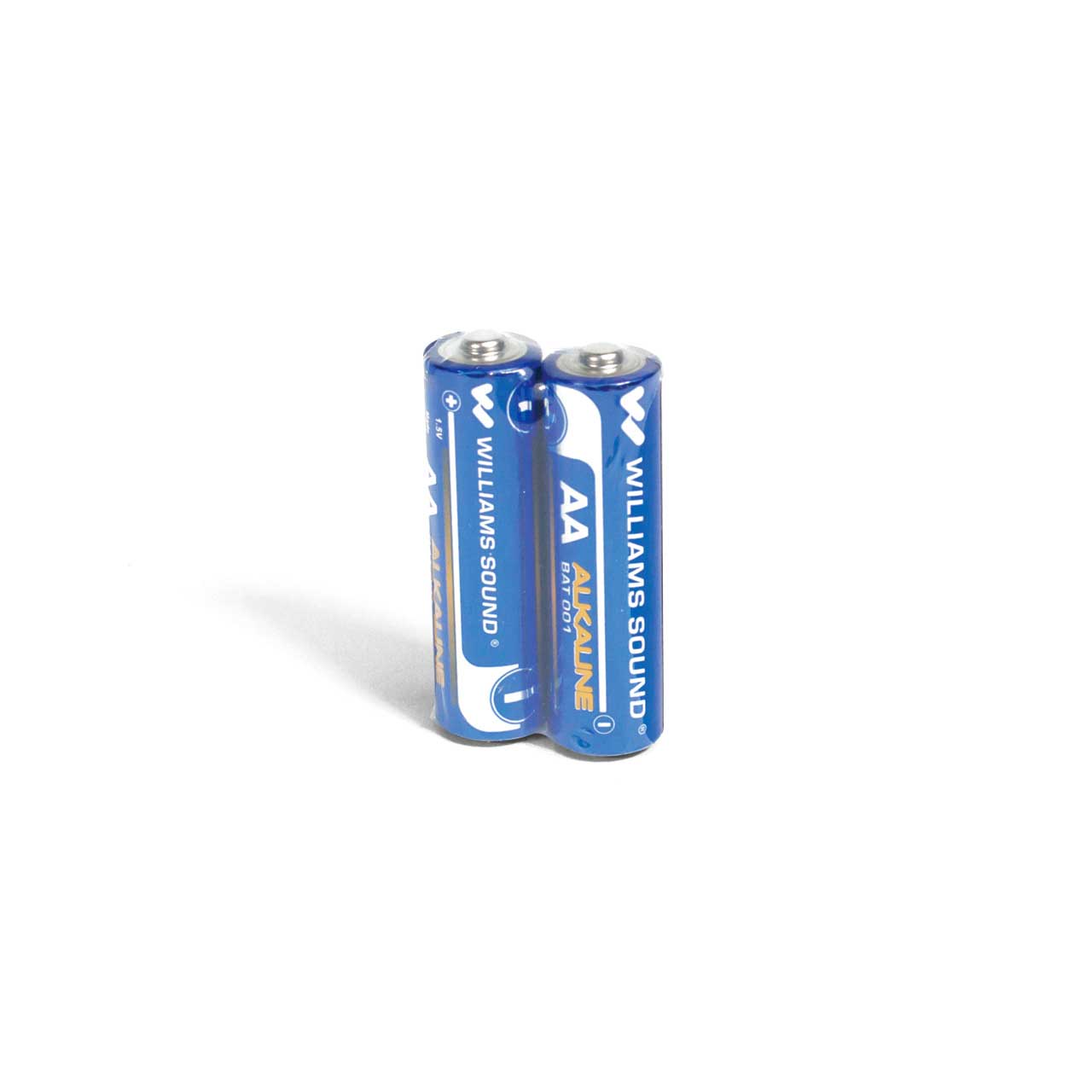

  • (11) BAT 001-2 (AA Alkaline Batteries)

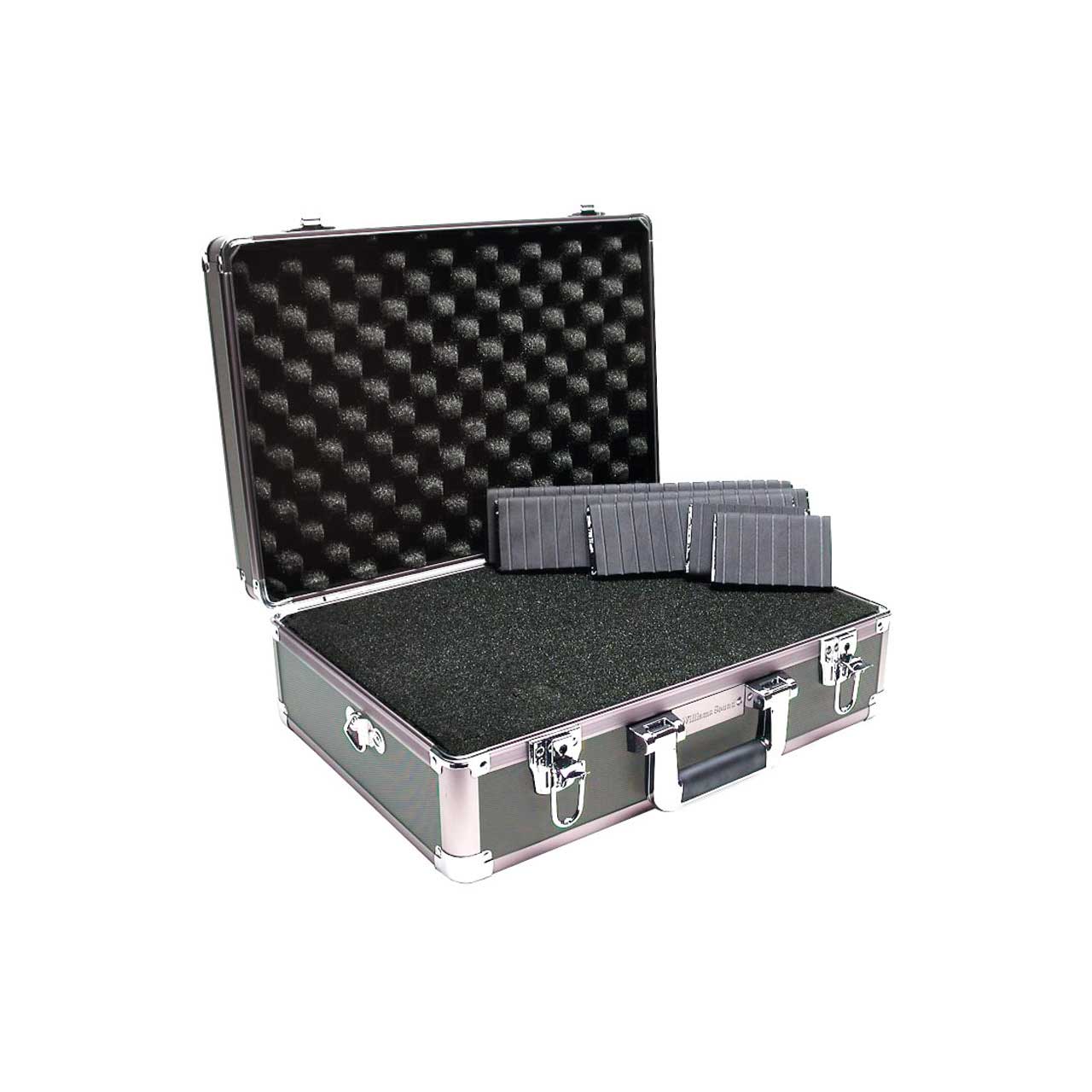

  • (1) CCS 030 S Carry Case
  • NOTE: Headphones and earphones sold separately.


• Warranty:

  • Lifetime PLUS Limited Warranty, 90 Days on most accessories.
