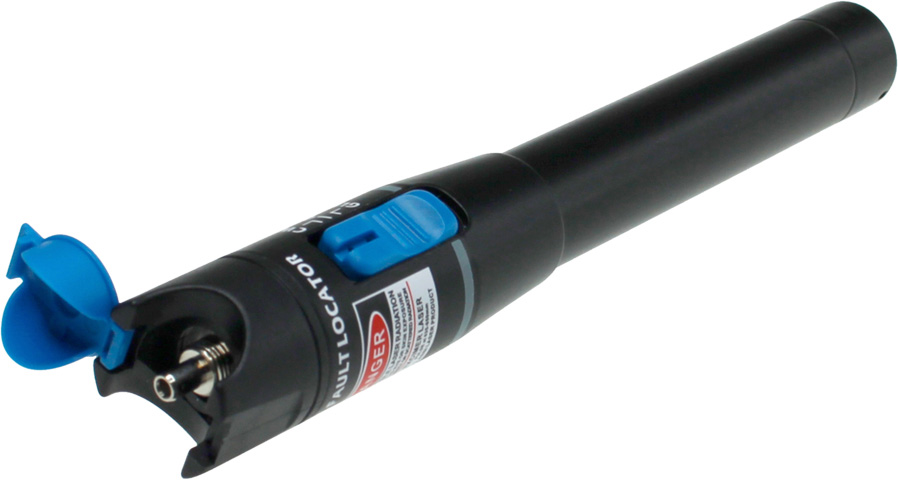

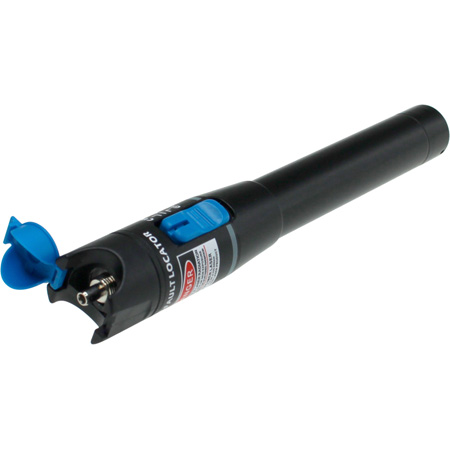

TechLogix TL-VFL-1MW Visual Fault Locator - 1mW Output for 5km Signal Distribution - SC ST & FC Style

ITEM #: TGX-TL-VFL-1MW MFG #: 1004-0252

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TGX-TL-VFL-1MW

1004-0252 - Overview

The TechLogix TL-VFL-1MW is a compact fiber optic visual fault locator (affectionately known as a "VFL") that's ideal for locating breaks and out-of-spec bends in a fiber optic cable. It's also a crucial tool for verifying mechanical fiber optic connectors are terminated properly and identifying strands during splicing and/or patching. The VFL-1MW features a 1mW output which drives a visible laser signal up to 5km. Plus, two modes of operation -- continuous wave output and flashing wave output -- help identify different strands and cable runs. The VFL-1MW features battery power and a 2.5mm universal connector, which is designed for use with SC, ST and FC style connectors (integration with LC style connectors requires a 2.5mm to 1.25mm adapter). Both single mode and multimode fiber are supported.

  • Features:

    • 1mW visible wave output
    • Up to 5km max signal transmission
    • Ideal for locating out-of-spec bends & breaks in fiber optic cabling
    • Ideal for verifying proper fiber optic connector termination
    • Ideal for toning & tracing fiber optic cable runs & strands
    • Battery powered (2 x AA) with 18 hour average battery life
    • Built-in dust cap
    • Metal construction
    • Water-resistant
    • Continuous wave & pulsed wave modes of operation
    • 650nm wavelength
    • Compatible with SC, ST & FC style connectors (LC connectors require an adapter)
    • Compatible with both single mode & multimode fiber
    • Includes carry case
