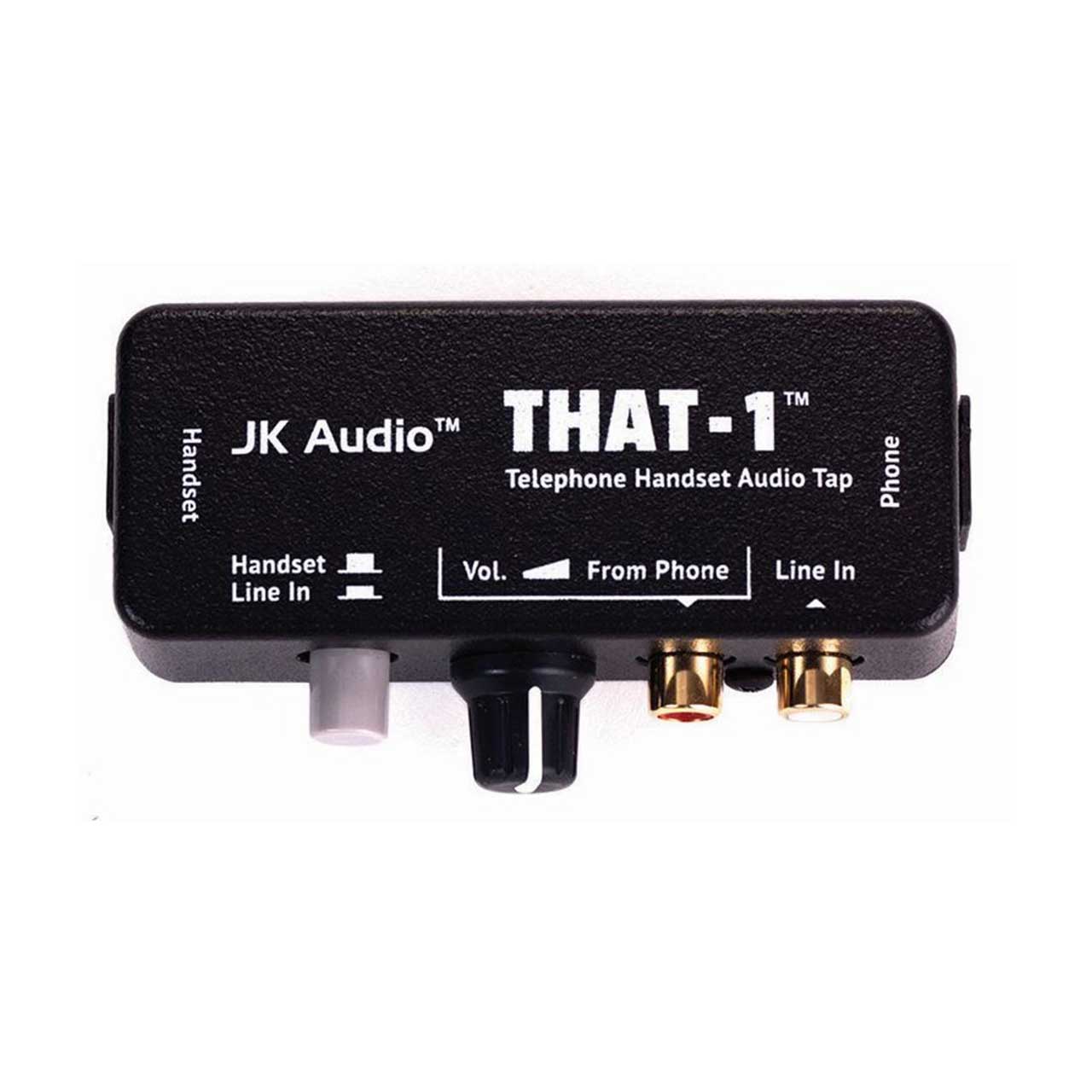

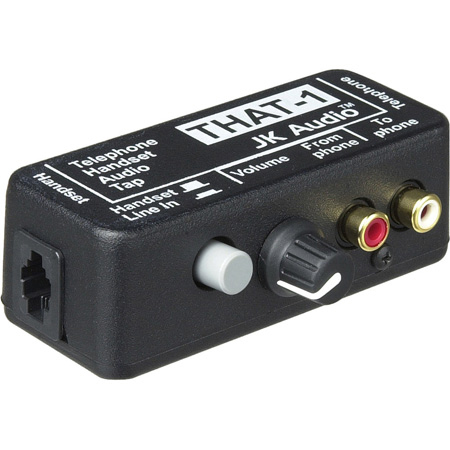

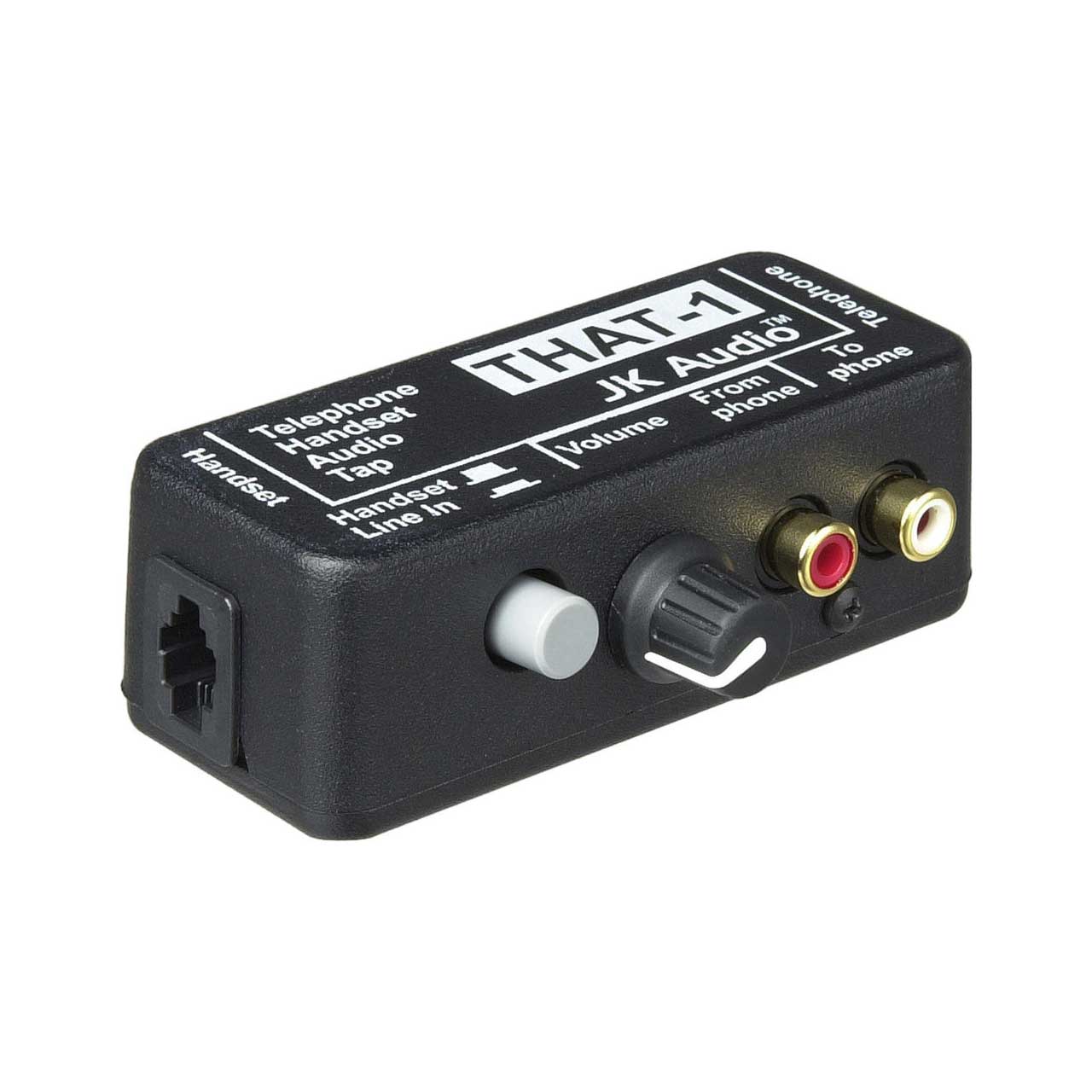

JK Audio THAT-1 Telephone Handset Audio Tap

ITEM #: THAT-1 MFG #: THAT1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$157.50

Our Price:

$150.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


THAT1 - Overview

Connect THAT-2 between your telephone and handset for quick access to audio in and out of the telephone. The THAT-2 is used by radio stations to record and play sound bytes, and by TV and film sound crews to get IFB dialog over phone lines. The THAT-2 is the big brother of our model THAT-1, which is very popular with news reporters for its small yet rugged design. Over the years we’ve heard from many of our customers that they liked the THAT-1 but would prefer professional XLR jacks and compatibility with more telephone systems. Here is the answer... The THAT-2, a passive handset interface with professional and consumer jacks, separate input and output volume control, a selector switch for the different types of telephone systems, and still no batteries or AC needed. Simply unplug the handset coily cord form the base of your telephone and plug it directly into the THAT-2. Then, using the supplied cable, connect the THAT-2 back to the telephone. Now connect your audio equipment or powered speaker to the RCA or XLR jacks. The grey push button selects which audio will be sent into the telephone (OUT = talking on the handset, IN = sending audio in through the RCA jack). The output jacks contains a nice mix of the audio from both sides of the conversation, as well as the tones being pressed on the keypad. The THAT-2 has a three-position switch which accommodates electret, dynamic and carbon telephone handset microphone types. The THAT-2 will emulate the type of microphone that is in the handset and allow you to send audio into many different types of analog and digital PBX sets, as well as ISDN telephones. THAT-2 does not work with cordless or cell phones, or any telephone with a keypad in the handset.

  • Features:

    • Works with analog, digital, PBX, and ISDN telephones RCA and XLR line in and out Switch selects between carbon, dynamic or electret handset types No battery or AC adapter needed Durable diecast aluminum construction Made in USA

  • Specifications:

    • Line Inputs: RCA, 20 k ohms, 250 mV RMS (+12 dBm maximum) XLR female, 20 k ohms, 250 mV RMS (+12 dBm maximum) Line Outputs: RCA, 600 ohms, 100 mV RMS (-16 dBm nominal.) XLR male, 600 ohms, 100 mV RMS (-16 dBm nominal.)Handset Interface biased for Electret, Dynamic, and Carbon handsets. Size: 4.5 x 3.2 x 1.3 inch (11.4 x 8.2 x 3.3 cm) Weight: 9 ounces

  • GTIN:

    0814170010345
