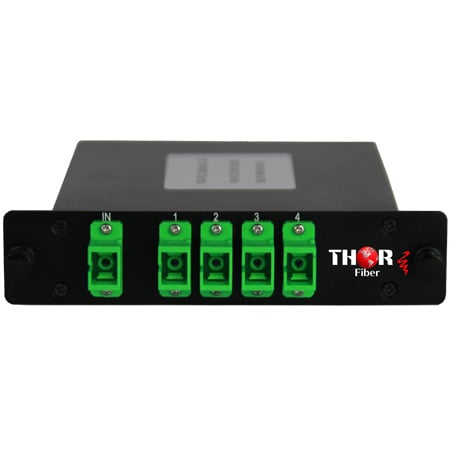

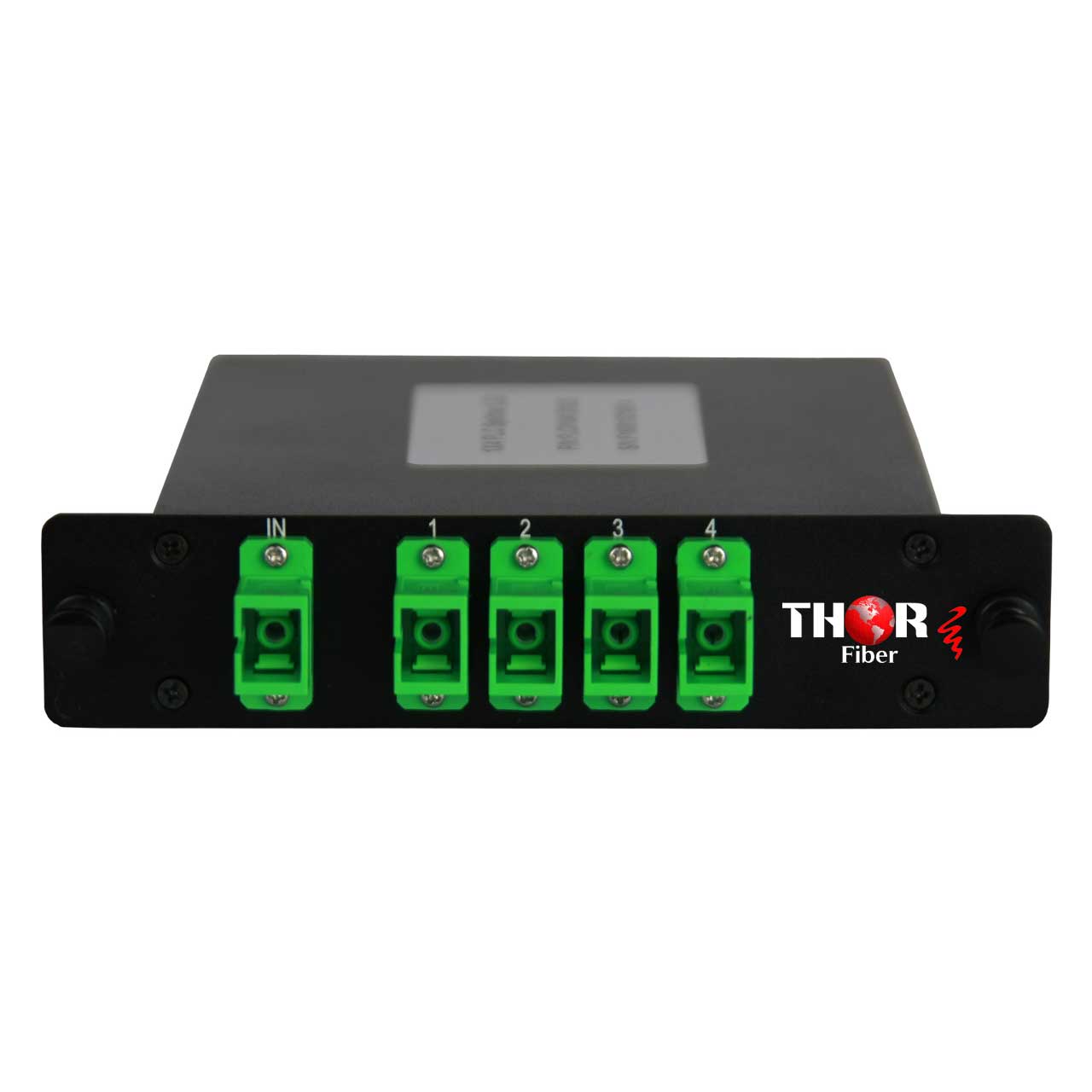

Thor F-PLC-1x4-LGX 1x4 Compact LGX Fiber Optic Splitter -Optical Couplers

ITEM #: THR-F-PLC1X4-LGX MFG #: F-PLC-1X4-LGX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$420.00

Our Price:

$350.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


F-PLC-1X4-LGX - Overview

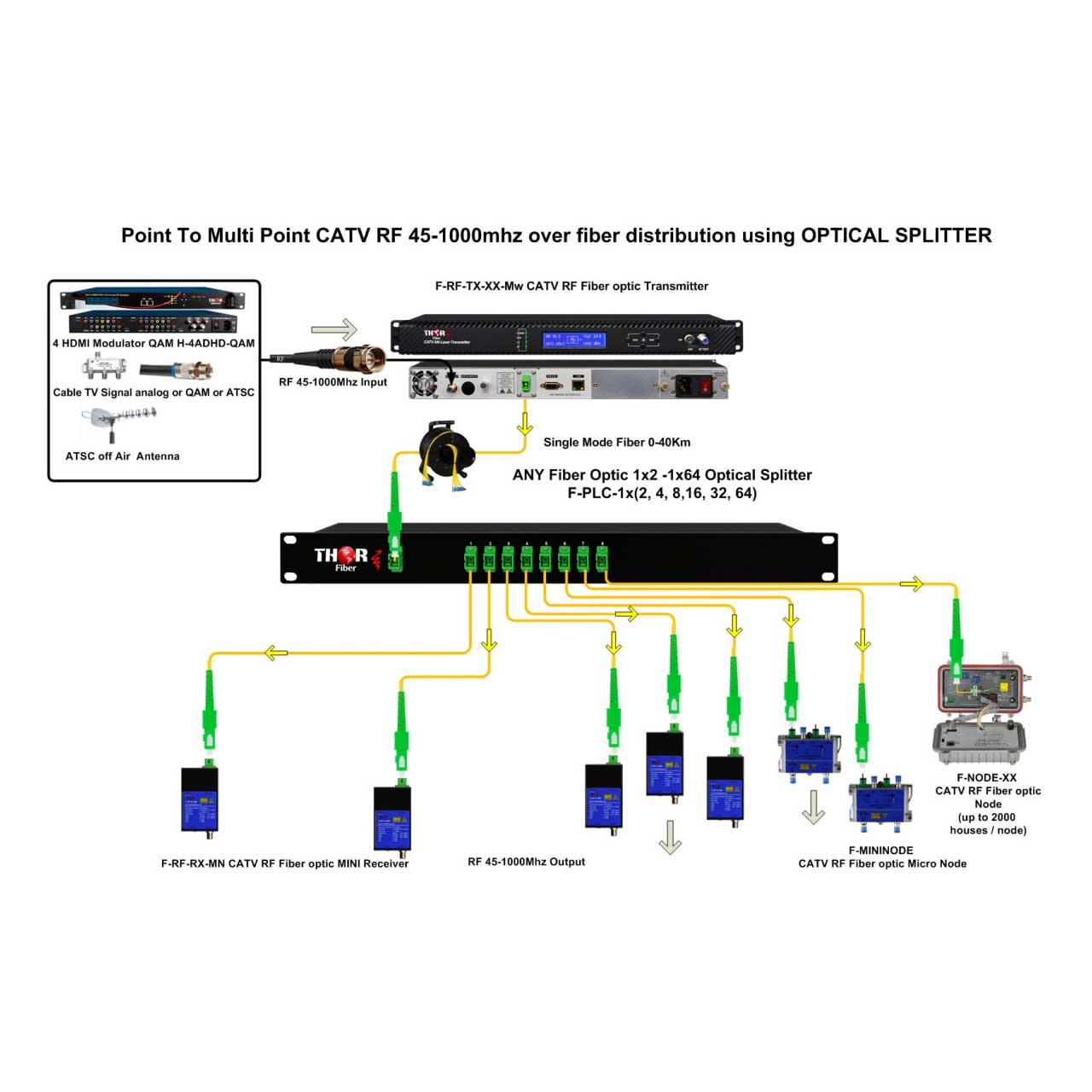

The Thor Fiber F-PLC 1x4 LGX style cassette splitter can be used in any single mode fiber application for injecting a single SC/APC fiber stream connection and splitting it to multiple SC/APC fiber sources no matter what the signal is HD/SDI, SD/SDI, RF, HDMI, Component, composite etc, etc. A commercial grade rackmount splitter that allows for easy distribution utilizing front facing connector ports to easily setup your hardware and distribute your signal. With a wide range and flexibility means Thor Fiber can prepare and meet any necesiities pertaining to a PON, GPON, FTTH, FTTX, LAN, and CATV application for any infrastructure.

  • Features:

    • Compact LGX Cassette housing
    • Low insertion loss
    • Optical coupling ranging from 1x2 up to 2x64
    • Any PLC Splitter Applications
    • Fiber to the point (FTTX)
    • Fiber to the home (FTTH)
    • Passive optical networks (PON, GEPON)
    • Local area networks (LAN)
    • Cable television (CATV)

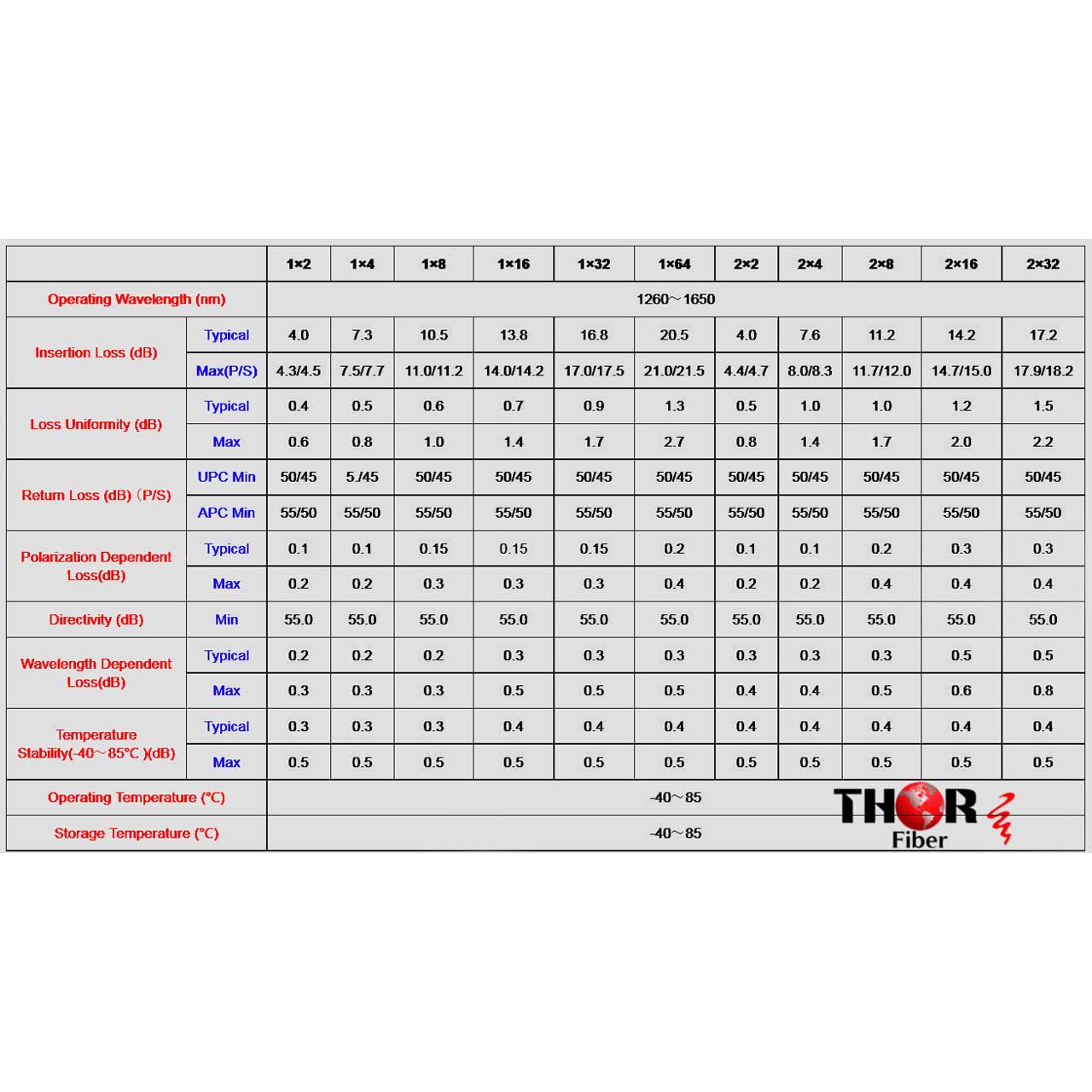

  • Specifications:

    • Compact form factor
    • Good uniformity and low insertion loss
    • Low Polarization
    • Excellent Mechanical Stability
    • Passive Optical Coupling
    • Operating environment: -40°C to +85°C
    • High Polarization Extinction Ratio & Excellent Uniformity
    • Fiber input: 2.0mm Fiber output: 2.0mm G.657A Fiber


F-PLC-1X4-LGX - Required Accessories
