Thor Fiber F-RF-1310-Tx-4mW CATV RF Over Fiber Transmitter 45-870 MHz with 4dB Output Power

ITEM #: THR-RF-1310-T4MW MFG #: F-RF-1310-TX-4MW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,394.00

Our Price:

$1,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


F-RF-1310-TX-4MW - Overview

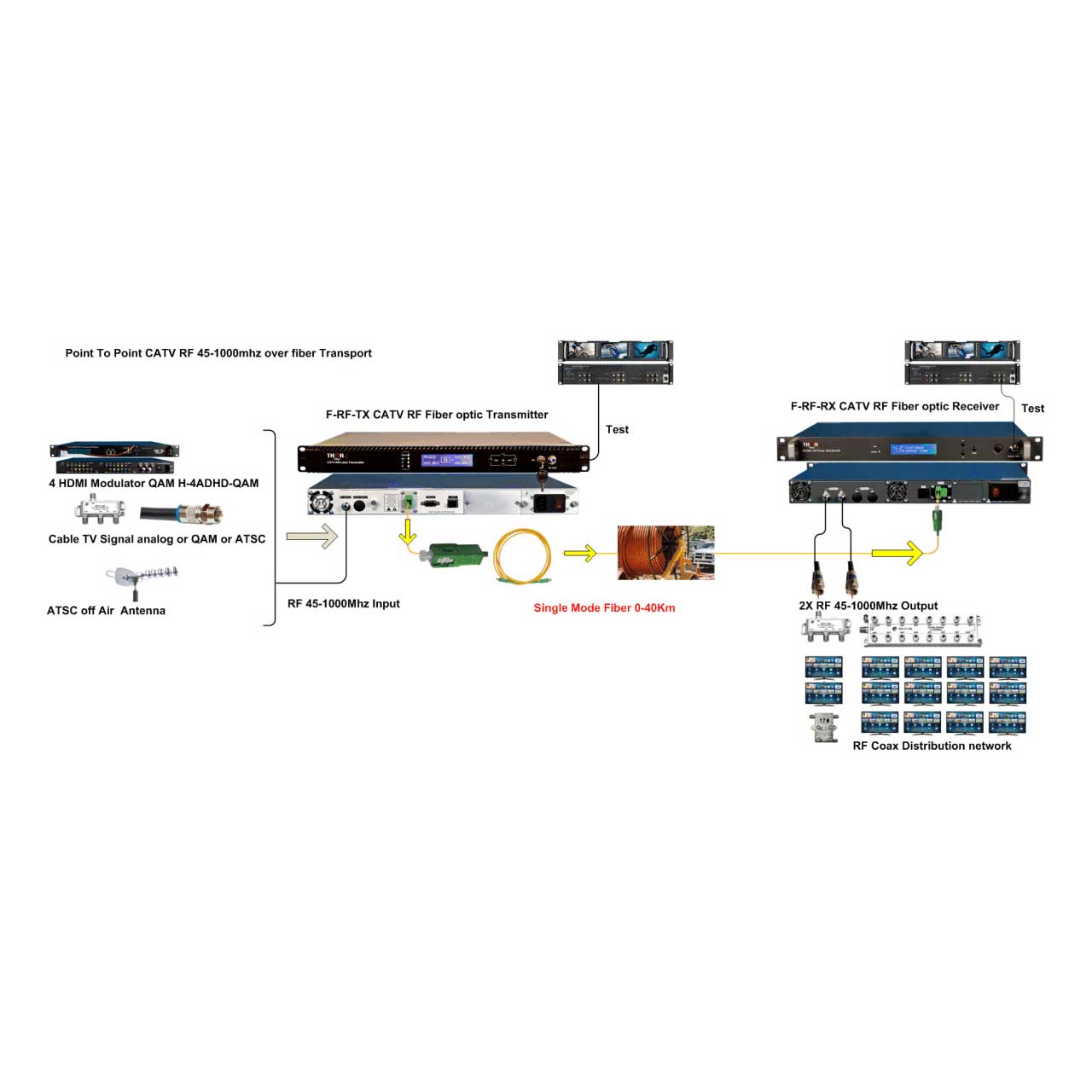

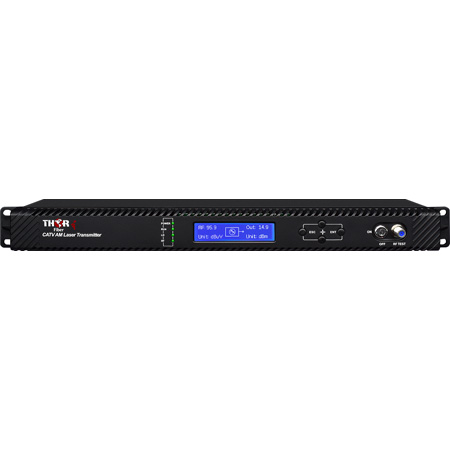

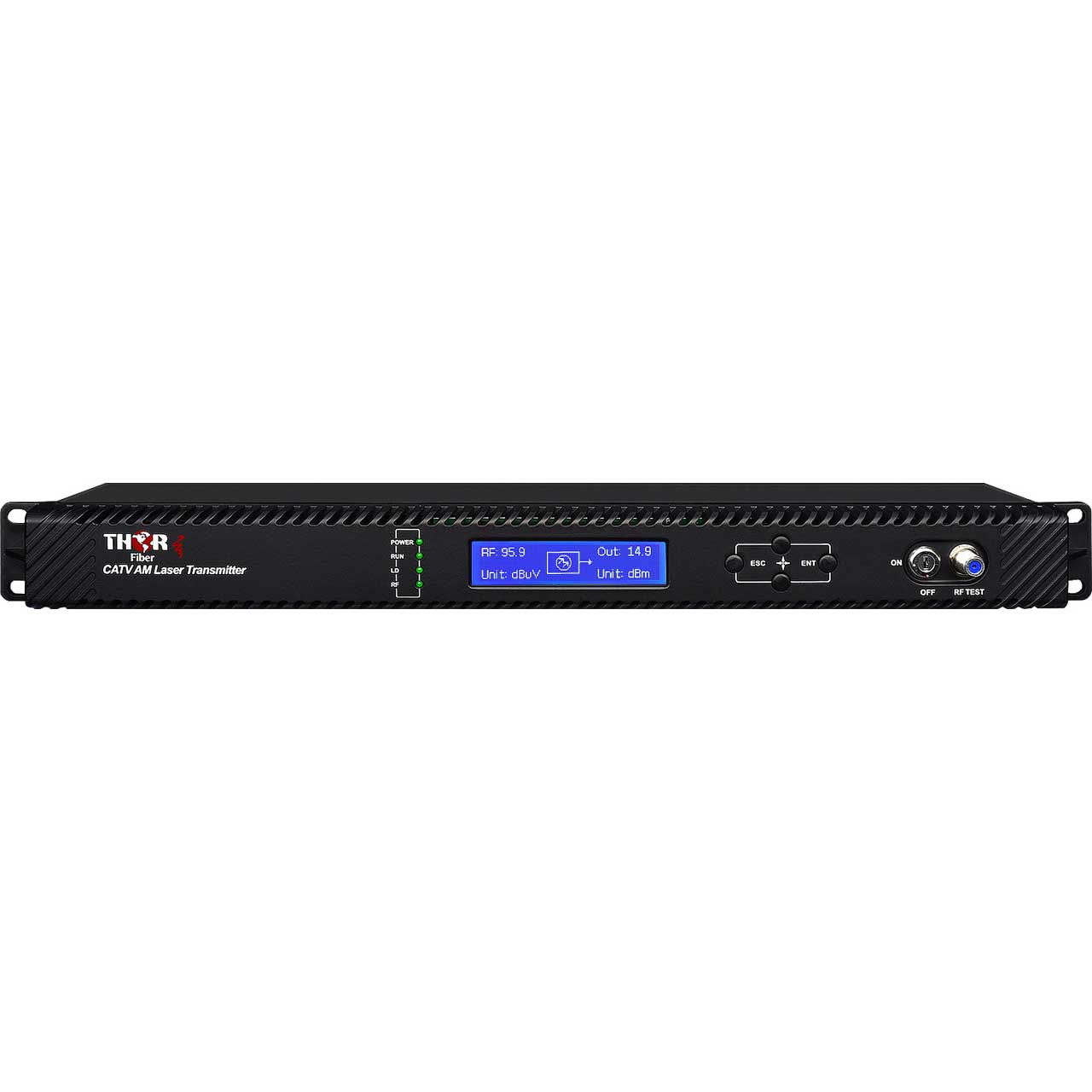

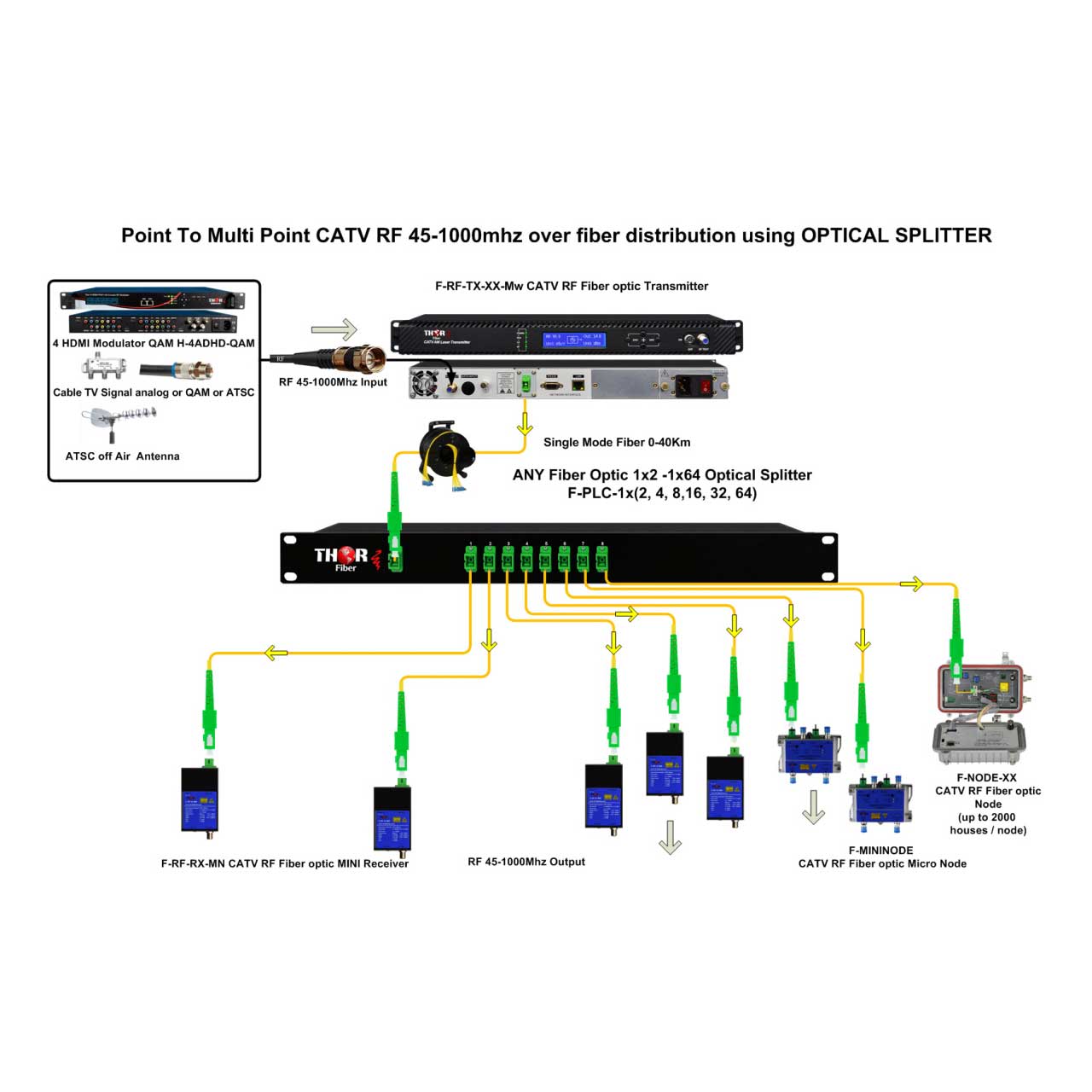

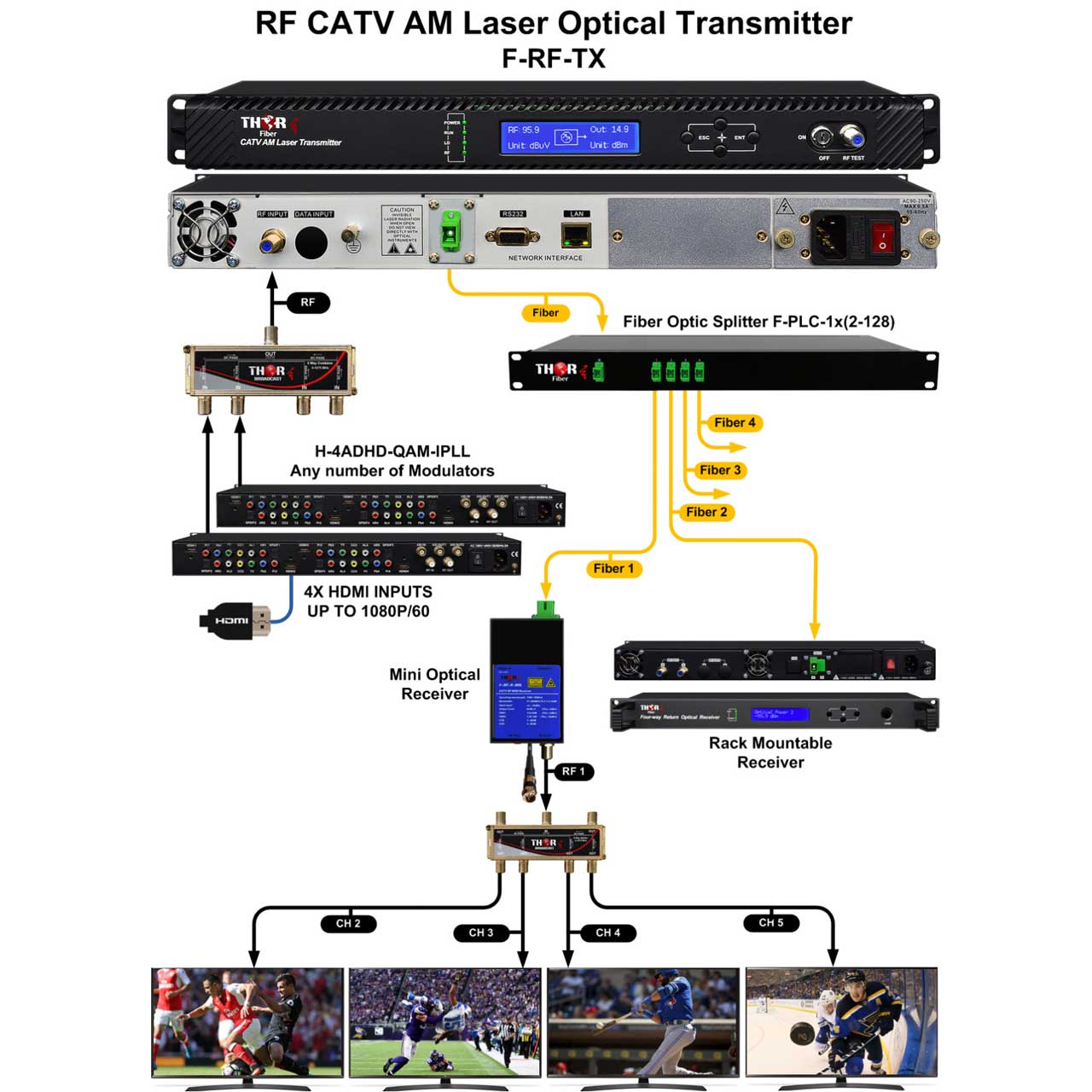

1310nm - 4mW fiber optic transmitter for Television RF (Radio Frequencies) from 45-870 MHz. Directly converts any incoming RF signal within this band to optical RF. Transports all channels and programs over one fiber. Can be used for point to point, or combined with PLC couplers and fiber optic splitters for point to multipoint applications. Outputs Industry standard RFoG (RF over Glass) signals that can be accepted by most fiber optic RF receivers from other manufacturers. Easy to read front panel LCD provides information and alarm data, and simplifies configuration. This system features a highly linear DFB laser with automatic adjustment circuitry with Automatic Gain Control. For added reliability, a second internal Power Supply Unit is available as an option.

  • Features:

    • 4mW Laser Optics for Optical Output Power of at least +3 dBm
    • Temperature controlled optics for consistent power output
    • Broadband RF response for full lineup transport of telivision RF
    • Transports any channels in the 45-870 MHz broadband range

  • Specifications:

    • Laser Power: 4mW
    • Optical Power: > +3.5 dBm

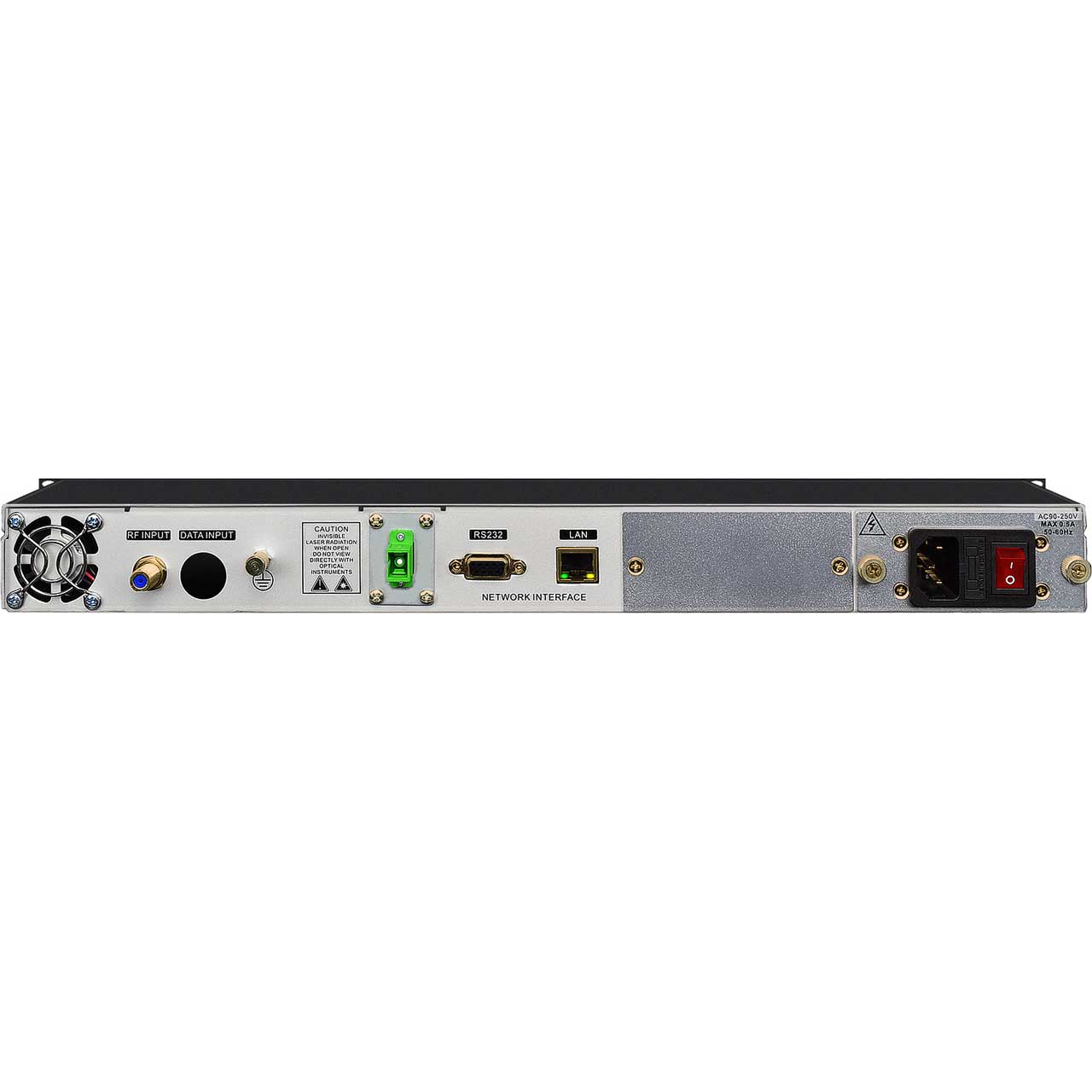

    • Fiber Connector: SC/APC
    • RF Input Power: 19 - 21 dBmV
    • RF Connector: Type-F 75 Ohm
    • Power Input: 120-240 VAC
    • Power Rating: 50W
    • Dimensions: 19 x 10 x 1.75 IN
    • Termperature: -5 - 65 C

  • Item Includes:

    • Optical Transmitter
    • US Power Cable
    • User Manual

  • GTIN:

    0799599222091
