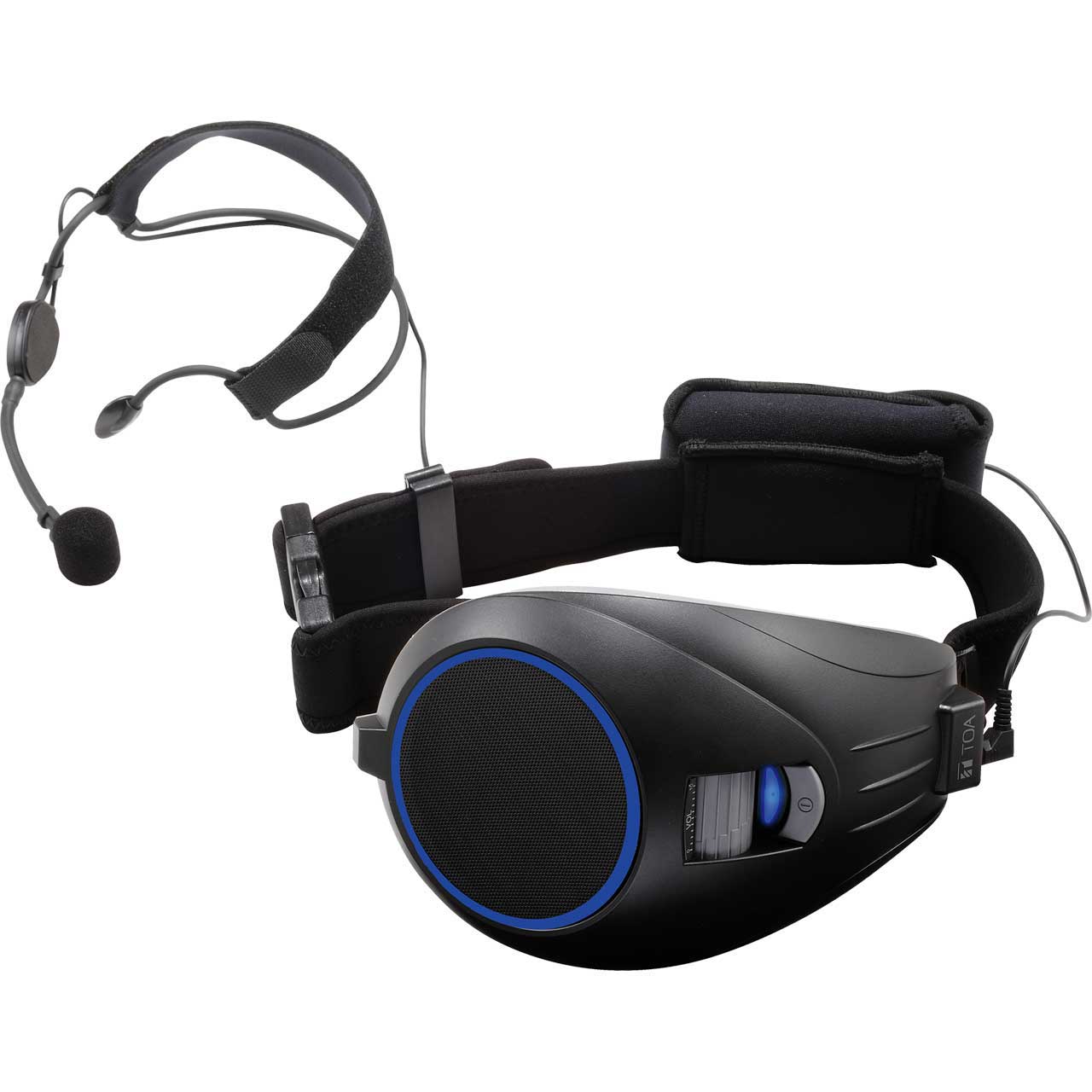

TOA ER-1000A-BT Hands-Free Personal Portable PA System with Built-In Bluetooth

ER-1000A-BT - Overview

• Features:

  • Highly Intelligible Sound: With the ER-1000A-BT, your voice will reach your audience clearly, even in a noisy or crowded place. It can prove especially useful when wearing a mask. The built-in digital amplifier and an optimized frequency for speech, produces high intelligible sound.
  • Fit for Prolonged Use: A unique curved design and an adjustable waistband ensures the stability of handsfree use. In addition, the 530 g ultra-light body ensures prolonged usage.
  • Audio Player Connectable: An AUX input terminal allows public address announcements to be made with your favorite music.
  • Bluetooth Connection: The ER-1000A-BT can play audio by pairing a compatible Bluetooth device via smartphone or audio player
  • Easy to Operate: The large, rotary style volume control and independent power on/off switch, simplifies the complexity of handling, so you to speak naturally without looking down.
  • Built-In Pouch: Carry accessories like an audio player or extra batteries for the main unit, in thewaistband's built-in pouch.
  • Versatile Wear: The ER-1000A-BT has the ability to be set on either side of the body, and still provide the same audio performance. In the event you feel tired, feel free to switch the unit to the other side.


• Specifications:

  • Power Source: Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces (6 V DC)
  • Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces (4.8 V DC)
  • Output: 6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used.
  • 3 W (rated) and 4 W (max) when 4 AA batteries (6 V DC) are used.
  • Audible Range:
  • Voice Operation:
    Approx. 100m (328.08 ft) (when 6 alkaline batteries or NiMH batteries are used)
    Approx. 80m (262.47 ft) (when 4 alkaline batteries or NiMH batteries are used)
  • Battery Life:
  • Voice Operation:
    Approx. 8 hours (when 6 or 4 alkaline batteries are used)
    Approx. 7 hours (when 6 or 4 NiMH batteries are used)
  • AUX Stereo Input Operation (Music Reproduction):
    Approx. 9 hours (when 6 or 4 alkaline batteries are used)
    Approx. 9 hours (when 6 or 4 NiMH batteries are used)
  • Frequency Response: 300 Hz - 14 kHz (deviation: -26 dB)
  • Headset Microphone: Ear-on type, electret condenser microphone, sensitivity: -47 dB (0 dB = 1 V/1 Pa, 1 kHz) cord length: 1.3m (4.27ft), 3.5mm (1/8") mini-plug (monaural), with headband and windscreen.
  • Input:
    MIC: -30 dB, 3 kΩ, 3.5mm (1/8") monaural mini-jack, phantom power supply.
    AUX: -10 dB , 2 kΩ, 3.5mm (1/8") stereo mini-jack (supporting monaural applications)
  • Communication Method: Bluetooth Ver.4.2
  • Output Power: Bluetooth Class 2
  • Bluetooth Operating Range: 10m (32.81 ft)
  • Protocol: A2DP
  • Codec: SBC
  • Belt Length: 55 - 120cm (1.8 - 3.94 ft)
  • Operating Temperature 0° to 40°C (32° to 104°F)
  • Front Case: ABS resin, black
  • Rear Case: ABS resin, gray
  • Grille: Surface-treated steel plate, black, paint
  • Belt: Elastic rubber, black
  • Dimensions (WxHxD): 5.24 x 3.78 x 8.74" (133 x 96 x 222mm) (belt excluded)
  • Weight:
    Main PA Unit (belt included, batteries excluded): 1.06Lbs (480g)
    Headset Microphone: 0.11Lbs (50g)


• Item Includes:

  • 1x Headset microphone (with headband and wind screen)
  • 1x Belt (attached to the main PA unit)
  • 2x Battery spacer
