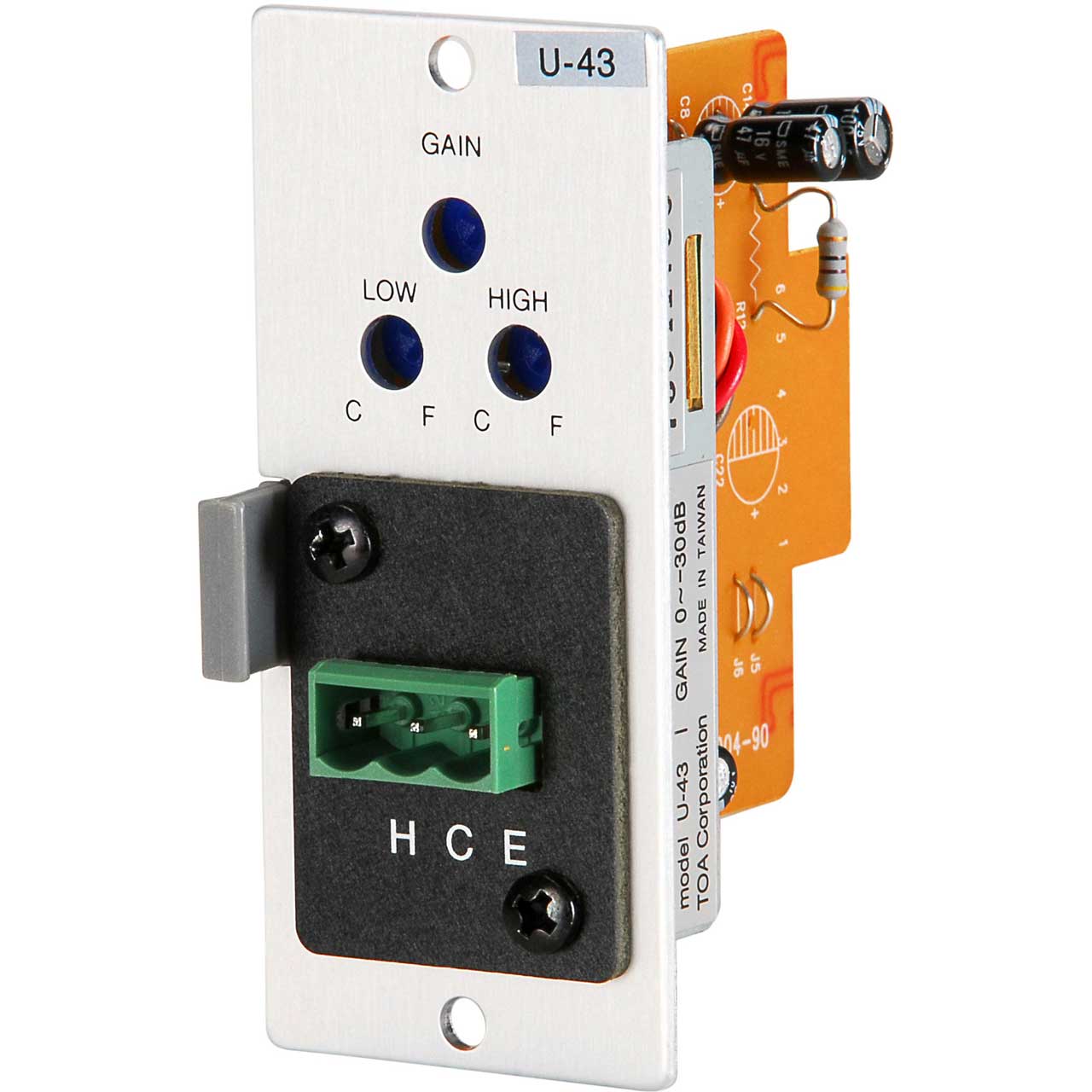

TOA U-43S Line In Module with Hi/Low Cut Filters Mute Send and Screw Terminals

Name: TOA U-43S Line In Module with Hi/Low Cut Filters Mute Send and Screw Terminals
Brand: TOA Electronics, Inc.
SKU: TOA-U43S
Price: 83.00 USD
Availability: PreSale

ITEM #: TOA-U43S MFG #: U-43S

TOA Electronics, Inc.

List Price:

$102.00

Our Price:

$83.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

U-43S - Overview

The TOA U-43S is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output.

Specifications:
- Power Source: 24 VDC
- Current Consumption: Less than 15 mA
- Input Sensitivity (Rated Output 100 mV ): 100 - 3,600 mV (adjustable)
- Low Cut Filter (100 Hz ): -5 - -15 dB
- High Cut Filter (10 kHz ): -7 - -13 dB
- Noise Output (20 Hz - 20 kHz BPF): Less than 10 æV
- Distortion: Less than 0.05 %
- Frequency Response: 20 Hz - 20 kHz
- Signal-Activated Muting: 6 - 15 mV
- Input Connector: 3P terminal block
- Output Connector: 6P card edge-connector
- Dimensions: 35 (W) x 78 (H) x 88 (D) mm
- Weight: 50 g
