Tripp Lite B121-000 DisplayPort Extender Equalizer Repeater for Video & Audio 1920x1200 at 60Hz/1080p - 150 Feet

B121-000 - Overview

• Features:

  • Extend a Displayport signal up to 150 ft. from the source
  • Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
  • Use P580-Series Displayport Cables
  • When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
  • Built-in Equalization control to adjust the video image
  • HDCP compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.

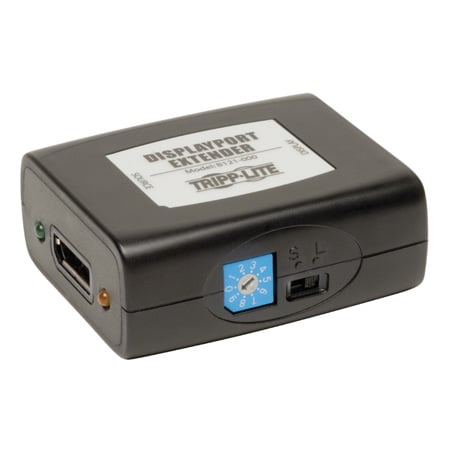

  • LED Indicators: The Green LED illuminates to indicate that the power supply is connected and the unit is receiving power from a power source. The Orange LED illuminates when the S/L Equalization switch is in the L position. The Orange LED does not illuminate when the S/L Equalization switch is in the S position.
  • Color: Black

    Communictions
  • Max 1024 x 768 Range (ft): 150
  • Max 480P Range (ft): 152
  • Max 1440 x 900 Range (ft): 150
  • Max 1080i Range (ft): 150
  • Max 1080P Range (ft): 150
  • Max 480i Range (ft): 152
  • Max 640 x 480 Range (ft): 150
  • Max 800 x 600 Range (ft): 150
  • Max 1600 x 1200 Range (ft): 150
  • Max 720P Range (ft): 150
  • Side A - Connector 1: DISPLAYPORT (FEMALE)
  • Side B - Connector 1: DISPLAYPORT (FEMALE)

    Connections
  • Ports: 1
  • Side A - Connector 1: DISPLAYPORT (FEMALE)
  • Side B - Connector 1: DISPLAYPORT (FEMALE)

    Physical
  • Shipping Dimensions (hwd / in.): 6.00 x 2.25 x 7.20
  • Shipping Weight (lbs.): 0.60

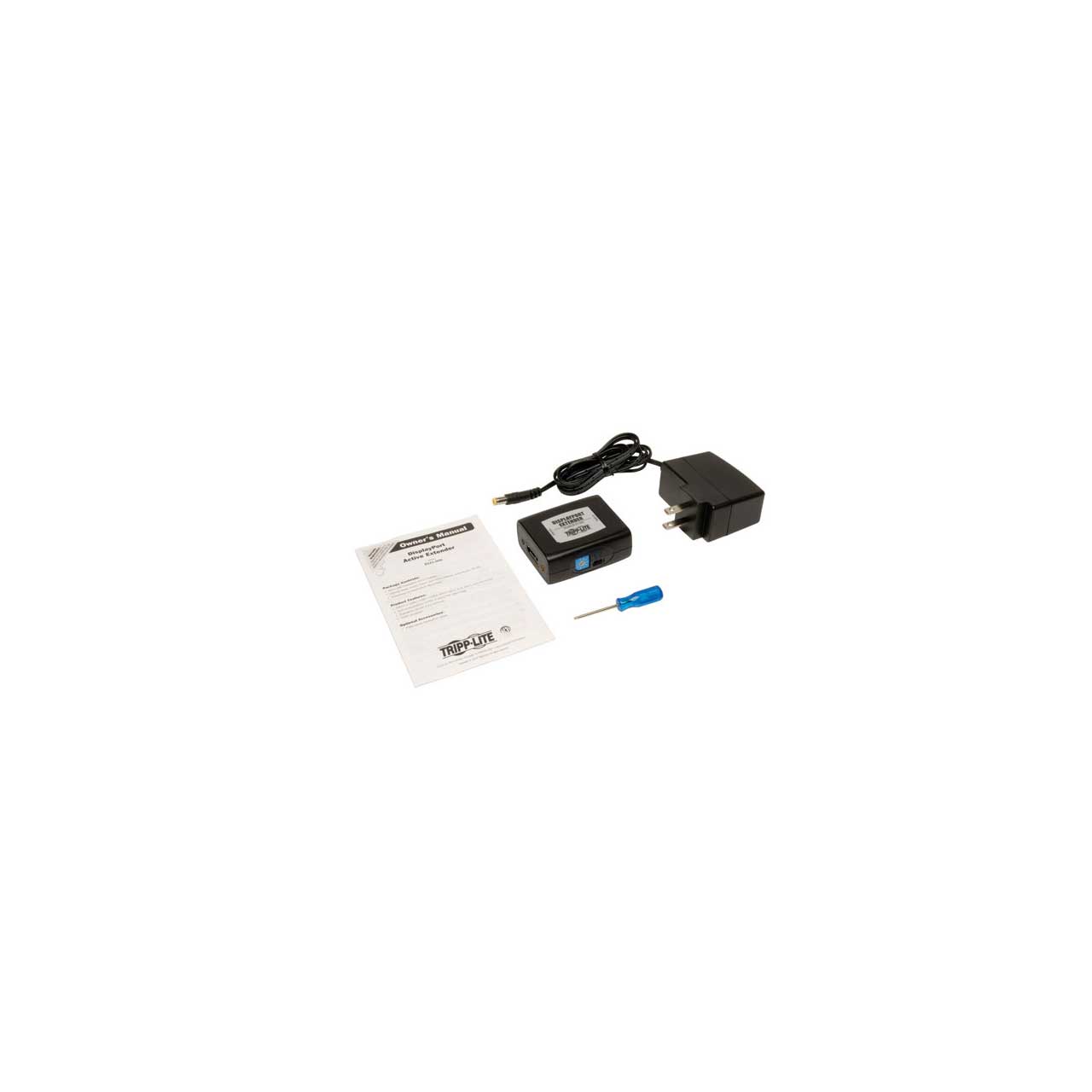

• Item Includes:

  • B121-000 Displayport Signal Extender
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
  • Screwdriver for Equalization Adjustment
  • Owner's Manual


• Warranty:

  • 1 Year


• System Requirements:

  • A DisplayPort equipped computer
  • A DisplayPort equipped monitor
  • For audio support, you must have a DisplayPort source that supports audio, and which has it enabled. Reference the FAQ in the Q&A tab of this page for details.


• GTIN:

  0037332175502
