Tripp Lite EURO-4 International Isobar Surge Protector 230V C13 4 Outlet 2M Cord

ITEM #: TRL-EURO-4 MFG #: EURO-4

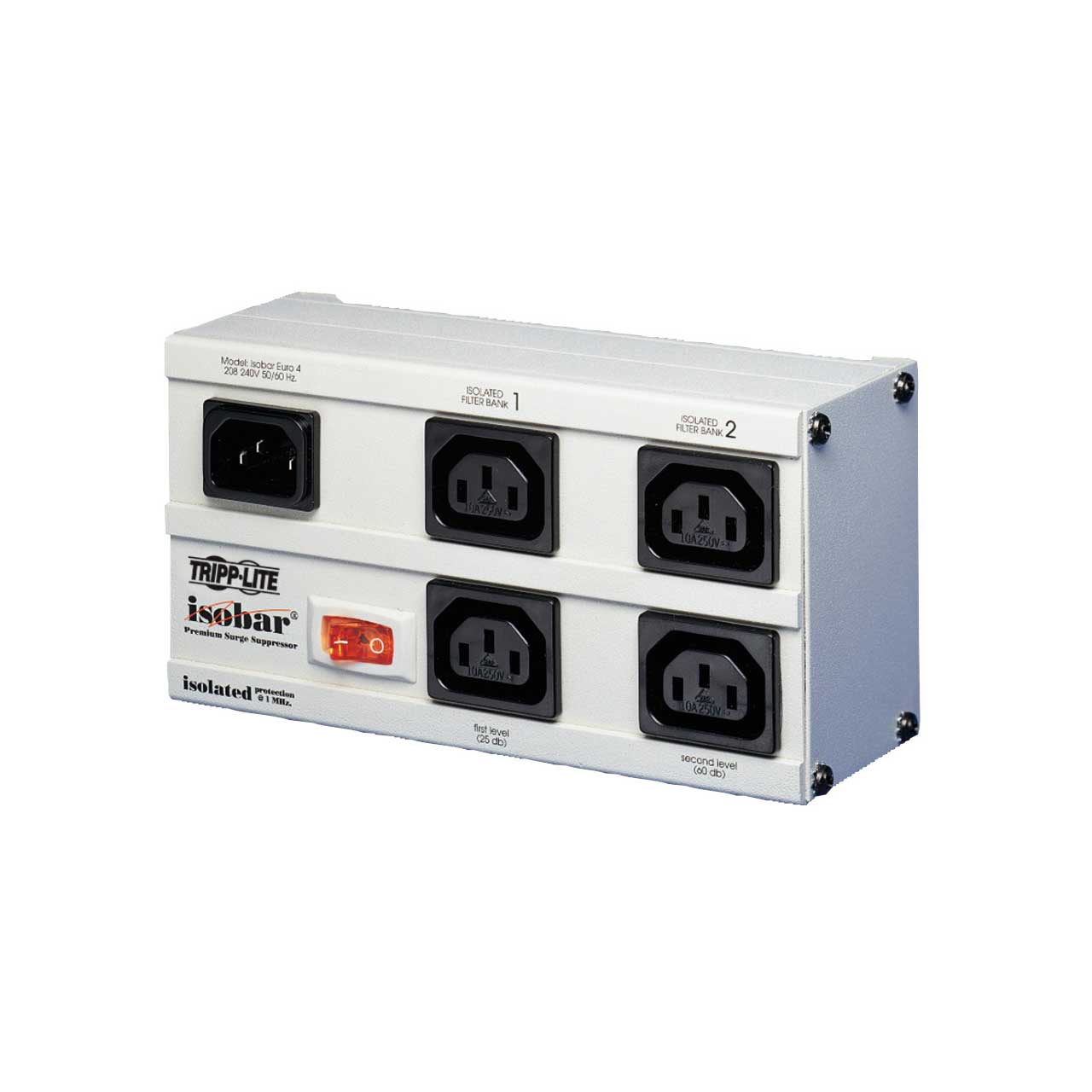

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$116.02

Our Price:

$80.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EURO-4 - Overview

Premium protection for home, corporate, retail, telecom and industrial applications, the Tripp Lite EURO-4 Isobar® 4-Outlet 230V Surge Protector features a surge protection rating of 680 joules to defend your sensitive electronics against surges and spikes.

The EURO-R features four widely spaced C13 outlets, which are arranged in two exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to the other. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems.

Because residential power outlets have three wires--hot line (H), neutral (N) and ground (G)--the EURO-4 protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

An integrated 9A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected components. A C14 inlet accepts a variety of detachable power cords, such as the included six-foot (1.8 meters) C13 cable. An all-metal housing ensures long life and durability.

  • Features:

    • 4 C13 outlets in exclusive isolated filter banks
    • 680-joule surge protection rating
    • Durable metal housing designed for tough environments
    • 9A resettable circuit breaker prevents dangerous overloads
    • Detachable 6 ft. (1.8 m) C13-to-C14 power cord
    • This product is covered by a Lifetime Limited Warranty
    • Protects your A/V components, network hardware, retail displays, appliances, power tools and other electronics against surges and spikes
    • Recommended for home, corporate, retail, telecom and industrial applications requiring AC line protection
    • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Exceeds IEEE 587 Category A and B surge suppression specifications

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 230V AC
    • Recommended Electrical Service: 230V (220-250V)
    • Voltage Compatibility (VAC): 220-250
    • Maximum Surge Amps: 15000
    • Input Plug Type: IEC-320-C13
    • Input Cord Length (ft.): 6
    • Right-Angle Plug: No
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (4) C13
    • Circuit Breaker (amps): 9
    • Transformer Accommodation: (2) Yes
    • Right-Angle Outlets: No

      User Interface, Alerts & Controls
    • Diagnostic LED(s): No
    • Switches: Two position orange illuminated on/off power switch

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 680
    • AC Suppression Response Time: NM = 0 ns. CM = <1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 300
    • AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
    • EMI / RFI Filtering: Yes
    • Isolated Filter Banks: 2
    • Immunity: Conforms to IEE 587 / ANSI C62.41
    • Automatic Shut-Off: Yes

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Light Gray
    • Color (AC Line Cord): Light Gray
    • Housing Color: Light Gray
    • Integrated Keyhole Mounting Slots: Yes
    • Keyhole Slot Mounting Measurement (Center to Center): Distance between horizont tabs = 162.13mm; Distance between vertical tabs = 58.17mm
    • Material of Construction: Metal
    • Outlets Measurement (Center to Center): Distance between horizontal outlets = 53mm; Distance between vertical outlets = 38.10mm
    • Receptacle Color: Black
    • Shipping Dimensions (hwd / in.): 9.50 x 2.60 x 5.80
    • Shipping Weight (lbs.): 2.00
    • Unit Dimensions (hwd / in.): 3.5 x 7 x 2.5

  • Item Includes:

    • 1x EURO-4 Isobar 4-Outlet 230V Surge Protector, Metal Housing
    • 1x Detachable C13-to-C14 power cord, 6 ft. (1.8 m)
    • 1x Owners manual

  • GTIN:

    0037332010049
