Thunderbolt 4 Hub Turns Your Laptop or Computer into a 4-Port 8K Workstation
Tripp Lite's versatile MTB4-HUB3-01 dramatically expands the potential of your desktop computer or laptop by adding four ports to its Thunderbolt 4 or Thunderbolt 3 port. It goes further than a USB-C hub, offering three Thunderbolt 4 ports that support 8K video and 40 Gbps data transfer speeds. All three ports are backward compatible with Thunderbolt 3 and USB-C monitors as well. A USB 3.2 Gen 2 port allows speeds up to 10 Gbps.
Thunderbolt 4 - 40 Gbps Data Transfer Speeds
The Thunderbolt 4 hub supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.0, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB4-HUB3-01 is perfectly suited for video playback or Zoom meetings on one monitor and video editing or document sharing on another.
8K and 4K Video for Professional Editing and Digital Signage

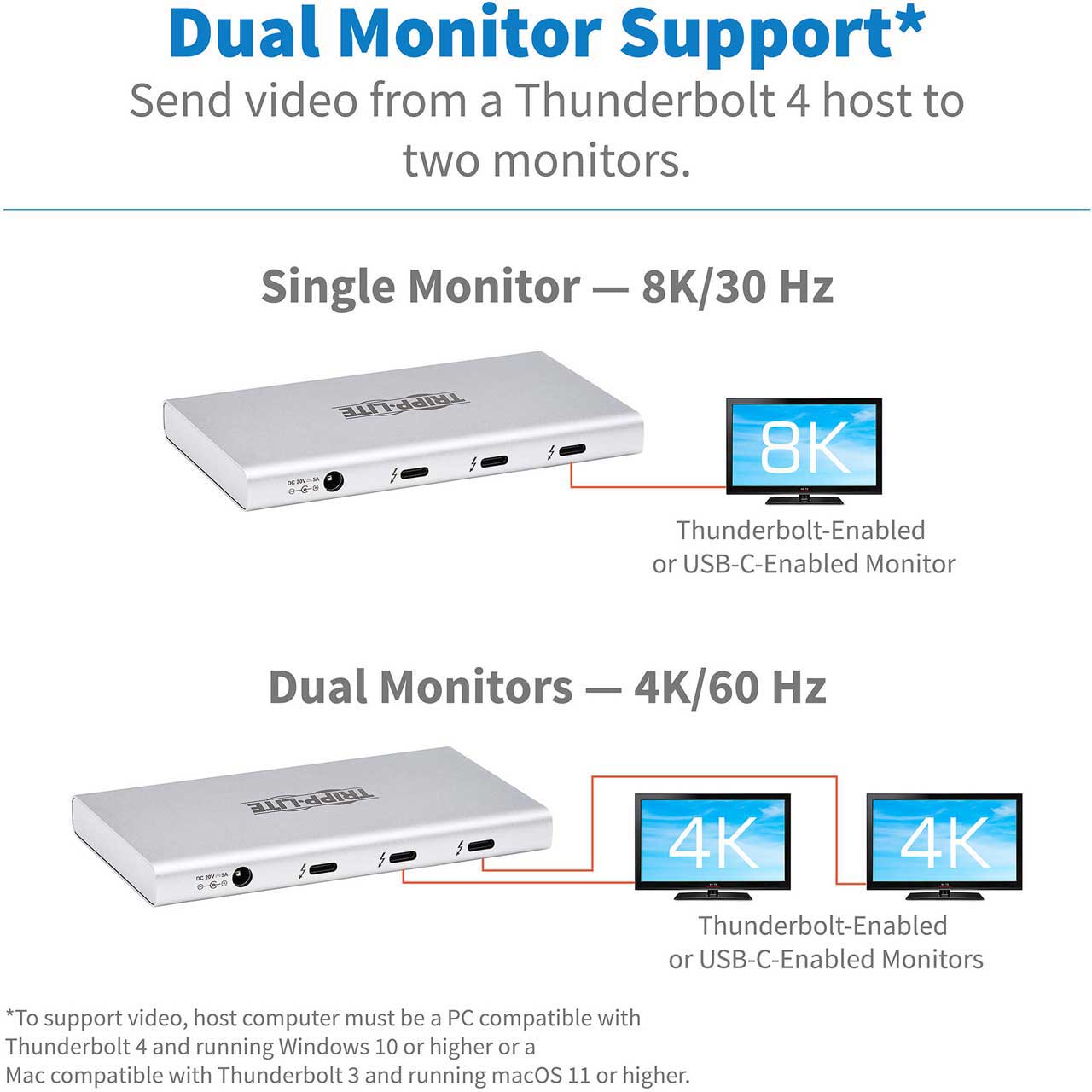

When connected to a Thunderbolt 4 source, the hub supports one 8K monitor (7680 x 4320 at 30 Hz) or two 4K monitors (3840 x 2160 at 60 Hz). With dual monitors, you can display the same image on both, extend your host desktop across them, or combine all screens into one large display as a video wall. Note: Source device must support DisplayPort 1.3 to achieve 8K resolution.
Cascade up to 6 Levels of Thunderbolt Devices
The MTB4-HUB3-01 acts as the first level in a daisychain installation and can cascade an additional five levels vertically, with many more devices connecting horizontally. The dock supports 40 Gbps Thunderbolt 4 data transmission that is shared among the three Thunderbolt ports and all connected peripherals and displays.
Connect Thumb Drives and Other USB Peripherals
The USB-A hub port supports USB 3.2 Gen 2 speeds up to 10 Gbps, which is twice as fast as USB 3.2 Gen 1. It accepts high-speed USB peripherals, such as external hard drives, giving you access to essential data storage.
System Requirements
-Source computer with a Thunderbolt 4 port and Windows 10 or higher OR a Thunderbolt 3 port and macOS 11 or higher
-Source computer must support DisplayPort 1.3 or higher to achieve 8K video resolutions
-Display device(s) with Thunderbolt or USB-C port (Note: Both active and passive Thunderbolt cables will work if both the source computer and display device are Thunderbolt compatible. Only a passive cable will work with a USB-C or other non-Thunderbolt display.)
