Tripp Lite N516-01M Duplex Multimode 50/125 Fiber Patch Cable (LC/SC) 3 Feet

ITEM #: TRL-N516-01M MFG #: N516-01M

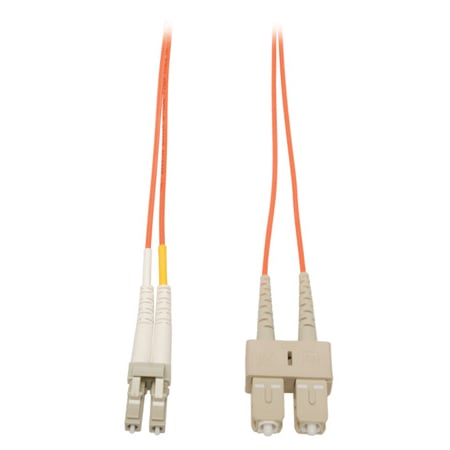

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$15.52

Our Price:

$15.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N516-01M - Overview

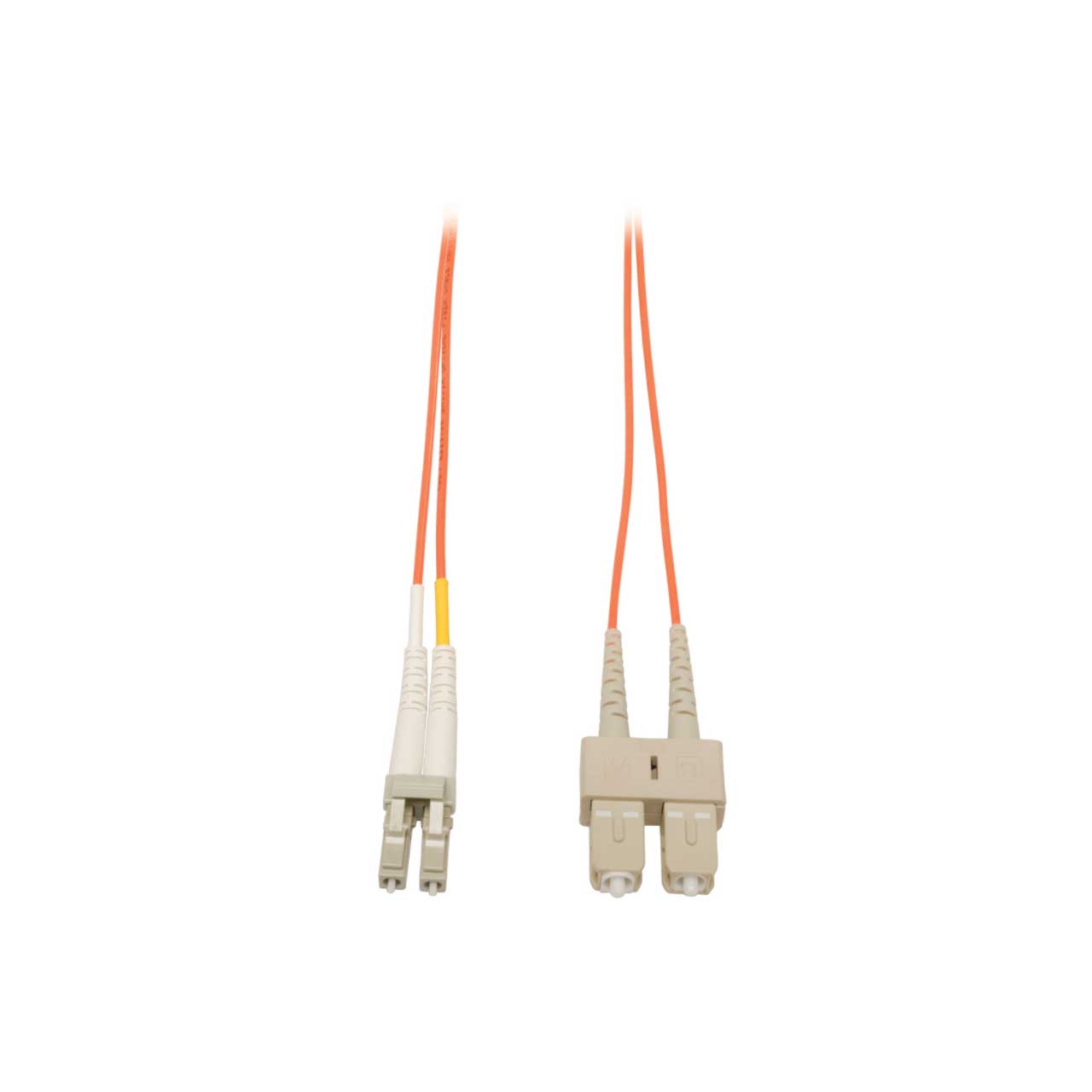

Tripp Lite's 1-meter multimode duplex Fiber Channel SC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on one end, and LC at the other, a PVC jacket, and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fiber Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 2, 3, 5, 10, 15, 20, 30, and 50 meter lengths. Search "N516-" to bring up all lengths. Also search "N506-" for SC-SC cables, and "N520-" for LC-LC cables.

  • Features:

    • Constructed with 50/125 micron cable
    • Length - 1M
    • Use on fiber and fibre channel installations
    • SC male to LC male connectors
    • Higher bandwidth optimized for gigabit and 10Gbps networks
    • Backward compatible with 62.5 micron fiber
    • Built-in headroom for future applications
    • Number of fibers: 2
    • Fiber type: all glass graded index
    • Core diameter: two 50+/-3 microns
    • CLAD diameter: 125+/-2 microns
    • Primary coating diameter: 245+/-15 microns
    • Primary coating material: acrylate
    • Secondary coating diameter: 900+/-50 microns
    • Secondary coating material: PVC
    • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
    • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
    • Numeric aperture: .275 nominal
    • Proof test level: 100,000 PSI
    • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
    • Beveled edge on ends of glass makes insertion of plug a breeze

  • Specifications:

    • Cable Length (ft.): 3.3
    • Cable Length (m): 1
    • Color: Orange
    • Network Speed: 1Gbps
    • Side A - Connector 1: LC DUPLEX (MALE)
    • Side B - Connector 1: SC DUPLEX (MALE)
    • Product Warranty Period (Worldwide): Lifetime limited warranty

  • Item Includes:

    • 1M duplex MMF cable LC/SC 50/125 fiber

  • Warranty:

    • Lifetime

  • GTIN:

    0037332119605
