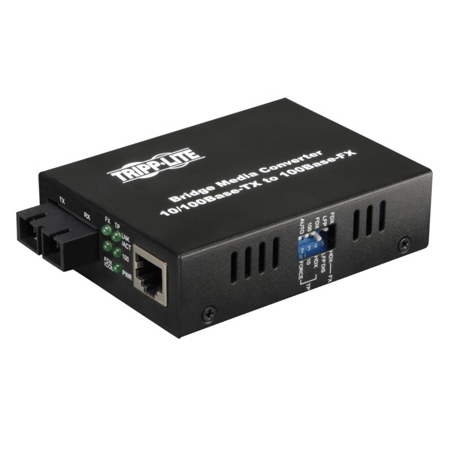

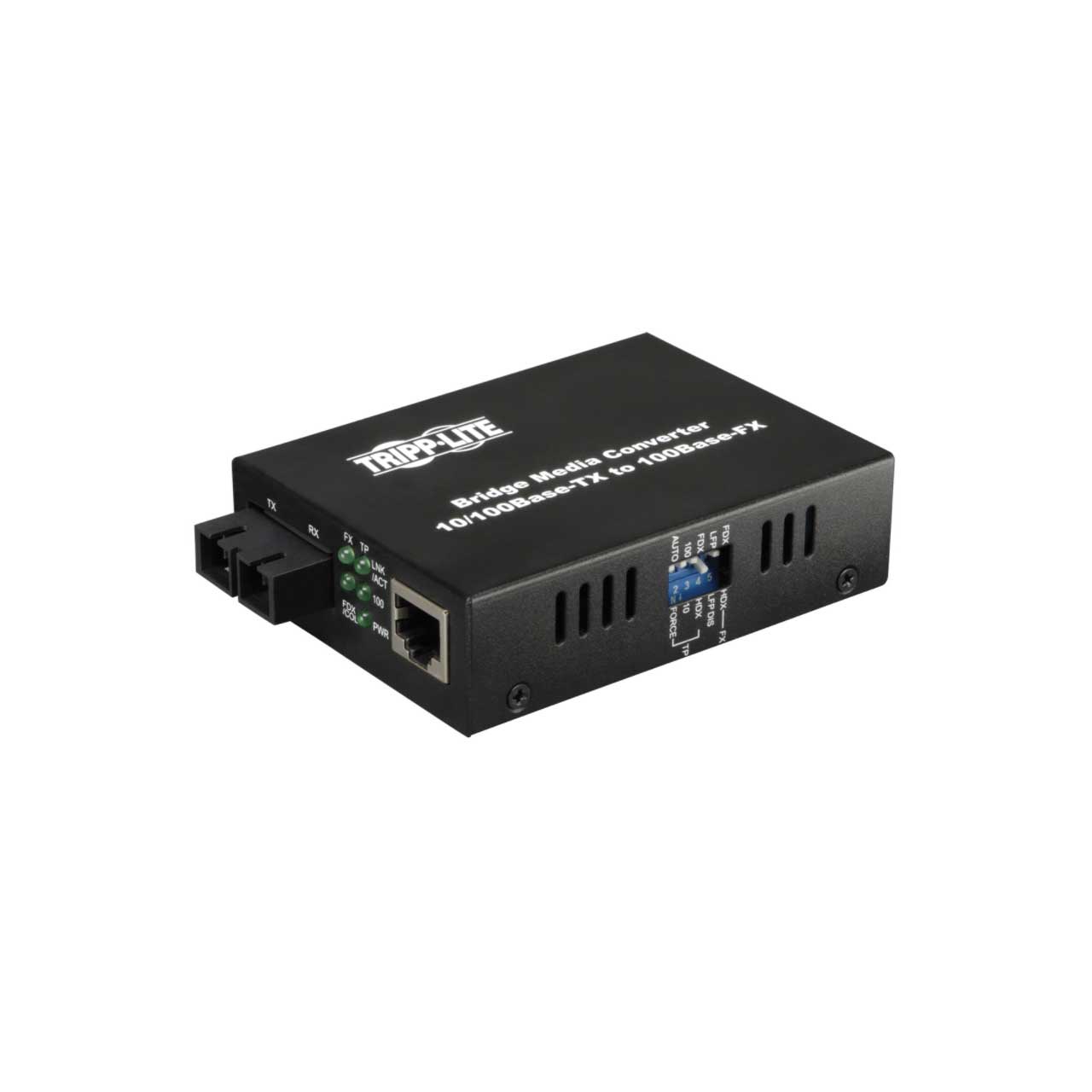

Tripp Lite N784-001-SC Fiber Optic - 10/100BaseT to 100BaseFX-SC Media Converter 2km 1300nm

ITEM #: TRL-N784-001-SC MFG #: N784-001-SC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$77.80

Our Price:

$67.30

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N784-001-SC - Overview

Tripp Lite's N784-001-SC 10/100 Media Converter, is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection ( switch selectable ).

  • Features:

    • Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
    • Auto MDI/MDI-X
    • UTP port auto-senses network speed
    • Switch selectable half or full duplex operation on the fiber port
    • Fiber lengths up to 2Km

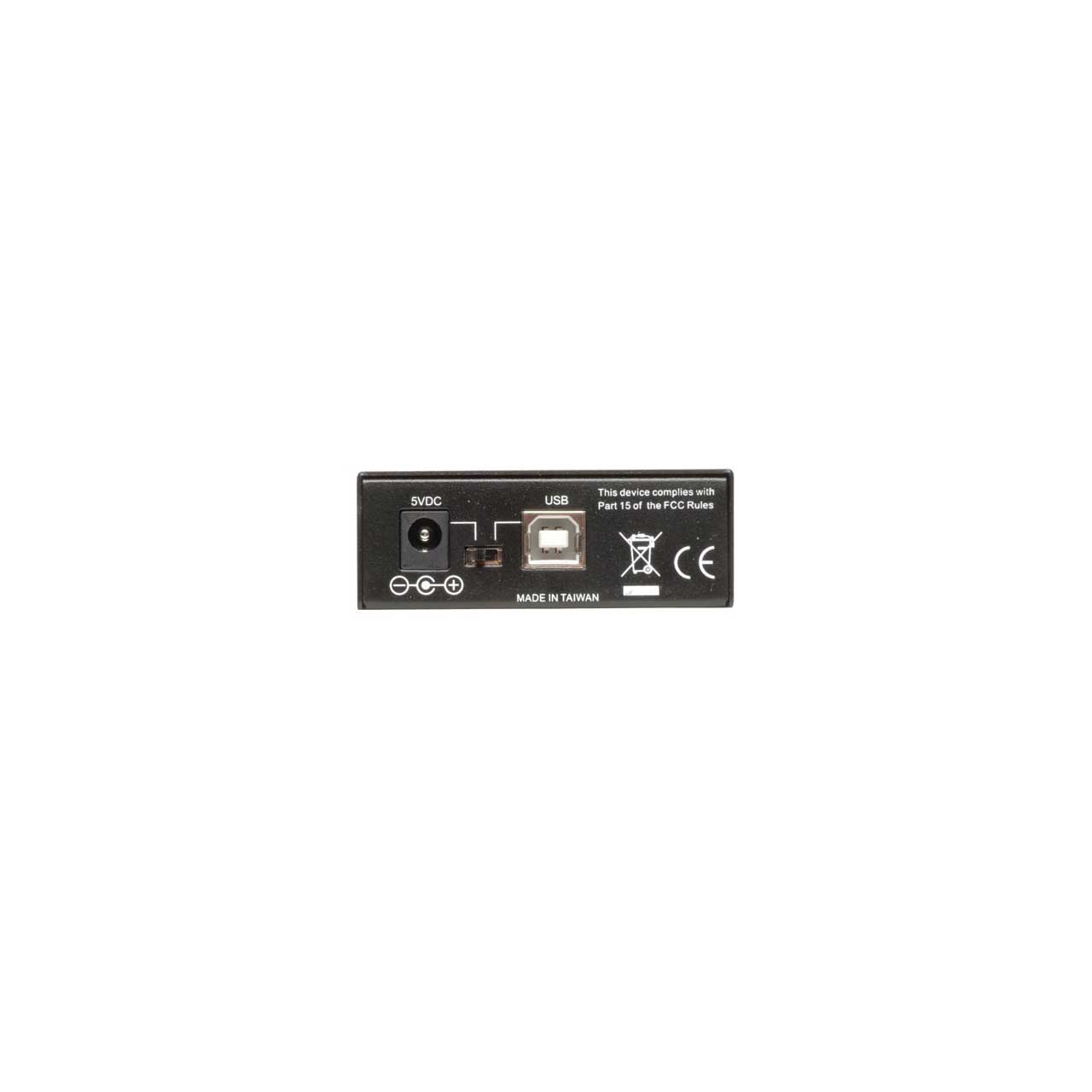

    • 2 Power Choices - AC-DC Adapter or USB

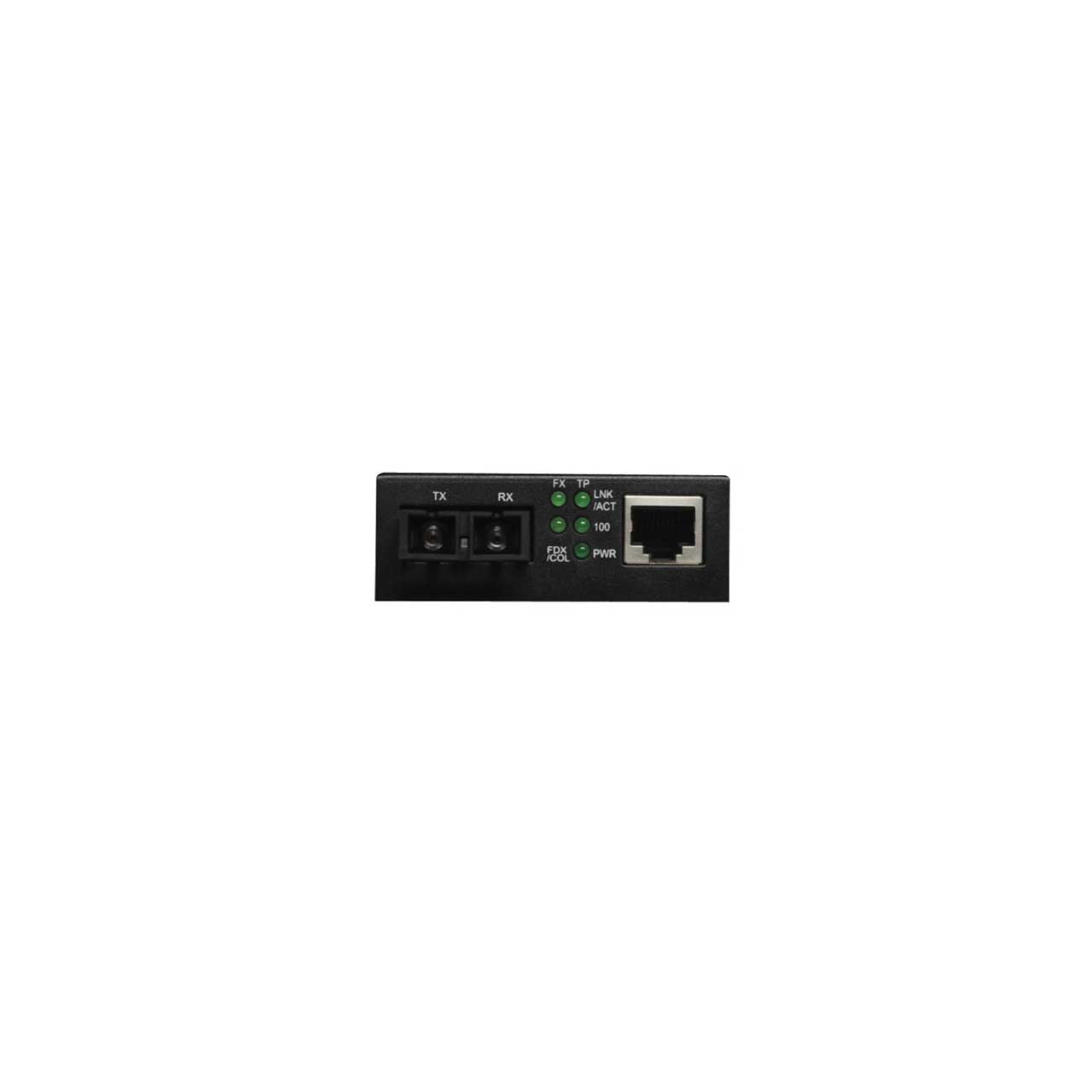

    • 5 LED Function lights
    • Uses 62.5/125 or 50/125 Multimode cable
    • 3.75"L x 2.75"W x 1"H
    • Wavelength: 1310nm
    • Supports Link Fault Pass-through (LFP) for easy tracing of network link failures

  • Specifications:

    • AC Adapter: Input: 100-240V
    • Side A - Connector 1: RJ45 (FEMALE)
    • Side B - Connector 1: SC DUPLEX (FEMALE)
    • Product Warranty Period (Worldwide): 1-year limited warranty

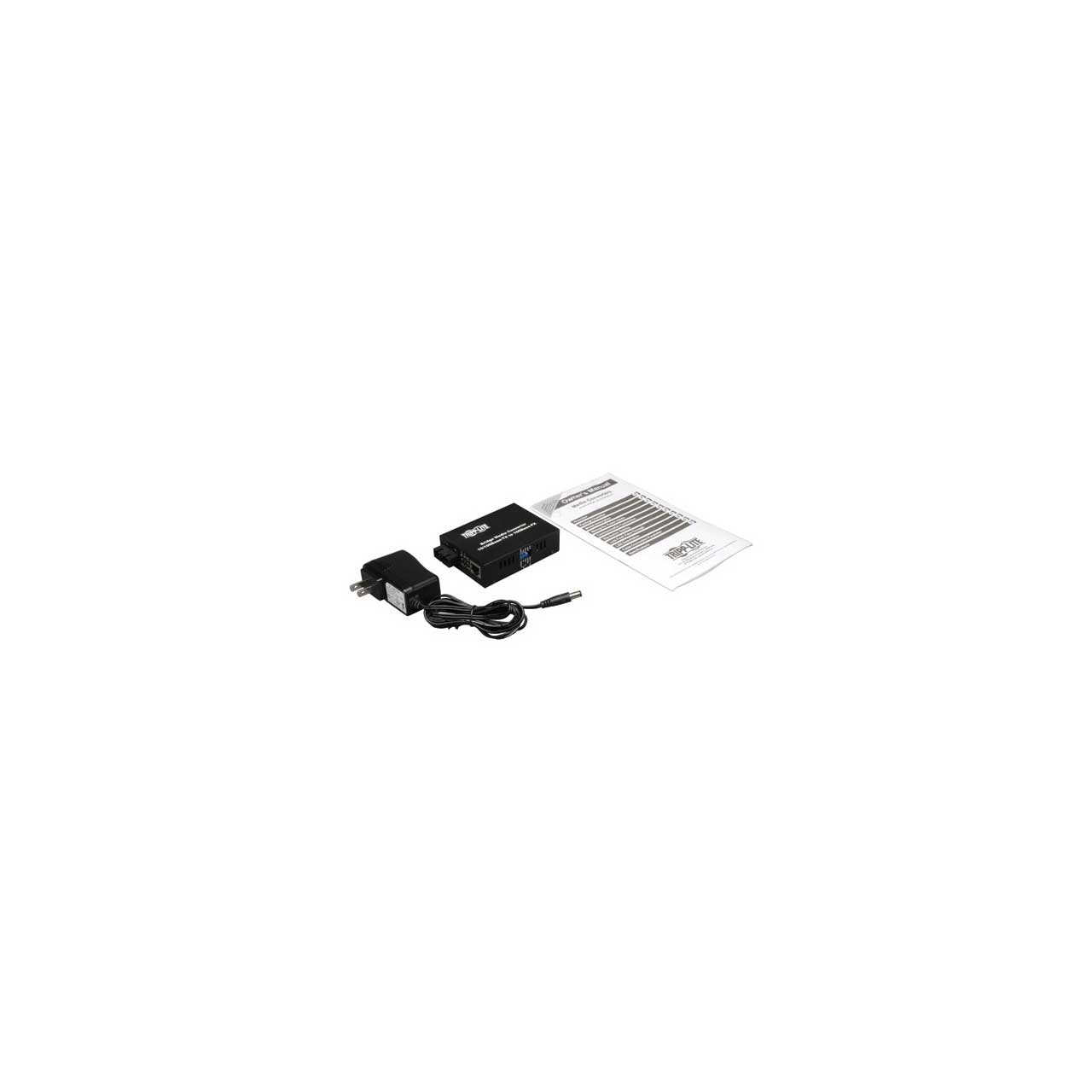

  • Item Includes:

    • 10/100 Media Converter, UTP - SC
    • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V )
    • Owner's Manual

  • Warranty:

    • 1 Year

  • GTIN:

    0037332130891
