Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Media Converter 550M 850nm

ITEM #: TRL-N785-001LCMM MFG #: N785-001-LC-MM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$272.00

Our Price:

$196.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N785-001-LC-MM - Overview

Tripp Lite's N785-001-LC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to LC ) is an economical way to extend the distance of network nodes up to 550M by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

  • Features:

    • 10/100/1000 UTP to Multimode Fiber converter
    • Up to 550 Meters ( 1800ft ) range
    • Auto-detects Full / Half Duplex Transfer Mode
    • Auto Negotiation MDI / MDI-X
    • 6 performance monitoring LEDs
    • 850nm wavelength
    • Small, compact design

  • Specifications:

    • AC Adapter: Input: 100-240V, 50/60Hz; Output: 5V, 1.2AMP
    • Unit Dimensions (hwd / in.): 1.00 x 4.70 x 2.75
    • Unit Dimensions (hwd / cm): 2.54 x 11.94 x 6.99
    • Unit Weight (lbs.): 1
    • Unit Weight (kg): 0.45
    • Color: Black
    • Side A - Connector 1: RJ45 (FEMALE)
    • Side B - Connector 1: LC DUPLEX (FEMALE)
    • Product Warranty Period (Worldwide): 1-year limited warranty

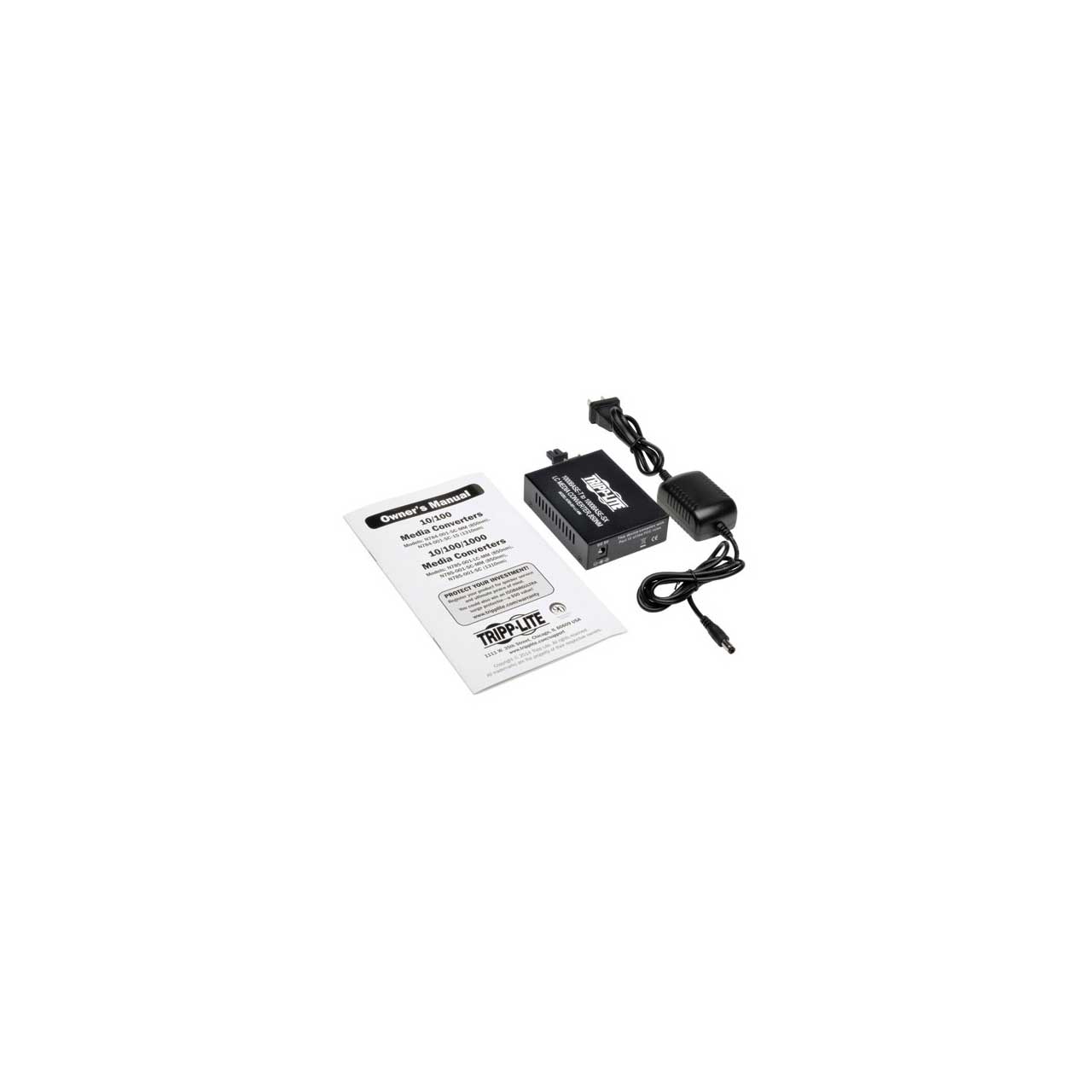

  • Item Includes:

    • 10/100/1000 LC Multimode Media Converter, 550M, 850nm
    • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)

  • Warranty:

    • 1 Year

  • GTIN:

    0037332183927
