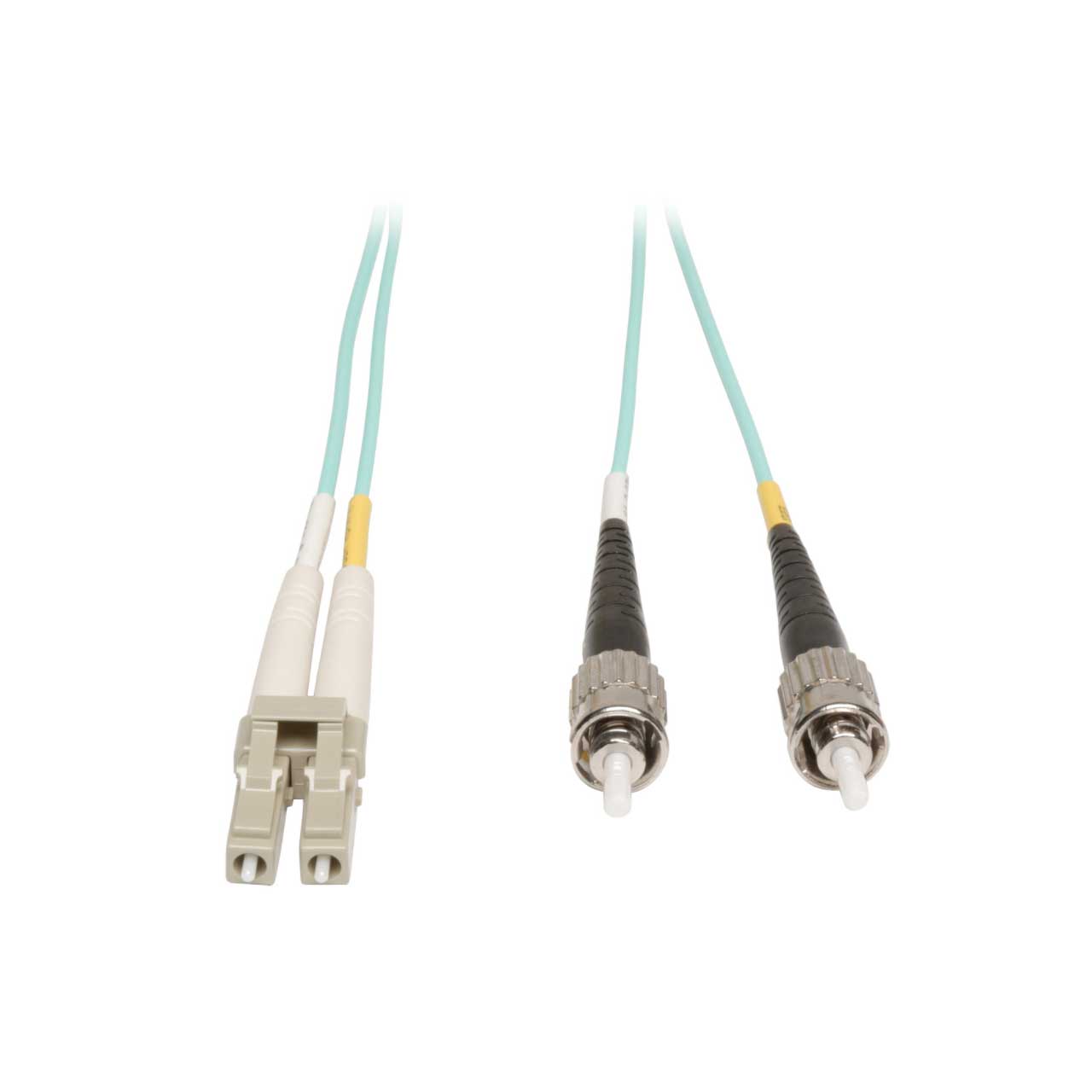

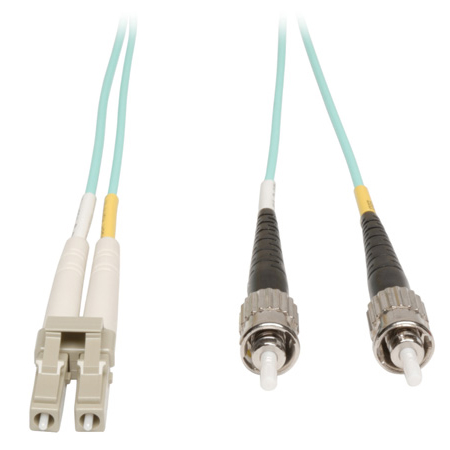

Tripp Lite N818-03M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/ST) - Aqua 10 Feet

ITEM #: TRL-N818-03M MFG #: N818-03M

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$31.00

Our Price:

$23.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N818-03M - Overview

Tripp Lite introduces its new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, ST/LC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Features:

    • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
    • 3 Meter ( 10ft ) LC/ST, OM3 rated
    • Use with VCSEL and LED laser light sources
    • High-Speed, High-Bandwidth, Low-Cost
    • Backward compatible with legacy LAN's
    • Ideal for Fibre Channel (SAN) applications
    • IEEE 802.3ae and TIA LOMMF compliant
    • 10gb Ethernet speed to 300 meters @850nm

  • Specifications:

    • Cable Length (ft.): 9.8
    • Cable Length (m): 3
    • Color: Aqua
    • Network Speed: 10Gbps / 40Gbps / 100Gbps
    • Side A - Connector 1: LC DUPLEX (MALE)
    • Side B - Connector 1: ST DUPLEX (MALE)
    • Product Warranty Period (Worldwide): Lifetime limited warranty

  • Item Includes:

    • 10-foot Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, LC/ST

  • Warranty:

    • Lifetime

  • GTIN:

    0037332134707
