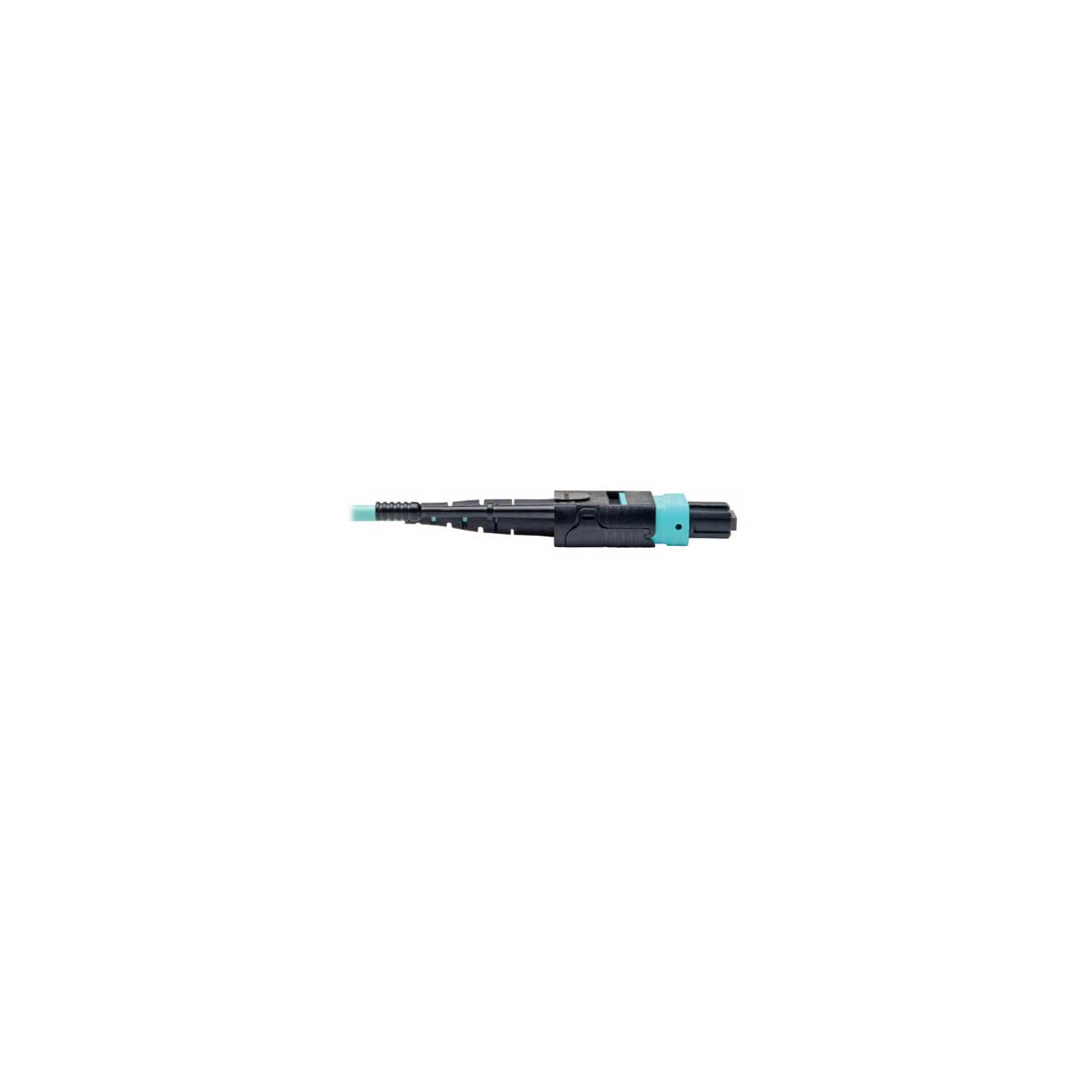

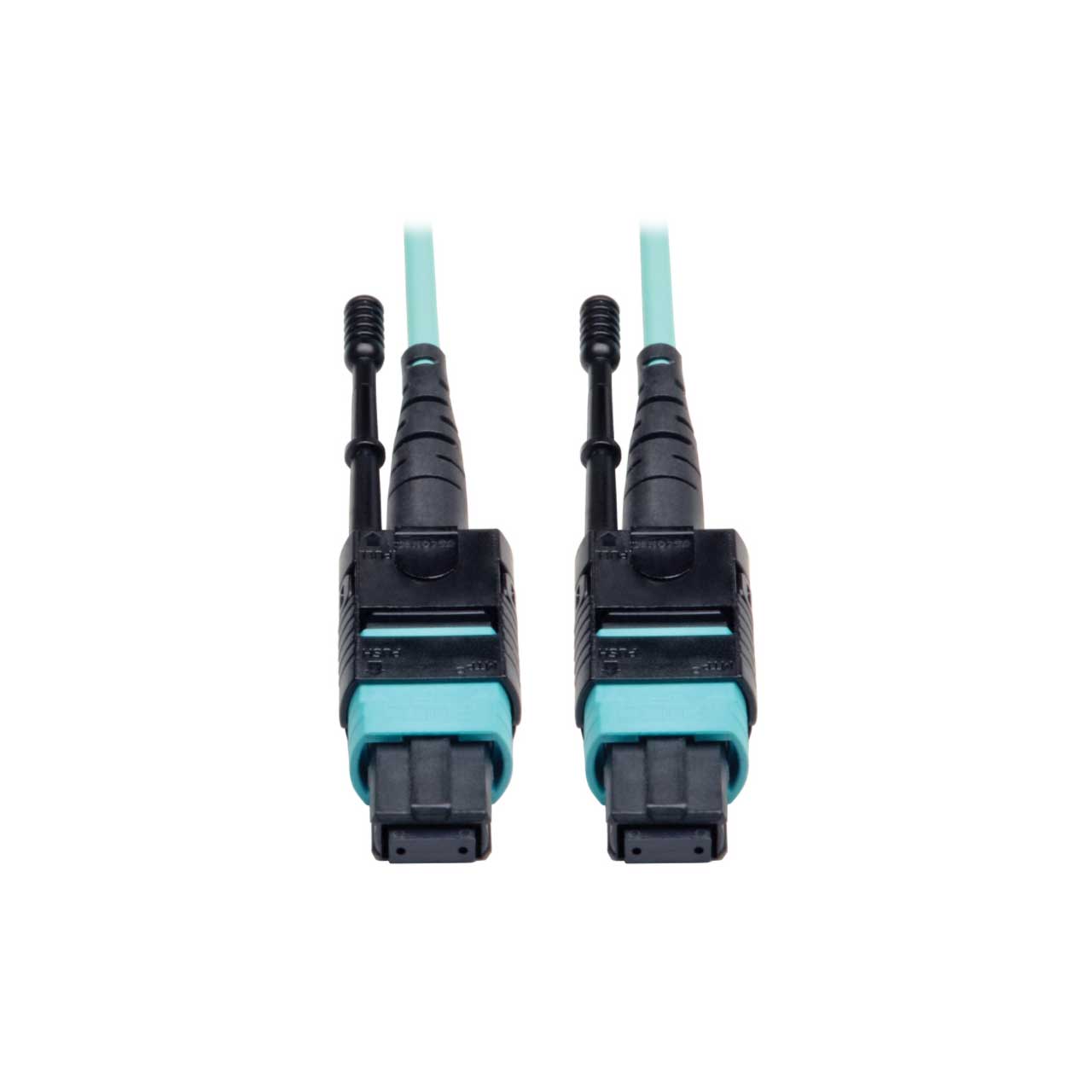

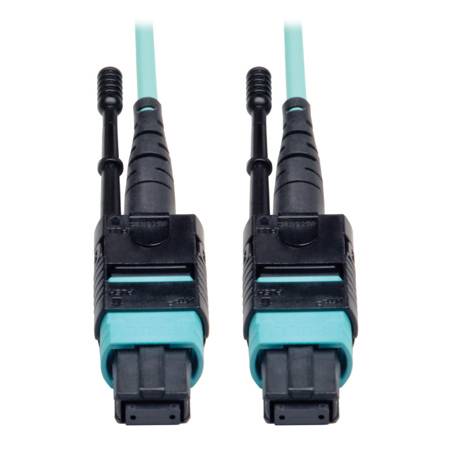

Tripp Lite N844-01M-12-P MTP/MPO Patch Cable with Push/Pull Tabs 12 Fiber 40GbE 40GBASE-SR4 OM3 Plenum-Rated - Aqua 3 ft

ITEM #: TRL-N844-01M-12P MFG #: N844-01M-12-P

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Tripp Lite
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$196.08

Our Price:

$150.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

N844-01M-12-P - Overview

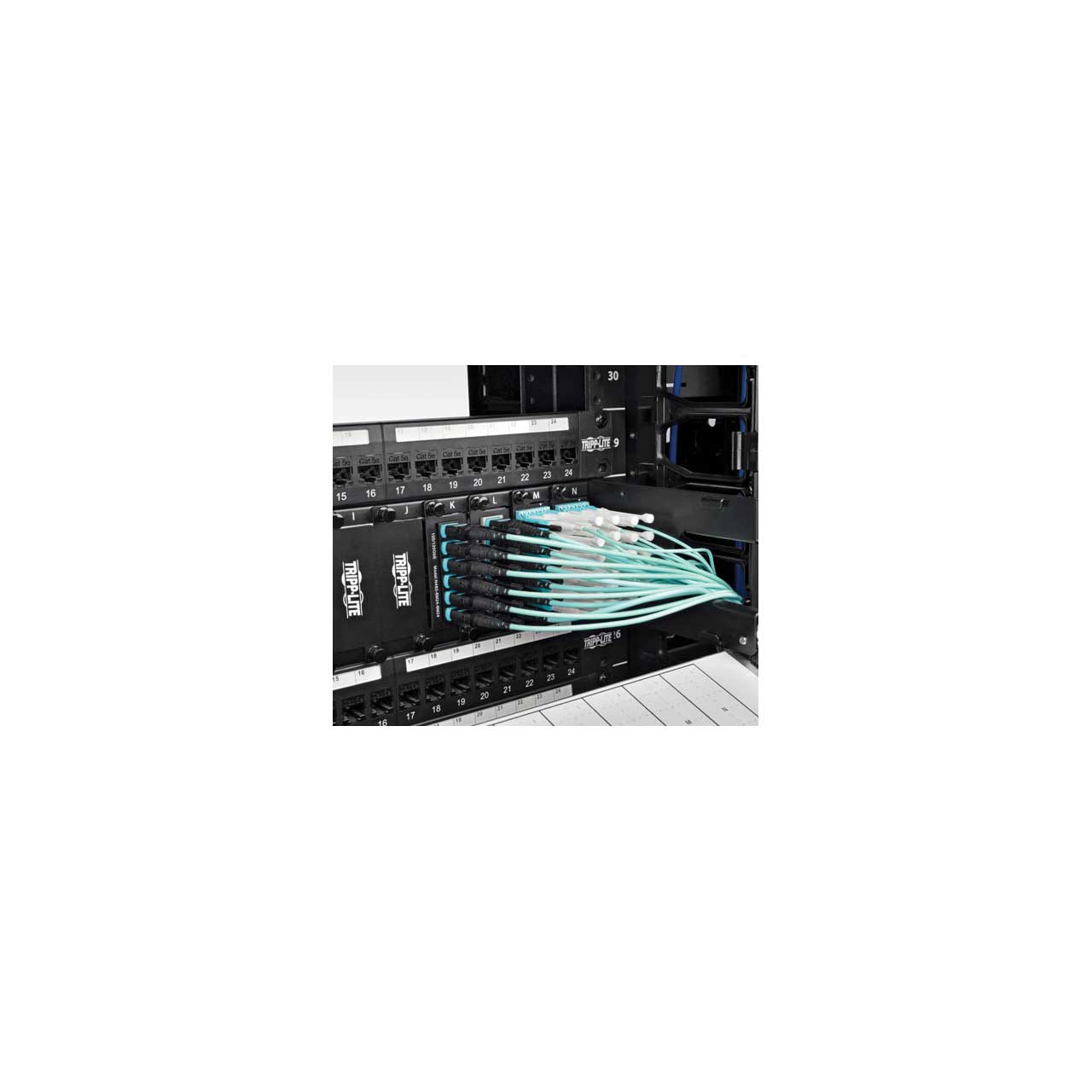

Tripp Lite's MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; install / remove with one hand. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.

  • Features:

    • Supports to 40GbE speeds
    • MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
    • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
    • 12 times the density of SC style connectors
    • No need for long fan-out cables or individual long duplex cable runs
    • High Density design cuts down on installation costs
    • 50/125 OM3 Rated Multimode Fiber, 850nm
    • Plenum rated jacket
    • Unique cable ID label for Quality Control and Traceability
    • Each cable 100% tested for low insertion loss and back reflection
    • Test data supplied with each cable
    • Custom lengths available


  • Specifications:

    • Cable Length (ft.): 3.3
    • Cable Length (m): 1
    • Color: Aqua
    • Network Speed: 10Gbps / 40Gbps / 100Gbps
    • Side A - Connector 1: 12-STRAND MTP (FEMALE)
    • Side B - Connector 1: 12-STRAND MTP (FEMALE)
    • Product Warranty Period (Worldwide): Lifetime limited warranty


  • Item Includes:

    • 3-foot MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum


  • Warranty:

    • Lifetime


  • GTIN:

    0037332173713
