Tripp Lite N844-05M-8LC-PT MTP/MPO Fan-out Cable with Push/Pull Tab Connectors MTP/MPO to 8xLC 40GbE Plenum - Aqua 16 ft

ITEM #: TRL-N84405M8LCPT MFG #: N844-05M-8LC-PT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$328.26

Our Price:

$231.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N844-05M-8LC-PT - Overview

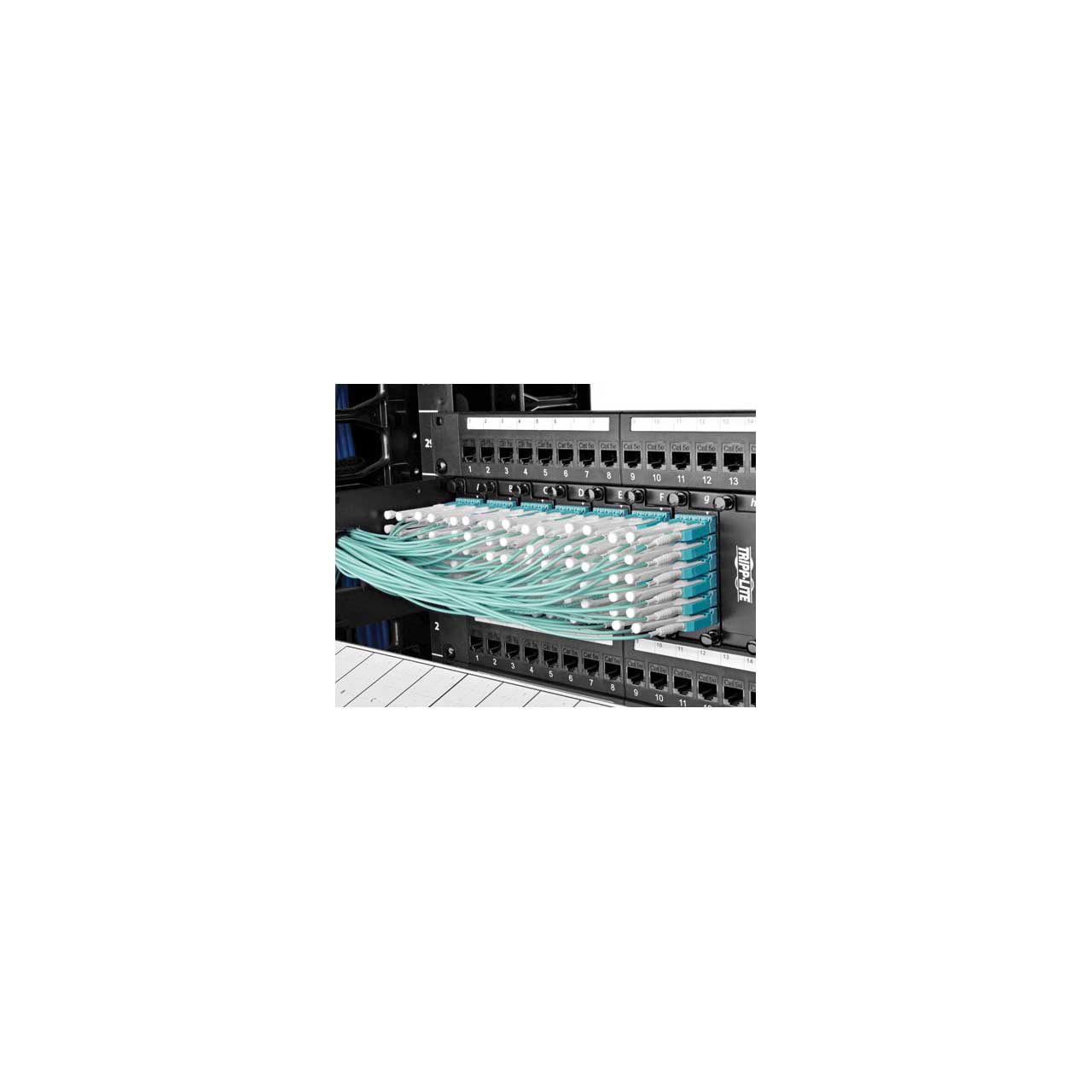

Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR, 4 fibers in each direction transmitting at 10Gbps.

It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim, uniboot design provides space savings, while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket.

  • Features:

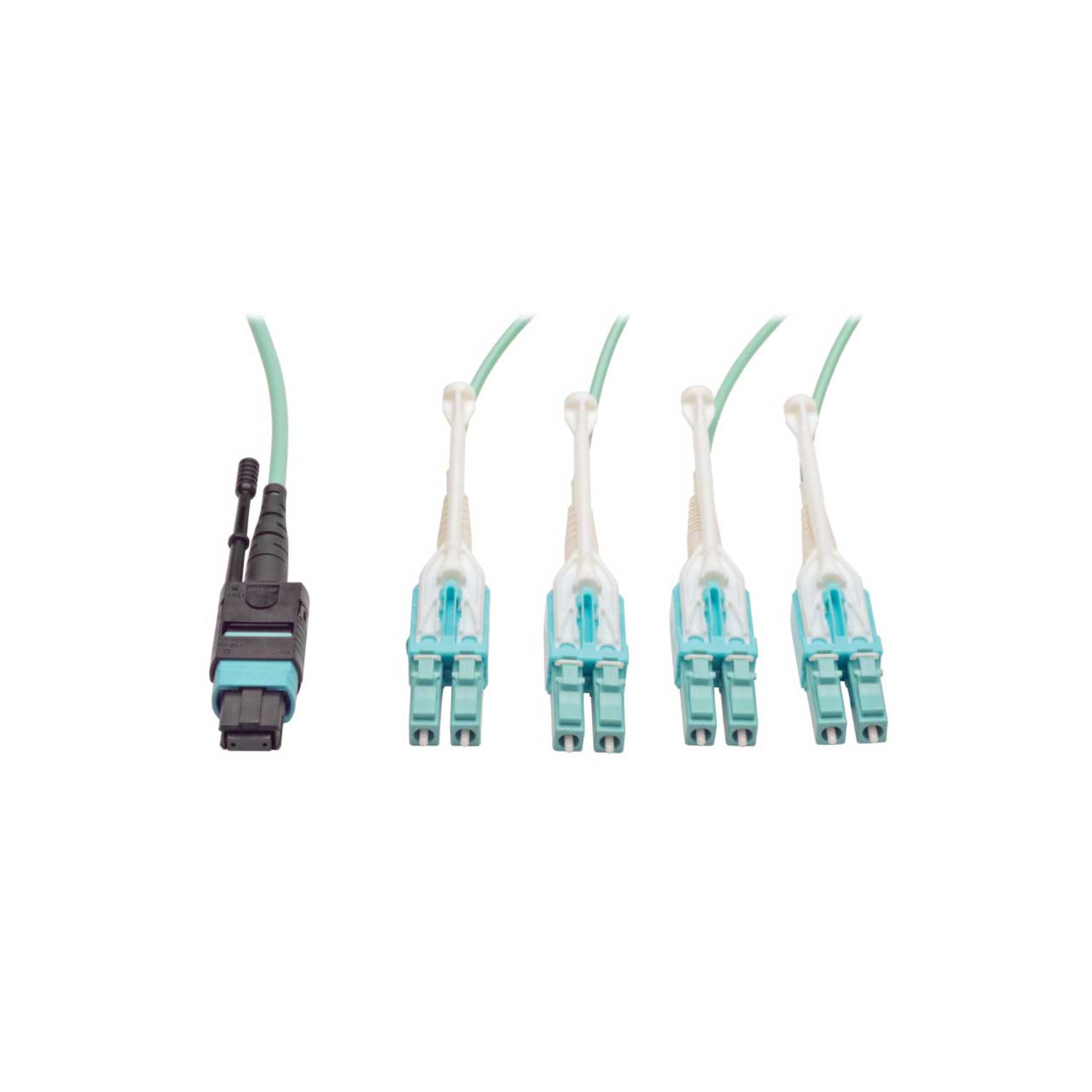

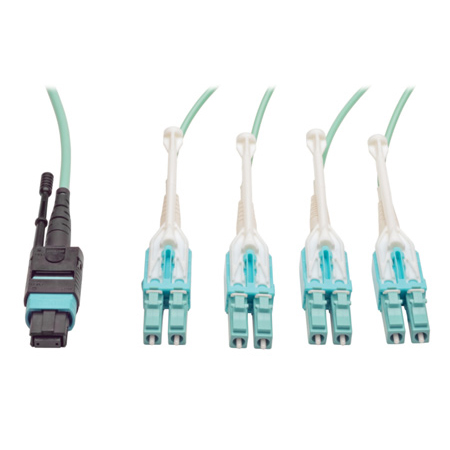

    • MTP / MPO to 8 x LC Fan-out Cable
    • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
    • Slim uniboot design saves space and makes cables easier to manage
    • Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
    • Sturdy plastic housing for long-lasting durability
    • OM3, 40GbE rated, 40GBASE-SR4
    • Backward compatible with existing 50/125 fiber
    • Plenum rated jacket

  • Specifications:

    • Cable Length (ft.): 16.4
    • Cable Length (m): 5
    • Color: Aqua
    • Network Speed: 10Gbps / 40Gbps / 100Gbps
    • Side A - Connector 1: 12-STRAND MTP (FEMALE)
    • Side B - Connector 1: (8) LC DUPLEX (MALE) WITH PULL/PUSH TAB
    • Product Warranty Period (Worldwide): Lifetime limited warranty

  • Item Includes:

    • 16-foot MTP / MPO Fan-out Cable, MTP/MPO to 8 x LC, 40GbE OM3 Plenum

  • Warranty:

    • Lifetime

  • GTIN:

    0037332185280
