Tripplite PDUMV30 PDU Metered 120V 30A 5-15/20R 24 Outlet L5-30P Vertical 0URM

Name: Tripplite PDUMV30 PDU Metered 120V 30A 5-15/20R 24 Outlet L5-30P Vertical 0URM
Brand: Tripp Lite
SKU: TRL-PDUMV30
Price: 372.00 USD
Availability: PreSale

ITEM #: TRL-PDUMV30 MFG #: PDUMV30

Tripp Lite

List Price:

$539.14

Our Price:

$372.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Shipment of this item is subject to a separate oversized-package carrier surcharge.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PDUMV30 - Overview

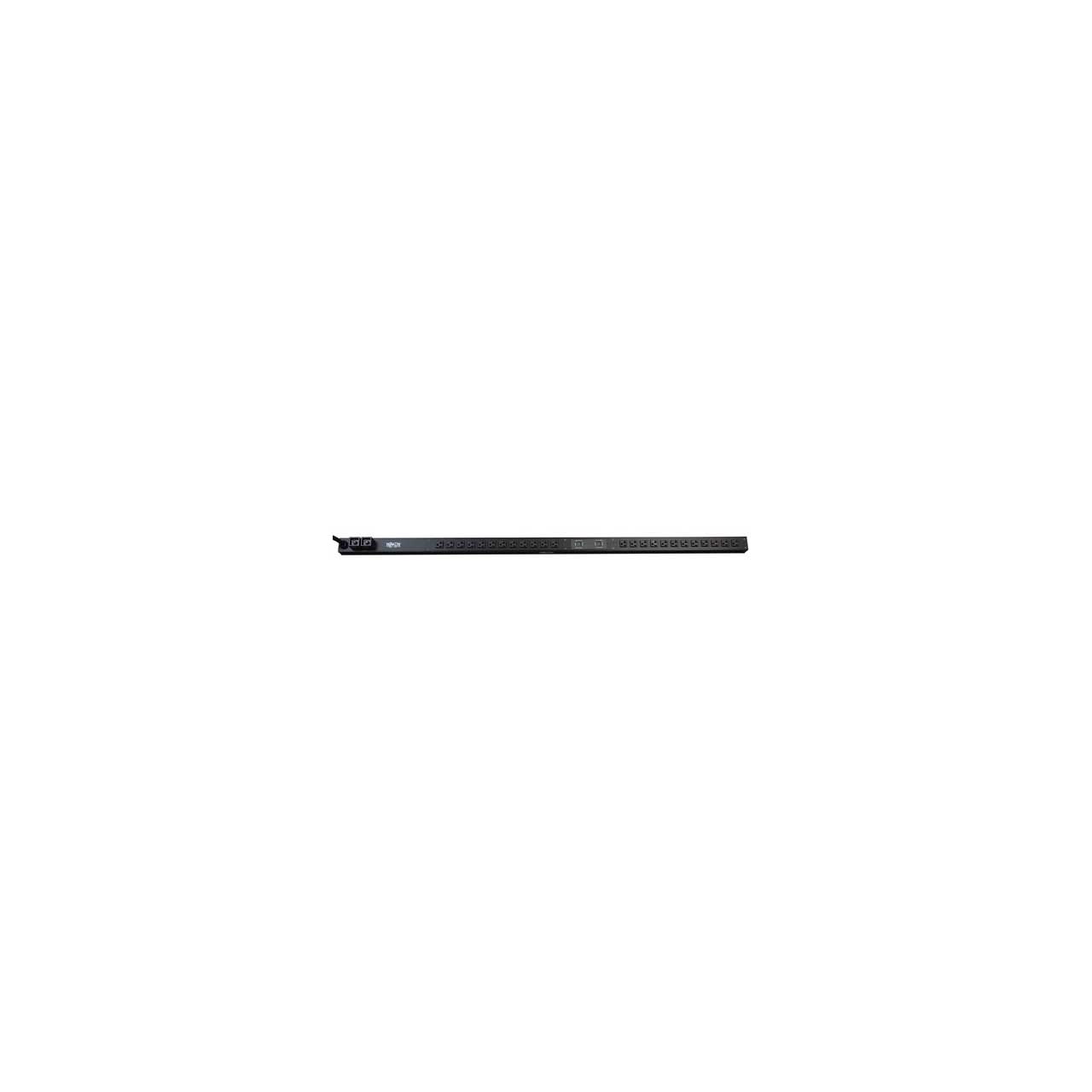

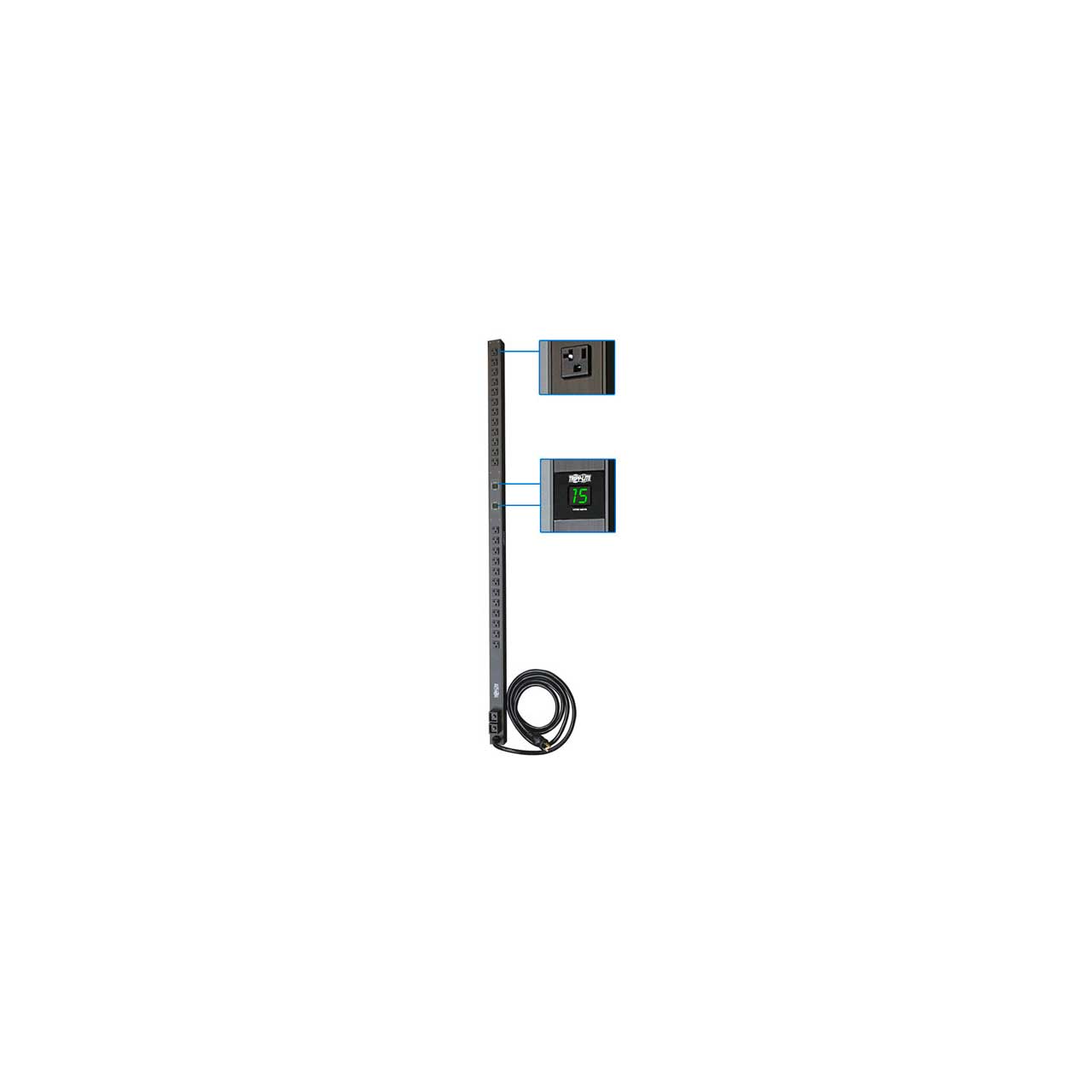

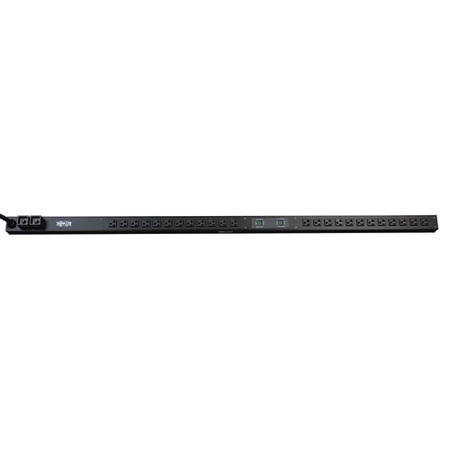

Single-Phase Metered PDU, 2.9kW 30A 120V, 0U Vertical Rackmount, 24 NEMA 5-15/20R outlets, NEMA L5-30P input plug.

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Typical Applications
Ideal means of powering networking equipment in datacenters, computer rooms and network closets

Features:
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
- ?Set of two lighted meters report PDU output current in amps for each 12 outlet load bank
- Attached NEMA L5-30P 30A 120V input plug with 10ft / 3m line cord
- 0U vertical rackmount format installs using no rack spaces
- 24 NEMA 5-15/20R output receptacles
- Outlets are arranged in two 12 outlet load banks, each with separate 20A breaker and current metering
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
- Cord retention brackets keep vital equipment plugs connected
Specifications:
- OUTPUT:
- Output Capacity Details
- 2.9kW (120V input), 3.0kW (127V input), 2.4kW (100V input); 30A maximum (agency de-rated to 24A continuous)
- Frequency compatibility: 50 / 60 Hz
- Output nominal voltage: 100-127V nominal, single phase
- Overload protection
- Outlets are arranged in two separately breakered load banks. The top 20A breaker covers outlets on the upper half, the bottom 20A breaker covers outlets on the lower half of the PDU. Each breakered bank covers 12 5-15/20R outlets.
- Outlet quantity / type
- 24 5-15/20R (each outlet accepts 5-15P or 5-20P equipment plugs)
- Outlet Type: NEMA 5-15R, NEMA 5-20R
- INPUT : PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps (A)30
- Maximum Input Amps (A) Details
- Agency de-rated to 24A continuous
- PDU Plug Type
- NEMA L5-30P
- Input cord length (ft.)10
- Input cord length (m)3
- Phase
- Single-Phase
- LEDS ALARMS & SWITCHES
- Switchesn/a
- Front panel LEDs
- Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 20A loading bank.
- PHYSICAL
- Shipping Dimensions (HWD/in) 64.5 x 3.5 x 4.75
- Shipping Dimensions (HWD/cm) 163.8 x 8.9 x 12.1
- Shipping weight (lbs) 13
- Shipping weight (kg) 5.9
- Unit Dimensions (HWD/in) 63.75 x 2.25 x 3.75
- Unit Dimensions (HWD/cm)162 x 5.7 x 9.5
- Unit weight (lbs) 8
- Unit weight (kg) 3.6
- Material of construction: Aluminum
- Style
- Vertical Rackmount, Wallmount, Raceway, Workbench
- Form factors supported
- 0u vertical installation in equipment racks, plus under-counter and wallmount
- PDU Form Factor
- Vertical (0U)
- ENVIRONMENTAL
- Relative Humidity
- 0-95% non-condensing
- CERTIFICATIONS
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico)
- WARRANTY
- Product Warranty Period (Worldwide)
- 2-year limited warranty
GTIN:
0037332139337
