SRTHERMDUCT - Overview

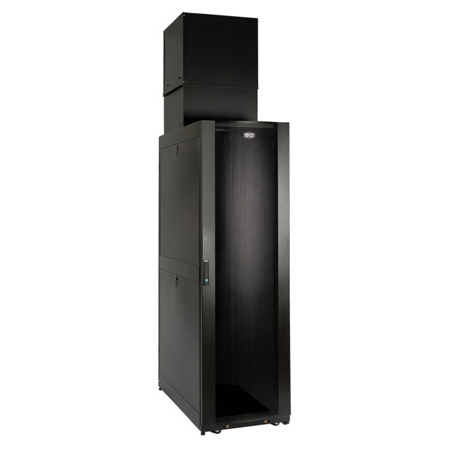

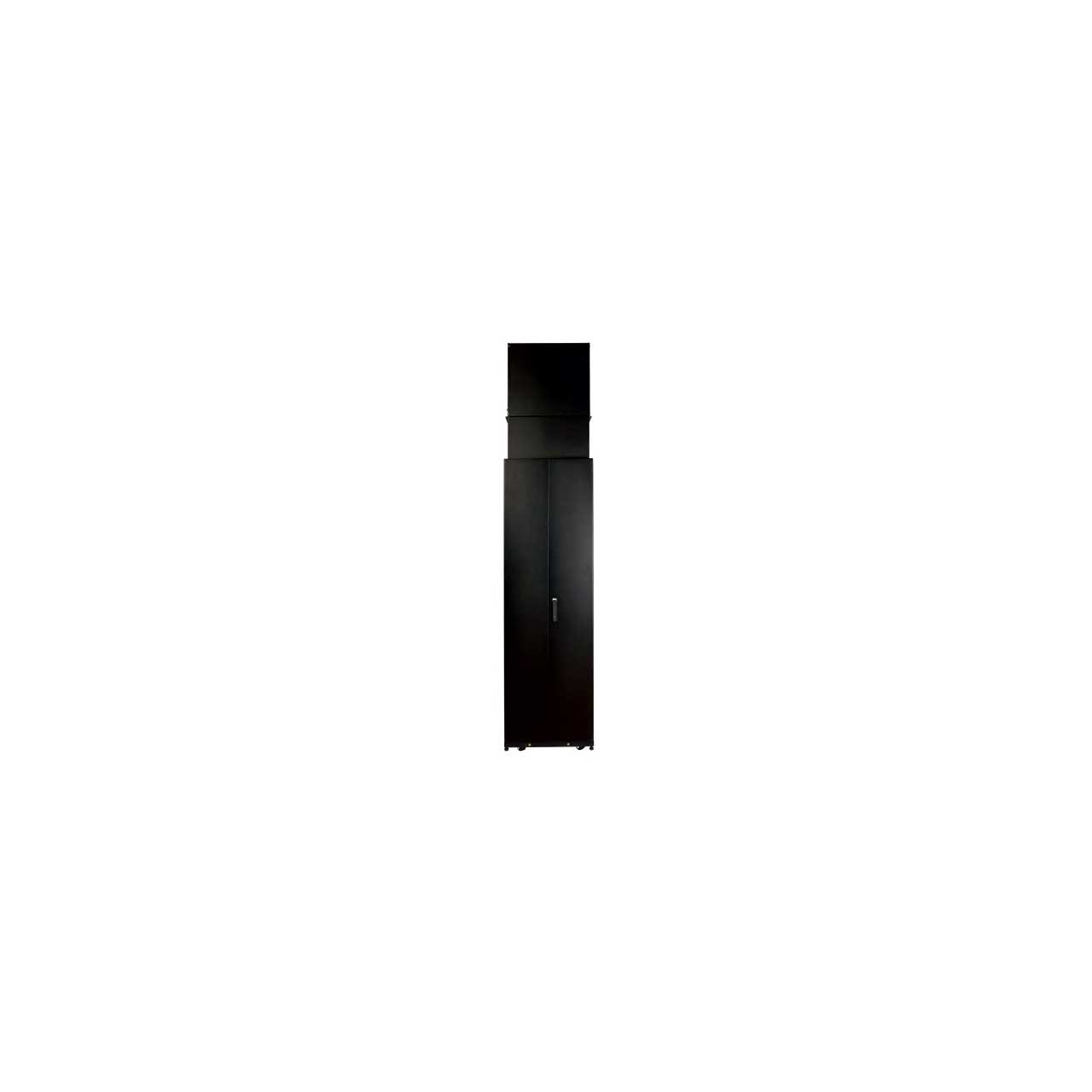

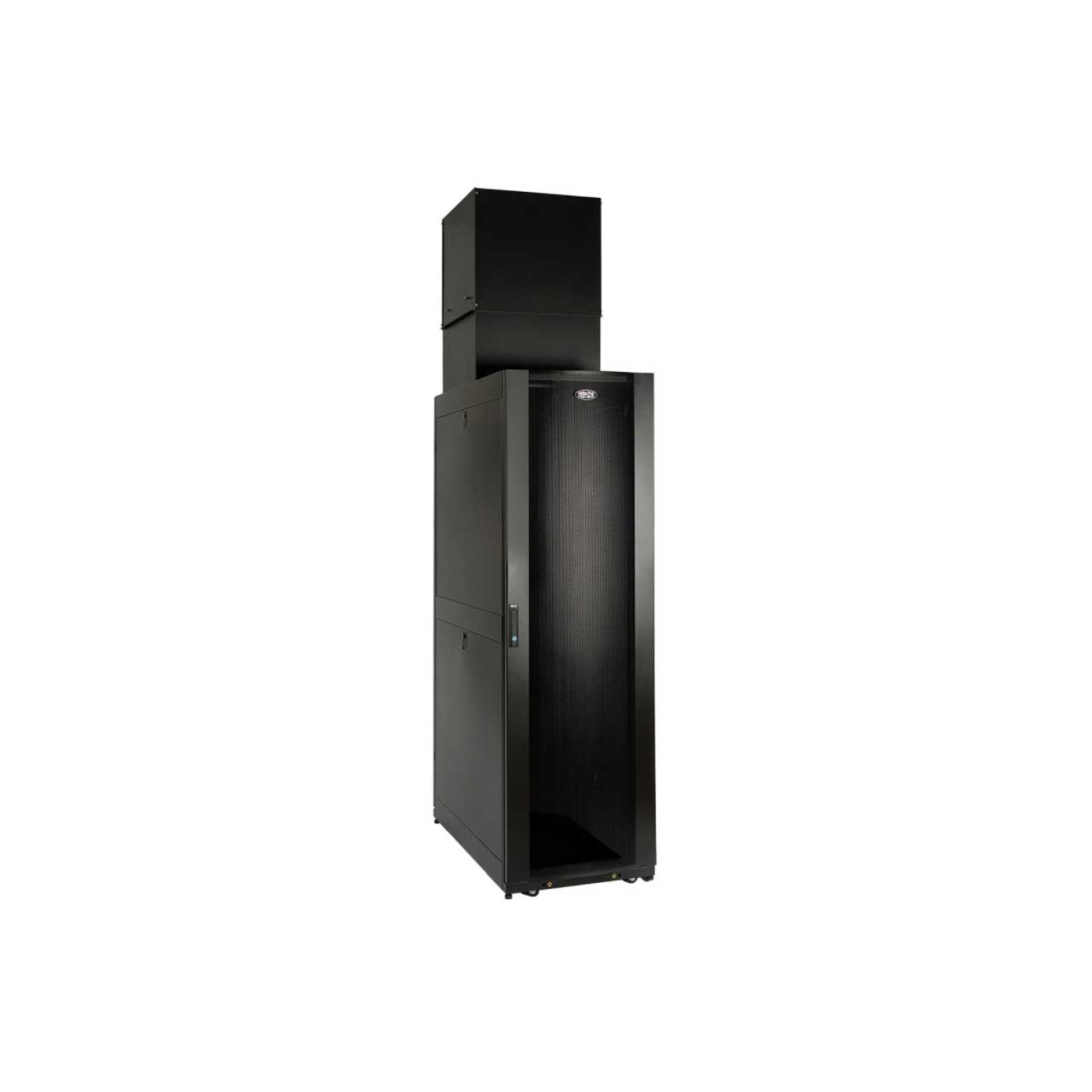

The SRTHERMDUCT Thermal Duct Kit can change a standard SmartRack 42-48U enclosure into a sealed passive cooling structure that allows heat built up inside a rack to be directed up and into the facility CRAC / HVAC return air system.

  • Features:

    • Improves cooling efficiency of standard Tripp Lite rack enclosures
    • Adjustable roof-mount thermal duct connects to HVAC return air system
    • Included gaskets and panels help seal enclosure for proper airflow management through thermal duct
    • Compatible with standard 42-48U SmartRack Enclosures


  • Specifications:

    • Accessories Type: Cooling Accessories
    • Shipping Dimensions (hwd / in.): 11.8 x 25.6 35.4
    • Shipping Dimensions (hwd / cm): 29.97 x 65.02 x 89.92
    • Shipping Weight (lbs.): 70
    • Shipping Weight (kg): 31.5
    • Housing Color: Black
    • Roof: Thermal duct adjusts between 20.5-34.5 inches when assembled.
    • Product Warranty Period (Worldwide): 5-year limited warranty

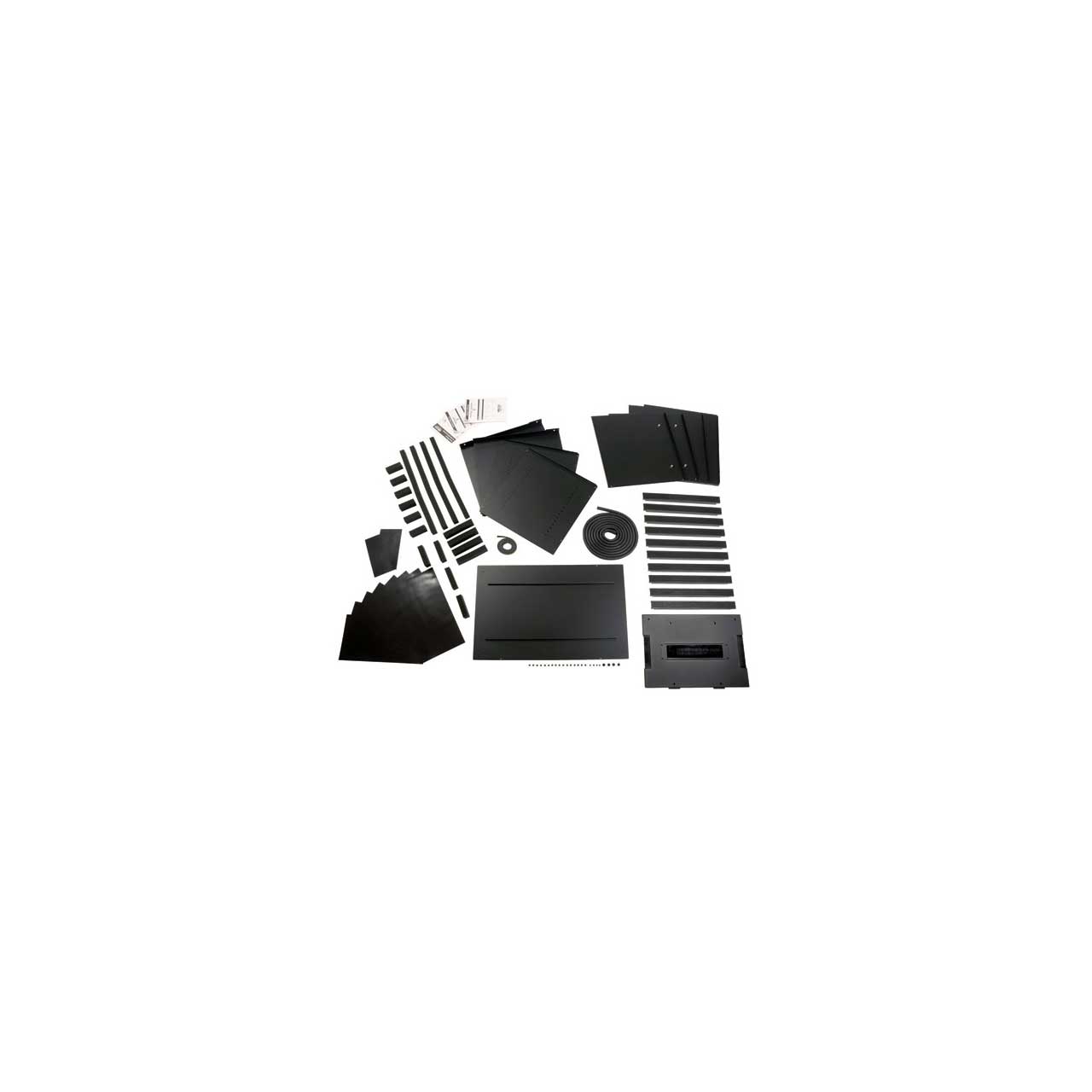

  • Item Includes:

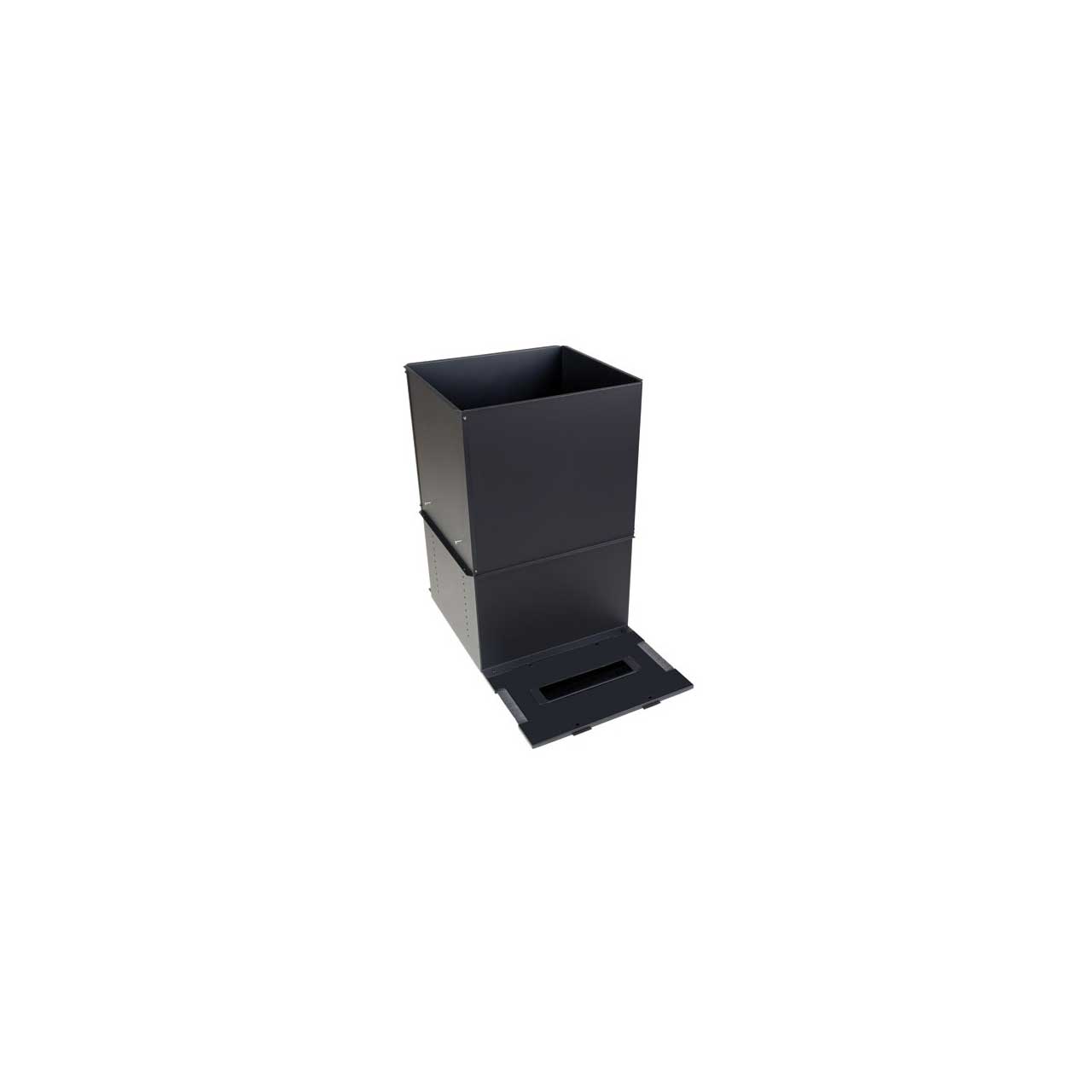

    • Height-adjustable roof-mount thermal duct

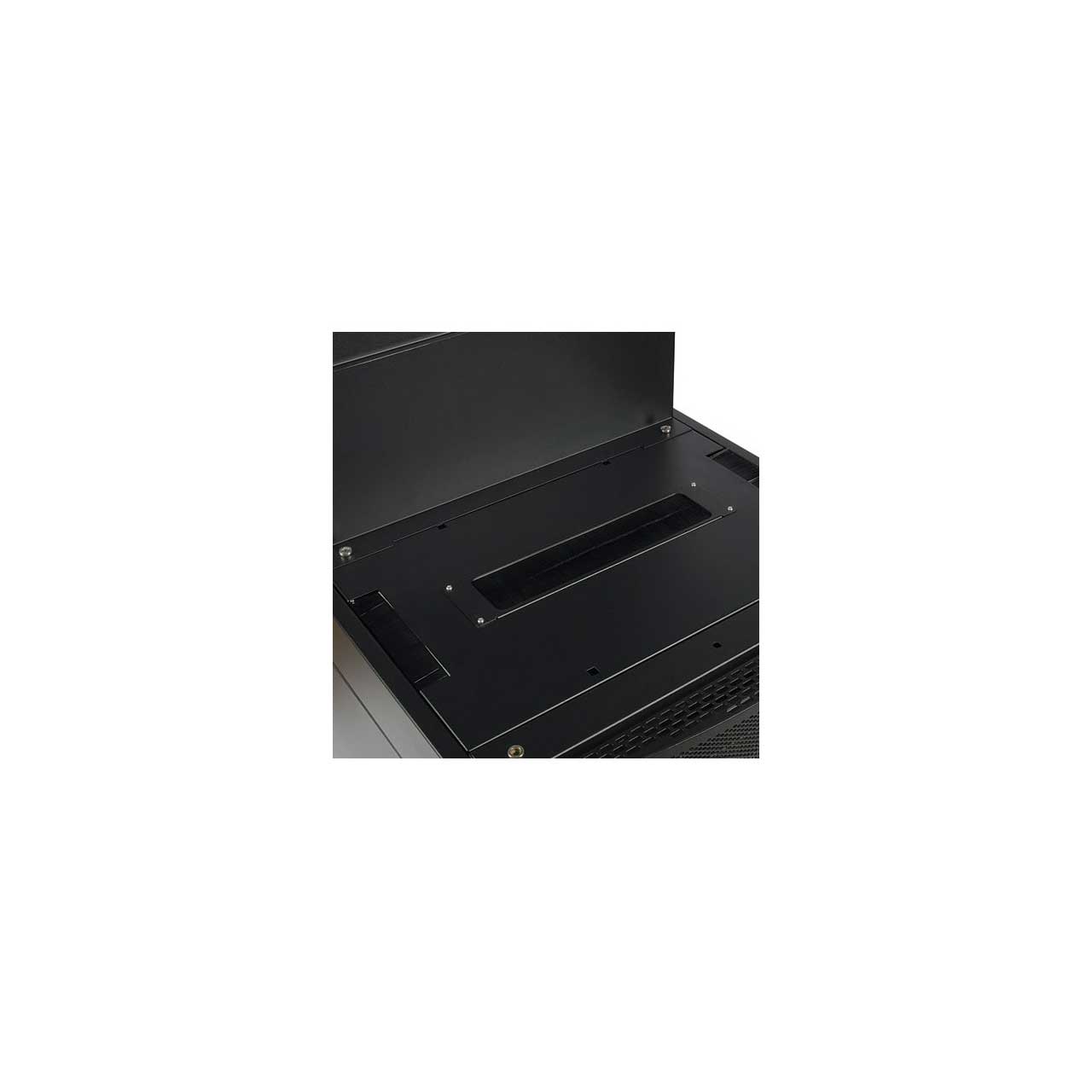

    • Roof-mount cable access panel
    • Enclosure bottom
    • Door gasket seals
    • (16) Magnetic vinyl sheet rear door seals
    • (4) M8 screws
    • (4) M4 screws
    • (16) M4 nuts
    • Owner's manual


  • Warranty:

    • 5 Year


  • GTIN:

    0037332154903
