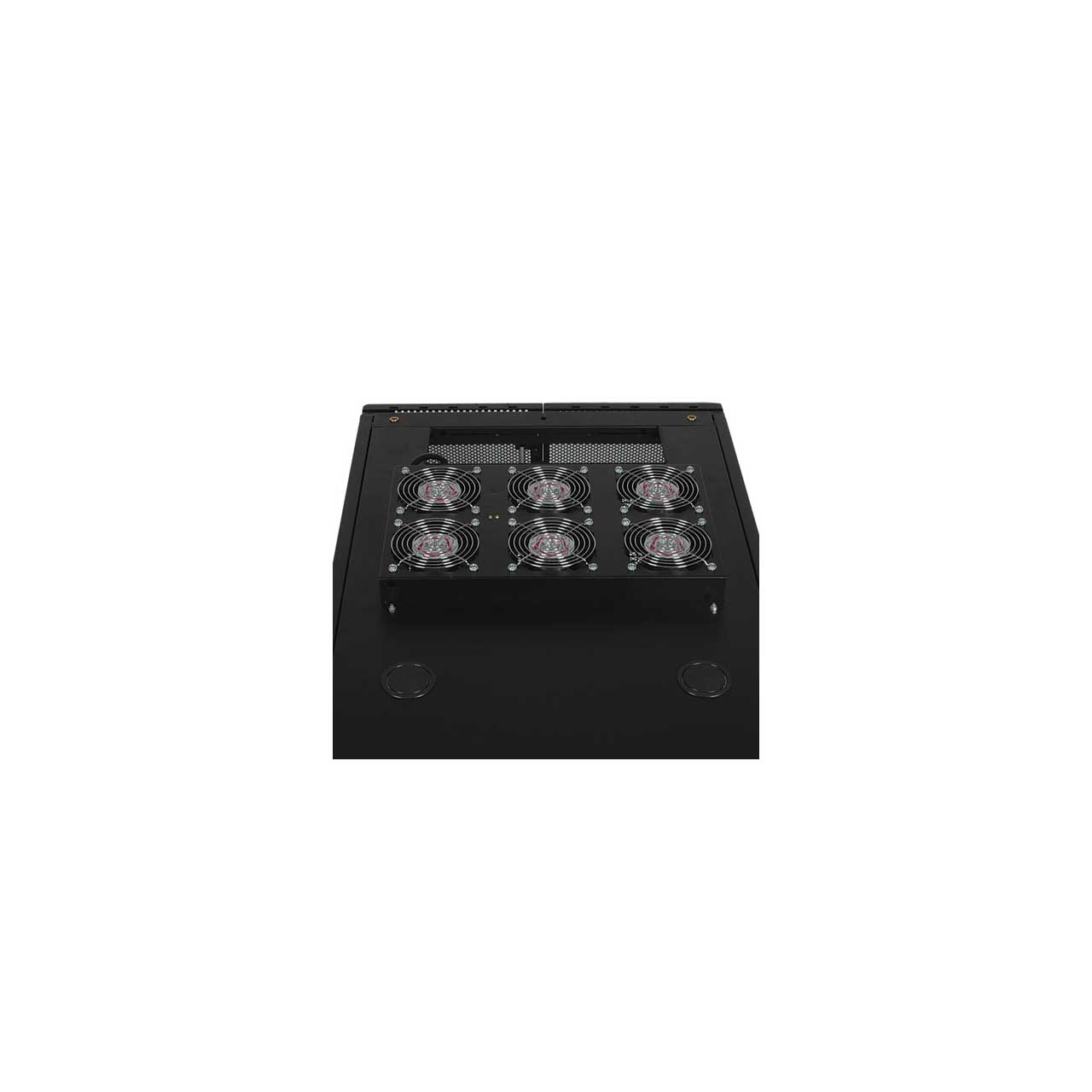

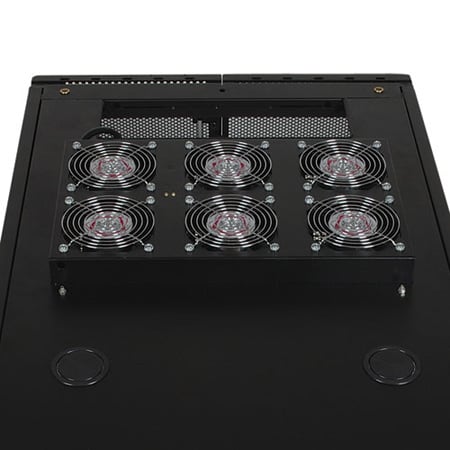

Tripp Lite SRXFANROOF SmartRack Roof-Mounted Fan Panel - 6 208/240V high-performance fans; 420 CFM; C14 inlet

SRXFANROOF - Overview

• Features:

  • Cold rolled steel with black finish
  • Ideal for increasing the ventilation in all rack enclosure server cabinets
  • Features (6) 208-240V high performance fans mounted in a roof panel
  • Includes toolless mounting hardware
  • Built-in cable access holes for routing of cables through fan roof panel
  • Supports 208-240V 50/60 Hz AC input
  • Compatible SmartRack Enclosures: SR25UB, SR25UBKD, SR25UBSP1, SR25UBTAA, SR42UB, SR42UBCL, SR42UBEXP, SR42UBG, SR42UBKD, SR42UBSP1, SR42UBTAA, SR48UB, SR48UBCL, SR48UBEXP, SR48UBSP1, SR42UBTAA, and other Tripp Lite SmartRack enclosures that specify the use of this accessory


• Specifications:

  • Accessories Type: Cooling Accessories
  • Nominal Input Voltage(s) Supported: 208V AC; 230V AC; 240V AC
  • Nominal Input Voltage Description: 208-240V AC 50/60 Hz
  • Input Connection Type: IEC C14 inlet dongle (user-supplied input cord required)
  • Cable Length (in.): 6
  • Voltage Compatibility (VAC): 208; 230; 240
  • Shipping Dimensions (hwd / in.): 15 x 23.3 x 27
  • Shipping Dimensions (hwd / cm): 38.1 x 59.18 x 68.58
  • Shipping Weight (lbs.): 25
  • Shipping Weight (kg): 11.34
  • Unit Dimensions (hwd / in.): 2.1 x 21.9 x 35.5
  • Unit Dimensions (hwd / cm): 5.33 x 55.63 x 90.17
  • Unit Weight (lbs.): 22
  • Unit Weight (kg): 9.98
  • Product Warranty Period (Worldwide): 2-year limited warranty


• Item Includes:

  • SRXFANROOF 208-240V 50/60Hz fan roof
  • Tooless mounting hardware
  • 6 inch C14 inlet dongle (user-supplied input cord required)


• Warranty:

  • 2 Year


• GTIN:

  0037332144553
