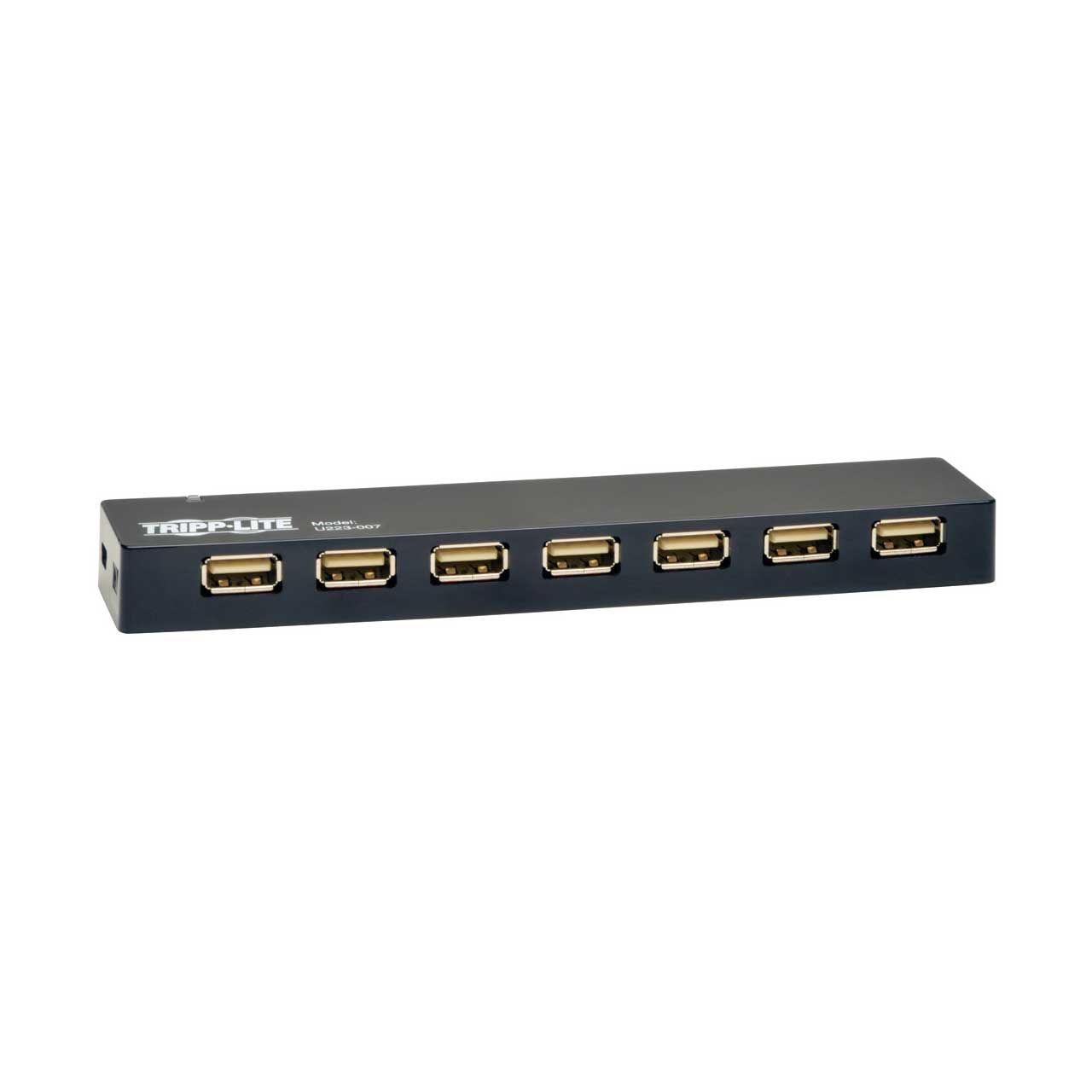

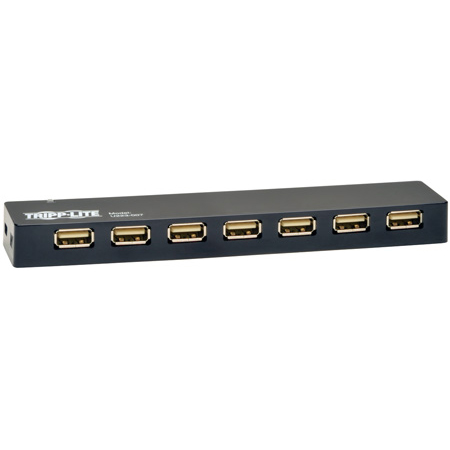

Tripp Lite U223-007 7-Port USB 2.0 Hi-Speed Hub

U223-007 - Overview

• Features:

  • USB2.0 7-Port Hub
  • Supports data transfer rates up to 480Mbps

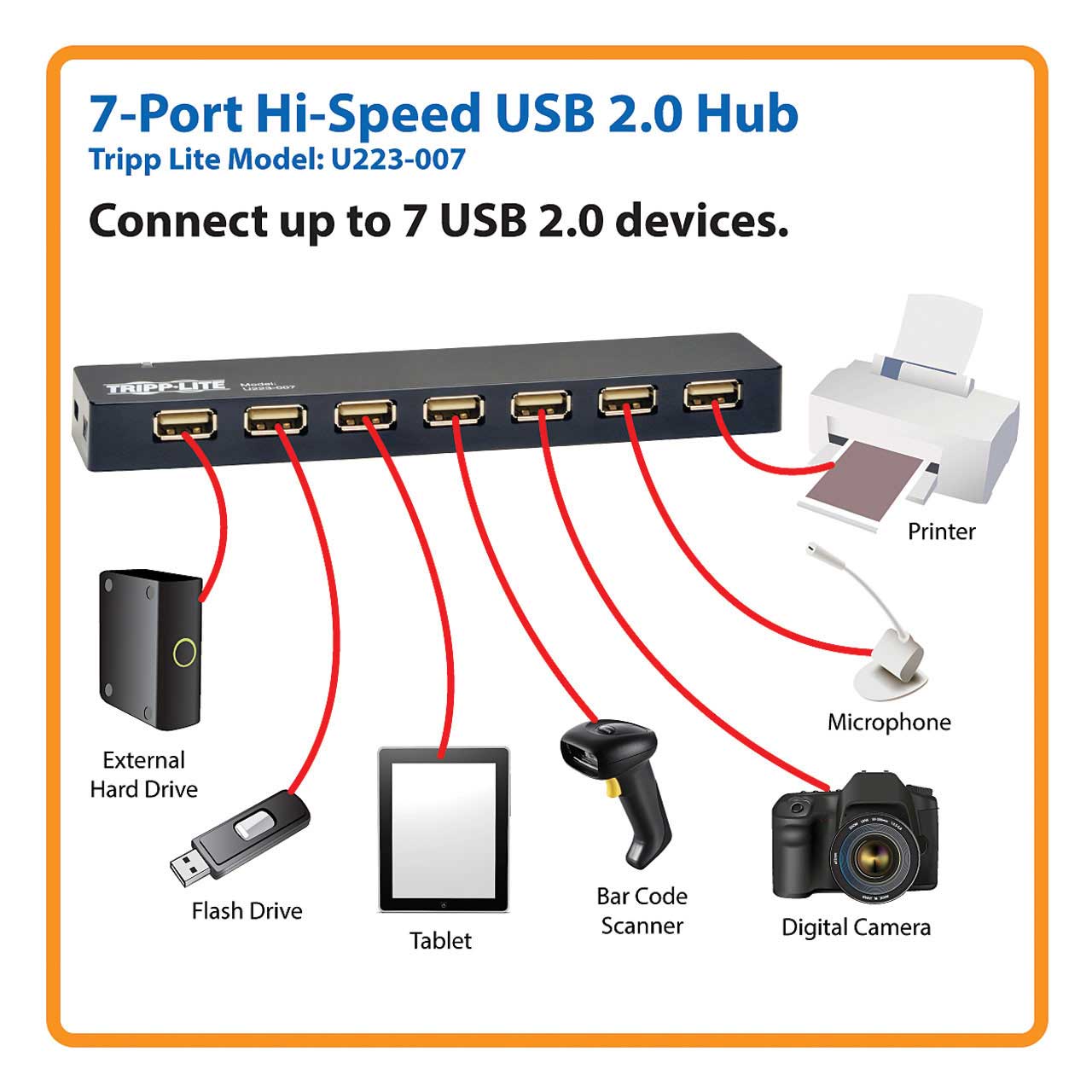

  • Connect up to 7 USB devices to a single USB port on your computer
  • Compact design is ideal for use with a laptop/notebook computer
  • Does not require external power, software, or complicated set-up procedures
  • Plug-and-play/hot-swappable allows you to add or remove a device at any time
  • Per-port overcurrent protection
  • Bus-powered or self-powered
  • Supports USB 2.0 spec up to 500mA per port
  • On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
  • The included external power supply provides 2.5A of power, to be shared between the hub ports (up to 500mA per port)
  • Compact, multi-voltage power supply (110/220V) provided
  • Compatible with all major operating systems


• Specifications:

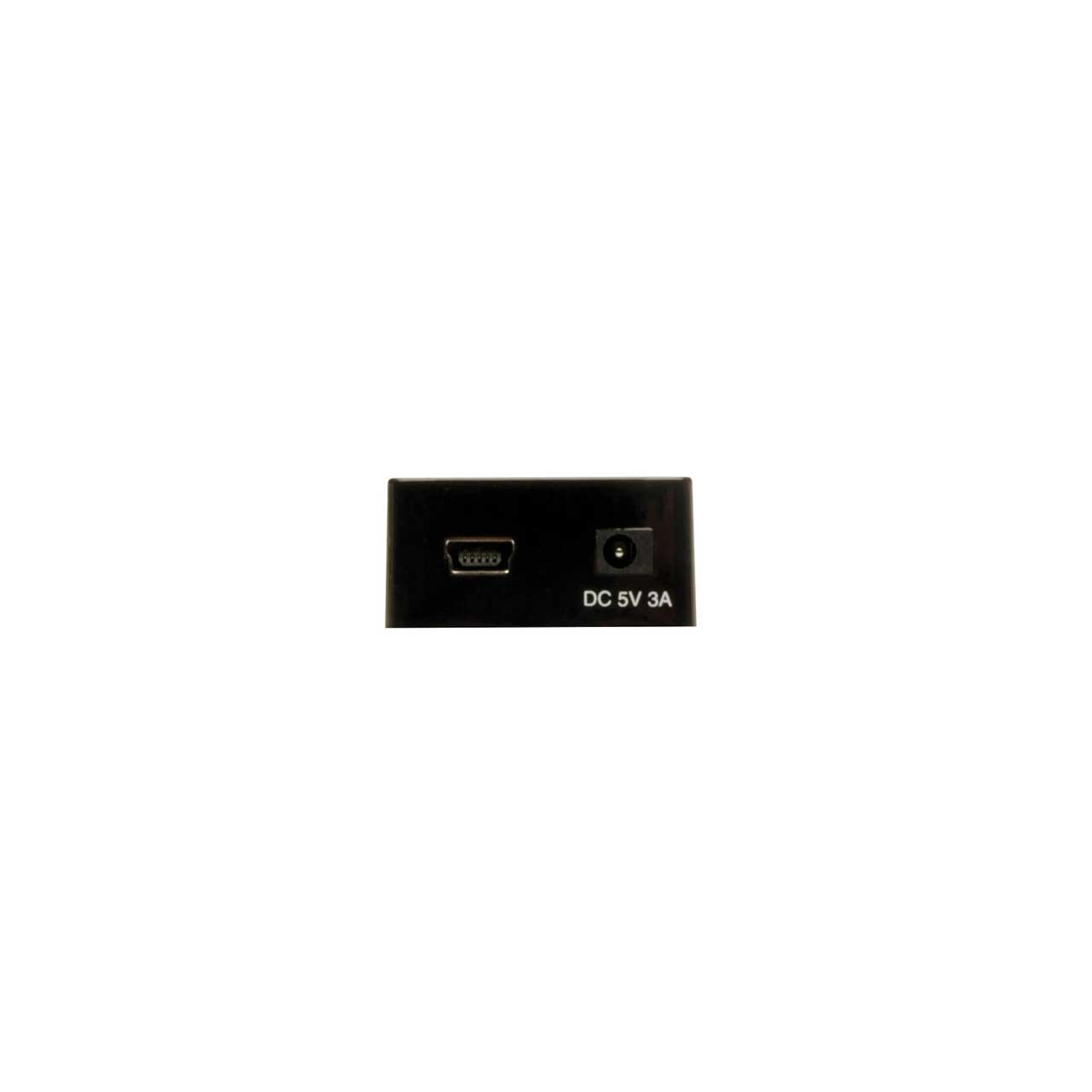

  • AC Adapter: 5V/3A DC Power Supply
  • Unit Dimensions (hwd / in.): 0.63H x 6.54W x 1.31D
  • Color: Black
  • Operating Temperature Range: 0? to +70?
  • Operating Humidity Range: 10% to 90 % RH (no condensation)
  • Ports: 7
  • Side A - Connector 1: USB A (MALE)
  • Side B - Connector 1: (7) USB A (FEMALE)
  • Approvals: CE, FCC and RoHS
  • Product Warranty Period (Worldwide): 1-year limited warranty


• Item Includes:

  • U223-007 USB 2.0 Hub
  • User's Manual
  • USB 2.0 Mini B male to USB 2.0 A male cable
  • External Power Supply with 1-15P Plug
  • (Input: 100-240V, 50/60Hz, 0.6A Max / Output: 5.0V, 3000mA)


• Warranty:

  • 1 Year


• GTIN:

  0037332185389
