Tripp Lite U444-06N-HD-AM USB 3.1 Gen 1 USB-C to HDMI 4K Adapter (M/F) Thunderbolt 3 Compatible 4K @24/25/30Hz

ITEM #: TRL-U444-06NHDAM MFG #: U444-06N-HD-AM

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$66.76

Our Price:

$27.00

Availability: In Stock
iAvailability Description Popup


    U444-06N-HD-AM - Overview

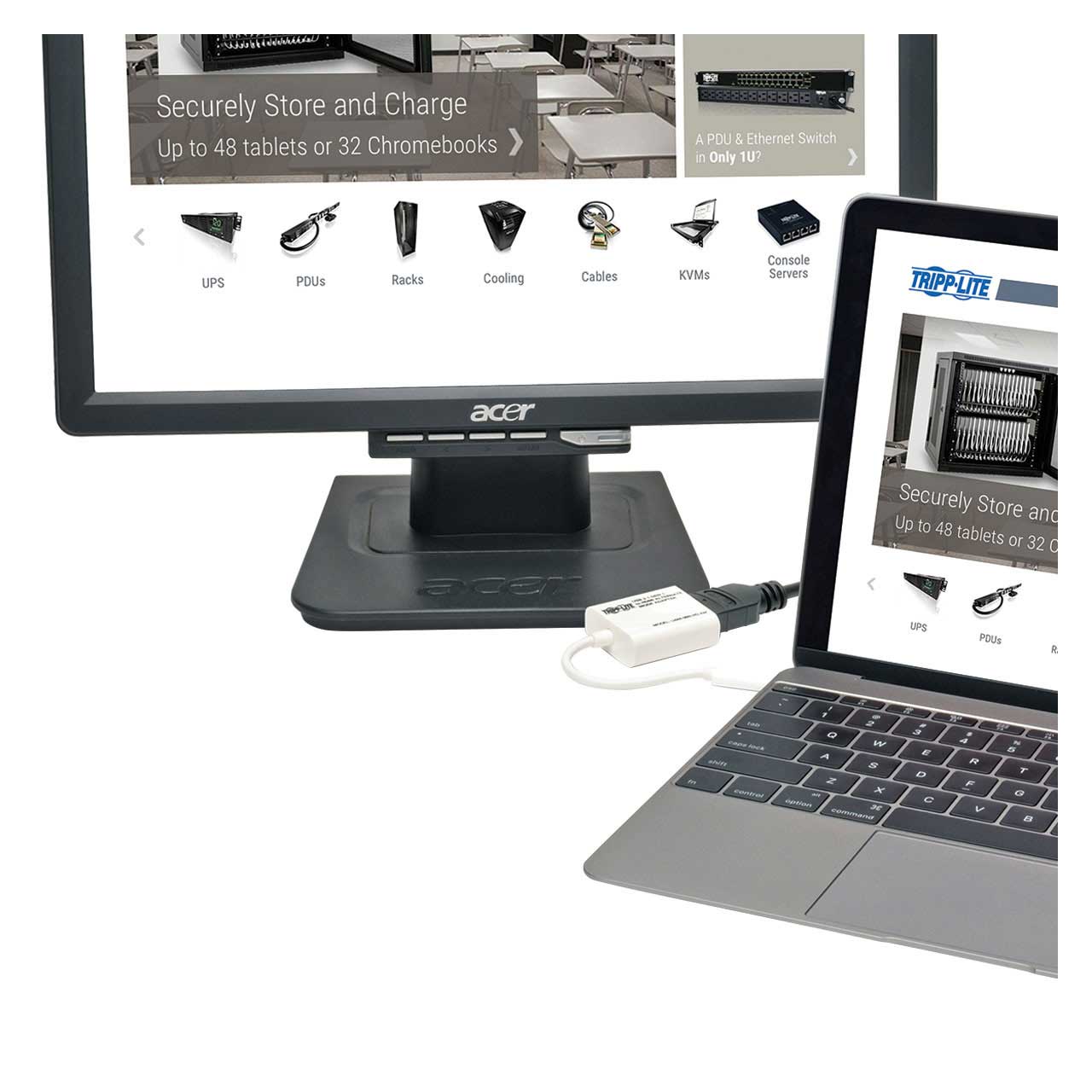

    The U444-06N-HD-AM USB 3.1 Gen 1 USB-C to HDMI 4K Adapter (M/F) helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to an HDMI-enabled television, monitor or projector. It's an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 4K.

    With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary.

    The plug-and-play U444-06N-HD-AM requires no software, drivers or external power. Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the HDMI port to your display using an HDMI cable (sold separately).

    The U444-06N-HD-AM supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 24/25/30 Hz, 36-bit Deep Color (12 bits per channel), 7.1 Audio Surround Sound and per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR).

    • Features:

      • Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
      • Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
      • Extends video from your primary display to another
      • Duplicates the same video on 2 displays
      • Converts a secondary display to your primary display
      • Crystal-Clear 4K Video and Digital Audio
      • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/25/30 Hz
      • Supports 36-bit Deep Color (12 bits per channel)
      • Supports 7.1 Audio Surround Sound
      • Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

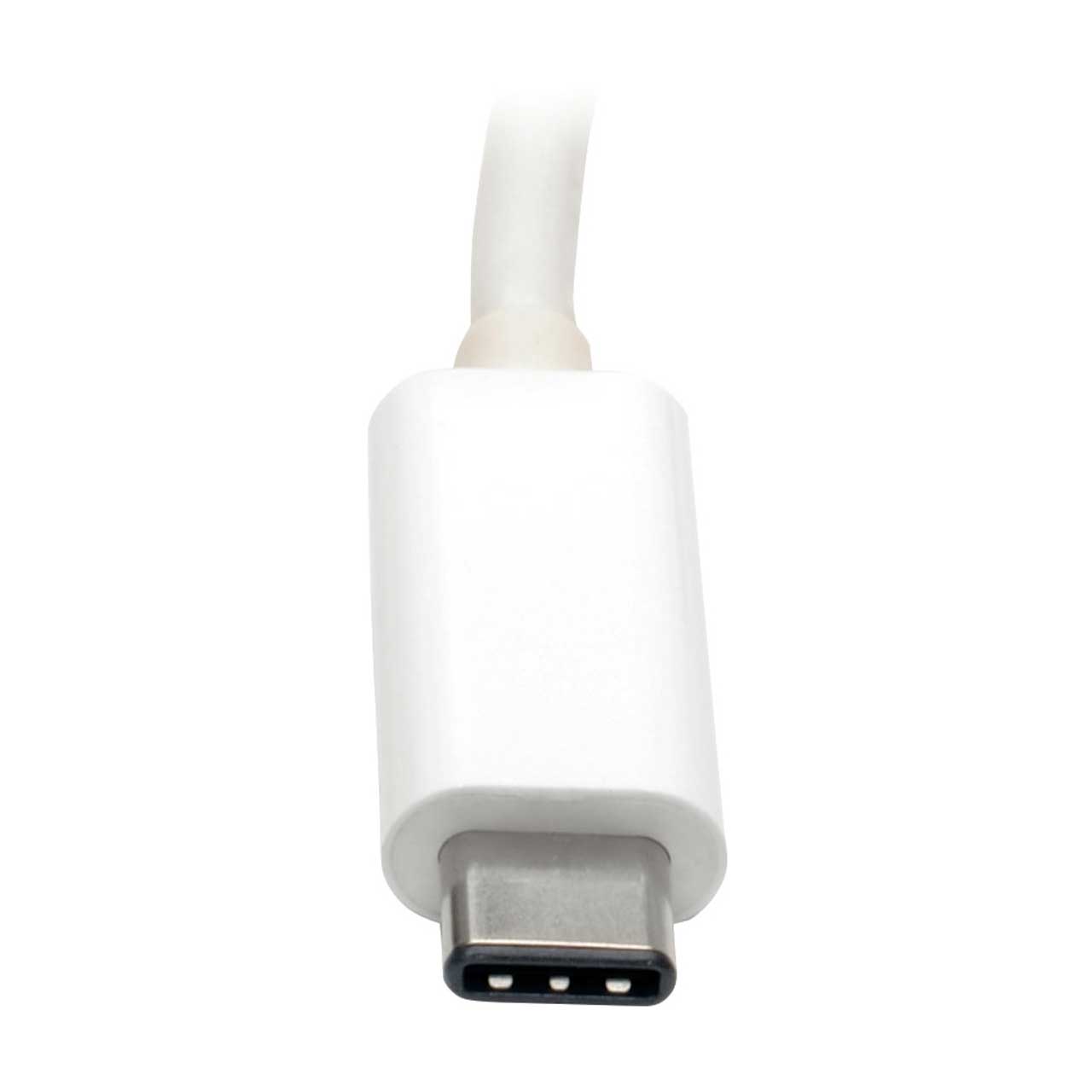

      • Built-In Cable with Reversible USB-C Connector
      • Fumble-free reversible USB-C plug connects in either direction for quick connection every time
      • Plug-and-play operation with no software, drivers or external power required
      • Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
      • Backward compatible with non-4K displays

    • Specifications:

      • Input
      • Bus Powered: Yes
      • Product Length (in.): 6

        Physical
      • Shipping Dimensions (hwd / in.): 4.700 x 4.000 x 0.800
      • Shipping Weight (lbs.): 0.1000
      • Unit Packaging Type: Box
      • Unit Dimensions (hwd / in.): 0.26 x 0.49 x 1.38
      • Unit Weight (lbs.): 0.05
      • Material of Construction: PVC and ABS
      • Color: White
      • Cable Jacket Rating: VW-1
      • Operating Temperature Range: 32 to 113°F (0 to 45°C)
      • Storage Temperature Range: 14 to 158°F (-10 to 70°C)
      • BTUs: 2.1 BTU/Hr
      • Power Consumption (Watts): 0.6
      • Operating Humidity Range: 10% to 85% RH, Non-Condensing
      • Storage Humidity Range: 5% to 90% RH, Non-Condensing

        Communications/Connections
      • Signal Range (ft.): 16
      • Ports: 1
      • Side A - Connector 1: USB C (MALE)
      • Side B - Connector 1: HDMI (FEMALE)
      • Connector Plating: Nickel

        General
      • Max Supported Video Resolution: 4K x 2K (3840 x 2160) @30Hz
      • HDMI Specification: 1.4
      • HDCP Specification: 1.4
      • Driver Required: No
      • USB Power Delivery (PD) Charging Support: No
      • Certifications: Tested to CE, FCC, RoHS, REACH
      • Product Warranty Period (Worldwide): 3-year limited warranty

    • Item Includes:

      • U444-06N-HD-AM USB 3.1 Gen 1 USB-C to HDMI 4K Adapter (M/F)
      • Quick Start Guide

    • Warranty:

      • 3 Year

    • GTIN:

      0037332189325
