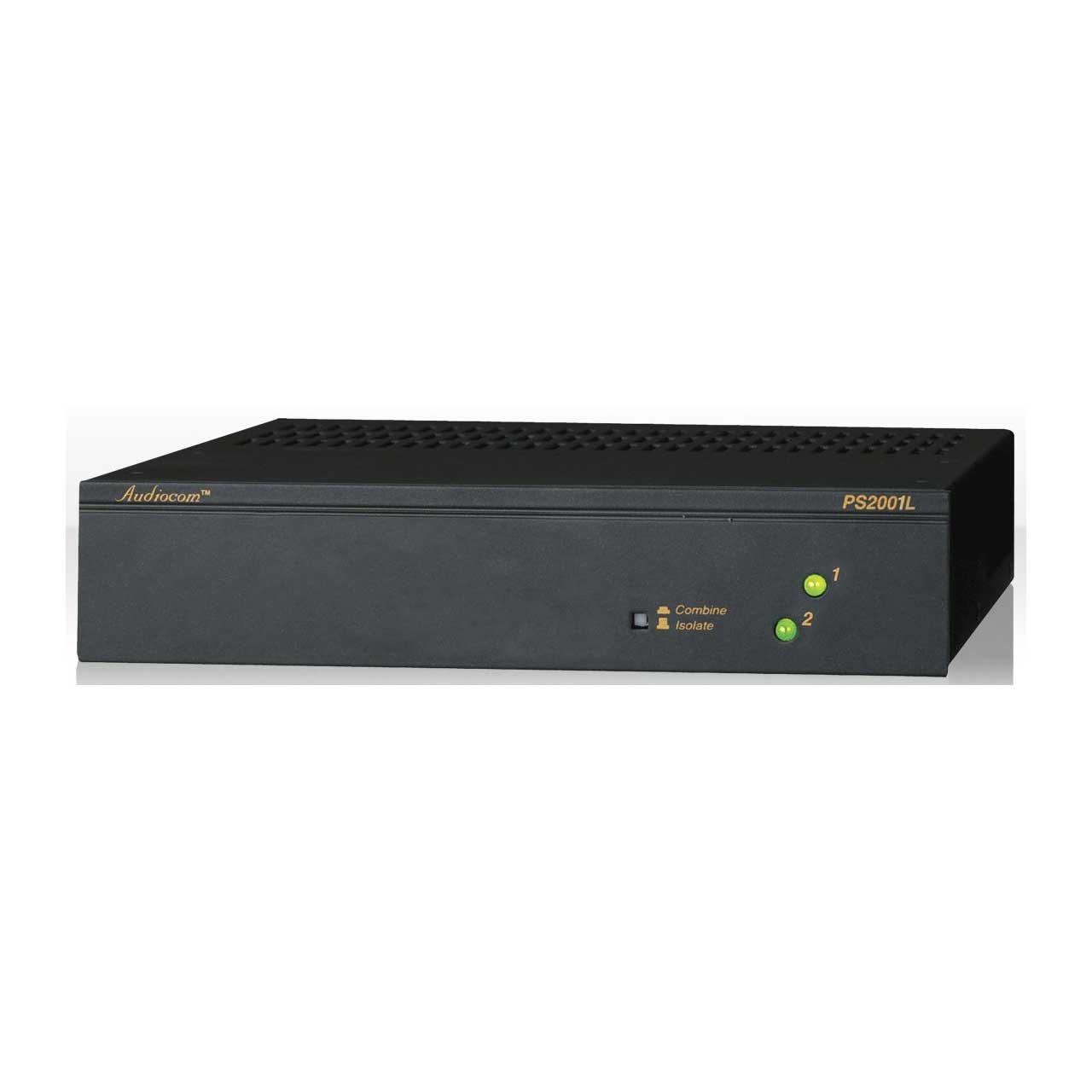

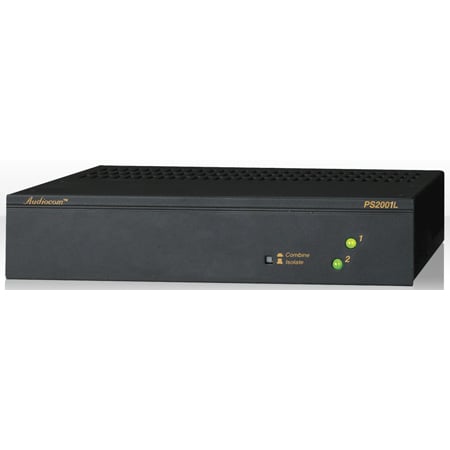

The RTS PS-2001L power supply supports two isolated channels of intercom system phantom power to down line components. The PS-2001L has Instantaneous Auto Reset(IAR), the newest technology in performance and safety,which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up. Use the PS-2001L either as a stand alone power supply or combine it with the US2002 to create a2-channel master station. The Combine/Isolate switch allows you to create a single intercom power channel with twice the capacity for large party-line applications. ThePS-2001L can operate in either balanced or unbalanced mode, making it completely Clear-Com compatible.
Features:
Combine / Isolate Switch:
When in the Combine position, the unit will combine the audio signals of the two channels to create a single audio channel where all users can intercommunicate. When in the Isolate position, the unit will create two groups of completely independent users.
Channel Status Indicators:
The indicators are green for normal operation and red when there is an overload or short circuit. The circuitry in the unit will automatically reset when the overload or short circuit is located and fixed.
Universal AC Power Input:
The unit accepts any input power in the range of 100-240 VAC, 50/60 Hz.
Instantaneous Auto-Reset:
Instantaneous Auto Reset (IAR), the newest technology in performance and safety, which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up.

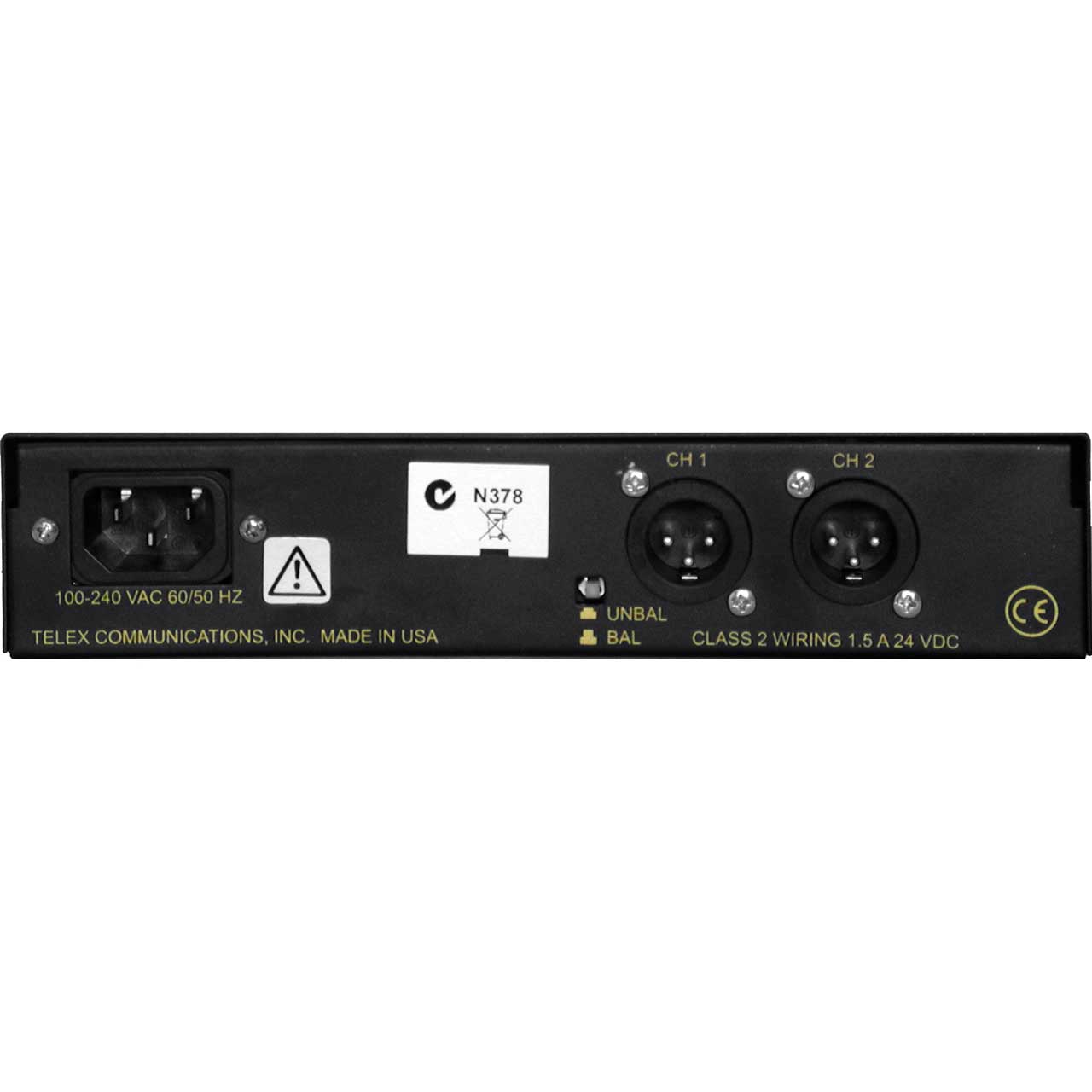

Intercom Channel Connectors:
When the Combine / Isolate switch is set to the Isolate position, each channel connector is powered separately and has completely separate intercom audio. When the Combine / Isolate switch is set to the Combine position, each channel is still powered separately, but the audio signals are combined so that all users on both channels can intercommunicate.
BAL / UNBAL Selector Switch:
This selector switch allows the user to configure the unit for use in either an Audiocom (BALANCED) or Clear-Com (UNBALANCED) system. Compatibility includes channel connector pin-outs, channel power requirements, and call signaling requirements. The default setting for this switch is in the Audiocom (BAL) position.
Clear-Com Compatible.
