HellermannTyton 151-01565 Wedge Clip for 0.00 to 0.20 Inch Thick Panels - Black with Green Wedge - 200 Pack

ITEM #: TYT-15101565-200 MFG #: 151-01565

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$691.16

Our Price:

$624.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


151-01565 - Overview

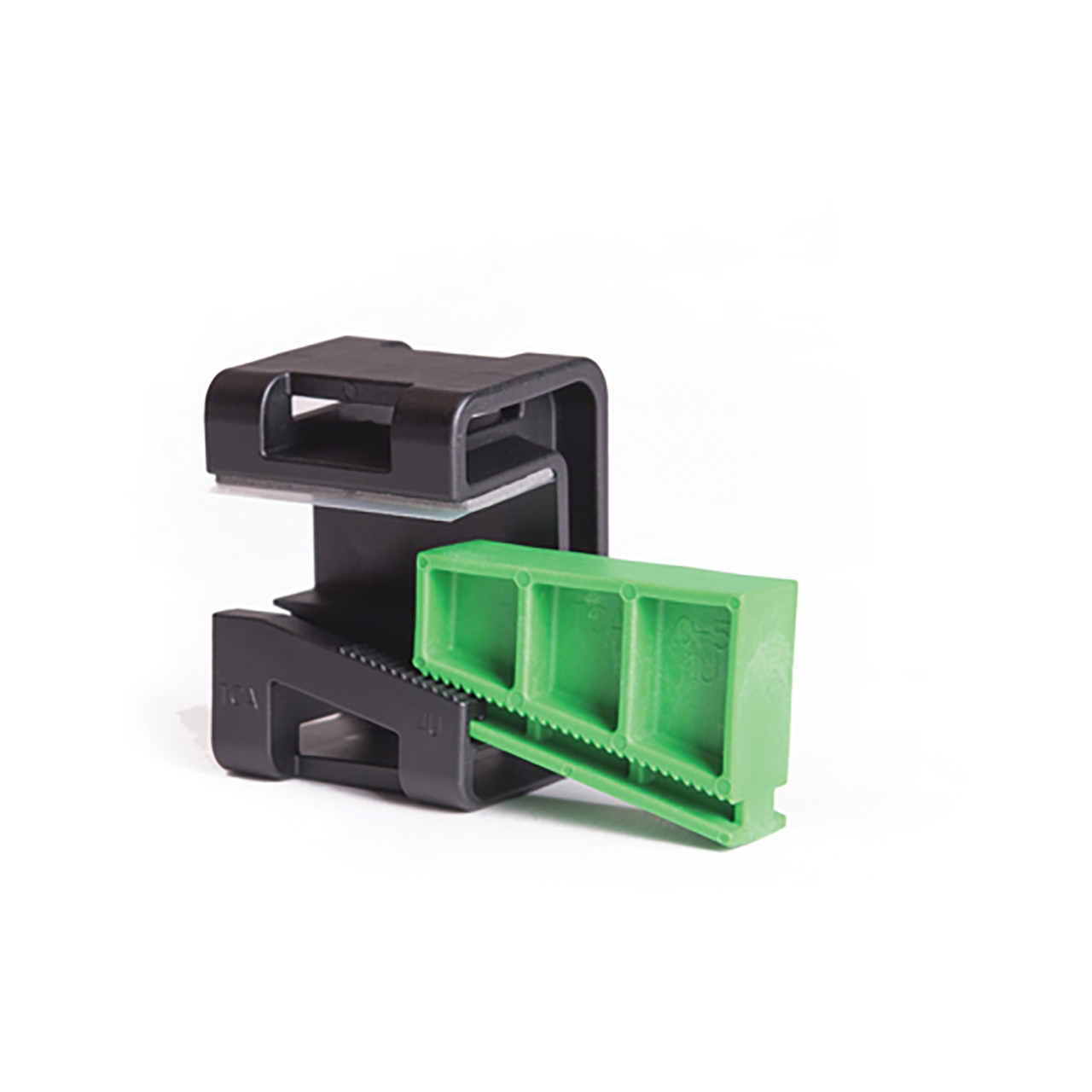

The Wedge Clip, paired with any HellermannTyton heavy duty Cable Tie, routes cables along a frame or rail in vertical or horizontal applications. A robust design and durable materials make it ideal for extreme-duty applications. The integrated wedge mechanism slides along a stepped grade until snug against the mounting surface. Inside the clip is a 3M™ VHB™ (Very High Bond) adhesive pad, which actually builds strength over time. This holds the clip to the work surface instantly, enabling installers to place it into position without worrying about it falling off prior to fastening. The combination of adhesive and the clip's vice-like compression result in incredible extraction force without the need to drill holes. The Wedge Clip is offered in three sizes.

  • Specifications:

    • Length: 1.21" (30.8mm)
    • Width: 1.13" (28.6mm)
    • Height: 1.70" (43.1mm)
    • Max Cable Tie Width: 0.59" (15mm)
    • Max Panel Thickness: 0.20" (5mm)
    • Material: Polyamide 6.6, heat stabilized, glass fiber reinforced (PA66HSGF30%)
    • Adhesive: Acrylic foam
    • Flammability: UL 94 HB
    • UV Resistant (Yes/No): Yes
    • Use Conditions: For Indoor and Outdoor Use
    • Operating Temperature: -40°F - 284°F (-40°C - 140°C)
    • Reach Compliant (Article 33): Yes

  • Item Includes:

    • 200x 151-01565 Wedge Clips

  • GTIN:

    0089306409571
