Fujinon UA13x4.5BERD-S10 W/2x 4K PLUS UHD Zoom UA Series ENG Lens B4 Mount for 2/3 In Cameras w/2X Range Extender & RBF

ITEM #: UA13X45BERDS10W2 MFG #: UA13X4.5BERD-S10 W/2X RBF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$43,940.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


UA13X4.5BERD-S10 W/2X RBF - Overview

4K Ultra HD 2/3" Lens w/ B4 Mount for Broadcast!

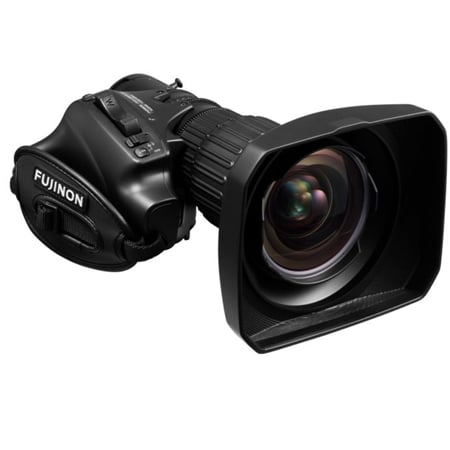

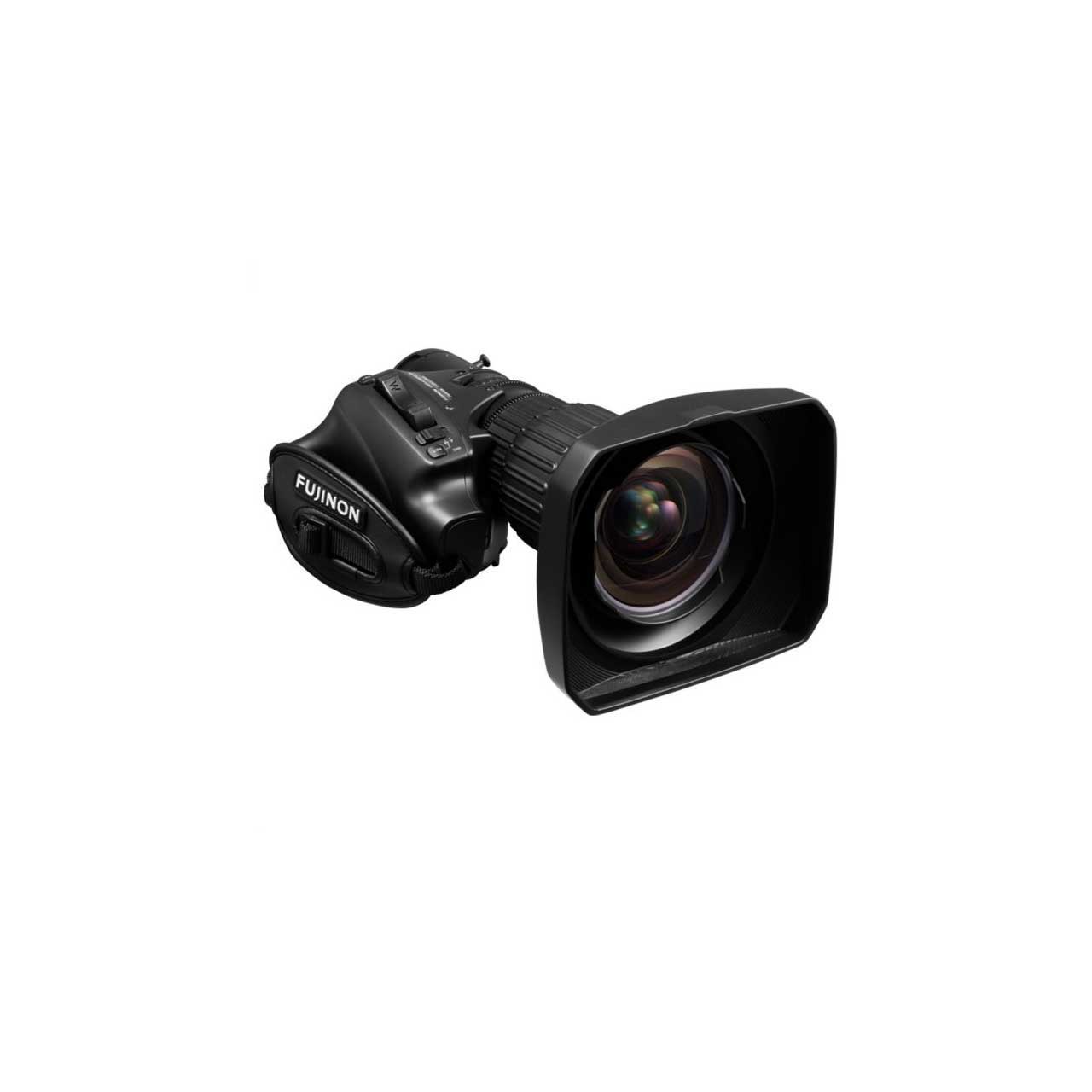

The Fujinon UA13x4.5BERD-S10 W/2x is a 4K PLUS UHD Digital, Portable, Ultra Wide, 13x Zoom, ENG Lens for 2/3 Inch Cameras with Remote Back Focus (RBF) and 2X Range Extender and the S-10 drive.

The FUJINON UA13x4.5 wide zoom lens has achieved resolution surpassing 4K, high contrast, and HDR. It is also capable of shooting ultra-wide angle images at a focal length of 4.5mm. Incorporating the floating focus system, that controls a plurality of lens group in accordance with the shooting distance, the UA13x4.5 enables shooting of high-resolution images across the entire zoom range. In addition, it has suppressed the distortion of images that tends to occur at ultra-wide angle focal lengths and the reduction of resolution in the periphery.

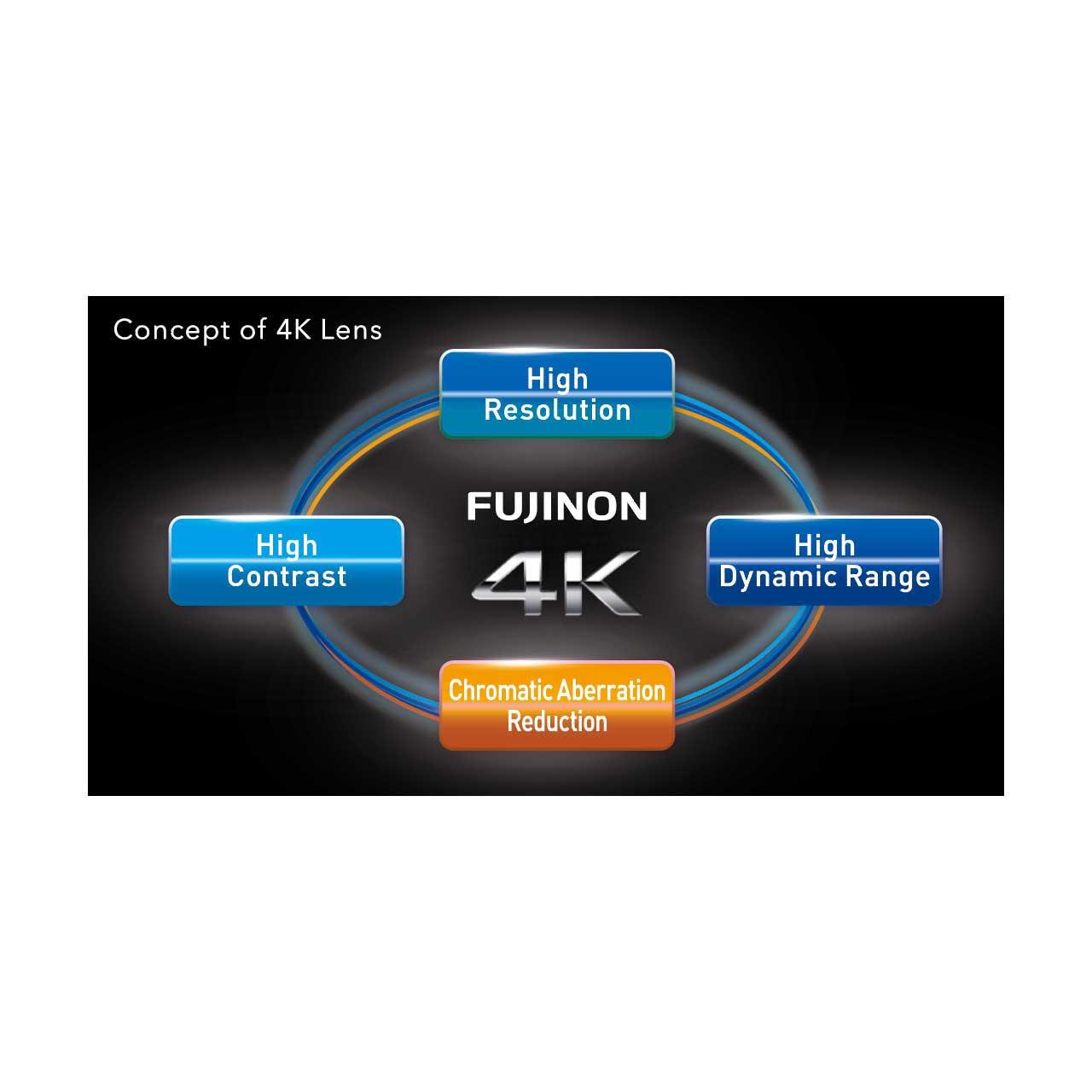

4K demands a higher dimension of performance, and the expanded FUJINON 4K broadcast lens lineup meets the challenge. Extending the limits of "High Resolution", "High Contrast", "Chromatic Aberration Reduction" and "High Dynamic Range", FUJINON's cutting-edge optical technology presents the next standard in optical performance - image quality that exceeds the high expectations of imaging professionals.

High Resolution
Resolution that matches the ultra-fine pitch of 4K pixels results in crisp and crystal clear images.

High Contrast
Superb image sharpness is achieved by improving MTF even for low-frequency objects that are generally common in the image.

Chromatic Aberration Reduction
The combination of fluorite ED (extra low dispersion) and super ED lens elements minimizes color fringing and delivers clear, crisp images.

High Dynamic Range
To take full advantage of the expanded dynamic range offered by HDR cameras, the lens rigorously suppresses flare and faithfully transmits the important "blacks" in video image rendering.

  • Features:

    • Advanced optical performance that enables 4K compatibility under any shooting conditions
    • Powerful 4K footage with 13x zoom from 4.5mm in wide angle
    • 9-blade round iris enabling natural bokeh in images
    • Equipped with 16bit encoder for virtual device

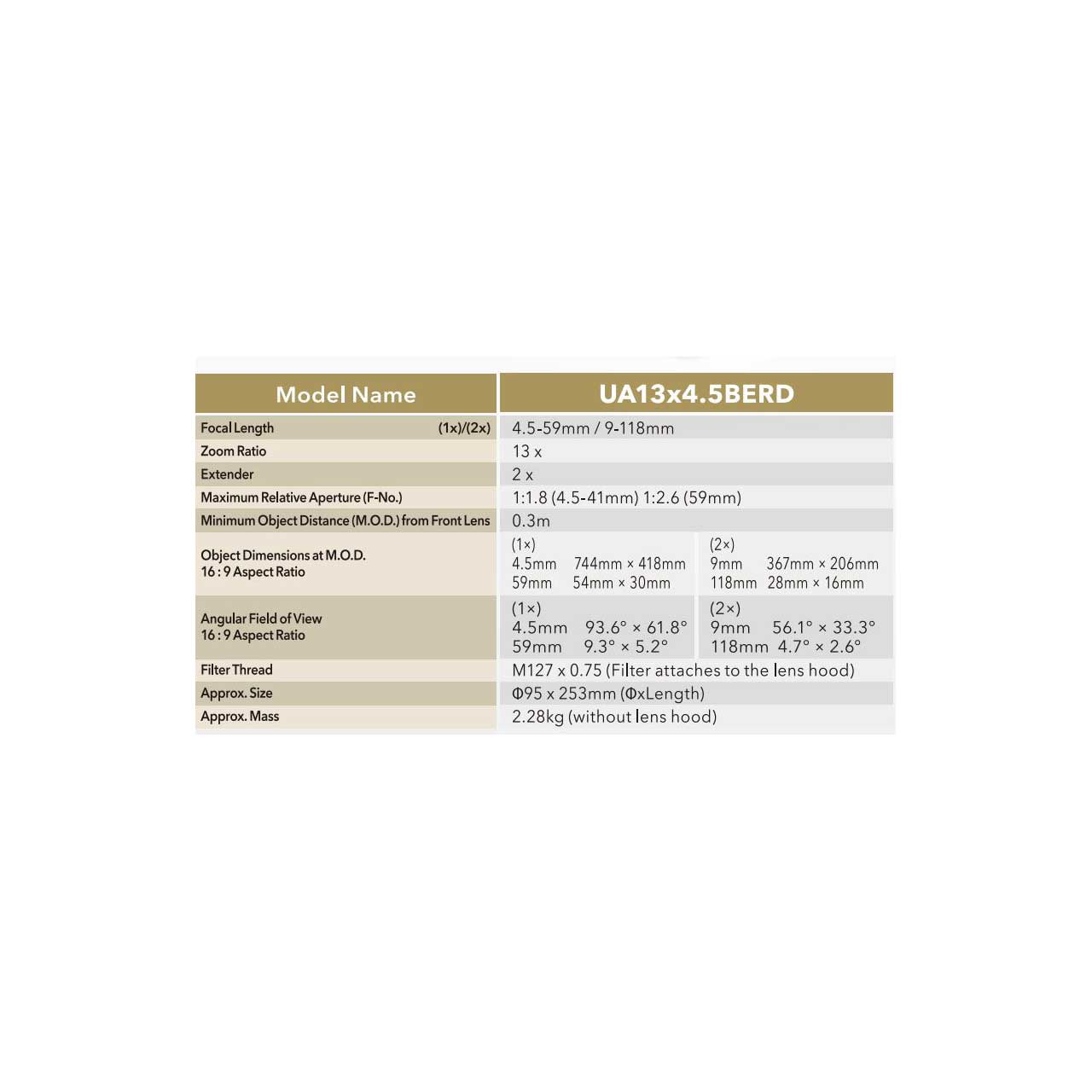

  • Specifications:

    • Model Name: UA13x4.5BERD-S10 w/2x RBF
    • Focal Length:
      - 1x: 4.5mm - 59mm
      - 2x: 9mm - 118mm
    • Zoom Ratio: 13x
    • Extender: 2x
    • Maximum Relative Aperture (F-no.):
      - 1:1.8 (4.5mm - 41mm)
      - 1:2.6 (59mm)
    • Minimum Object Distance (M.O.D.) from Front Lens: 0.3m
    • Object Dimensions at M.O.D. - 16:9 AspectRratio:
      - 1x: 4.5mm 744mm x 418mm/59mm 54mm x 30mm
      - 2x: 9mm 367mm x 206mm/118mm 28mm x 16mm
    • Angular Field of View - 16:9 Aspect Ratio:
      - 1x: 4.5mm 93.6° x 61.8°/59mm 9.3° x 5.2°
      - 2x: 9mm 56.1° 33.3°/118mm 4.7° x 2.6°
    • Filter Thread: M127 x 0.75 (Filter attaches to the lens hood)
    • Approx. Size F95 x 253mm (FxLength)
    • Approx. Mass 2.28kg (without lens hood)

  • Item Includes:

    • 1x UA13x4.5BERD-S10 W/2x Portable Wide Zoom ENG Lens w/2X Range Extender and S-10 drive

  • Warranty:

    • 2 full years from date of purchase
