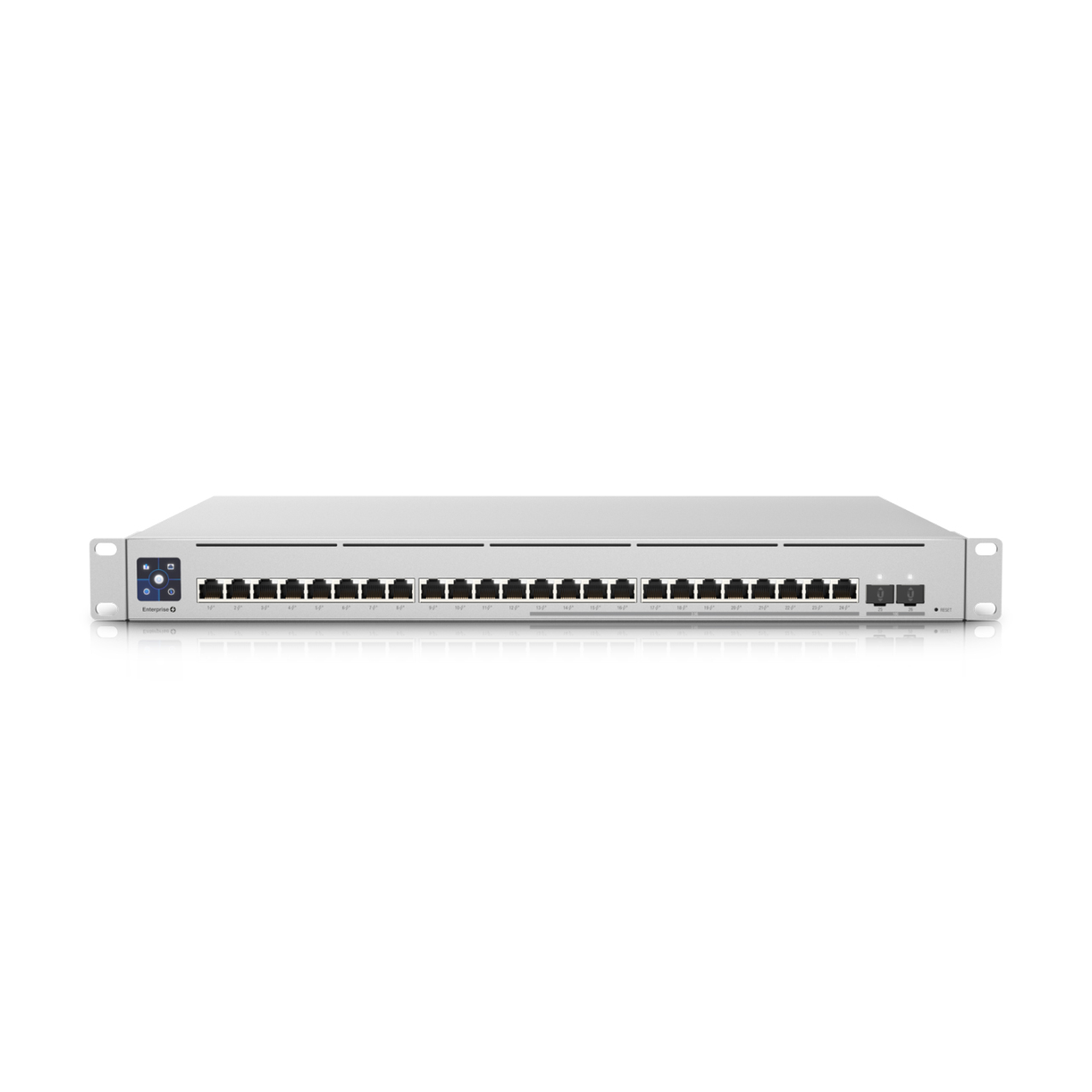

Ubiquiti ENTERPRISE-24-POE 400 Watt 24-Port Layer 3 Switch with 2.5 GbE PoE+ Output and 1.3 Inch Touchscreen

ENTERPRISE-24-POE - Overview

• Features:

  • 12x 2.5 GbE, 12x GbE; all PoE+ ports
  • 2x 10G SFP+ ports
  • 400W total PoE availability
  • DC power backup-ready
  • Layer 3 switching


• Specifications:

  • Hardware
  • Management Interface: Ethernet In-Band
  • Networking Interface:
    - 12x GbE RJ45 ports
    - 12x 2.5 GbE RJ45 ports
    - 2x 10G SFP+ ports
  • PoE Interface: 24x PoE/PoE+ (Pins 1, 2+; 3, 6-)
  • Total Non-Blocking Throughput: 62 Gbps
  • Switching Capacity: 124 Gbps
  • Forwarding Rate: 92.25 Mpps
  • Power Method:
    - 1x Universal input, 100-240V AC, 8.5A Max., 50/60 Hz
    - 1x USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
  • Power Supply: AC/DC, internal, 550W
  • Supported Voltage Range: 100-240V AC
  • Max. Power Consumption: 60W (Excluding PoE output)
  • Total Available PoE: 400W
  • Max. PoE+ Wattage per Port by PSE: 34.2W
  • Voltage Range PoE Mode: PoE: 44-57V, PoE+: 50-57V
  • Services: SMB Layer 3 PoE GbE switch
  • ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV
  • LCM Display: 1x 1.3" color touchscreen
  • Button: Factory reset
  • Ambient Operating Temperature: 23°F - 104°F (-5°C - 40°C)
  • Ambient Operating Humidity: 10% - 95% noncondensing
  • Certifications: CE, FCC, IC

    Switching Features
  • Layer 2 Features: IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
  • Layer 3 Features: DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing, between local networks
  • Network isolation with ACLs

    LEDs
  • System: Status
  • Ethernet: Link/activity
  • SFP+: Link/activity

    Mechanical

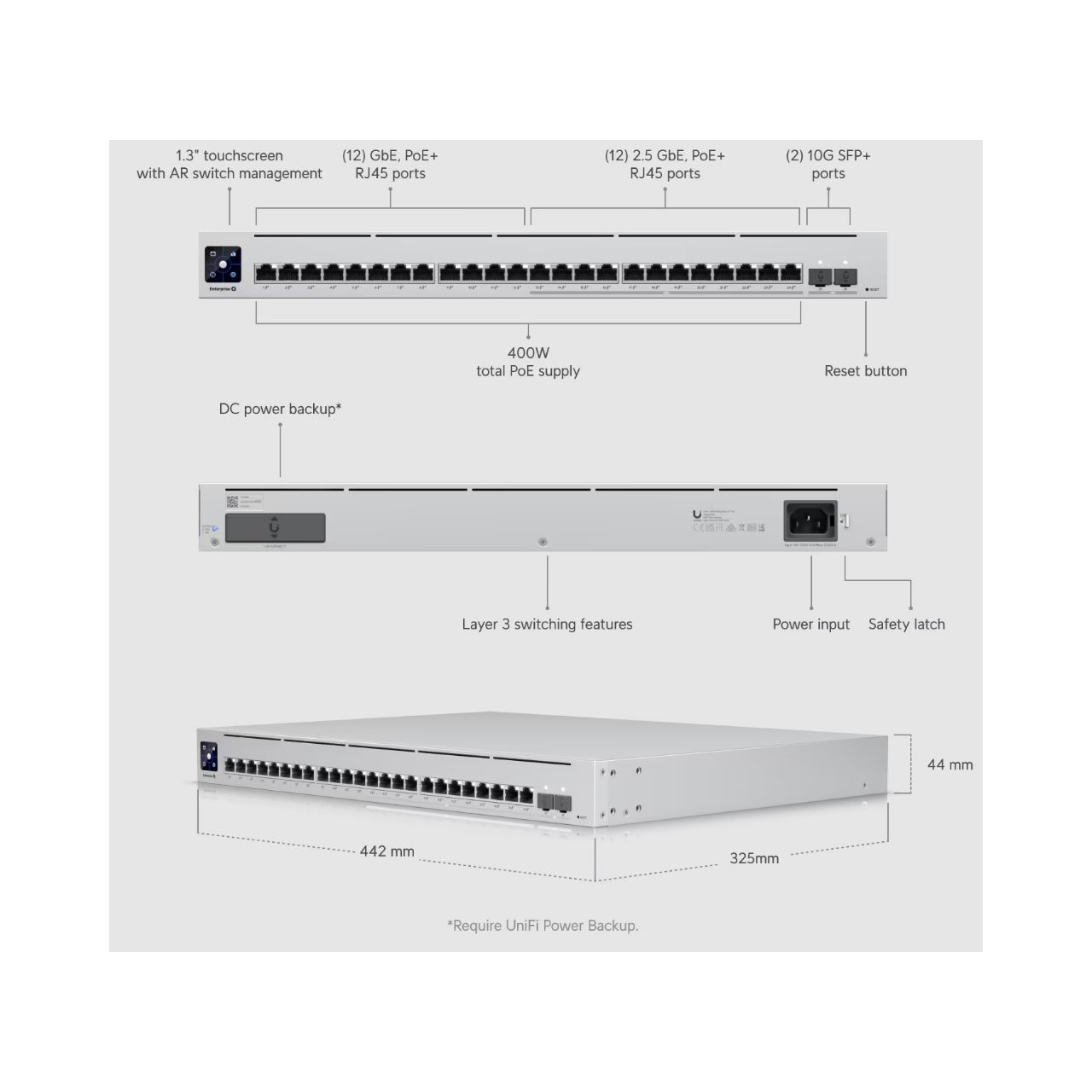

  • Dimensions: 17.4" x 12.8" x 1.7" (442mm x 325mm x 44mm)
  • Weight:
    - Without Mounting Brackets: 11.3lbs (5.1kg )
    - With Mounting Brackets: 11.5lbs (5.2kg)
  • Enclosure Material: SGCC steel

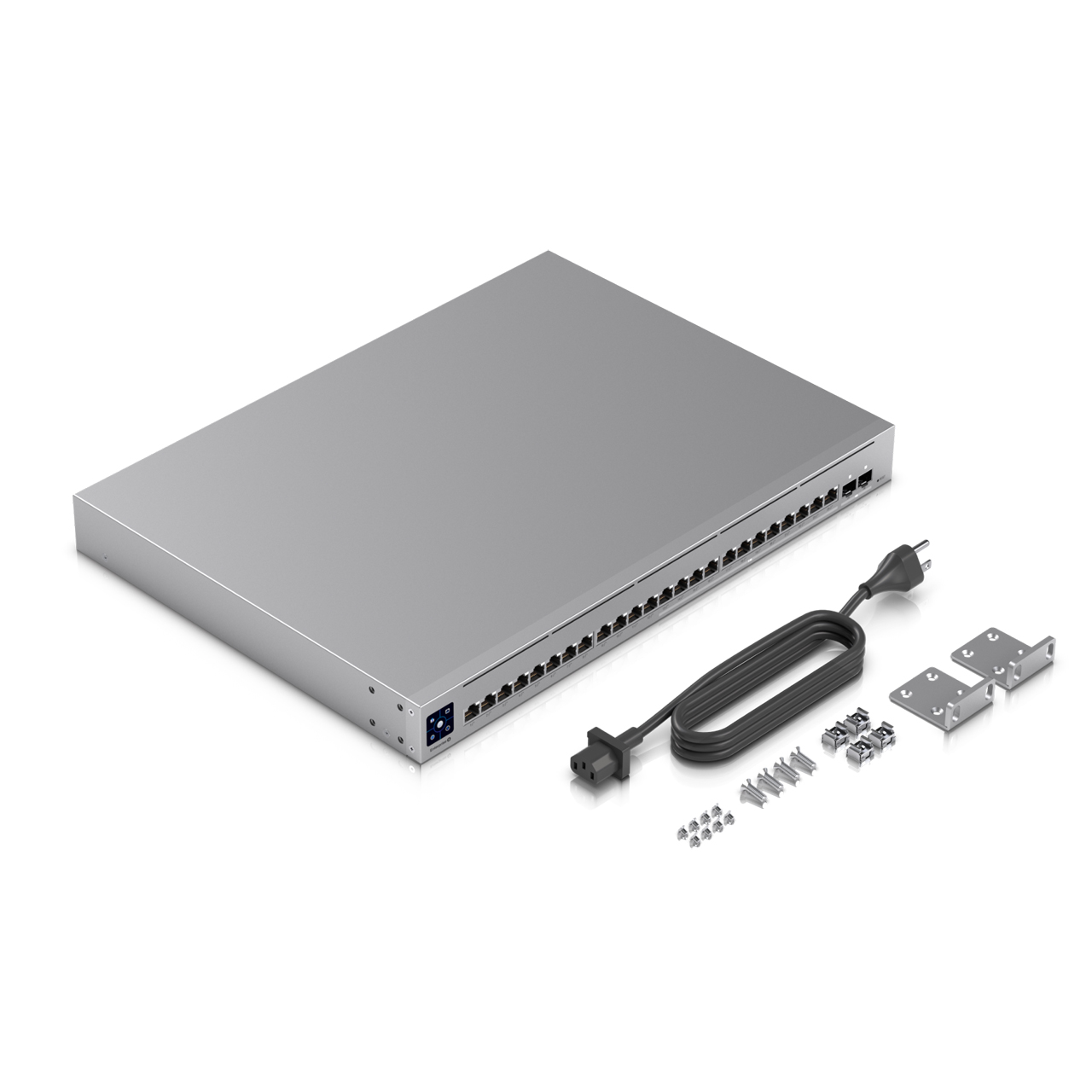

• Item Includes:

  • 1x Ubiquiti USW-ENTERPRISE-24-POE 400 Watt 24-Port Layer 3 Switch with 2.5 GbE PoE+ Output and 1.3 Inch Touchscreen


• GTIN:

  0810010072917
