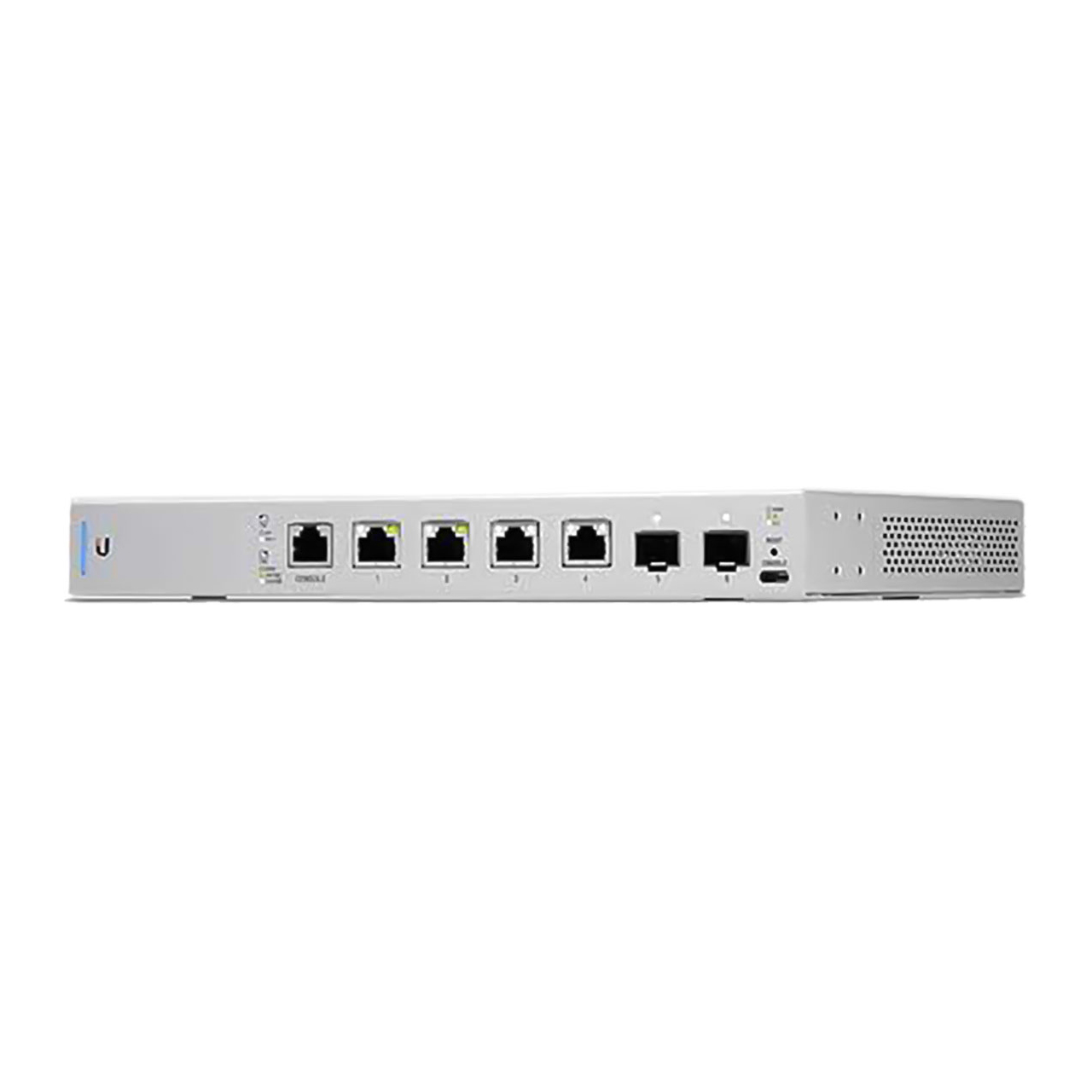

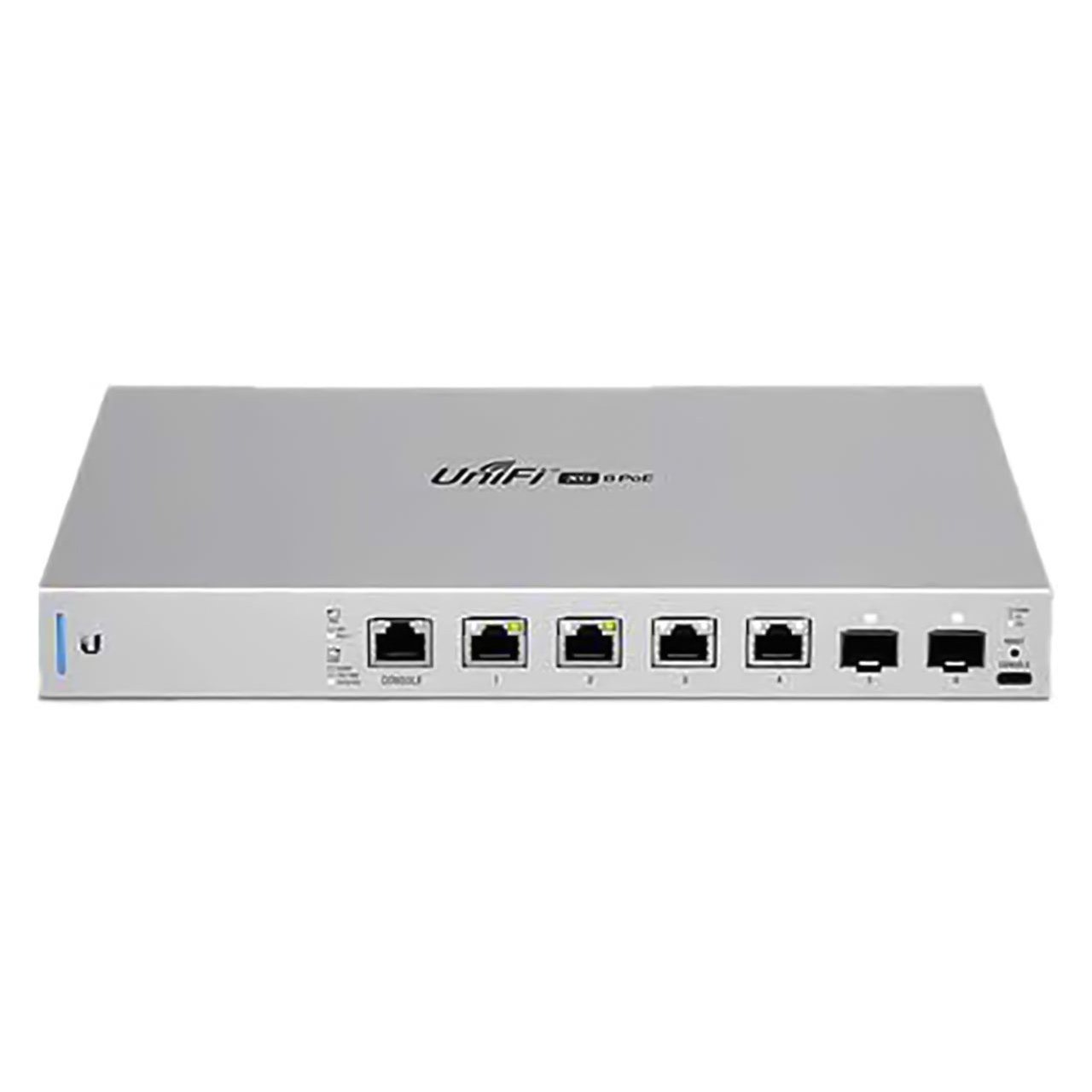

Ubiquiti US-XG-6POE Layer 3 PoE Switch with (4) 10GbE - PoE++ RJ45 Ports and (2) 10G SFP+ Ports

US-XG-6POE - Overview

Layer 3, PoE switch with (4) 10GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.

• Features:

  • (1) RJ45 console port
  • (4) 10GbE, PoE++ RJ45 ports
  • (2) 10G SFP+ ports
  • (1) USB-C console ports
  • 170W total PoE supply
  • Layer 3 switching features
  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app


• Specifications:

  • Networking Management: (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports
  • Ethernet In-Band: (1) RJ45 Serial Port Out-of-Band, (1) USB Type C Port Out-of-Band

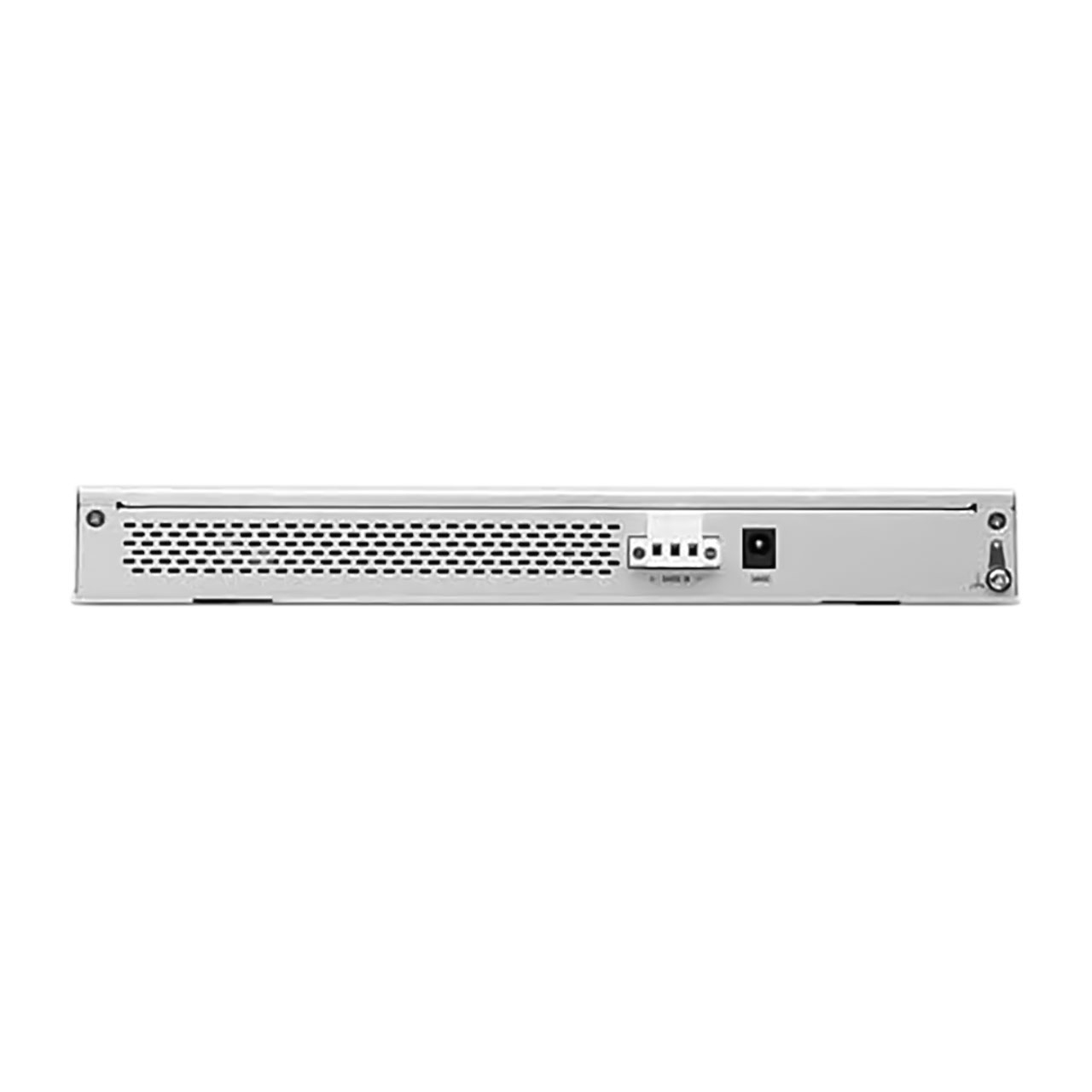

  • Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
  • Power Supply: External AC/DC Adapter (Included) or DC Power Source
  • Supported Voltage Range: 44 to 57VDC
  • Max. Power Consumption, (Excluding PoE Output): 40W
  • Operating Temperature: 23 to 113° F
  • Operating Humidity: 5 to 95% Noncondensing
