Vaddio Easy USB Pro Mic I/O

999-8520-000 - Overview

• Features:

  • MADE IN THE USA!
  • Allows third-party professional microphones to be used with the EasyUSB Mixer/Amp
  • Features four built-in wide-band echo cancelling channels
  • Four (4) XLR mic level inputs with assignable phantom power, high and low cut filters, GPIO and front panel lockout

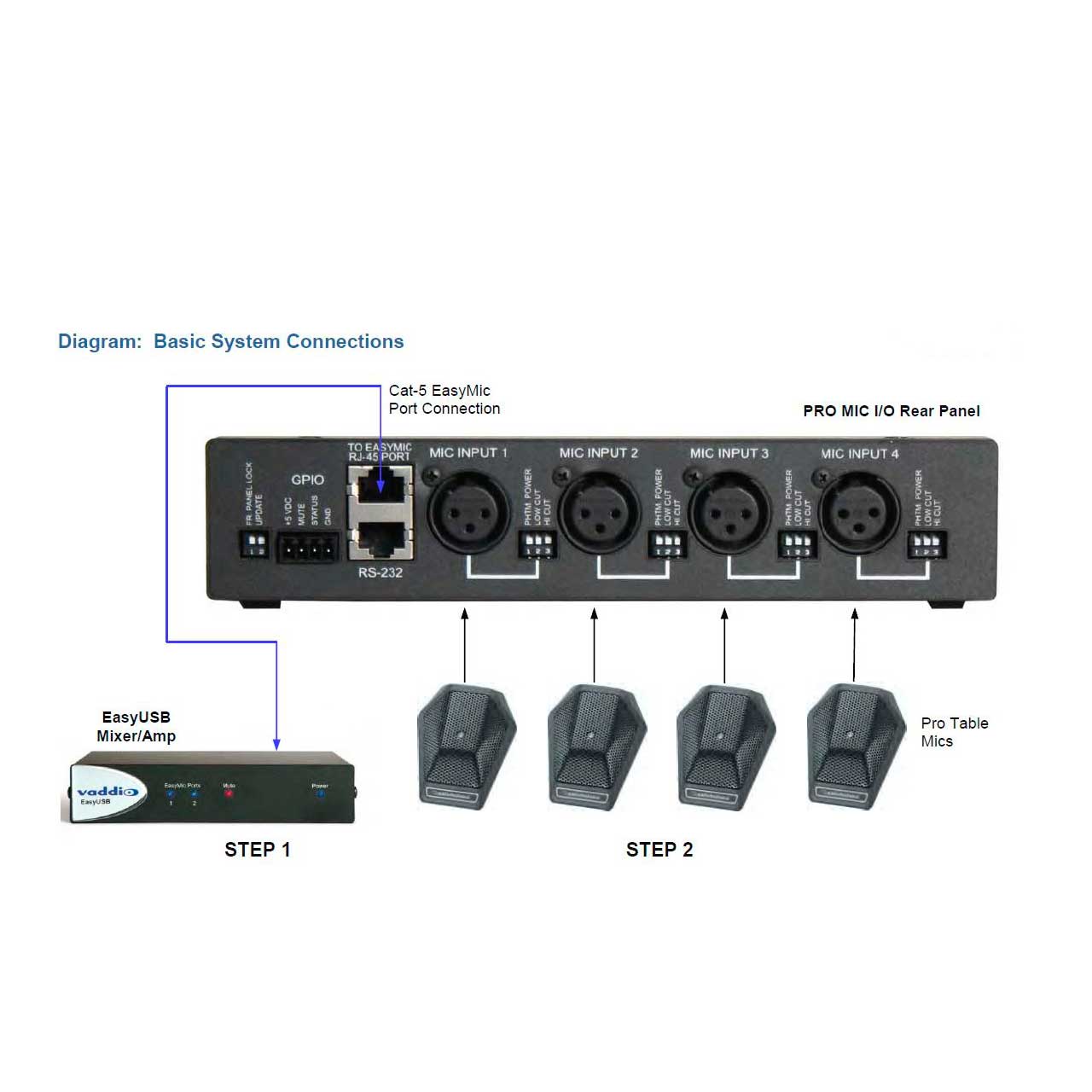

  • EasyUSB Port Output plugs into one EasyUSB Port Input on EasyUSB Mixer/Amp (Compliant with UC clients that use UAC drivers for USB 2.0)

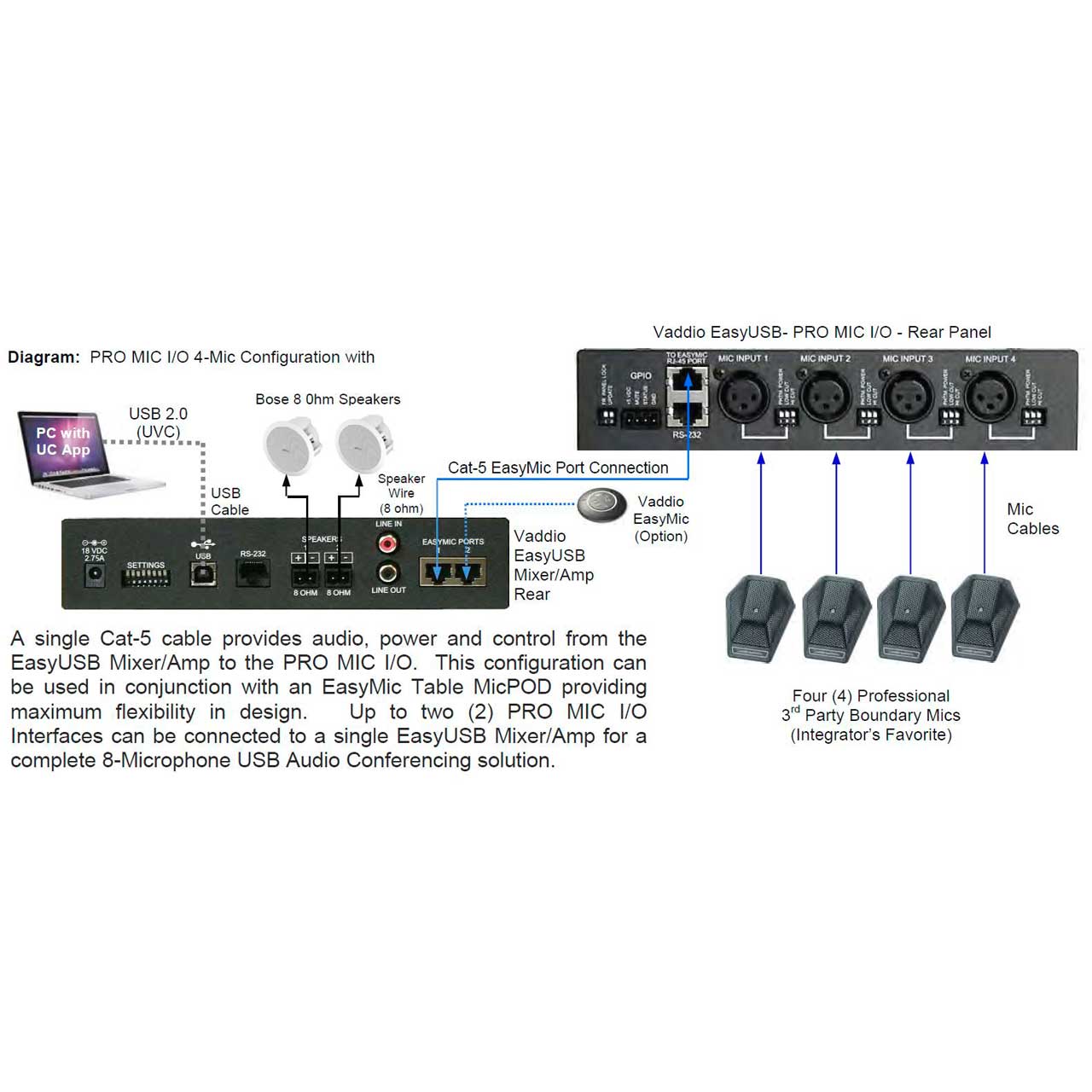

  • Up to eight microphones can be used on two EasyUSB Ports


• Specifications:

  • Frequency Response 20 Hz to 20 kHz
  • Dynamic Range >90 dB
  • THD + Noise < 0.02%

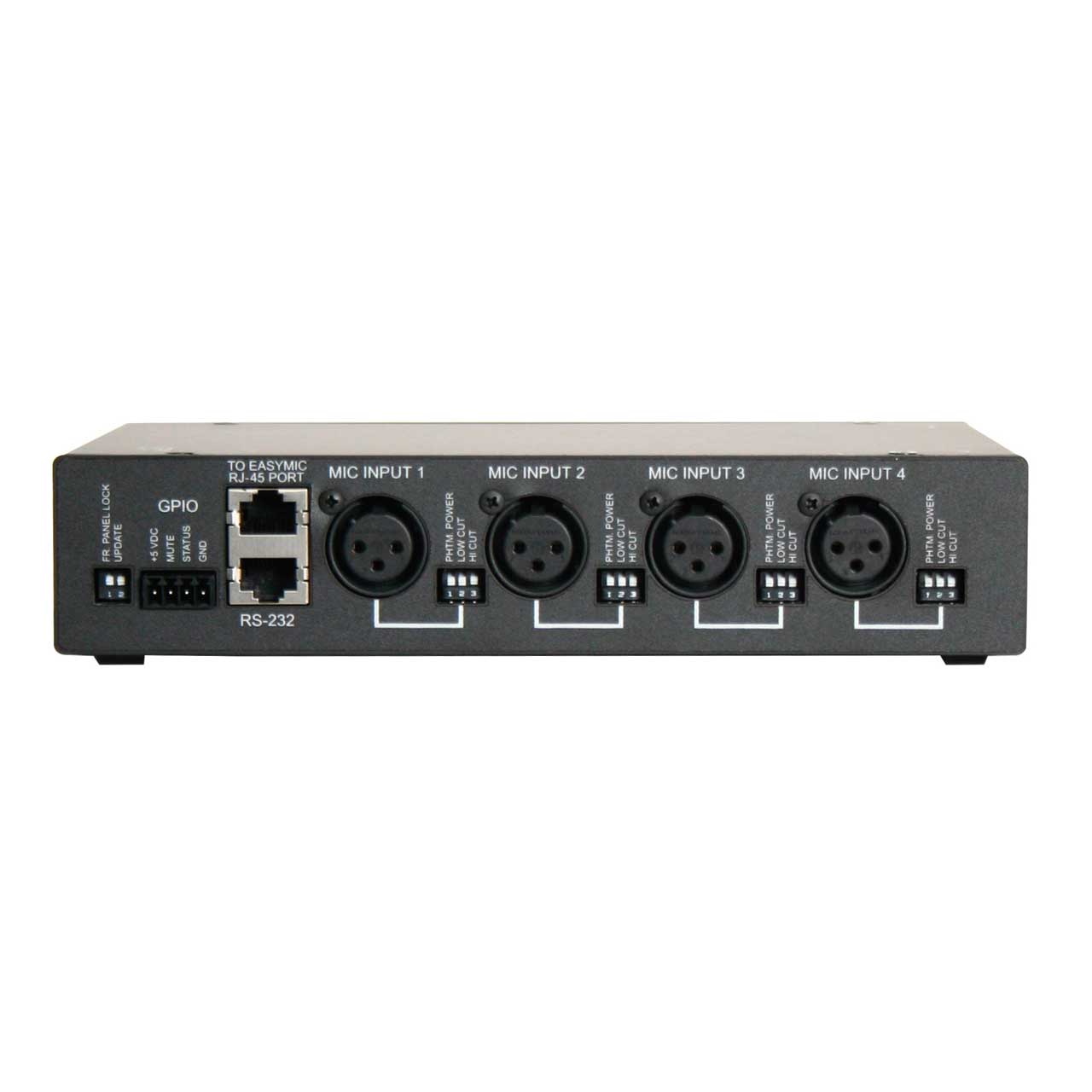

  • Microphone Input 4 x XLR female balanced microphone inputs
  • 48 VDC Phantom Power
  • Microphone Preamp-adjustable from 10 to 46 dB gain
  • Audio Processing Acoustical Echo Cancellation, Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HP/LP Filters

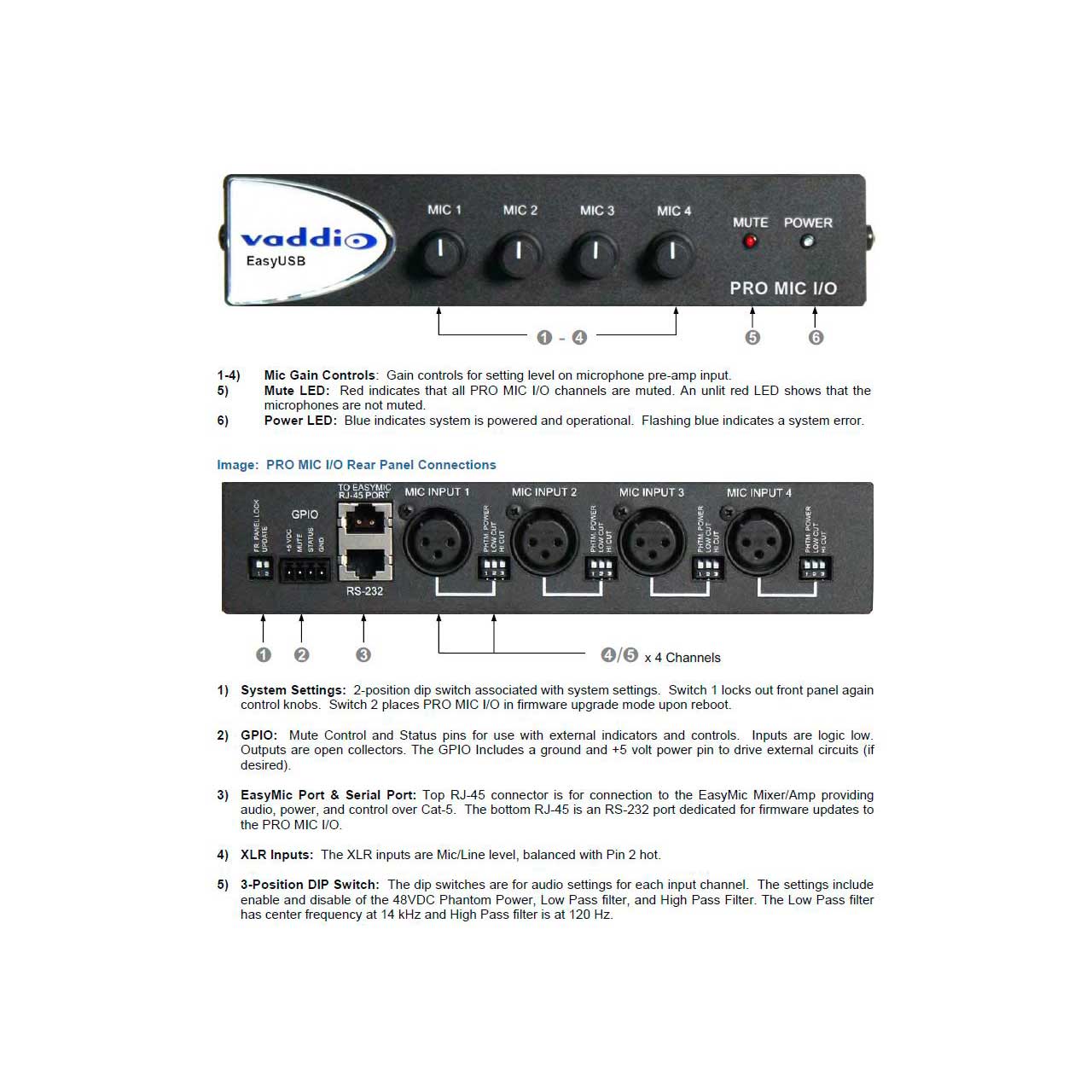

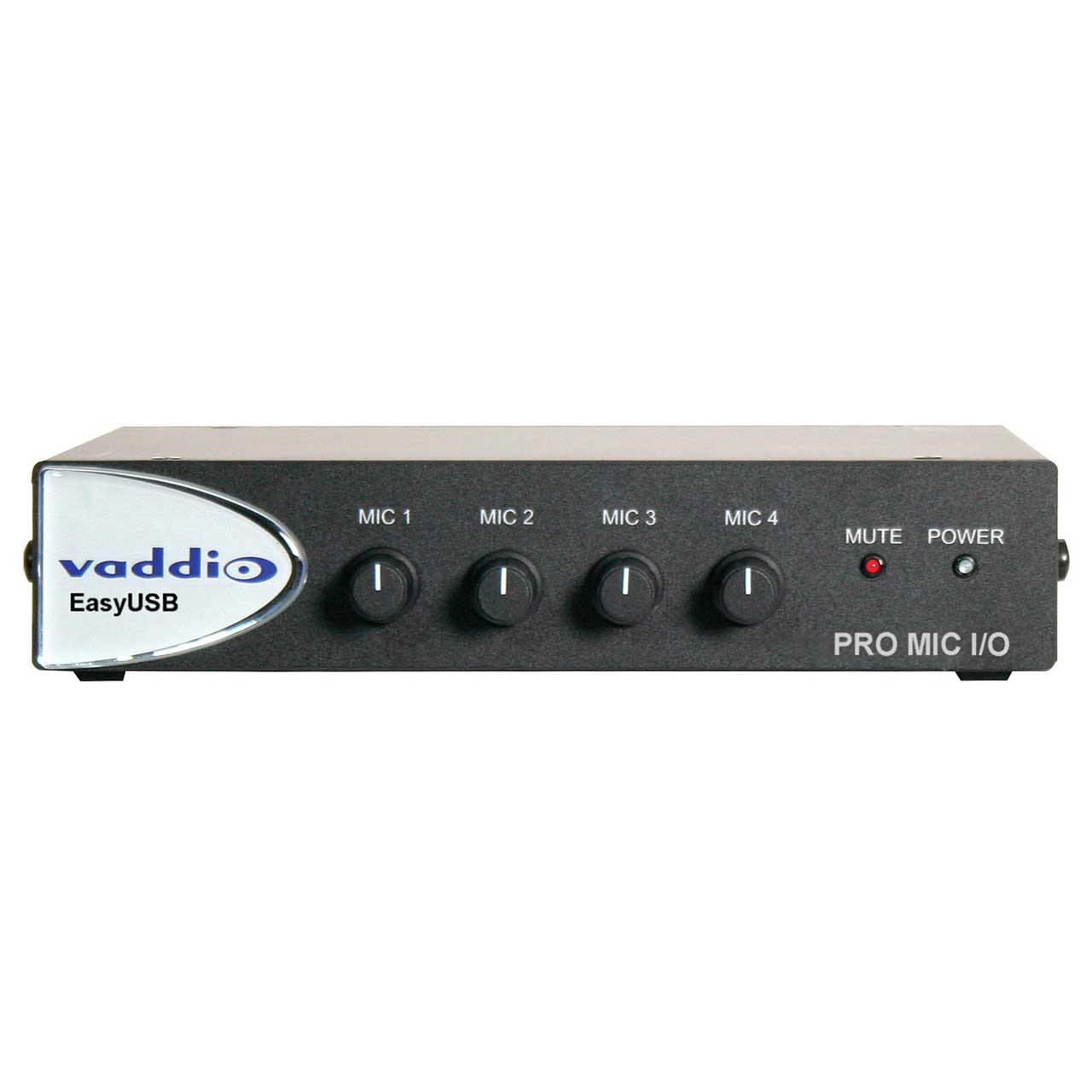

  • User Controls Front Panel Rotatory Gain Controls, rear DIP Switches for audio processing and GPIO
  • Ports EasyMic Ports: 1 x RJ45 female proprietary interface (audio, power, & control), Maximum CAT5 Cable Distance: 100.0' (30.5 m)
  • Control Port: RJ45 female Vaddio Std. RS-232 Pin-out for CAT5 cable
  • Operating Temperature 32 to 104°F (0 to 40°C)
  • 273.15 to 313.15 K
  • Relative Humidity 20 to 80%
  • Dimensions (H x W x D) 1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm)
  • Weight 1.4 lb (0.6 kg)


• Item Includes:

  • One (1) PRO MIC I/O
  • Documentation


• GTIN:

  0840077501846
