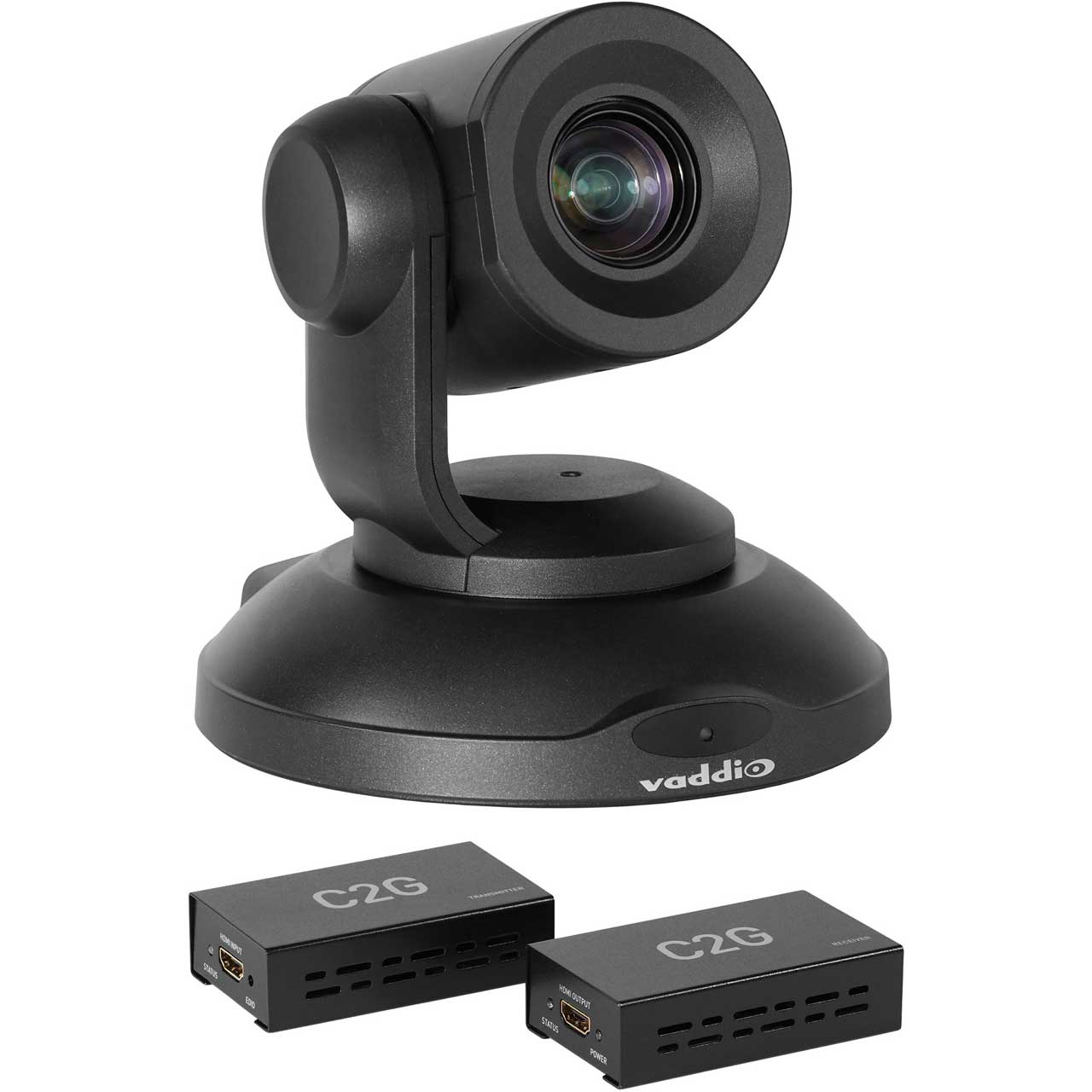

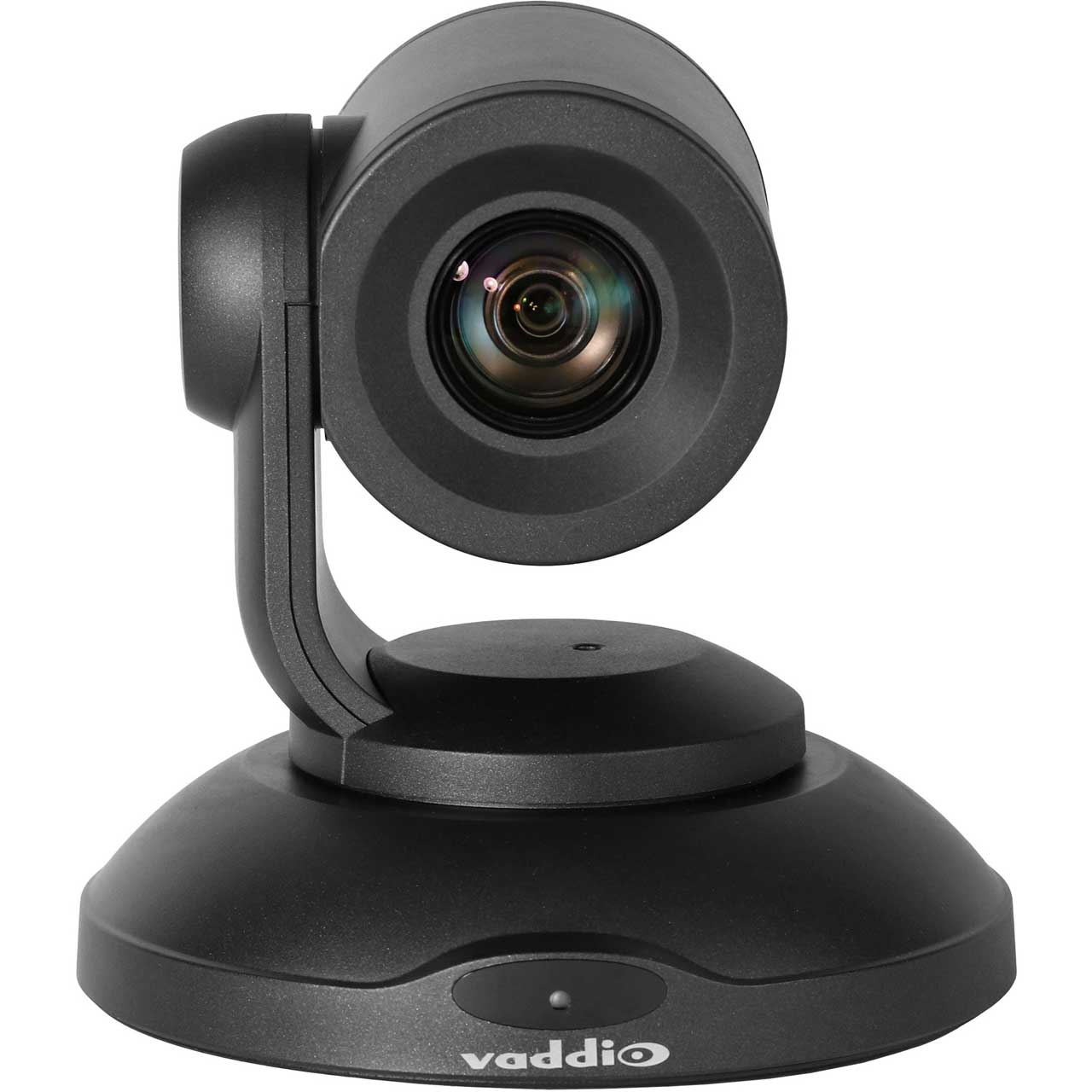

Vaddio PrimeSHOT 20 HDMI HD IP PTZ Camera with HDMI Extender - 20x Zoom - Black

ITEM #: VAD-99930420300 MFG #: 999-30420-300

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,687.00

Our Price:

$2,418.30

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


999-30420-300 - Overview

Vaddio 999-30420-300 PrimeSHOT 20 HDMI HD PTZ camera offers high definition performance at an outstanding value. With flexible output options like HDMI and S-video, the PrimeSHOT can replace existing standard definition pan tilt zoom cameras or be used as an initial system upgrade. PrimeSHOT 20 HDMI features 20x optical zoom, plus an easy, intuitive web-based user interface for remote configuration, management and control.

Confidently deploy the PrimeSHOT across the entire enterprise with Vaddio’s standard IP management and streaming capabilities. Ideal for large meeting rooms, lecture halls and houses of worship, PrimeSHOT 20 HDMI provides outstanding low-light performance, and best in class 1080p image quality.

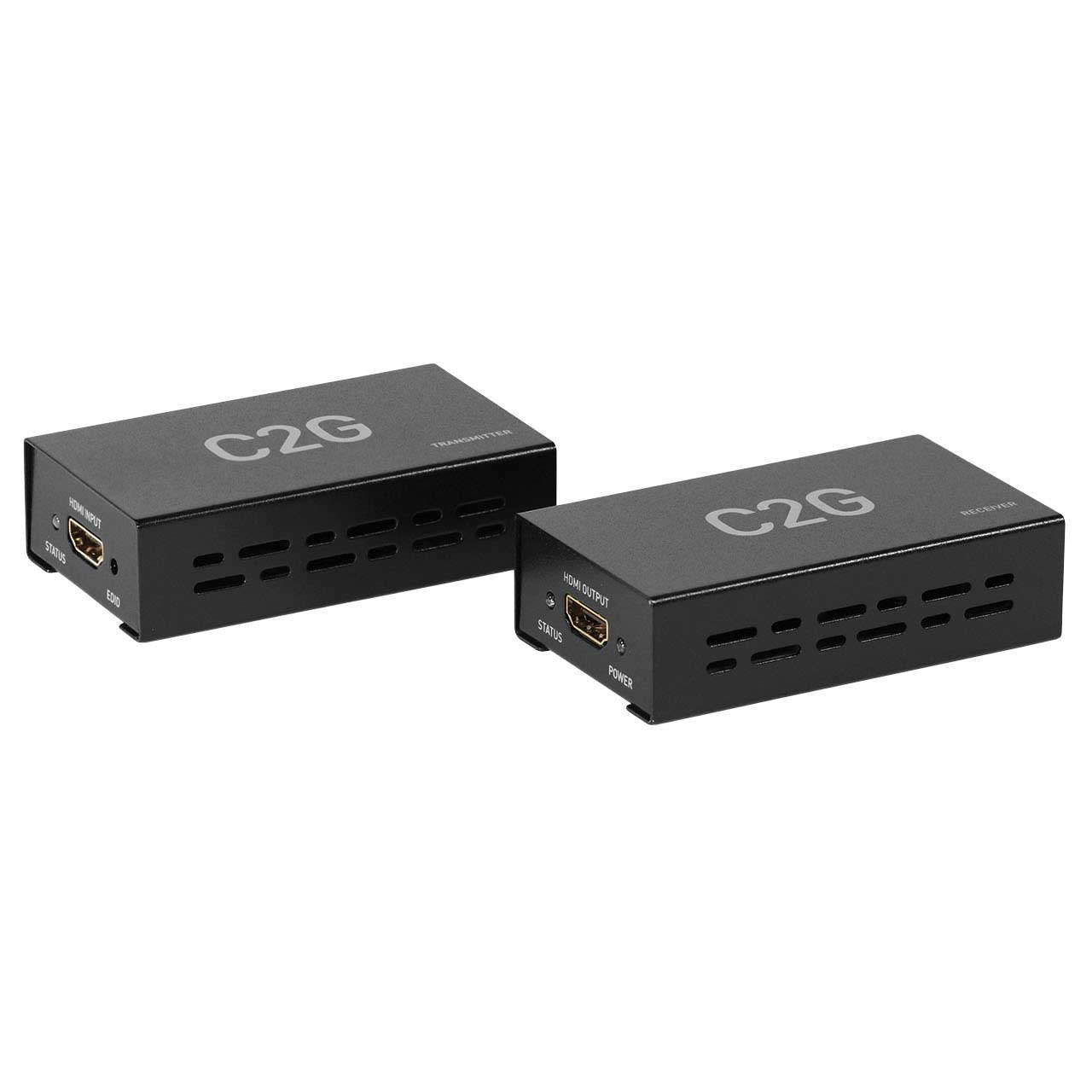

This part number includes a C2G HDMI extender that extends 1080p/60 HDMI signals up to 164 ft (50M) using a single Cat 5/6 patch cable. It also has an internal power supply.

  • Features:

    • MADE IN THE USA!
    • For medium to large venues such as houses of worship and lecture halls
    • 2.12 Megapixel (effective)
    • Native 1080p/60 full HD image sensor

    • 20x optical zoom
    • 55°
    • Horizontal field of view (wide end)

    • Simultaneous HDMI 1.3, S-Video, and IP streaming outputs

    • Precise pan and tilt movements at up to 90° per second with smooth, silent direct-drive motors
    • Presenter-friendly IR remote control

    • Integration-ready Telnet or serial RS-232 control
    • Full administrative control via web interface
    • Manage the camera remotely while monitoring the stream separately

  • Specifications:

    • Color: Black
    • Certifications: CE Approved, FCC Approved
    • Dimensions (WxHxD): 7.1 x 7.25 x 6.5" (18.03 x 18.42 x 16.51cm)
    • Weight: 3.4Lbs (1.54kg)

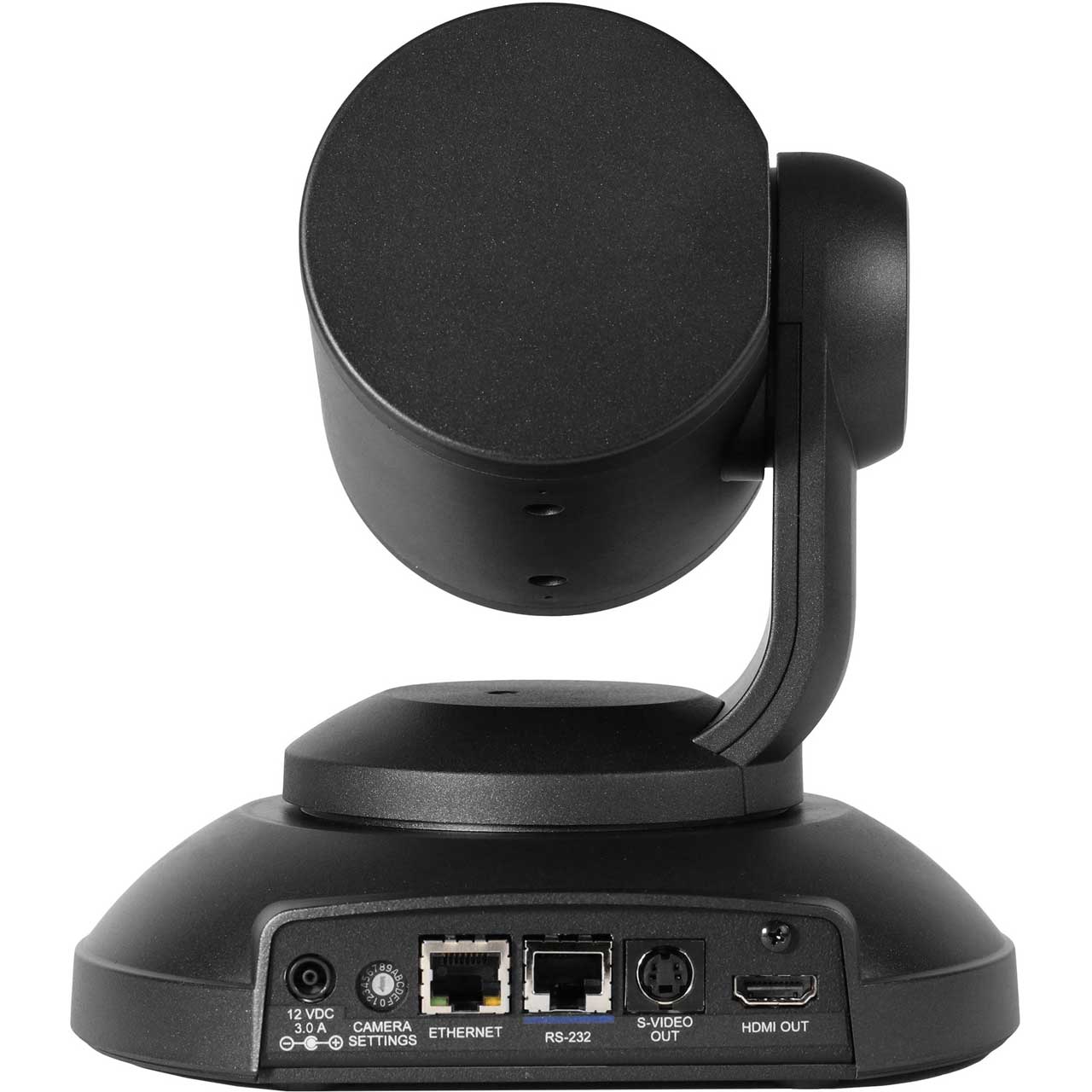

    • Signal Type: HDMI, RS-232, S-Video, IP-Streaming
    • Power Type: Local Power
    • Output Ports: HDMI, IP-Streaming, S-Video
    • Zoom: 20x
    • Field of View: 55.4° Wide End to 2.9° Tele End
    • Estimated Room Size: Large Venue
    • Minimum Illumination: 0.5 Lux (F1.6)
    • Browser-based User Interface for Remote Control: Built-in
    • Control Method: Joystick, Web UI, Telnet, RS-232 and IR Remote
    • PTZ Motors: Stepper Motors
    • Tri-Sync Motion: No
    • Pan and Tilt Range: Pan: ±160°, Tilt: +90° to -30°
    • Image Sensor Type: 1/3 CMOS
    • Pixels: 2.12 Megapixel (2.38 Total MP)
    • Top Resolution: 1080p/60
    • Invertible: Yes
    • Focus System: Auto, Manual
    • Gain: Auto, Manual
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Preset Positions: 16 + Custom Home Position
    • White Balance: Auto, Manual
    • Warranty: 2 years
    • Power Supply: 12 VDC, 3.0 A
    • Quick-Connect Compatibility: No
    • Distance: 164' (50m)

  • Item Includes:

    • 1x PrimeSHOT 20 HDMI camera (black or white)
    • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
    • 1x Vaddio IR Remote Commander
    • 1x 12V power supply with AC cord set(s)
    • 1x C2G HDMI Extenders Transmitter unit
    • 1x C2G HDMI Extenders Receiver unit
    • 2x 5V 1.0A Extender power supplies with regional plugs
    • 1x 1 ft (0.3 m) HDMI cable
    • 1x C2G HDMI Extenders User Booklet
    • 1x Quick-Start Guide

  • Warranty:

    • 2 years

  • GTIN:

    0840077501112
