VigilLink VLWP-UHU-TR 2x1 HDMI/USB-C Wall Plate with Auto-Switching/USB2.0/PoE - 18 Gbps Bandwidth

ITEM #: VGL-VLWP-UHU-TR MFG #: VLWP-UHU-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,200.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLWP-UHU-TR - Overview

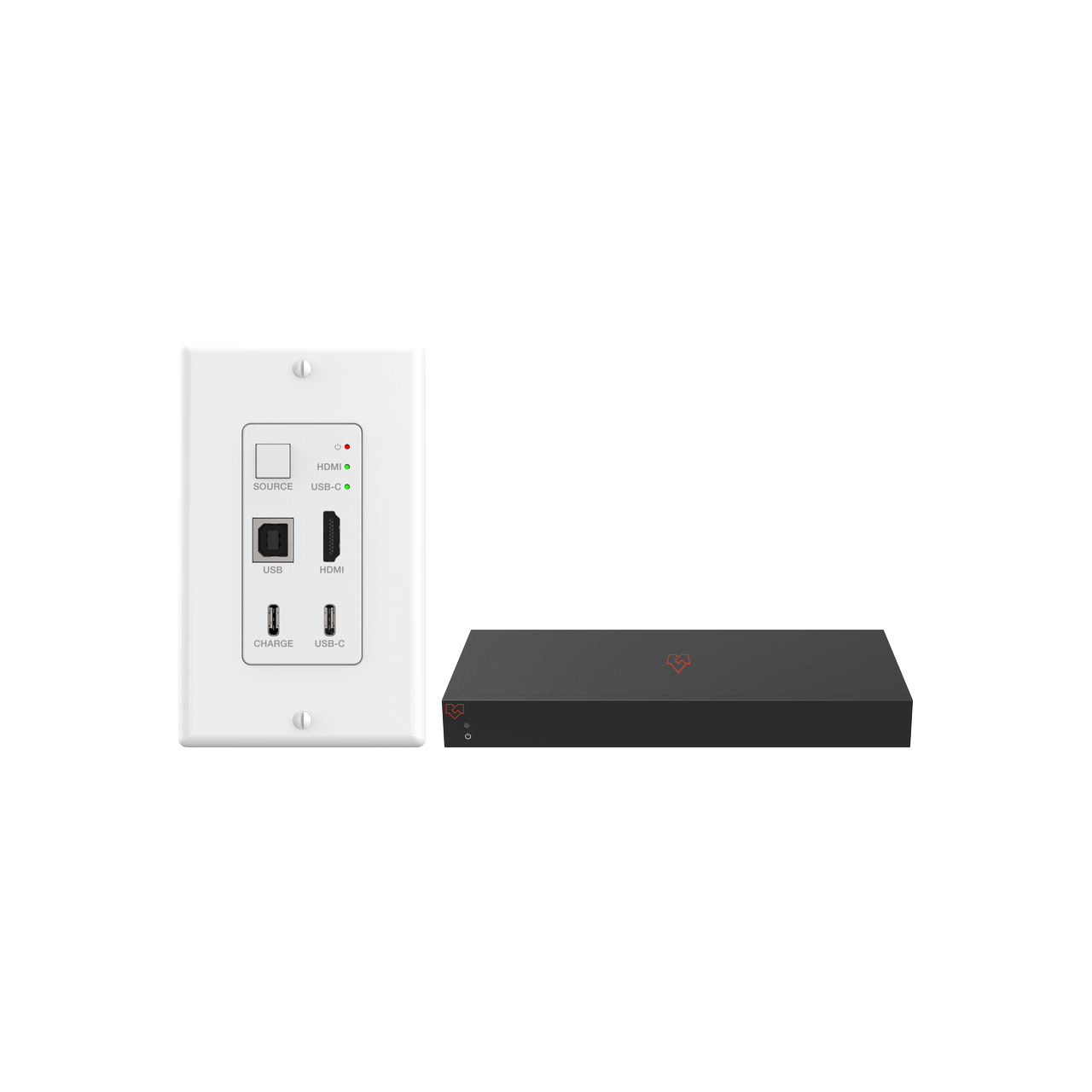

The VigilLink VLWP-UHU-TR wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and Windows PCs as well as smartphones and tablets. Support video resolution up to 4K@60Hz 4:4:4. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.

  • Features:

    • Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a
    • Supports 18Gbps video bandwidth
    • Video resolution up to 4K@60Hz 4:4:4
    • HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
    • Supports HDR10 and HDR10+
    • Audio formats support Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High-Resolution Audio, 5.1; PCM 2-8Ch
    • Supports HDMI and USB-C input
    • US one-gang enclosure for Decora-style wall plate openings
    • Inputs signal selection supports automatic mode and manual mode
    • USB2.0 extension with Receiver
    • Supports POE function (only from Receiver to Transmitter)
    • With USB-C charging port


  • Specifications:

    • Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2
    • DP Compliance: DisplayPort 1.2a
    • Video Bandwidth: 18Gbps
    • Video Resolution: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
    • Color Depth: 8/10/12-bit
    • HDR: HDR10, HDR10+
    • HDMI Audio Formats: Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
    • Transmission Distance: Max distance (1080p) : 230ft / 70m over Cat6/6a/7 Max distance (4K): 131ft / 40m over Cat6/6a/7
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connection
    • Transmitter:
    • Inputs:
      - 1x HDMI Type A [19-pin female]
      - 1x USB-C
    • Outputs:

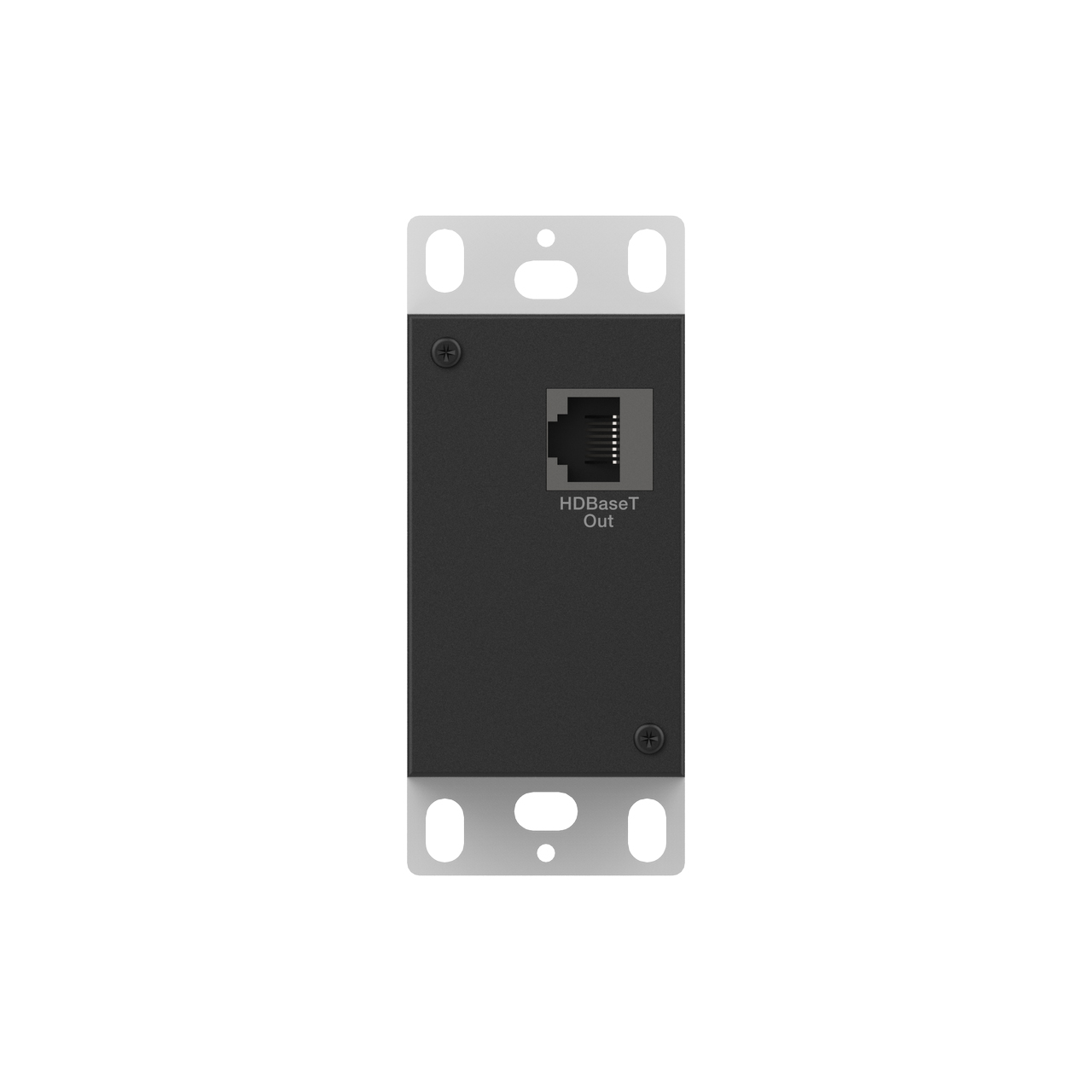

      - 1x HDBaseT Out [RJ45, 8-pin female]
      - 1x USB-C (only for charging)
    • Controls: 1x USB-B [Micro USB, Update port]

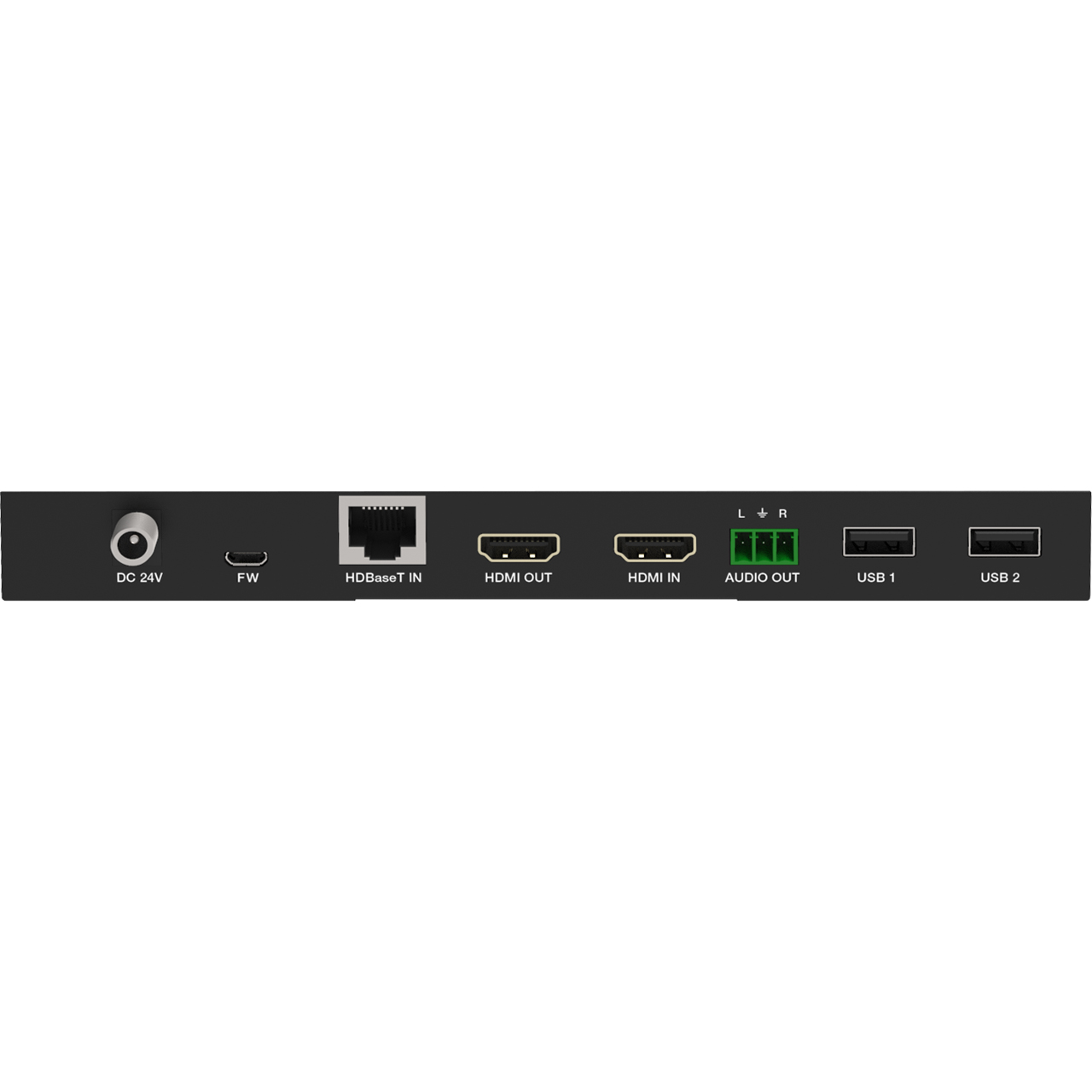

    • Receiver:
    • Inputs:
      - 1x HDMI IN [Type A, 19-pin female]
      - 1x HDBaseT IN [RJ45, 8-pin female]
    • Outputs:
      - 1x HDMI OUT [Type A, 19-pin female]
      - 1x AUDIO OUT [Phoenix jack]
    • Controls:
      - 2x USB [USB A TYPE]
      - 1x FW [Micro USB, Update port]


  • Item Includes:

    • 1x 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
    • 1x User Manual


  • Warranty:

    • 6 Year Warranty
