V4169-0001 - Overview

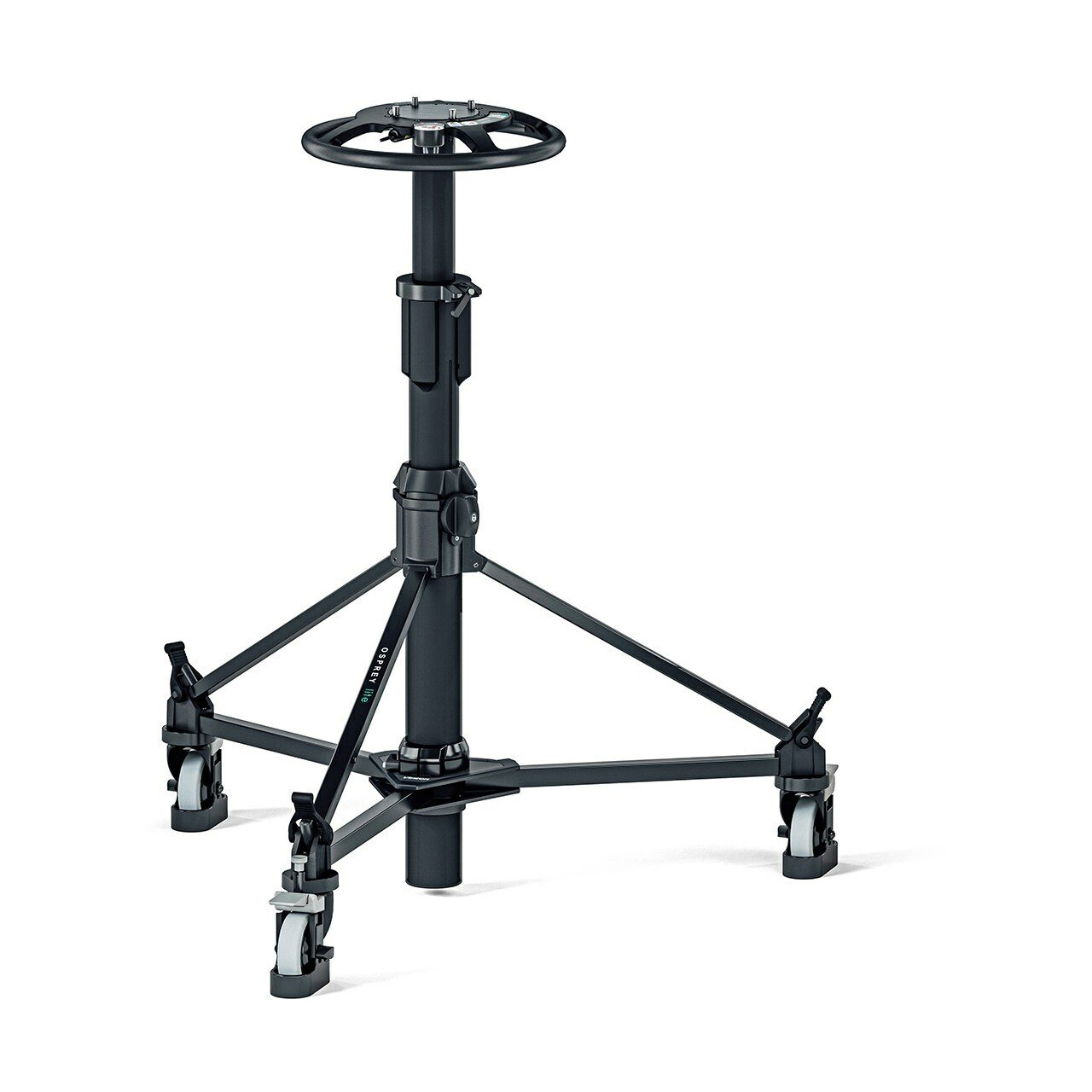

The Vinten Osprey Lite Pedastal is a lightweight, compact pedestal. It has 2 stages for achieving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. In addition, the Osprey lite pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Osprey Lite pedestal comes with track locks and adjustable cable guards for studio use.

  • Features:

    • Detachable skid for easy transport and storage
    • Built in pressure gauge and manual pump for easy set-up
    • Perfect balance & adjustable second stage for wide operating range
    • Lightweight and compact
    • Column can be adapted to work on dolly track

  • Specifications:

    • Application: Commercial/Corporate, Houses of Worship, Multicam, Live Studio

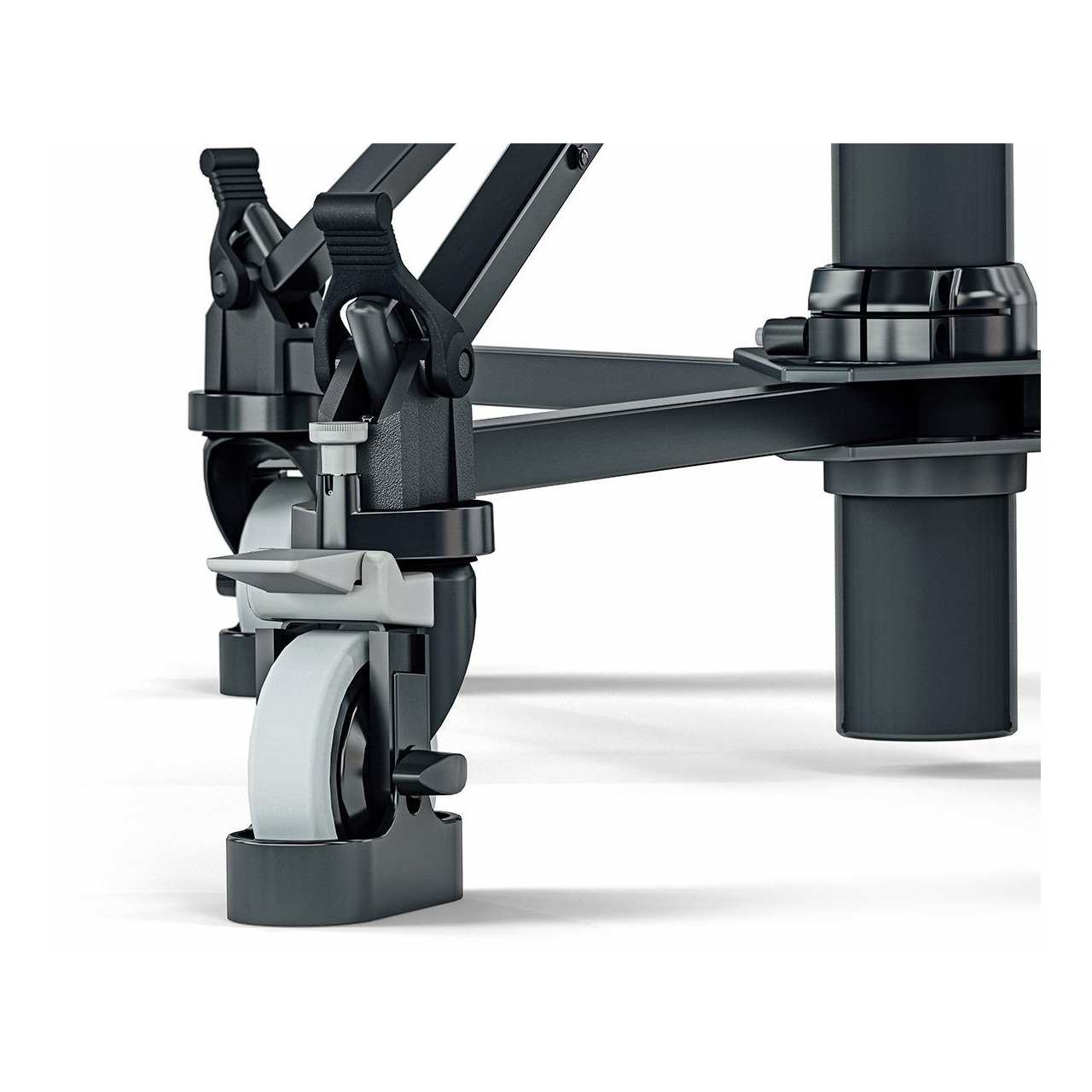

    • Cable Guards: Wheel truck mounted, individually adjusted
    • Color: Black
    • Height: 25.2" - 58.66"
    • On Shot Stroke: 16.14"
    • Payload: 77.16lbs
    • Pedestal Base: Open
    • Perfect Balance Stages: 1
    • Range: Osprey
    • Stages: 2

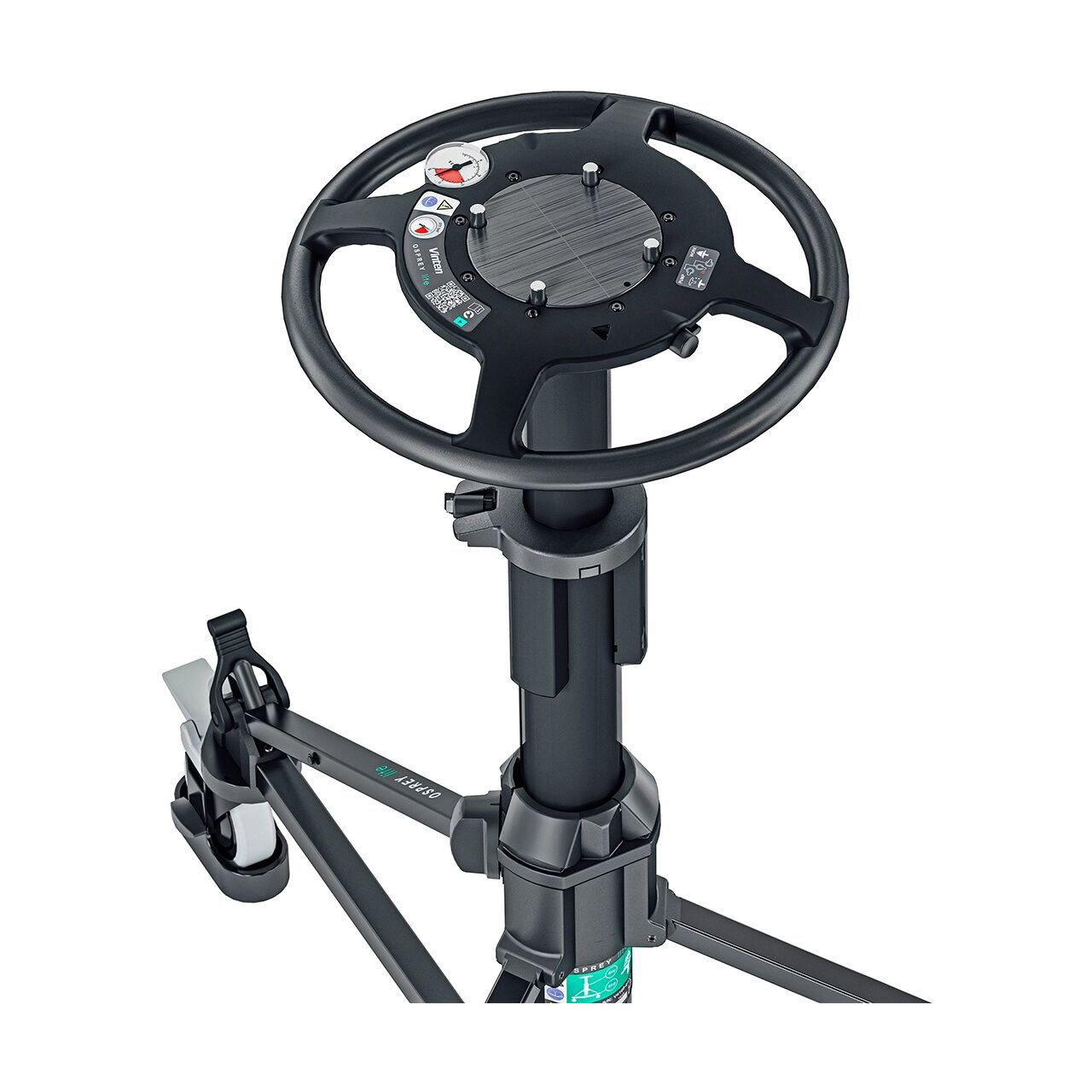

    • Steering Ring Diameter: 14.96"
    • Tracking Width: 27.17"
    • Transit Width: 28.86"
    • Weight: 29.32lbs
    • Wheel Diameter: 3.94"
    • Wheel Locks: Individual

  • Item Includes:

    • 1x Osprey Lite Pedastal
    • 1x ENG Studio Skid
    • 1x Manual Pump
    • 1x User Guide
