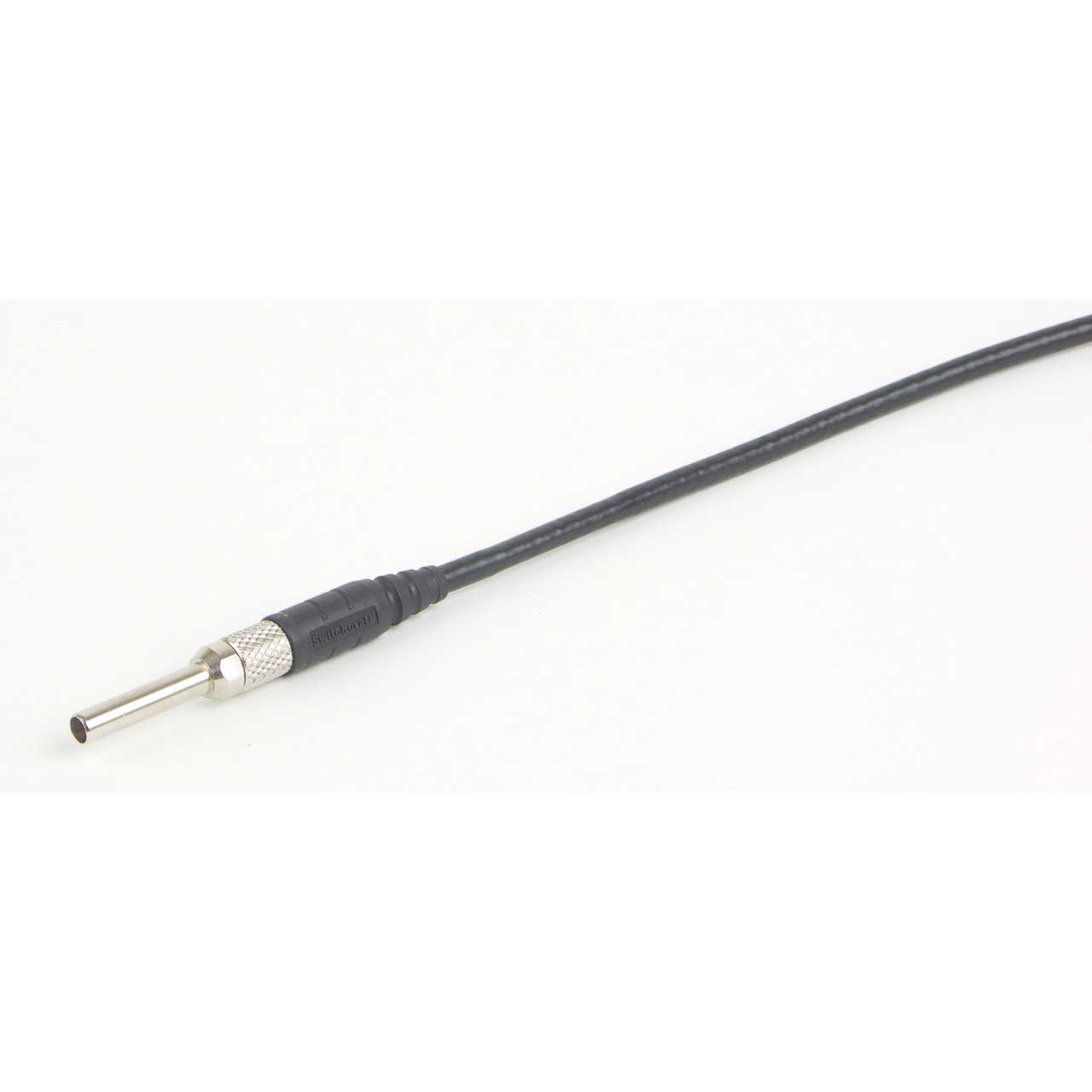

Switchcraft VMMP6BK 75 Ohm UHD Micro Video Patchcord for MMVP Patchbays - Black - 6 Feet

ITEM #: VMMP6BK MFG #: VMMP6BK

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$49.00

Our Price:

$46.18

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VMMP6BK - Overview

Switchcraft MMVP Series patchcords are perfect for the most critical HD video and AES/EBU digital audio patching applications. They are available in a wide variety of lengths and colors. Each patchcord is assembled using premium, low loss cabling and a rugged overmolded strain relief for long lasting dependability.

  • Features:

    • Based on proven, reliable technology of MVJ series of HD video jacks
    • Screw in, all-metal jack design
    • Withstands vibration in mobile applications
    • Rated at 3GHz - meets SMPTE 424M specifications for HD patching

  • Specifications:

    • Electrical:
    • Meets SMPTE 2082-1
    • Characteristic Impedance: 75 Ohms
    • Contact Resistance: Less Than 50 MilliOhms
    • Wiring: Center contact to center contact
    • Ground Sleeve to Ground Sleeve
    • Cable: 12g-SDI, 75 Ohms Impedance, 0.23 [5.9] O.D. Belden 4505r Or Equivalent

      Mechanical:
    • Vibration: Per Mil - Std 202, Method 201
    • Life Cycle: 5,000 Min.

      Material:
    • Plug Barrel: Copper Alloy, Nickel Plated.
    • Sleeve: Copper Alloy, Nickel Plated
    • Contact: Copper Alloy, Gold Plated
    • Insulators: Teflon
    • Boot: Thermoplastic Elastomer, Ul94-V0,
    • Gray Color On All Cables.
      Note: This Product Is ROHS Compliant

  • Item Includes:

    • 1x VMMP6BK Micro Video Patchcord - 6 Ft. Black

  • Warranty:

    • Lifetime Limited
