Kramer VP-31 3x1 VGA Swticher - Ranges from VGA-UXGA

ITEM #: VP-31 MFG #: VP-31

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VP-31

VP-31 - Overview

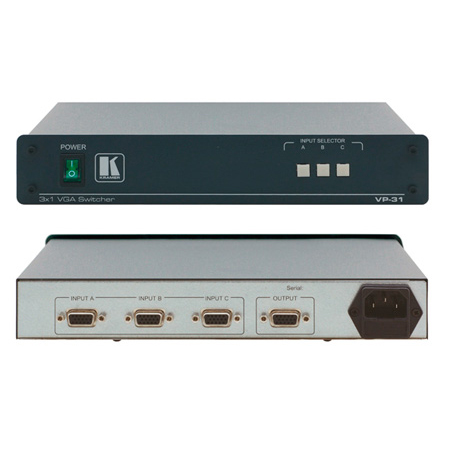

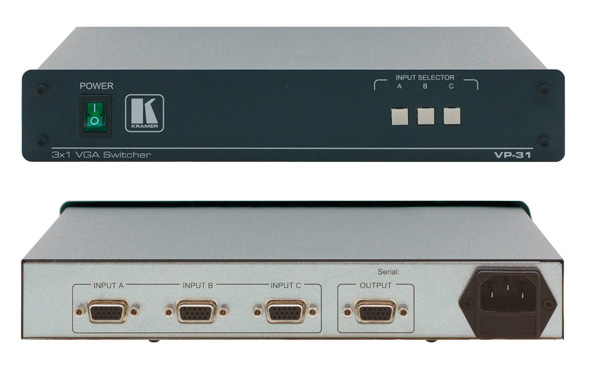

The Kramer VP-31 is a full bandwidth, 3x1 VGA/XGA Switcher designed for computer and workstation applications. The VP-31 switches one of three VGA/Super-VGA/XGA graphics card outputs to one monitor or vice versa, with no discernible signal degradation. Input and output are directly coupled and conform to the highest standards. Signal bandwidth of over 450MHz allows the VP-31 to be used with the highest resolution graphics workstations.

  • Features:

    • High Bandwidth - 450MHz (-3dB).
    • HDTV Compatible.
    • Desktop Size - Compact size.


  • Specifications:

    • INPUTS: 3 VGA/XGA on 15-pin HD (F) connectors.
    • OUTPUT: 1 VGA/XGA on a 15-pin HD (F) connector.
    • VIDEO BANDWIDTH (-3dB): 450MHz.DIFF. GAIN: 0.05%.
    • S/N RATIO: 73dB.
    • SWITCH TIME: Less than 5msec.
    • SWITCH CONTROL: 3 electronic illuminated buttons with electronic interlock.
    • COUPLING: DC.
    • POWER CONSUMPTION: 230V AC, 50/60Hz (115V AC, USA) 5.1VA.
    • DIMENSIONS: 24.5cm x 18 cm x 4.5cm (9.6" x 7" x 1.8") W, D, H.
    • WEIGHT: 1.4kg (3.1lbs) approx.
    • ACCESSORIES: Power cord.
    • OPTIONS: RK-MEDN 19" rack adapter


  • Warranty:

    • 7 Year Limited Warranty


  • GTIN:

    7291063012250
