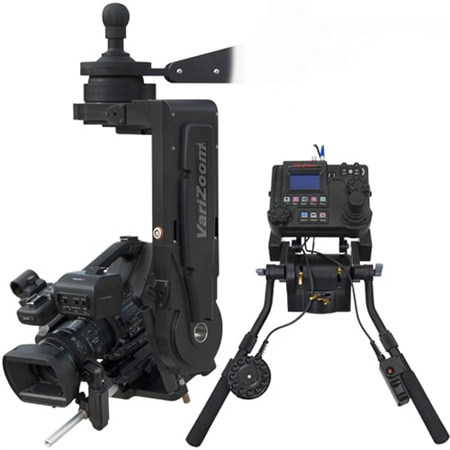

VariZoom VZCINEMAPRO-JR-K2 CPJR Head with Advanced Console - Pan Bars/50ft Control Cable/30ft Pwr Cbl/Pwr Supply & Case

ITEM #: VZCINEMAPRO-JRK2 MFG #: VZCINEMAPRO-JRK2

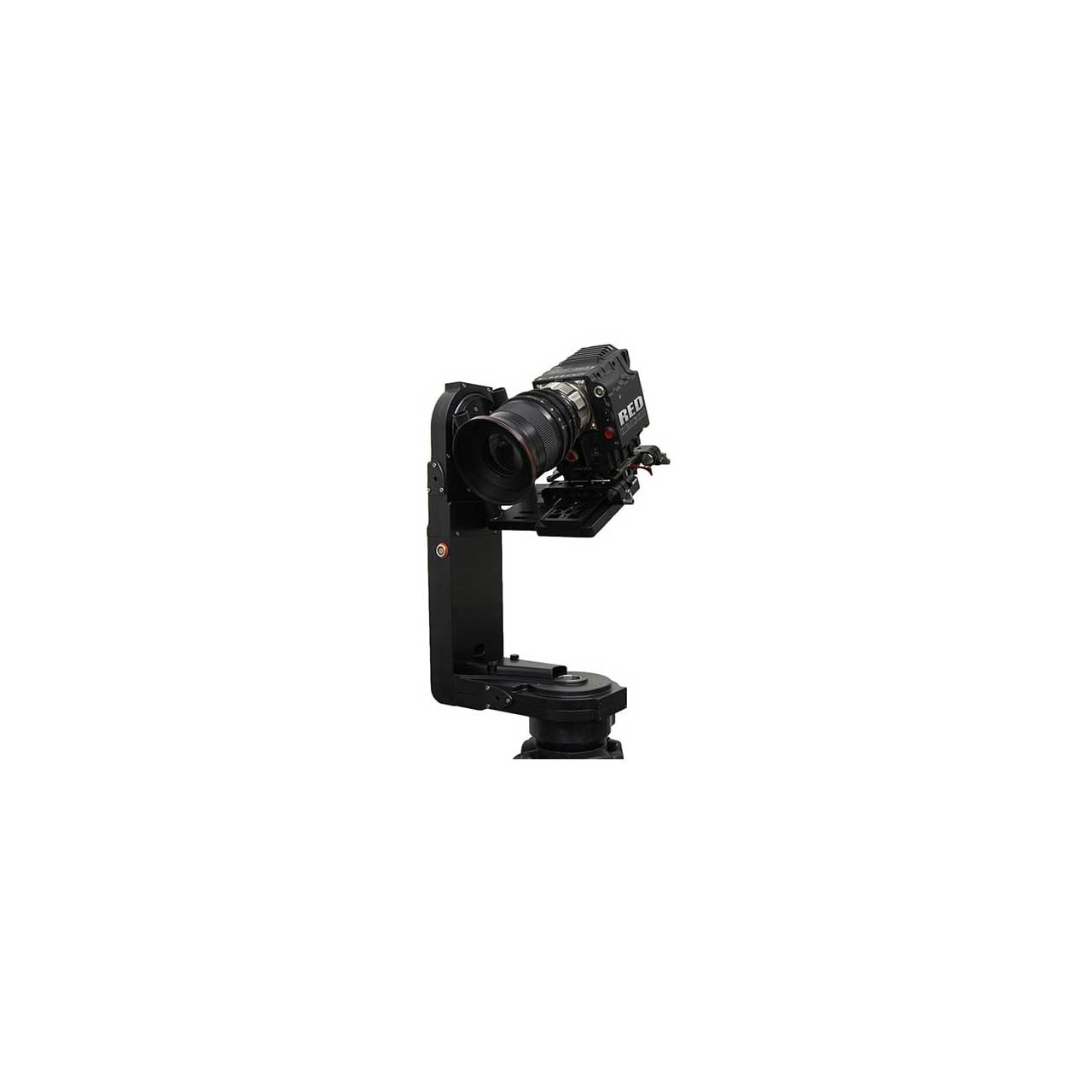

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$25,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VZCINEMAPRO-JRK2 - Overview

VariZoom custom encoded pan bars behave just like an expensive fluid head, allowing broadcast operators, sports cameramen, and videographers to move the CP Jr with confidence and precision. User-adjustable control parameters offer an incredibly dynamic range of seamless pan/tilt/zoom/focus operability. The VariZoom Cinema Pro Jr (VZCINEMAPRO-JR-K2) borrows heavily from the acclaimed Cinema Pro master motion control system, and although it's scaled down about 35% in most respects, the CP Jr's baseline performance is remarkably close to that of its big brother. At only 13 pounds, the Cinema Pro Jr is ideal for jib and remote field applications, and its superior programming capability and rock-solid electromechanical performance make it a perfect upgrade for the low-tech heads found on most jib systems. The VariZoom Cinema Pro Jr sets up quickly with no twisting wires or tedious balancing process, and it's capable of extremely precise, repeatable movements at any speed. The CP Jr also performs extremely well as a high speed fixed-mount head, a live broadcasting remote camera station, or a feature-film quality motion control system for small to mid-scale productions.

Incorporating such high-end features as precision enclosed drivetrain, pan slip ring, recordable/repeatable motion control, built-in zoom/focus control, soft limits, and full parametric motion control settings, the VariZoom Cinema Pro Jr represents a new standard for lightweight, cost-effective pan & tilt motion control heads. Adding to its appeal is the seamless upgrade path for increased programming capability, multiple control input options, and compatibility with an array of existing Cinema Pro accessories. The VariZoom Cinema Pro Jr is precision-made yet rugged and becoming the logical and affordable choice for a much broader scope of users than any head on the market. Cost effective not only for big budget motion pictures, but for worship facilities, sports, concerts, newsrooms, military, government, and other film, video, and HD applications.

Proudly Made in the USA, the CP Jr is constructed from body sections that are CNC machined from solid billet to exacting standards, so rigidity and structural integrity are second to none. The custom slip rings and robust motor drives are designed and tested intensively to perform flawlessly under the most demanding conditions, and the electronics & software have years of field testing behind them. Add to all this the painstaking assembly and QC done in their state-of-the-art facility, and you've got a motion control head of the highest caliber.

  • Features:

    • Broadcast-Style Pan Bars for Seamless Pan/Tilt/Zoom/Focus Control
    • Zoom and Focus Control Built into Head - VZCP-C09 lens cable required, not included

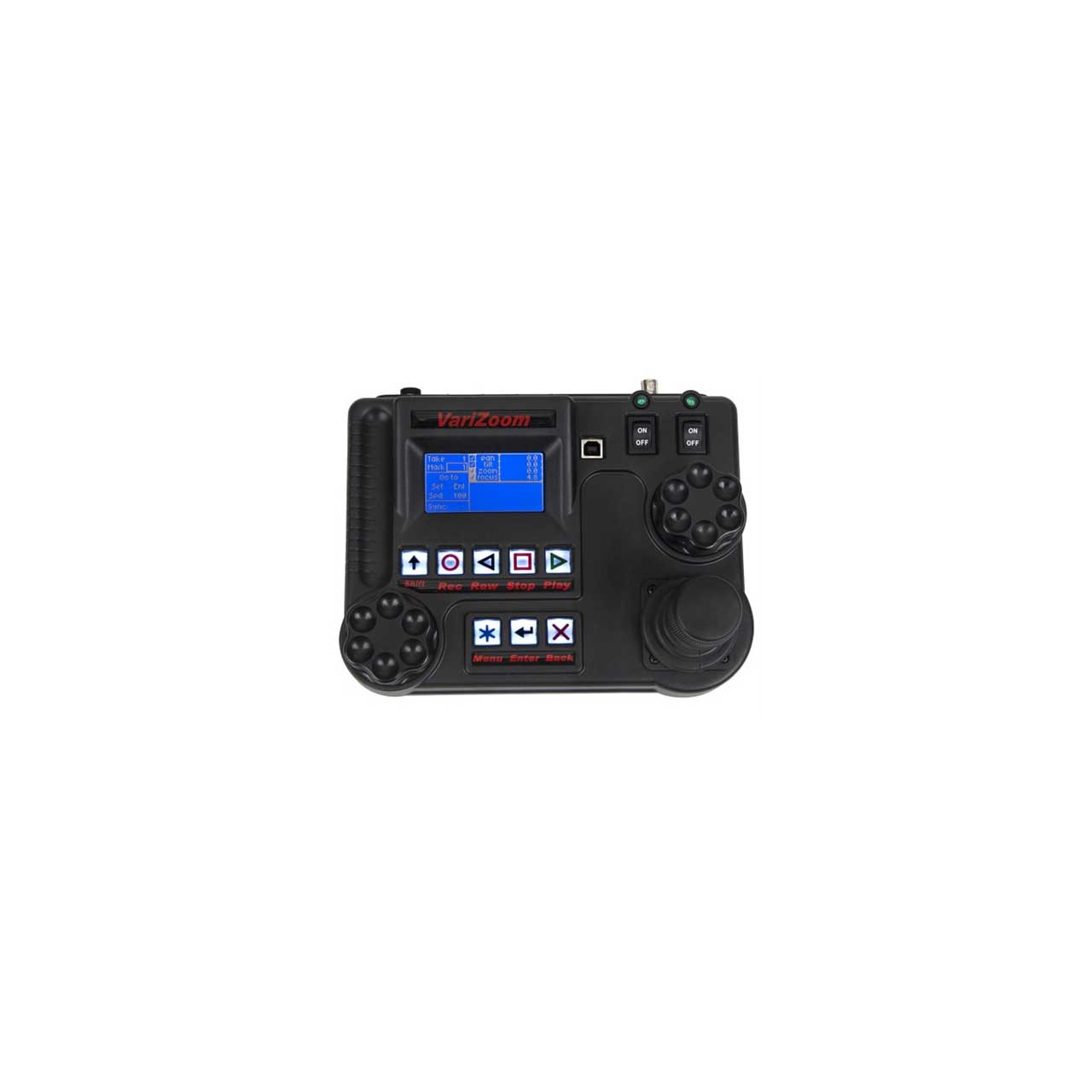

    • Console Joystick control for Pan, Tilt and Zoom; knob control for Focus
    • Move between 2000 precise marks with variable speed/motion curves
    • Record and playback 2000 moves up to 1hr
    • Intervalometer
    • Camera Sync
    • Independently Programmable Max Speed for Pan & Tilt
    • Independently Programmable Smoothing for Pan & Tilt
    • Precise, Resettable Zero Point for Motion Referencing
    • Up to 2500 feet between controller and head
    • Custom Soft Limits for Pan and Tilt range of motion
    • Fujinon, Canon and Preston serial and analog lens control - requires optional VZCP-C09 cable
    • Dynamic Zoom Compensation
    • Extremely Rigid Build w/ 100mm or Mitchell Mount
    • Pan-base slip-ring for continuous 360° motion
    • Power pass-thru for camera - VZCP-C10 power cable required, not included
    • High-power Enclosed Drivetrain Allows Dynamic Moves

  • Specifications:

    • Weight: 40 lbs
    • Dimensions: 26 x 20 x 9"
    • Height: 20.5"
    • Width: 11.3"
    • Depth: 6"
    • Weight: 13 lbs
    • Camera Weight: 35lbs
    • Camera clearance:
      Vertical orientation (camera pointing straight up or down): 13" from center of cam plate to base of head.
      Horizontal orientation (underslung, camera pointing level horizon): 15" min / 18.5" max
    • Pan/Tilt Speed: 130 degrees/second (limited for optimal performance)
    • Mechanical Travel: Unlimited Pan, Tilt may be limited by cable twist past 720 degrees
    • Power Requirements: 24VDC regulated, 5A max, absolute min/max 20VDC-30VDC
    • Warranty: 2 years
    • Returns: 20% restocking fee within 30 days of purchase
