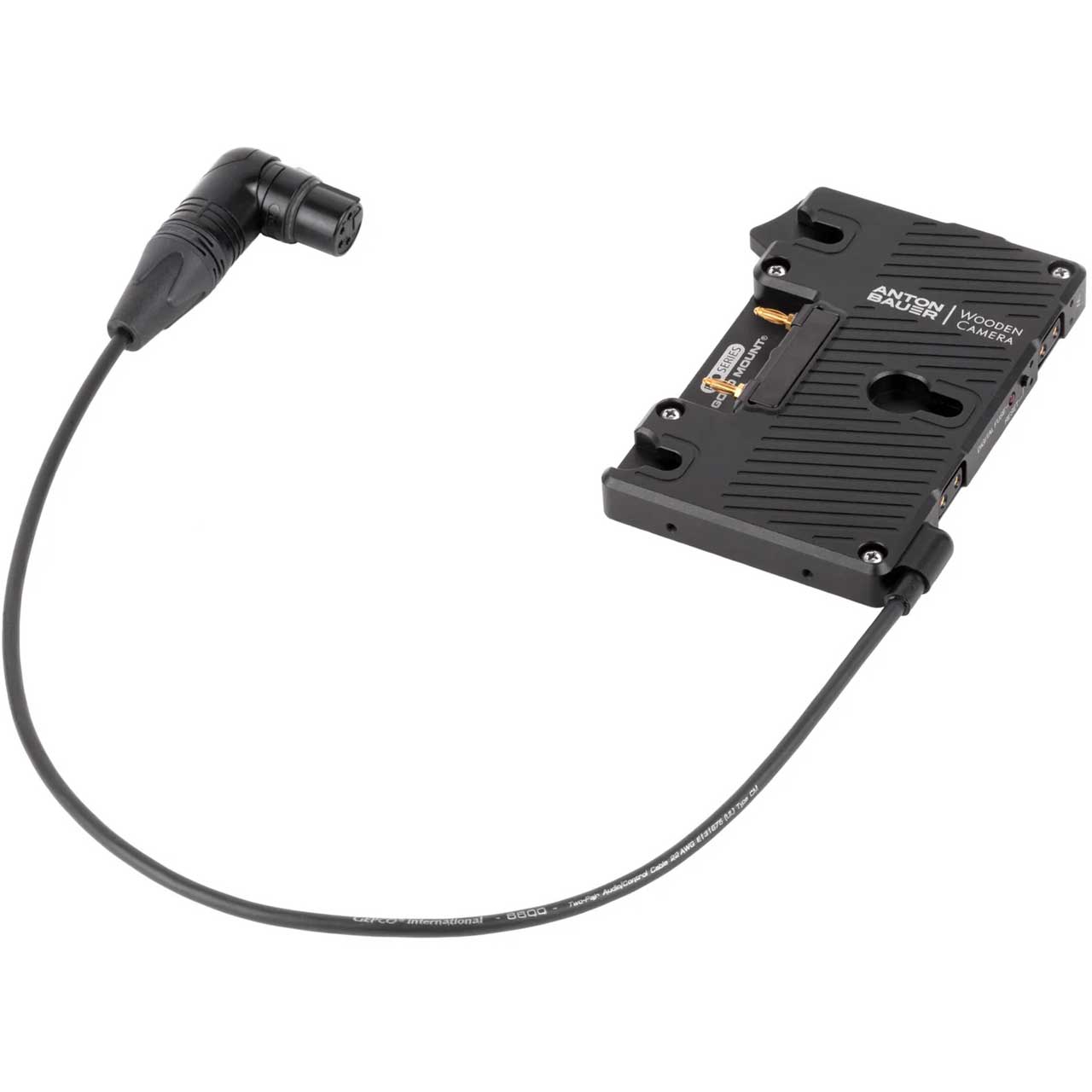

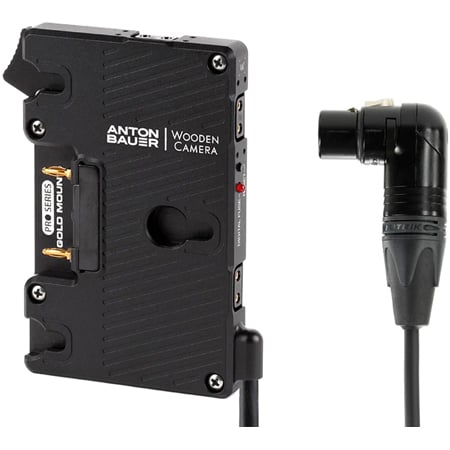

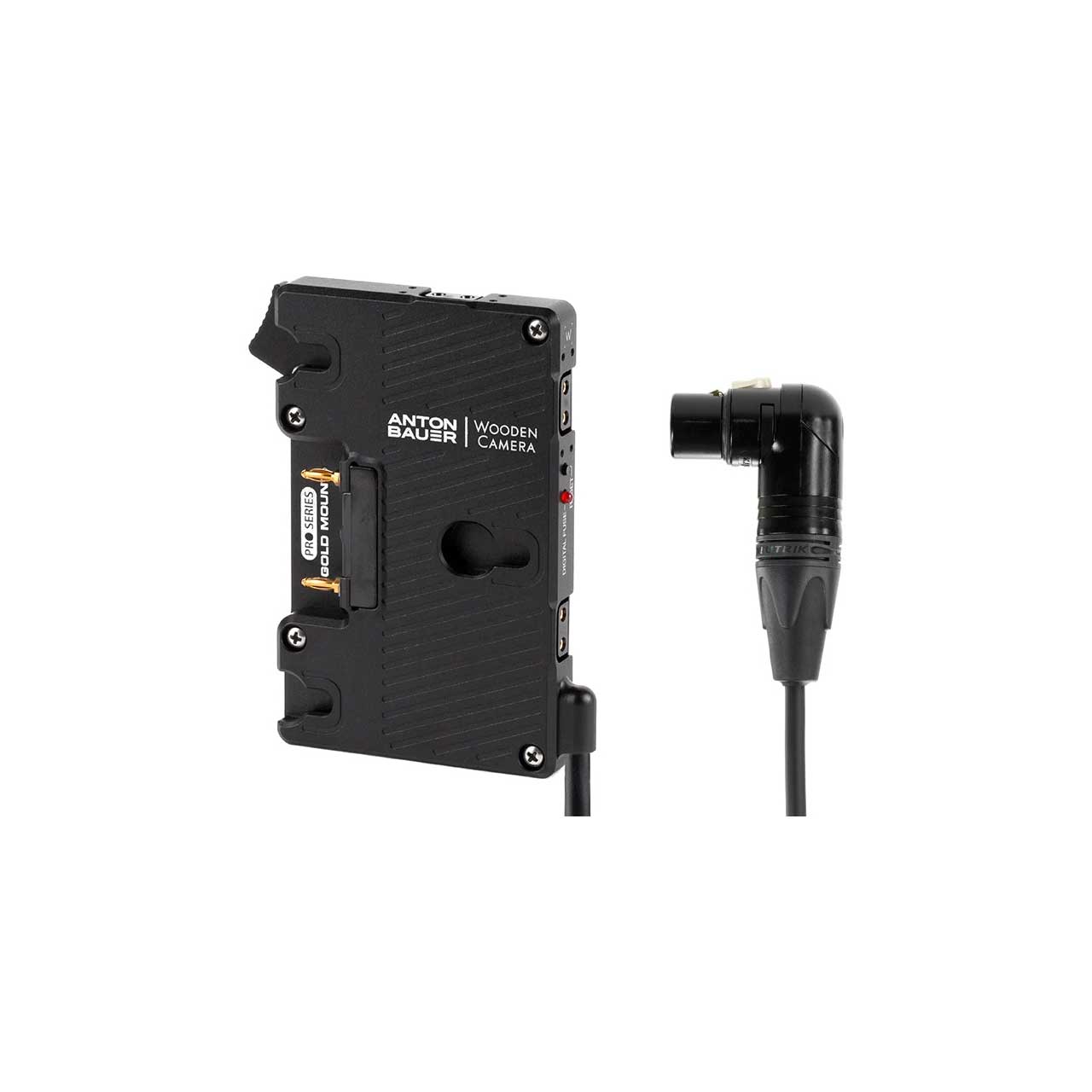

The Wooden 260300 WC Pro Gold Mount (4pin XLR Right Angle) is a metal power plate, created in partnership with Anton Bauer, and has a rugged aluminum body for durability and secure battery mounting and a right angle 4pin XLR. Compatible with Digital Bolex, Blackmagic Studio Camera, Sony F55/F5, Canon C500mkII and many more. Features 3x D-Taps for accessory power at battery voltage (12-16V), a digital fuse with reset button, rear cover plate, and captive mounting screws.
Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

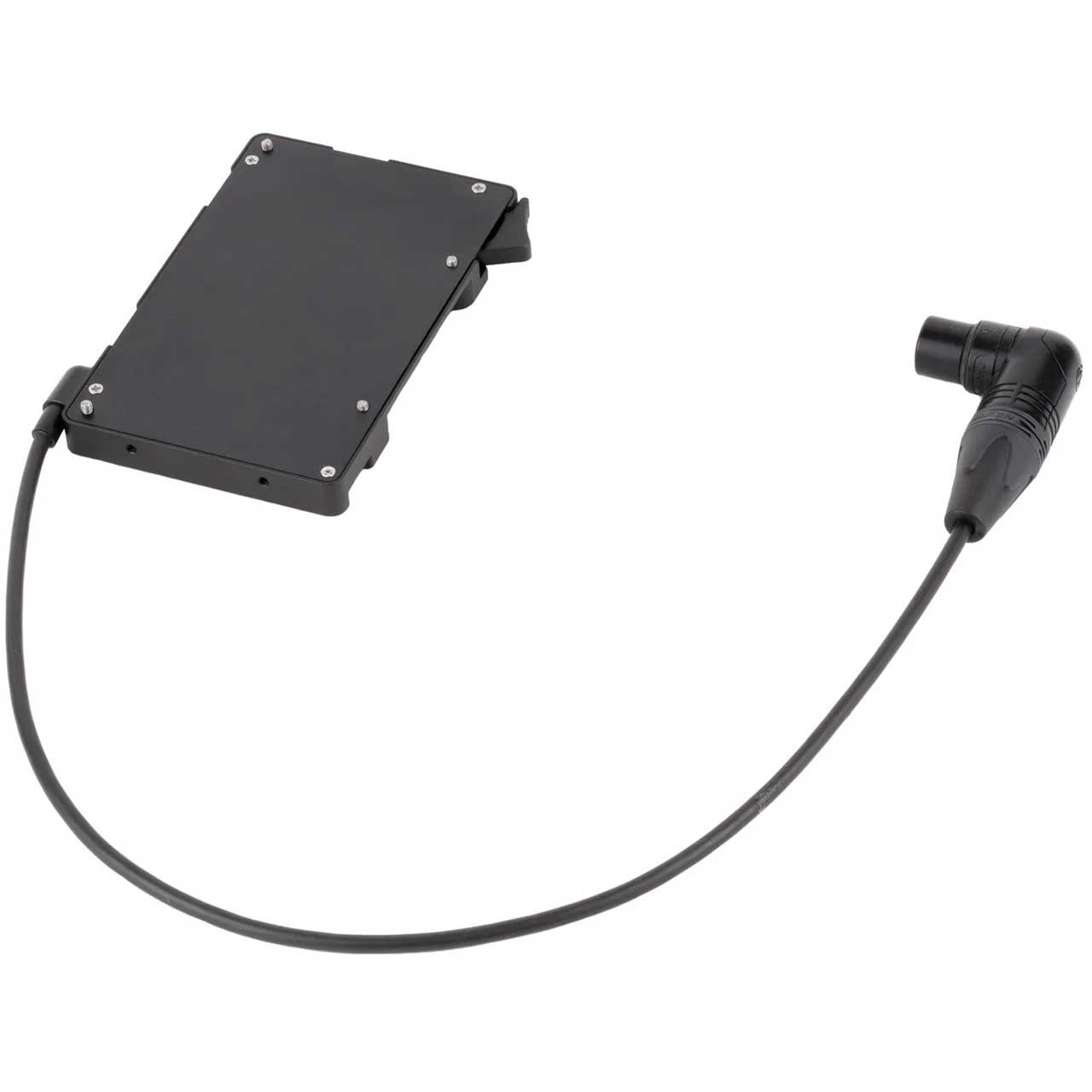

16" cable exits the right side of the plate allowing easy insertion into the camera.
For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).
