FiberPlex WGF-6 Waveguide Filter - 27 GHz 6 Channel

ITEM #: WGF-6 MFG #: WGF-6

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$323.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WGF-6 - Overview

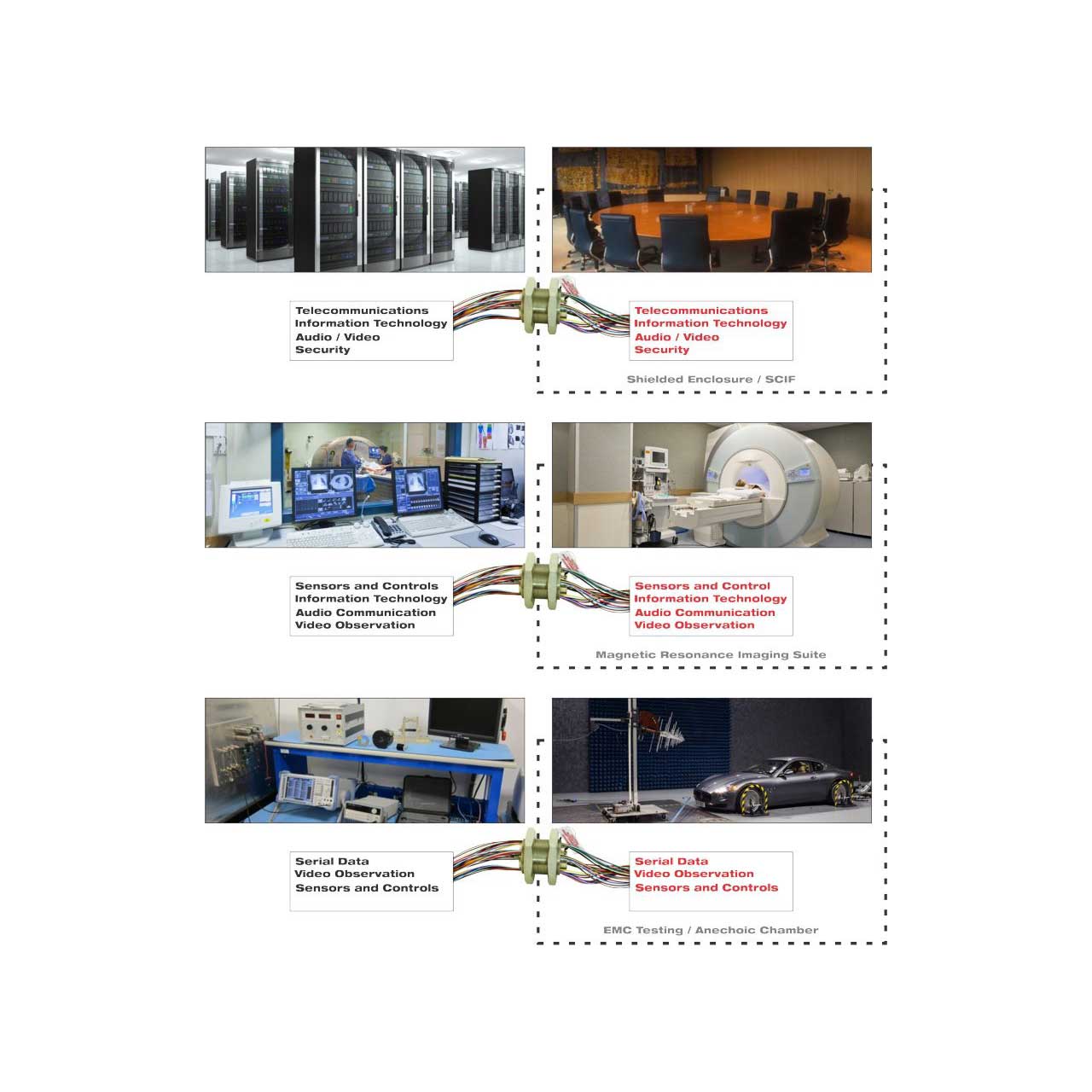

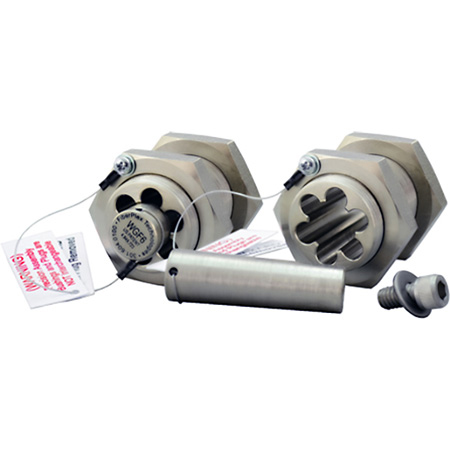

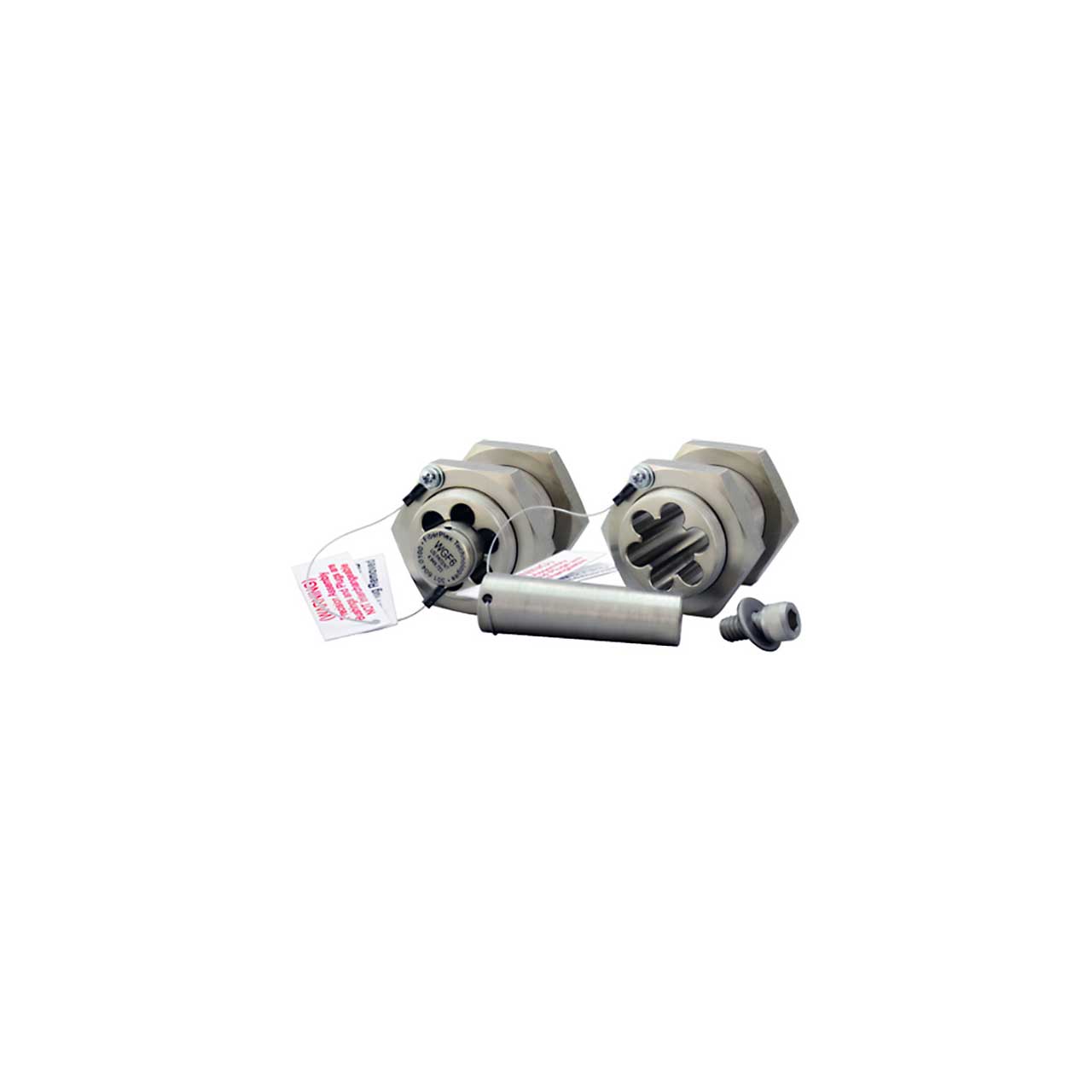

The WGF-6 accepts up to six pre-terminated fiber optic cables with attached connectors. It is designed to provide a means of bringing fiber optic cables into a shielded enclosure while maintaining the enclosure's radio frequency isolation integrity. The filter has a patented removable center plug, which is surrounded by six waveguide bores. When the center plug is removed, connectorized fiber optic cables can be inserted into the peripheral cable sized slots.

  • Features:

    • 6 Channel Waveguide Filter
    • Allows pass through of pre terminated fiber
    • Exceeds NSA 65-6 shielding specifications

  • Specifications:

    • Body Thread Size: 1-1/8", 18 NEF
    • Clearance Hole Diameter: 1-5/32 in (29.5 mm)
    • Material: Steel, Electroless Nickel Finish
    • Effective Length: 1.5 in (38 mm)
    • Overall Length: 2.125 in (54 mm)
    • Waveguide Bore Diameter: 0.257 x 0.159 in (6.5 x 4.0 mm)
    • Plug Bore Diameter: 0.5 in (12.7 mm)
    • Cut-Off Frequency: 27 GHz


WGF-6 - Required Accessories
