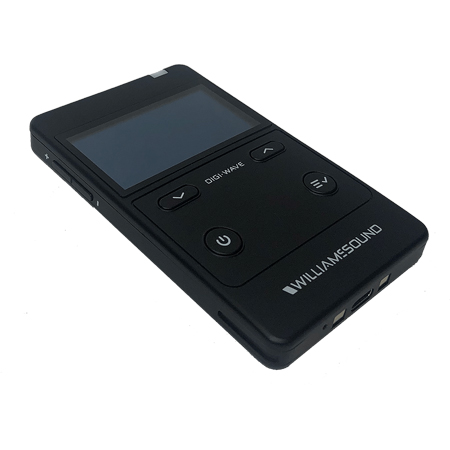

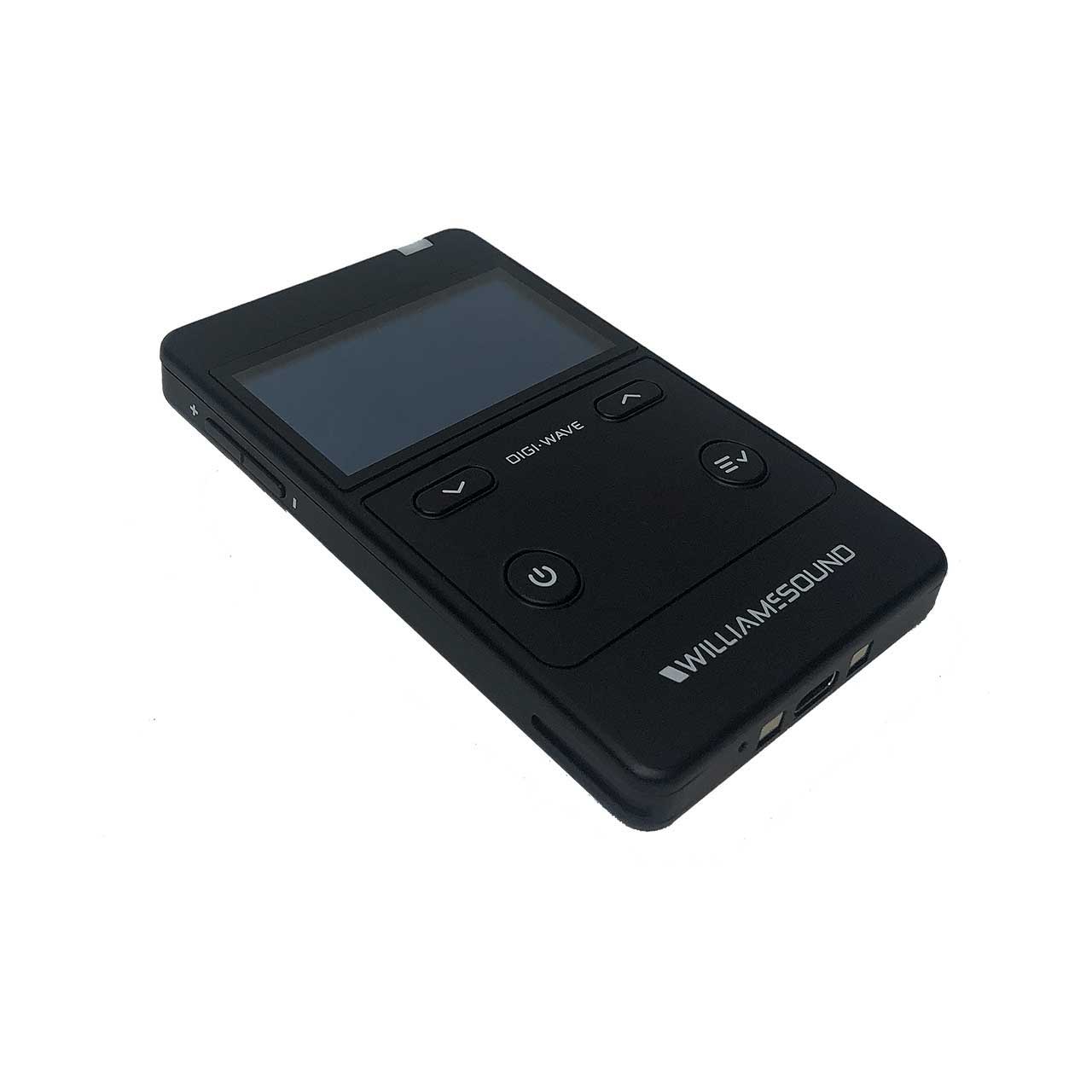

WILLIAMS AV DLR 400 RCH Digi-Wave 400 Series Rechargeable Wireless Audio Receiver with Built-in Battery

Name: WILLIAMS AV DLR 400 RCH Digi-Wave 400 Series Rechargeable Wireless Audio Receiver with Built-in Battery
Brand: WILLIAMS AV
SKU: WLS-DLR-400-RCH
Price: 293.00 USD
Availability: PreSale

ITEM #: WLS-DLR-400-RCH MFG #: DLR 400 RCH

WILLIAMS AV

List Price:

$325.00

Our Price:

$293.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DLR 400 RCH - Overview

The WILLIAMS AV DLR 400 RCH Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using it's frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.

Great for use during training, presentations and tours, especially in houses of worship, classrooms, and healthcare facilities.

A Digi-Wave system consists of at least one transceiver (DLT 400 sold separately) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT's and DLR's can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:

Features:
- Guided Tours - with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
- Language Interpretation - one or more interpreted languages transmitted to audience (1-way)
- Intercom - with up to six people able to speak simultaneously, and even more listening
- Hearing Assistance - featuring boosted audio for improved comprehension
Specifications:
- Dimensions: 4.22"W x 2.60"H x 0.50"D
- Weight: 3.3 oz (94 g) including battery
- Color: Black
- Battery type: Lithium Polymer with smart charge built into transceiver; 1800 mAH
- Battery life: Up to 32 hrs per charge @ 1ch Rx
- Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
- Charge time: 5 hrs. approx.
- System Voltage: OLED 14VDC; RF 5VDC; Logic 3.3 VDC
- Operating frequencies: 2.4 GHz (ISM band); 2402 - 2476 MHz FHSS
- Audio Frequency response( -3dB Level): Intercom Mode: 100 - 7,200 Hz, Other Modes: 100 - 11,500 Hz
- SNR: 73 dB (A-weighted)
- THD: 0.1 % (Default Volume, 1kHz)
- Headphone Output: 3.5 mm TRRS headphone jack; 25 mW, R32 Ω
- Line Audio Output: USB-C, Adjustable Level
- Range: Up to 900 ft (274 m) (depending upon environmental conditions)
- Modulation: FSK
- RF Sensitivity: -92 dBm
- Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
- Indicators: OLED
- LEDs: Bi-color, changing green and red LED at top
- Charging Connectors: USB-C; Two contacts for use with CHG 412
- Compatible Units: DLT 400, DLT 300 with some limitations
- Operating Tempurature Range: 14° to 113°F
- Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Item Includes:
- 1x WILLIAMS AV DLR 400 RCH Digi-Wave 400 Series Rechargeable Wireless Audio Receiver with Built-in Battery
Warranty:
- 2 Years
