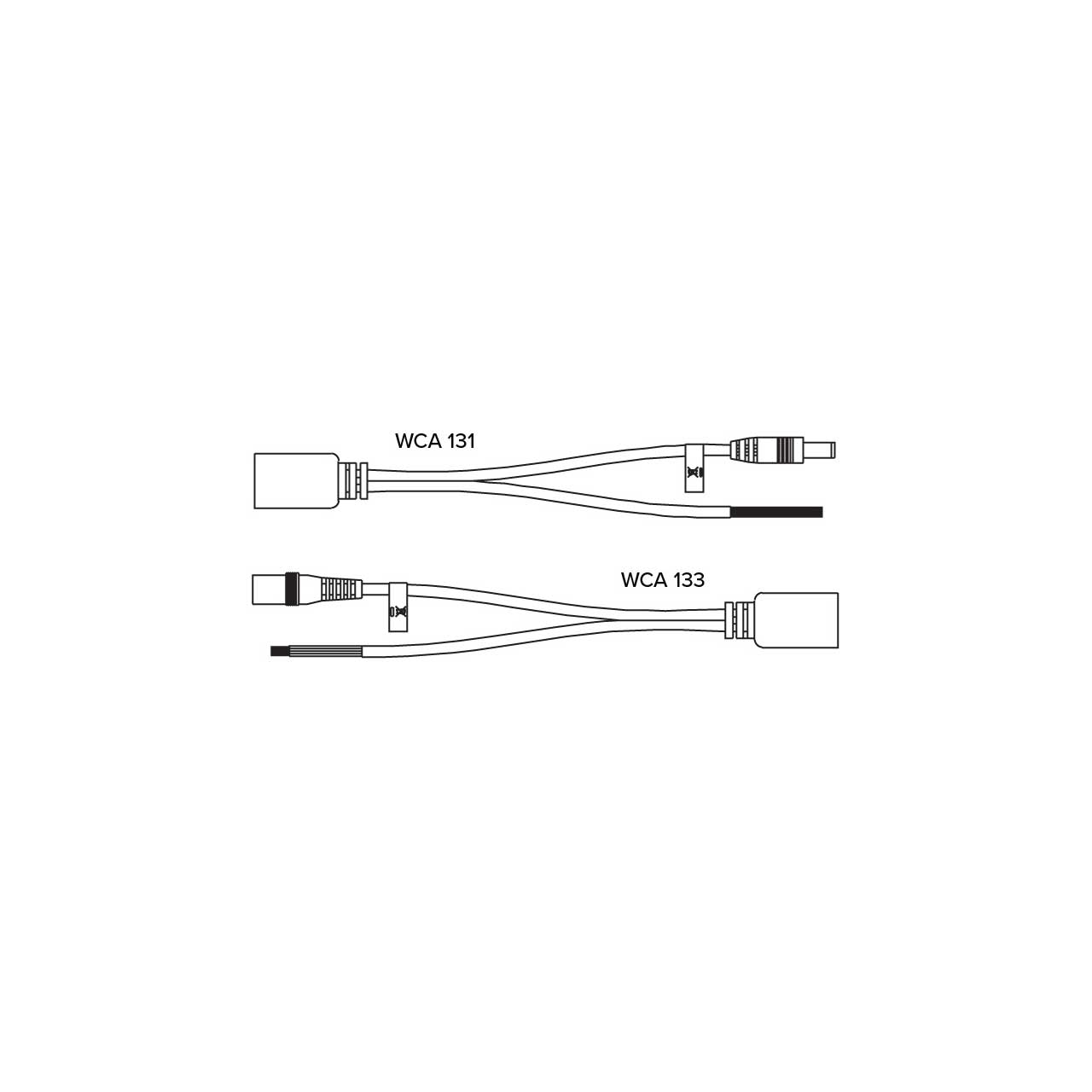

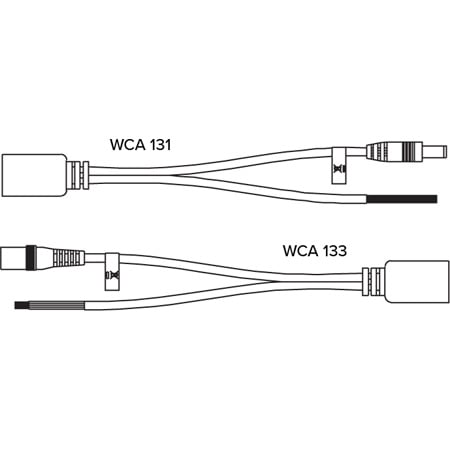

The Williams POE-KT1 is a POE Wiring Kit for the IR T2. The IR T2 is shipped with Williams Sound's TFP 057 (48VDC power supply). The IR T2 is also compatible with the Williams Sound POE 001 Power over Ethernet transformer, and with most POE switches. Using Williams Sound's passive POE injector kits (POE KT1 and POE KT2) allows the installer of an IR T2 to provide POE power and one of the following three options:
1 channel of balanced line level audio
1 or 2 channels of unbalanced line level audio
RS-232 control and monitoring signal
CAT5 cable contains four twisted pairs of wires, two of which are used for POE, and the remaining wires can be used for the additonal features.
Note: The IR T2 is NOT compatible with POE+ power supplies unless they are backwards compatible with POE standards.
Note: We cannot guarantee the audio quality of IR T2 units powered from a third-party POE switch, as they may introduce noise into the system.
Note: This kit should be used for applications using the power supply included with the IR T2 (TFP 057).
