WILLIAMS AV PPA R37-12 PRO PPA Select FM Receiver Bundle-12 Receivers 12 Rechargeable Batteries 12 Earphones & Charger

ITEM #: WLS-PPA-R3712PRO MFG #: PPA R37-12 PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,880.00

Our Price:

$2,593.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PPA R37-12 PRO - Overview

Flexible and simple
The WILLIAMS AV PPA R37-12 PRO PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with Williams Sound 72-76 MHz transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.

NOTE: The PPA Select Receiver requires a transmitter operating on 72-76 MHz. The PPA Select is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your governmentÝs radio regulations for 72-76 MHz operation.

  • Features:

    • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
    • Channel-lock capability
    • Battery-saving sleep mode
    • Low-battery indicator
    • Field tunable

  • Specifications:

    • bat 026-2
    • NiMH, 1.2 Volt, 1500 mAh

      chg 3512 pro
    • Size: 18"L x 14"W x 6.75"H (45.7 cm L x 35.5 cm W x 17.1 cm H)
    • Weight: 10.7 lbs (4.85 kg)
    • Color: Black ABS
    • Power Supply Input: 90 - 240 VAC input
    • Power Supply: TFP 037 Switching AC adapter, 5 VDC - 4A output
    • Charging Rate: 16 Hour Charge: 140 mA
    • Pulse/Maintain: 140 mA
    • Charging Time: 16 hours nominal
    • Unit Capacity: 12 Units
    • Indicators: Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged
    • Warranty: 1 year (cables and power supply warrantied for 90 days)
    • Approvals: CE, WEEE, RoHS

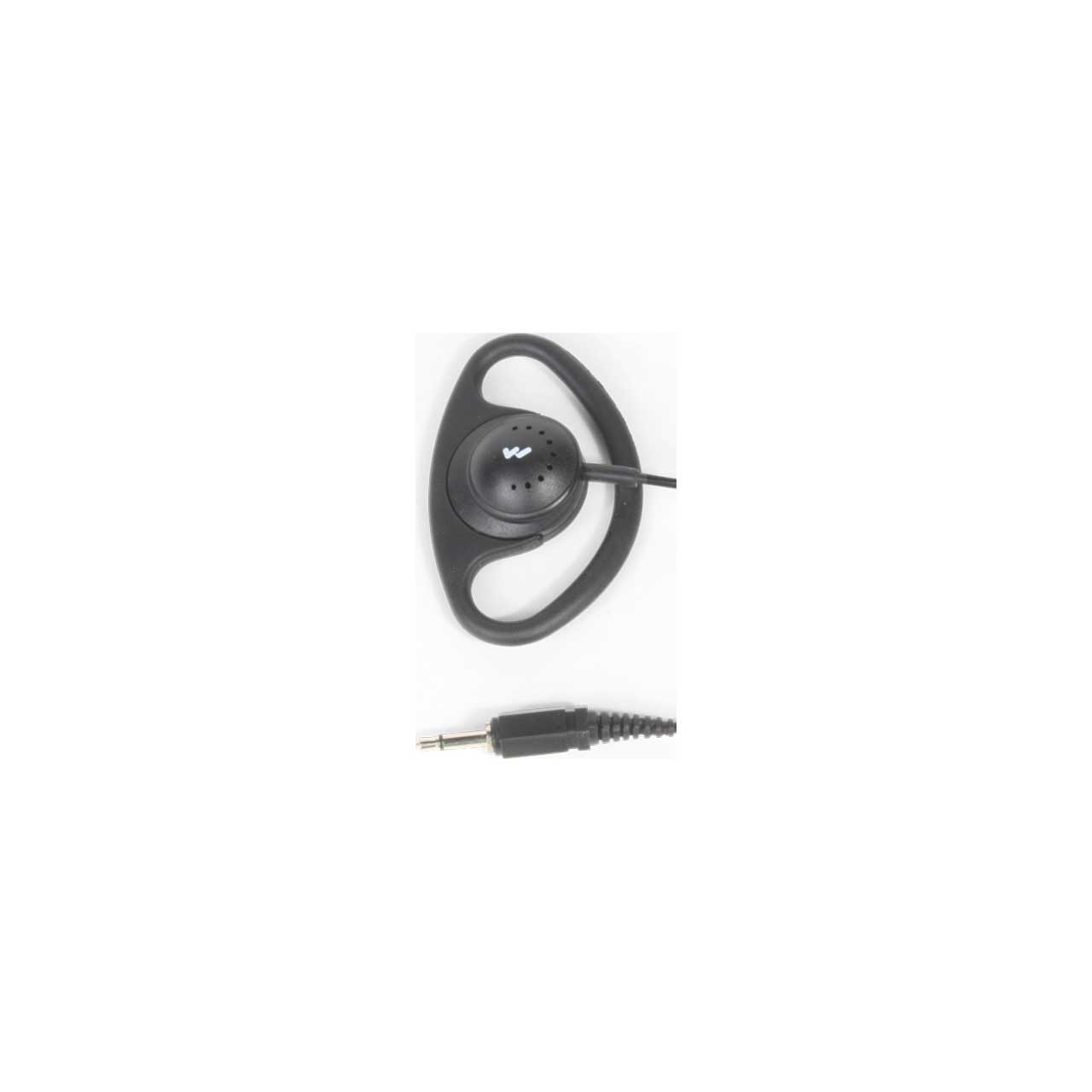

      ear 022
    • Style: Around-ear speaker
    • Plug: 3.5mm mono
    • Cord: 39"
    • Driver Size: 23 mm
    • Nominal Impedance: 32Ω
    • Freq. Response: 20 - 20kHz
    • Weight: 15g
    • Max Power Input: 30 mW
    • Sensitivity: 118 dB @ 1kHz

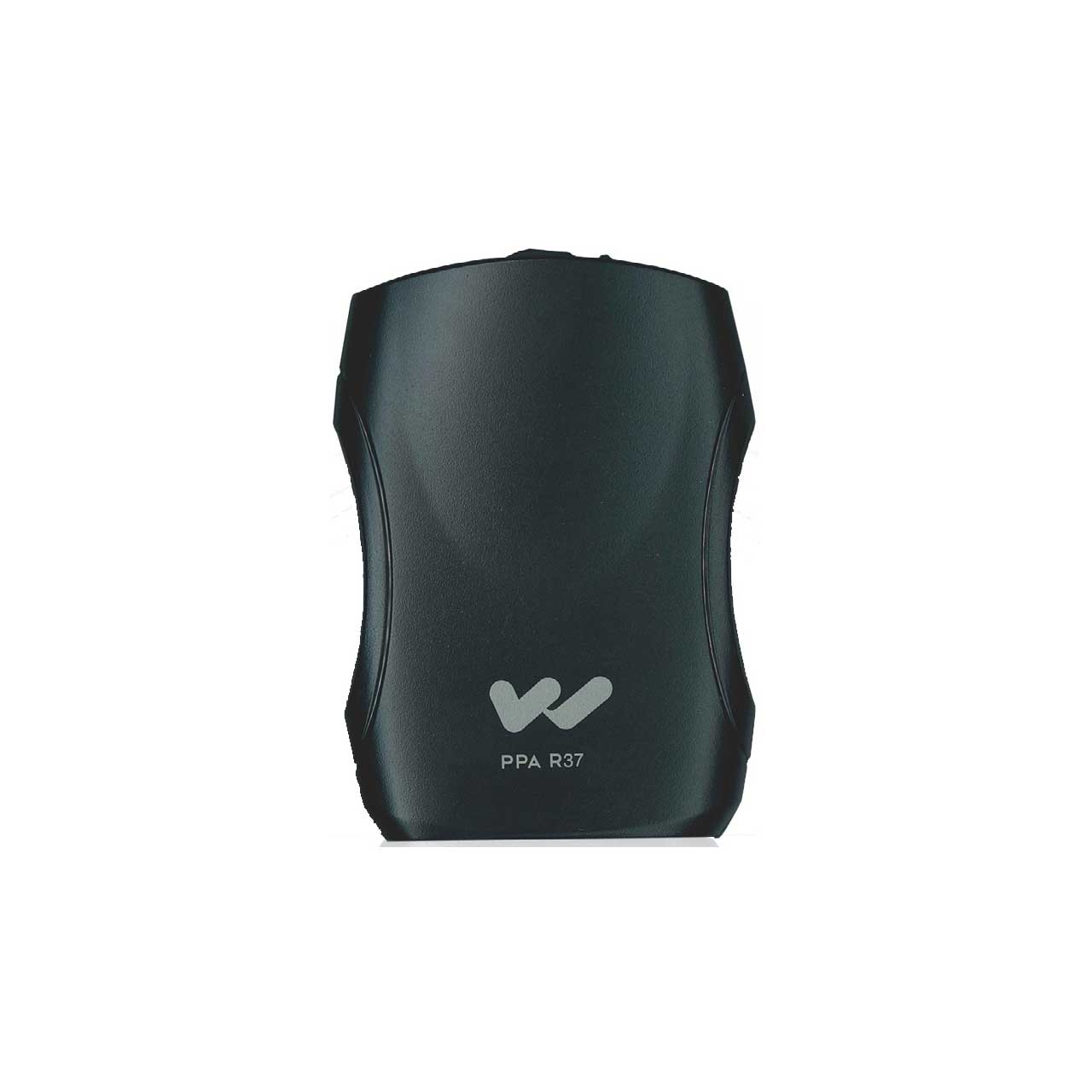

      ppa r37
    • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
    • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
    • Color: Black
    • Battery Type: (2) AA Alkaline or 2 x AA NiMH
    • Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
    • Current Consumption: 52mA nominal
    • Temperature Range: - 0 to 50C
    • Channels: 17, accessed via seek button in battery compartment
    • Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
    • Intermediate Freq.: 75 kHz
    • FM Deviation: 75 kHz
    • De-Emphasis: 75 µS
    • LED Indicator: Power: Green; Low Battery: Flashes Green
    • AFC Range: ± 120 kHz
    • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
    • Input Overload: 100 mV
    • Frequency Response: 200 - 15 kHz
    • Modulation: FM, +/- 75 kHz peak deviation
    • Signal-to-Noise Ratio: 65 dB min @ 100 uV
    • Receive Antenna: Integral with earphone/headphone cord
    • Audio Output: 35 mW max, peak into 16 ohms
    • Output Connector: 3.5 mm stereo/mono phone jack
    • Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
    • Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
    • Approvals: FCC, Industry Canada, RoHS, WEEE

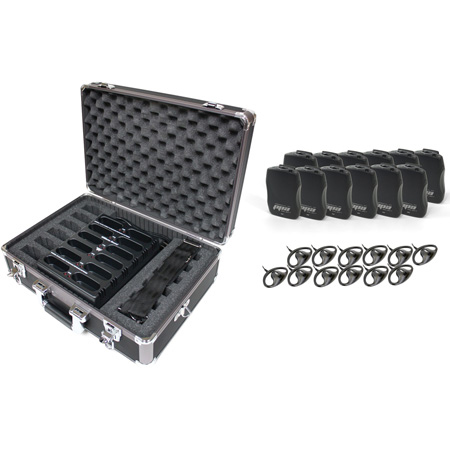

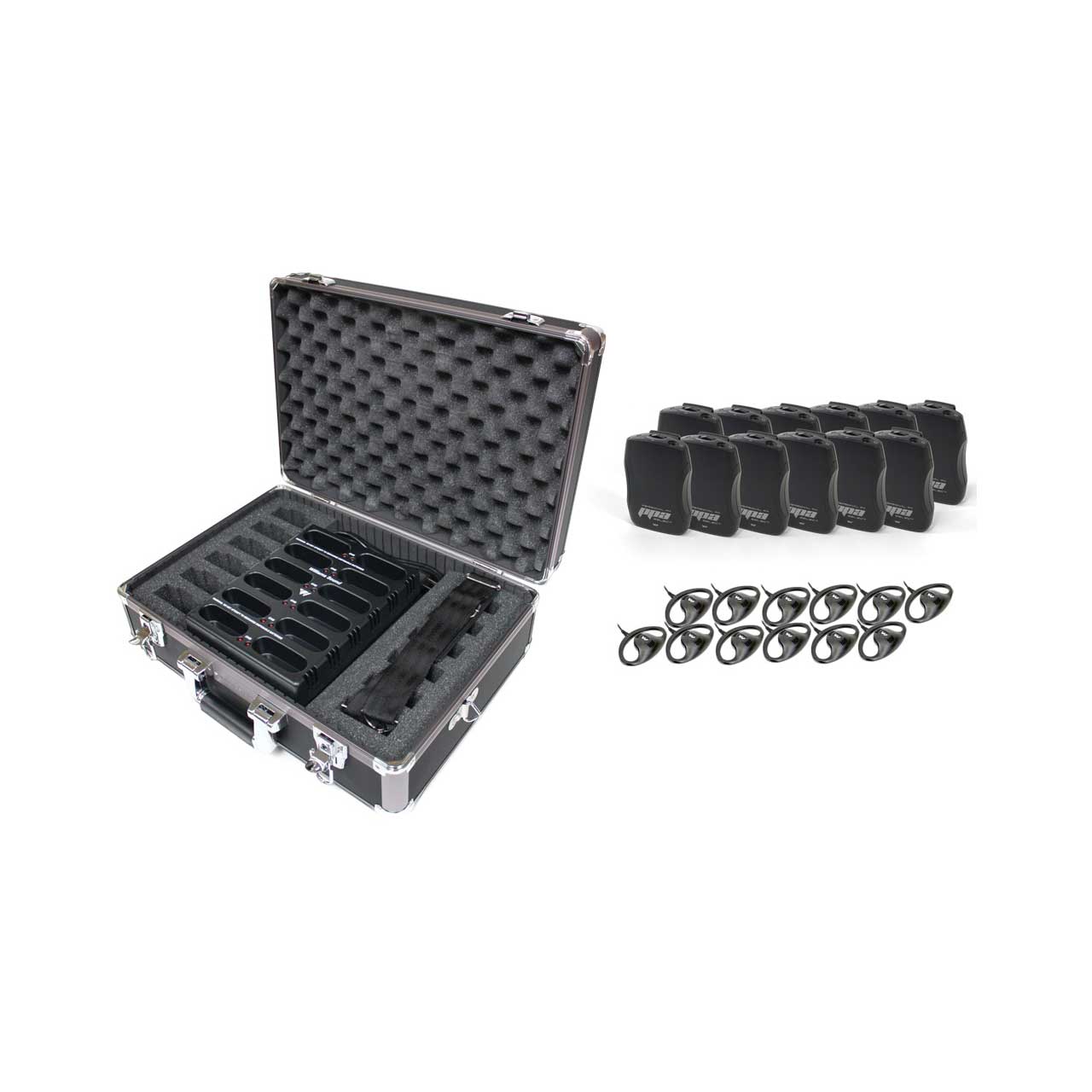

  • Item Includes:

    • (12) PPA R37N Receivers
    • (12) BAT 026-2 AA NiMH Rechargeable Batteries
    • (12) EAR 022 Surround Earphones

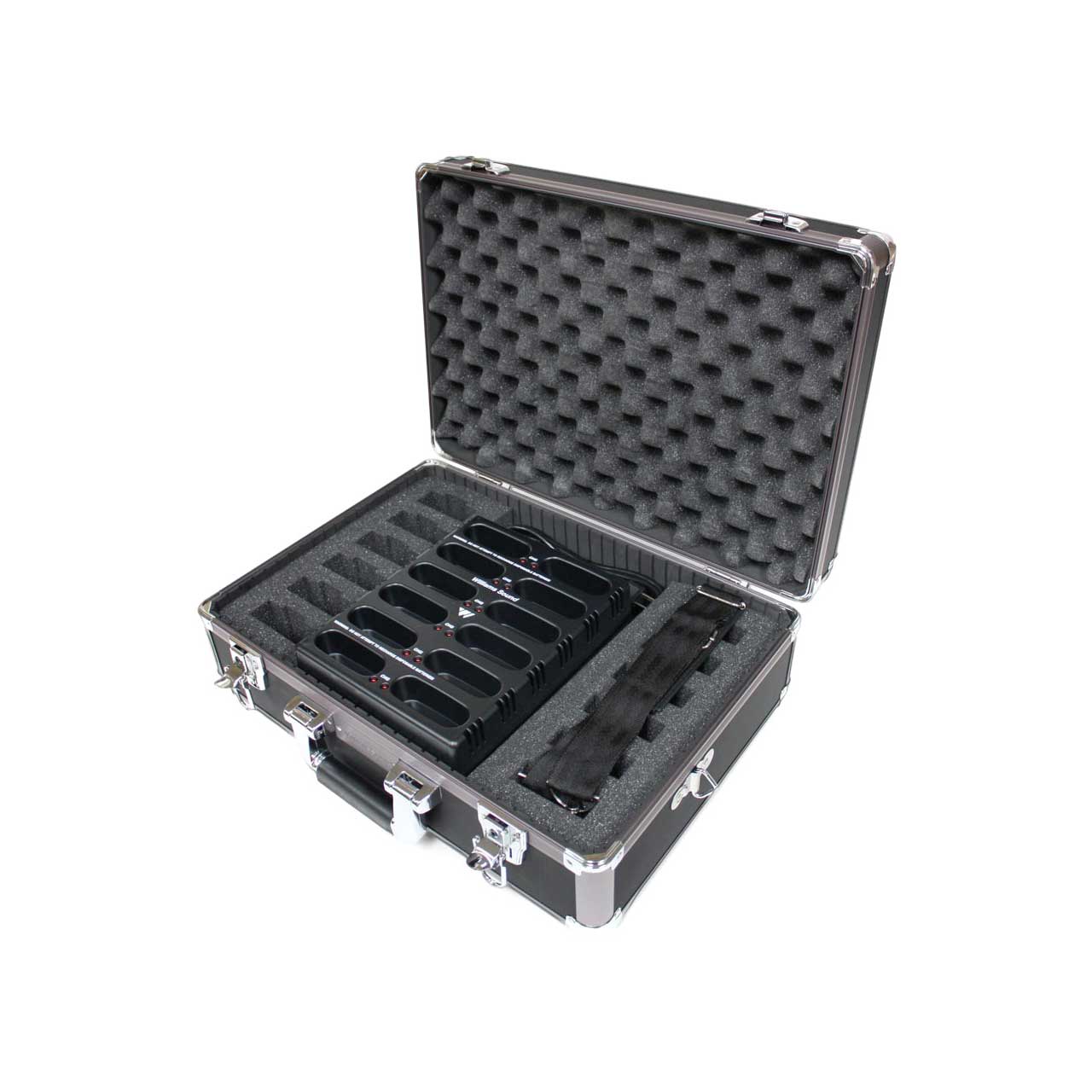

    • (1) CHG 3512 PRO Charger
